Model Electrolux RER302GD0 RANGE – Common Parts & Diagrams

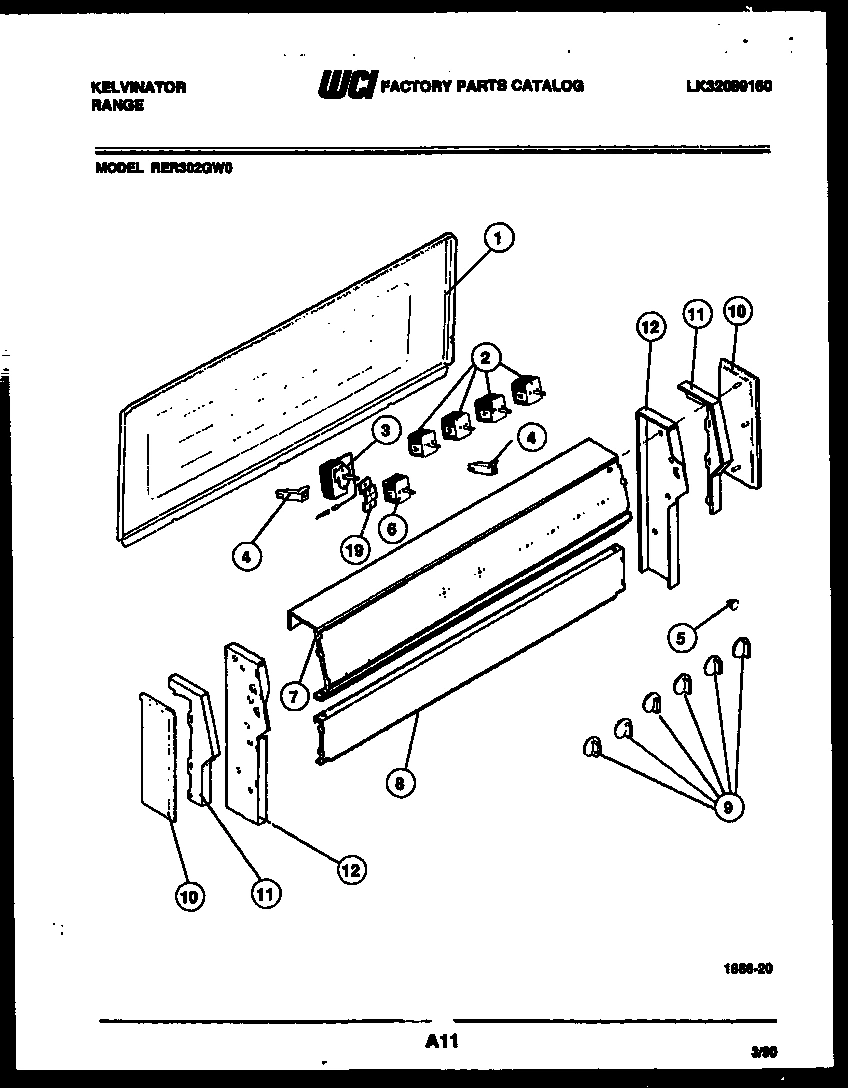

02 - BACKGUARD PARTS

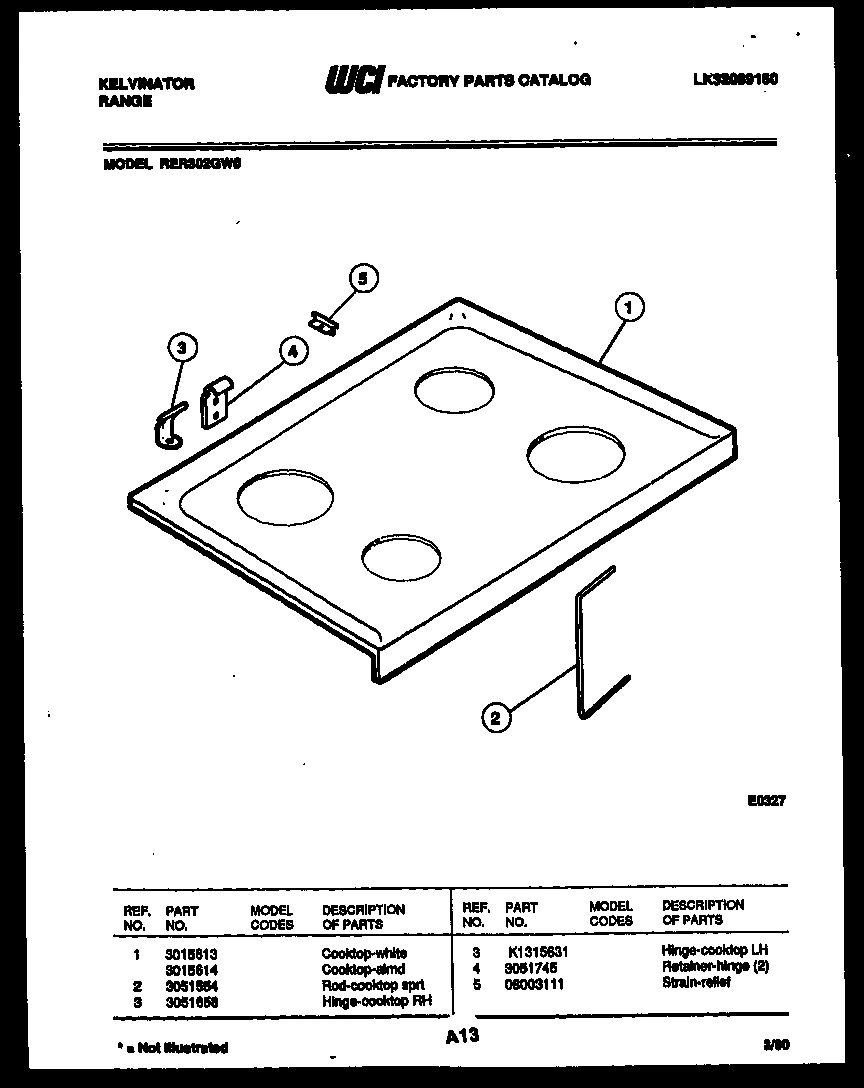

03 - COOKTOP PARTS

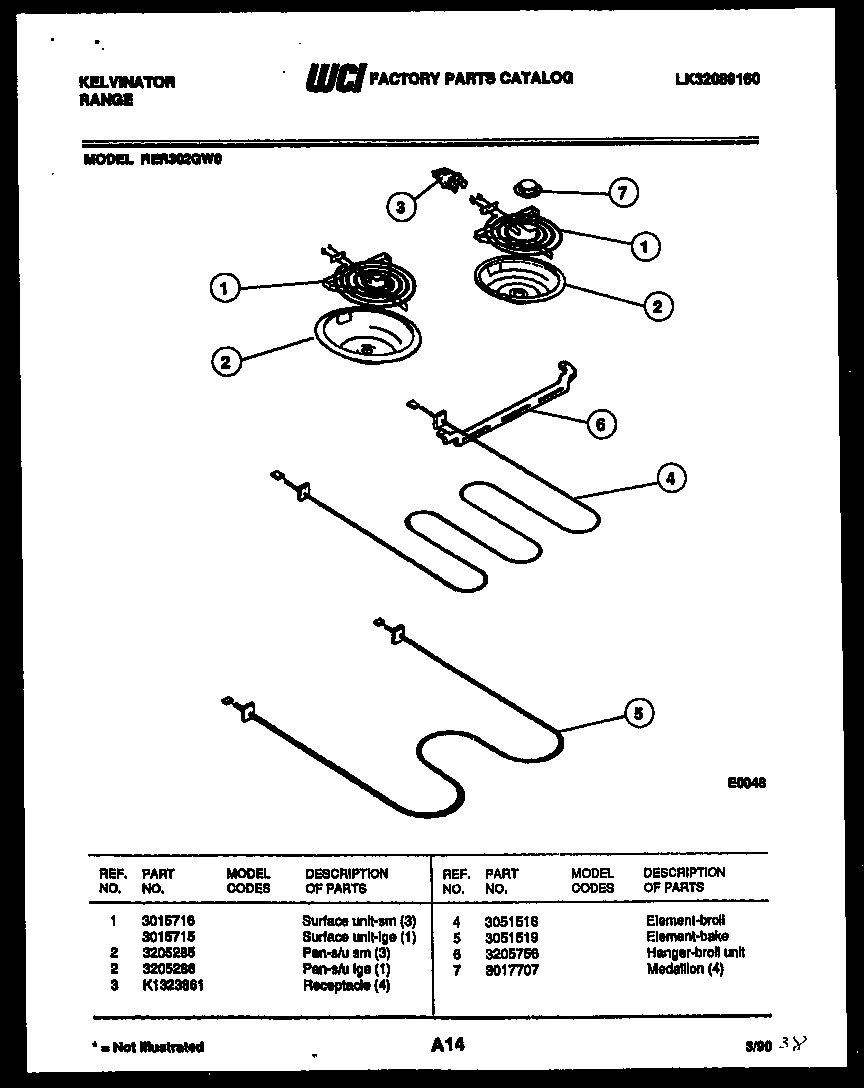

04 - BROILER PARTS

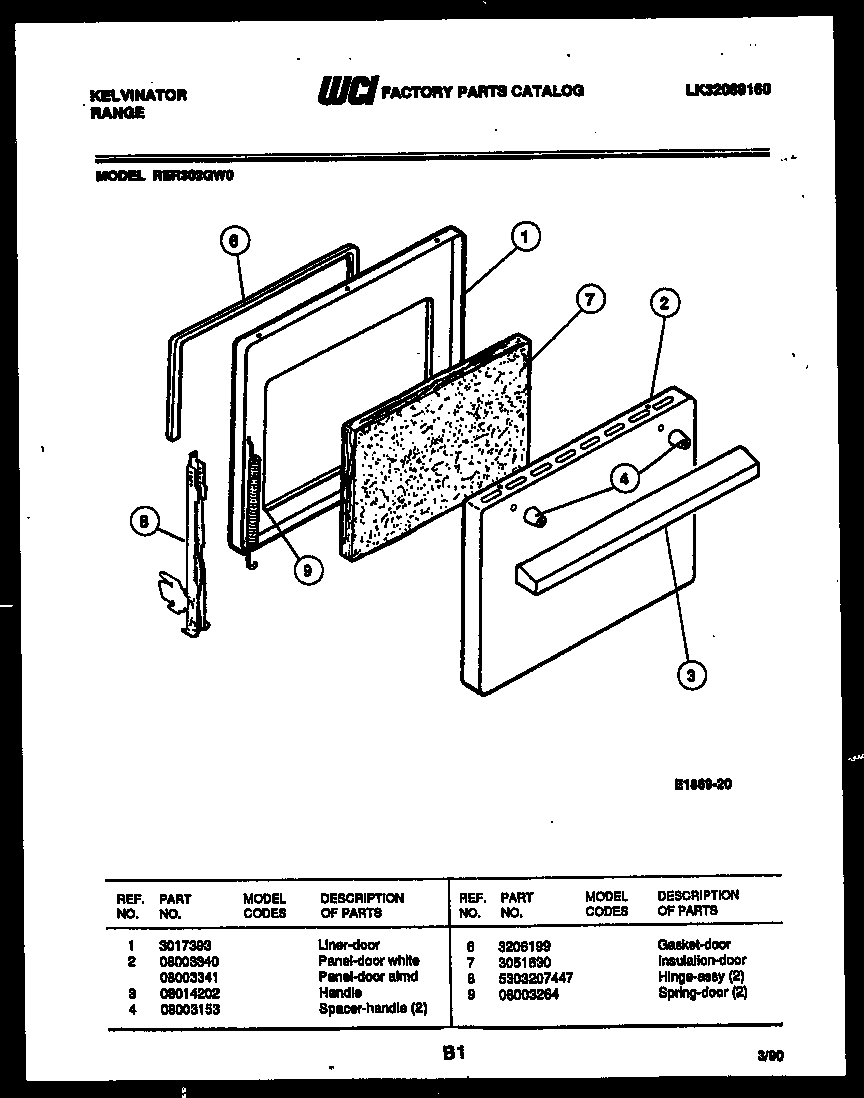

05 - DOOR PARTS

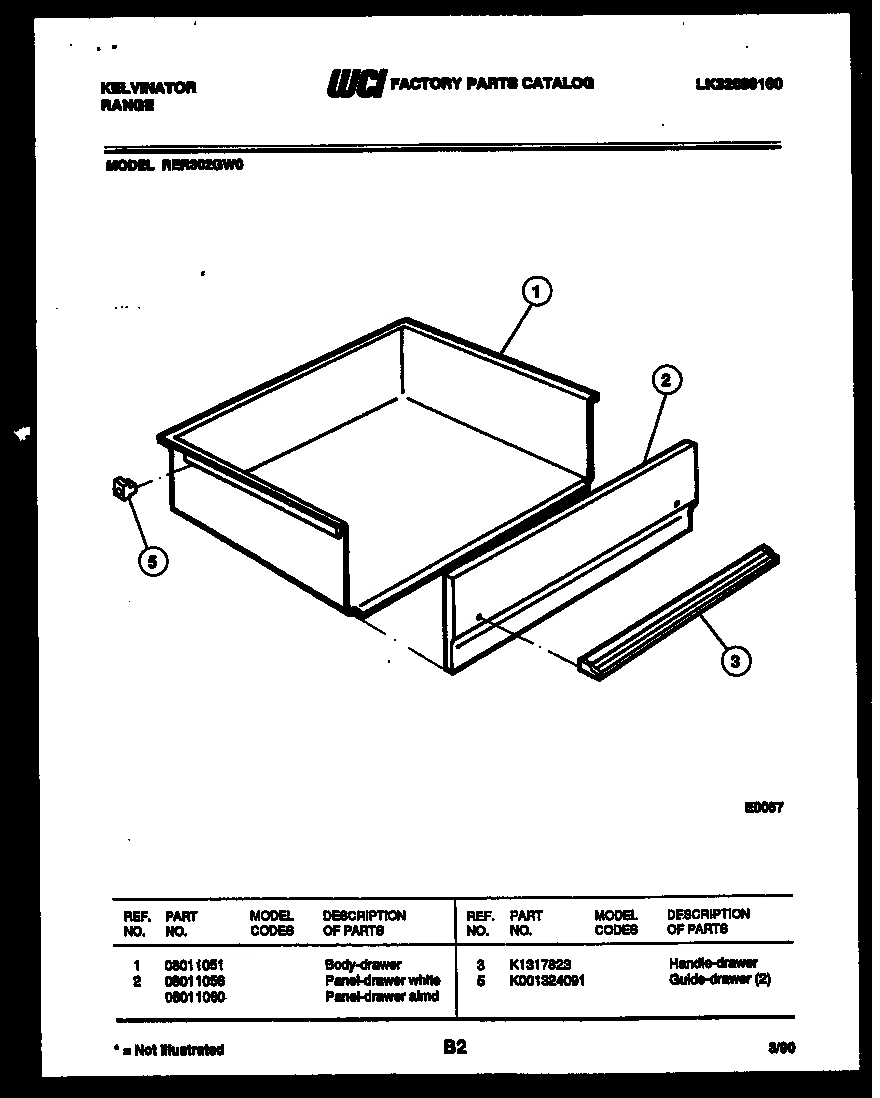

06 - DRAWER PARTS

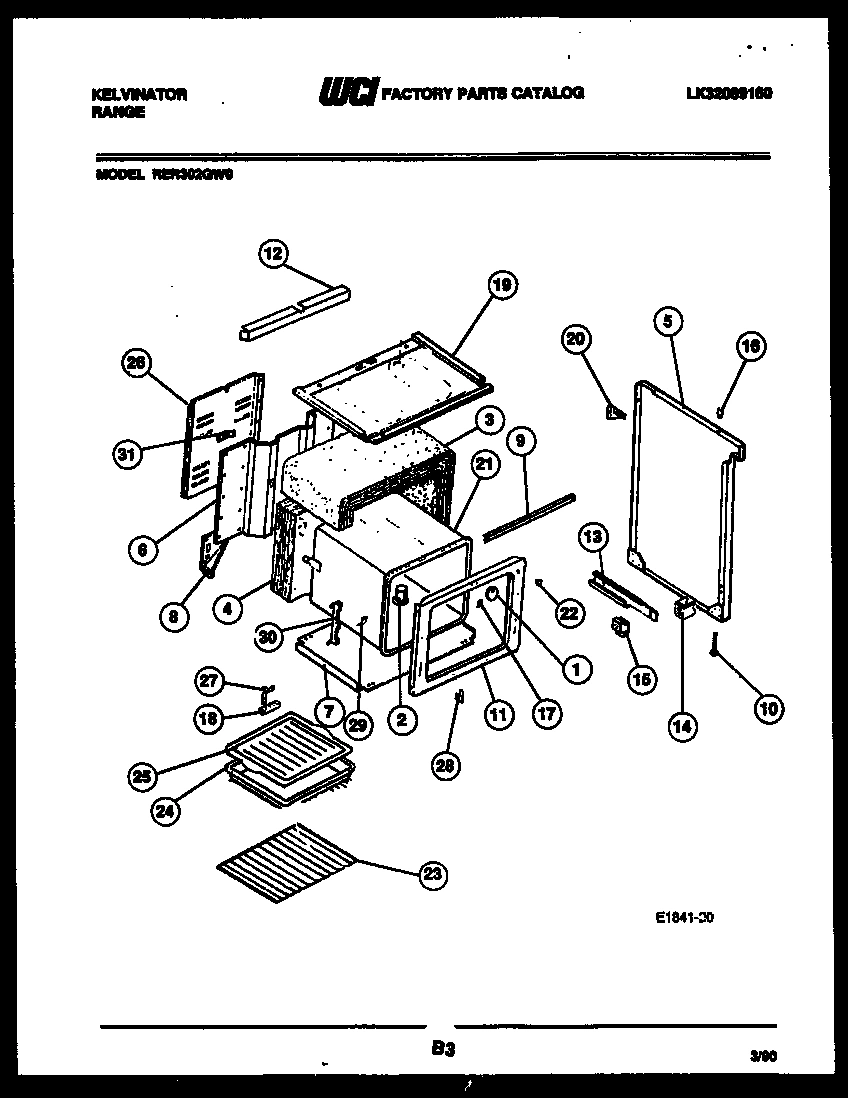

07 - BODY PARTS
Common parts from model Electrolux RER302GD0 RANGE
*10945
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
COOKTOP-ALMD WCI 3015614 Contact Us For Availability
1
WCI 3017393 WCI 3017393 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
1
COVER - OVEN IT HOLE WCI 3017576 Contact Us For Availability
2
ROD - COOKTOP SPRT WCI 3051554 Contact Us For Availability
2
PANEL-DOOR ALMD WCI 08003341 Contact Us For Availability
2
WCI 08011060 WCI 08011060 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2A
WCI K0001313767 WCI K0001313767 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
3
WCI 08014202 WCI 08014202 Contact Us For Availability
3
HANDLE, DRAWER WCI K1317823 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI 3051521 Contact Us For Availability
4
SIGNAL LIGHT-S/U WCI 08015930 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
WCI 08003153 WCI 08003153 Contact Us For Availability
4
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
4A
SIGNAL LIGHT-OVEN WCI 3051678 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
5
PANEL-SIDE RH ALMD WCI 3051719 Contact Us For Availability
5A
PANEL-SIDE LH ALMD WCI 3051484 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08016480 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
GASKET-DOOR WCI 3206199 Contact Us For Availability
6
WCI 3205757 WCI 3205757 Contact Us For Availability
7
WCI 5303207451 WCI 5303207451 Contact Us For Availability
7
MEDALLION (4) WCI 3017707 Contact Us For Availability
7
WCI 3206275 WCI 3206275 Contact Us For Availability
8
PANEL - BACKSPLASH (ALMOND) WCI 3201461 Contact Us For Availability
8
WCI 5303207447 WCI 5303207447 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
KNOB-S/U (6) WCI 3051698 Contact Us For Availability
9
WCI 08003264 WCI 08003264 Contact Us For Availability
9
WCI 5303207391 WCI 5303207391 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI K5128102 WCI K5128102 Contact Us For Availability
11
FRAME-FRONT WCI 5303207446 Contact Us For Availability
11A
WCI K5128101 WCI K5128101 Contact Us For Availability
12
SUPPORT-BACKGRD RH WCI 3051670 Contact Us For Availability
12
WCI 3205755 WCI 3205755 Contact Us For Availability
12A
SUPPORT-BACKGRD LH WCI 3051671 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15
GUIDE-DRWR FRNT (2) WCI 3051654 Contact Us For Availability
16
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
17
WCI 3202082 WCI 3202082 Contact Us For Availability
19
WCI 08003252 WCI 08003252 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
GUSSET-BACKGRD (2) WCI 3204821 Contact Us For Availability
21
WCI 3206079 WCI 3206079 Contact Us For Availability
22
WCI 3051784 WCI 3051784 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI 3019063 WCI 3019063 Contact Us For Availability
29
WCI 3201632 WCI 3201632 Contact Us For Availability
30
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
30A
CLIP-CAPILLARY (2) (NON-ILLUSTRATED) WCI 9126 Contact Us For Availability
31
WCI 3016281 WCI 3016281 Contact Us For Availability
× ![]()
