Model Electrolux RER302CV2 RANGE – Common Parts & Diagrams

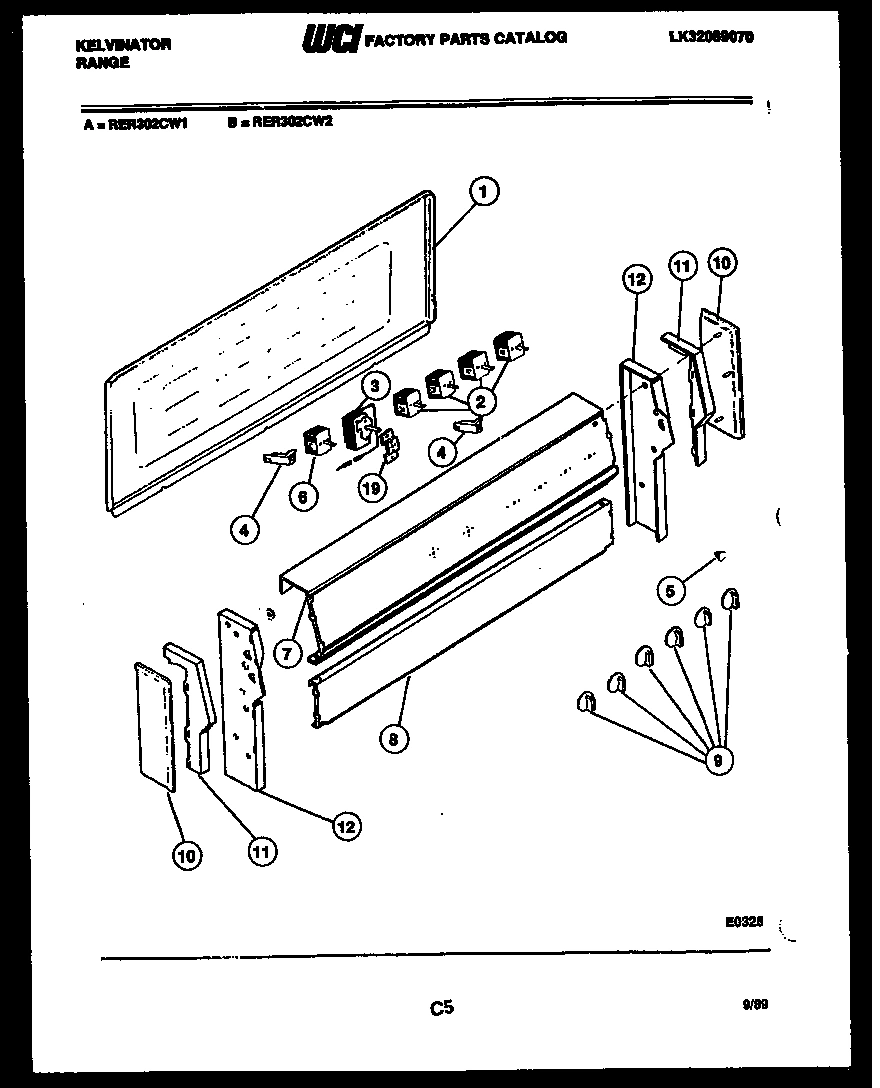

02 - BACKGUARD PARTS

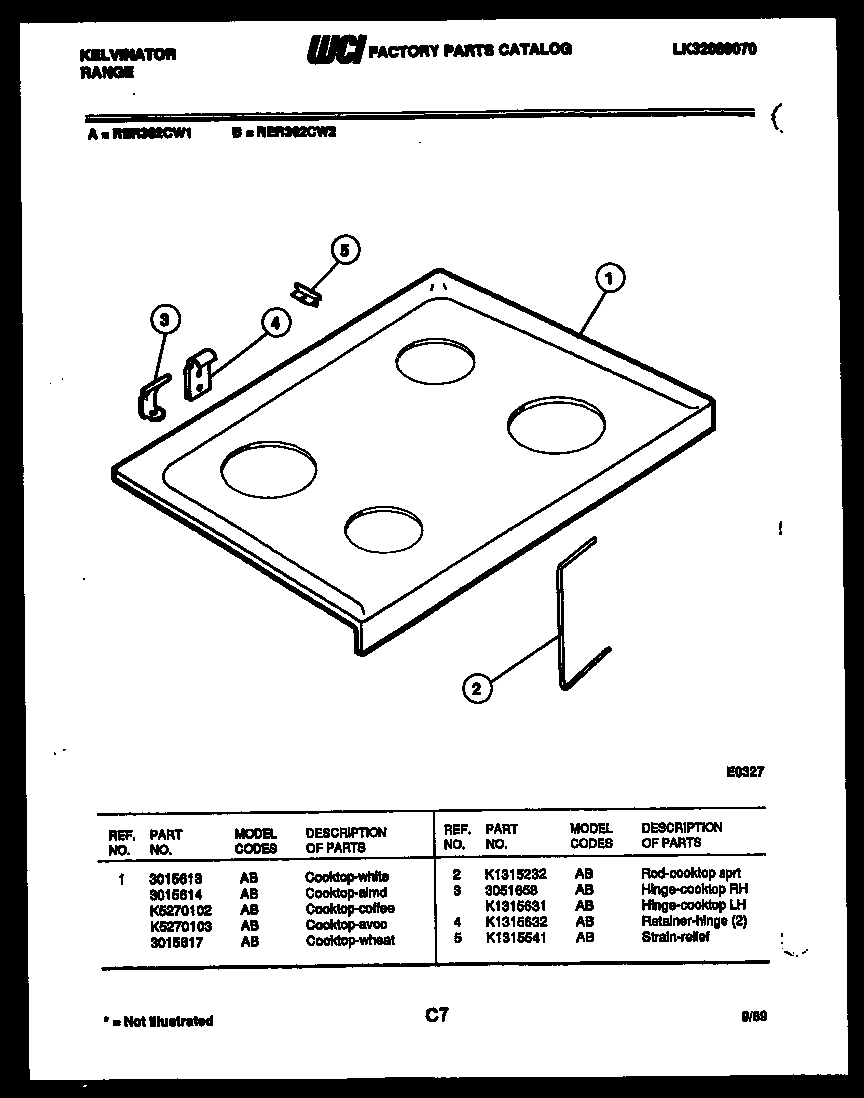

03 - COOKTOP PARTS

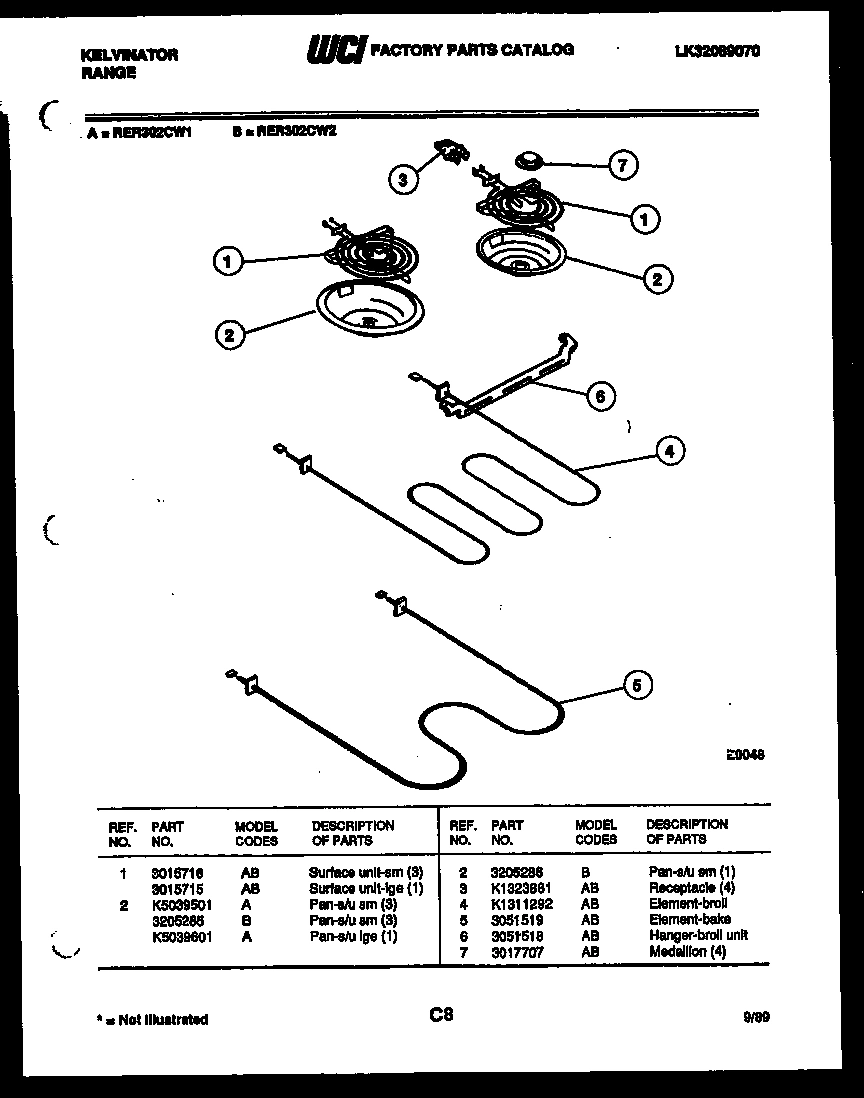

04 - BROILER PARTS

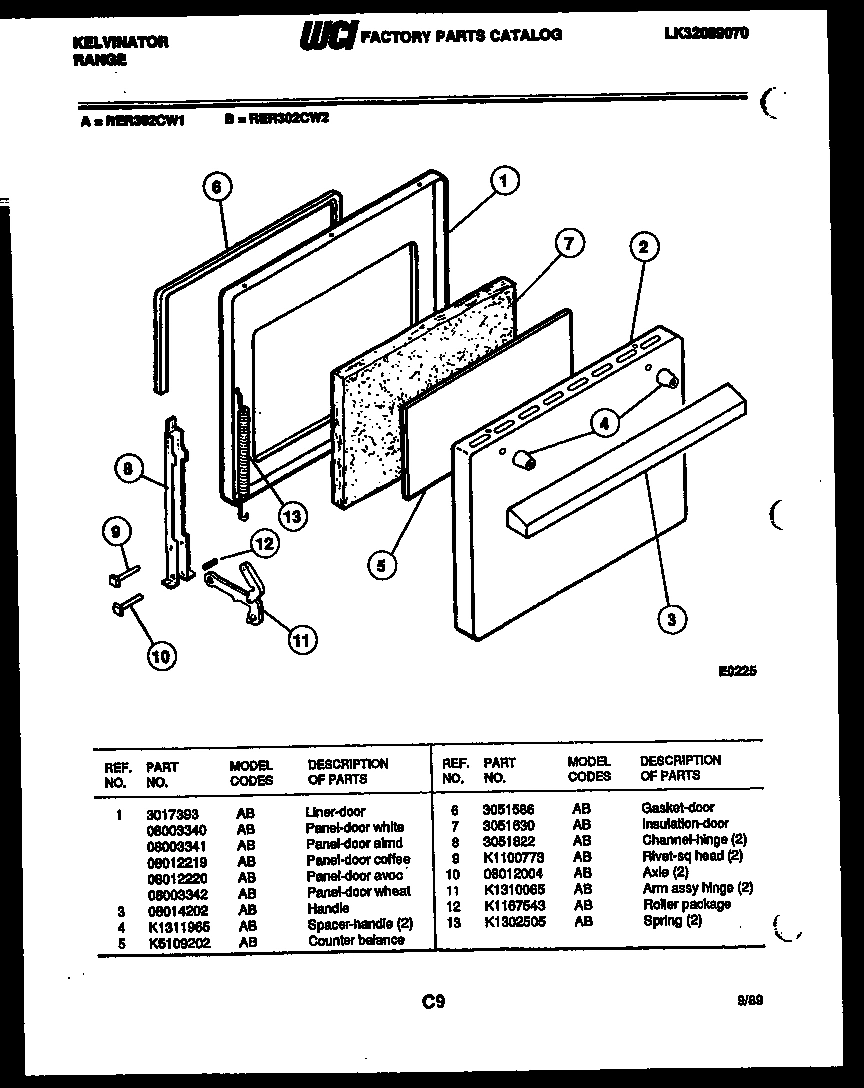

05 - DOOR PARTS

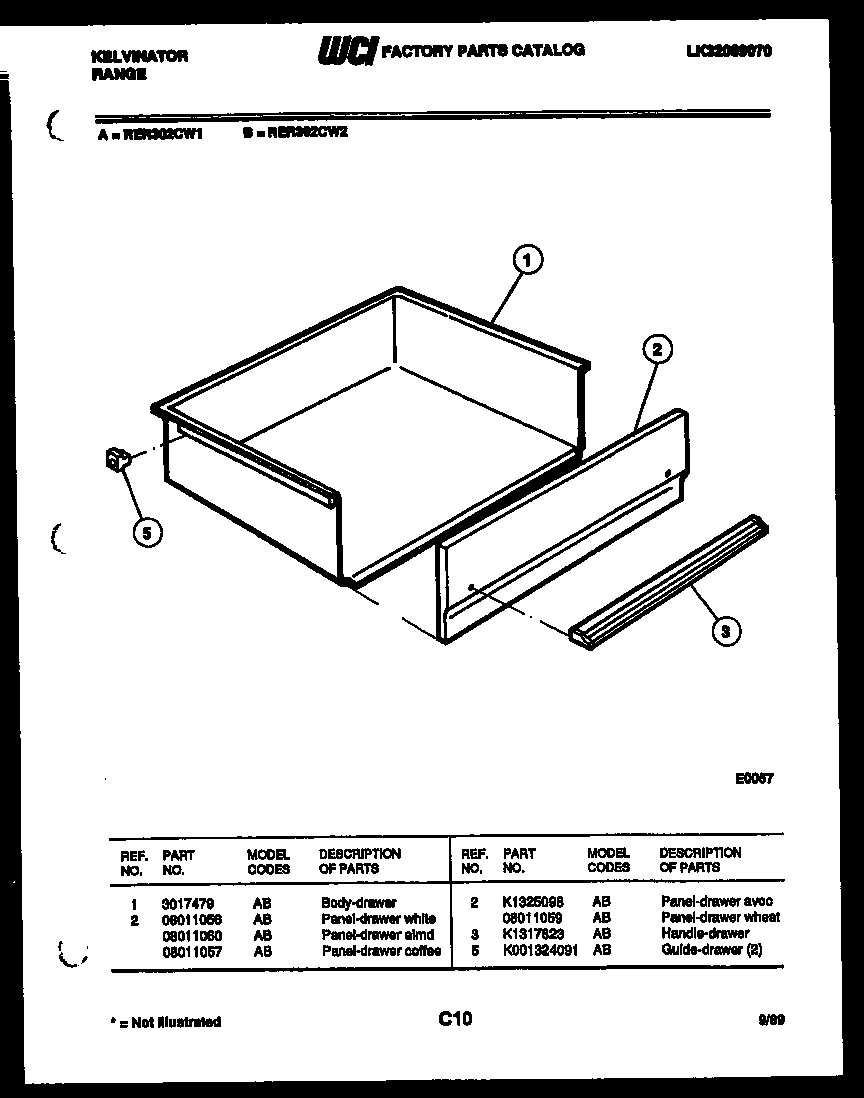

06 - DRAWER PARTS

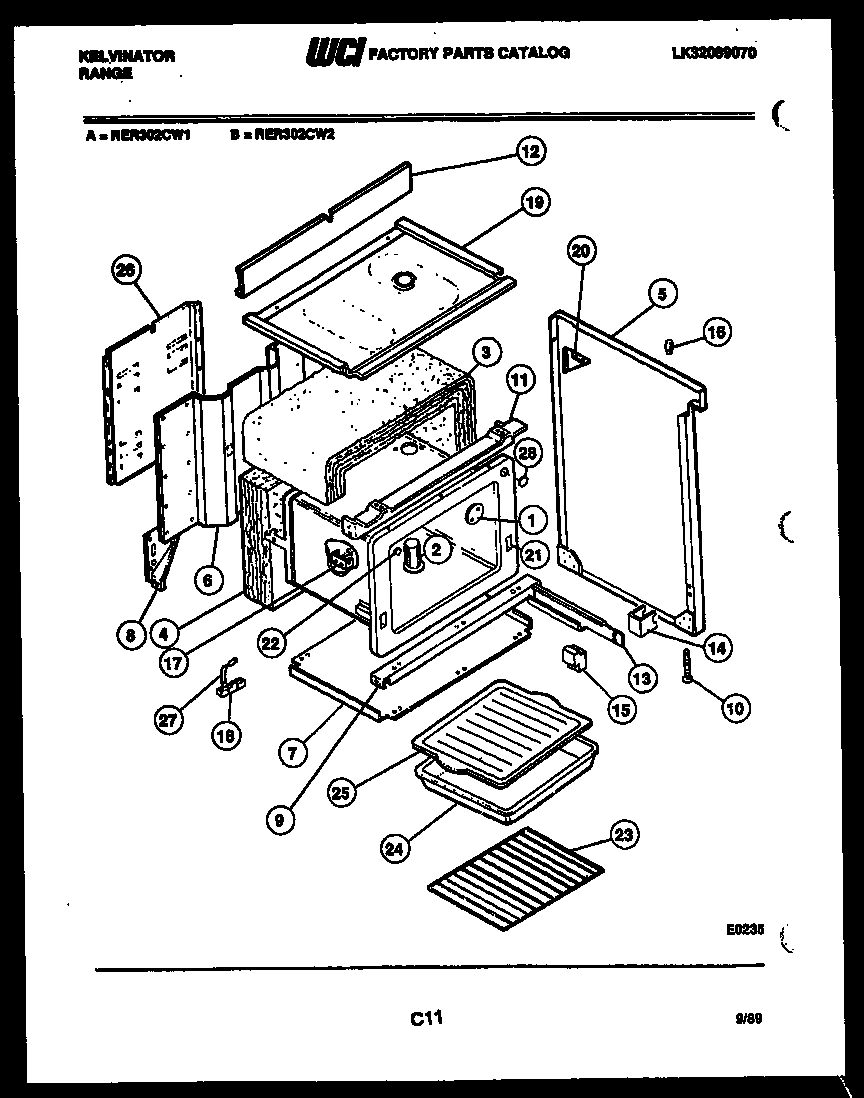

07 - BODY PARTS
Common parts from model Electrolux RER302CV2 RANGE
*10351
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
COOKTOP-AVOC WCI K5270103 Contact Us For Availability
1
WCI 3017393 WCI 3017393 Contact Us For Availability
1
WCI 3017479 WCI 3017479 Contact Us For Availability
1
COVER - OVEN IT HOLE WCI 3017576 Contact Us For Availability
1A
PANEL-DOOR AVOC WCI 08012220 Contact Us For Availability
2
ROD-COOKTOP SPRT WCI K1315232 Contact Us For Availability
2
WCI K1325098 WCI K1325098 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
2A
WCI K0001313767 WCI K0001313767 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
WCI 08014202 WCI 08014202 Contact Us For Availability
3
HANDLE, DRAWER WCI K1317823 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI K1311329 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT-S/U WCI 08015930 Contact Us For Availability
4
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
4
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
4
WCI K1325625 WCI K1325625 Contact Us For Availability
4A
SIGNAL LIGHT - OVEN WCI K5138901 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
COUNTER BALANCE WCI K5109202 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
5
PANEL-SIDE RH AVOC WCI K5024607 Contact Us For Availability
5A
PANEL-SIDE LH AVOC WCI K5024608 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08016480 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
GASKET-DOOR WCI 3051586 Contact Us For Availability
6
WCI 3017535 WCI 3017535 Contact Us For Availability
7
WCI K5267701 WCI K5267701 Contact Us For Availability
7
MEDALLION (4) WCI 3017707 Contact Us For Availability
7
INSULATION-DOOR WCI 3051630 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
WCI K5137604 WCI K5137604 Contact Us For Availability
8
CHANNEL - HINGE (2) WCI 3051822 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
KNOB-S/U (6) WCI 3051698 Contact Us For Availability
9
RIVET-SQ HEAD (2) WCI K1100773 Contact Us For Availability
9
CHANNEL - OVEN SPRT WCI 3200927 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
AXLE (2) WCI 08012004 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI K5128102 WCI K5128102 Contact Us For Availability
11
ARM ASSY HINGE (2) WCI K1310065 Contact Us For Availability
11
CHANNEL-OVEN SPRT. WCI 3200926 Contact Us For Availability
11A
WCI K5128101 WCI K5128101 Contact Us For Availability
12
SUPPORT-BACKGRD RH WCI 3051670 Contact Us For Availability
12
ROLLER PACKAGE WCI K1167543 Contact Us For Availability
12
WCI 3017633 WCI 3017633 Contact Us For Availability
12A
SUPPORT-BACKGRD LH WCI 3051671 Contact Us For Availability
13
SPRING (2) WCI K1302505 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER-DRWR RAIL (2) WCI K1324860 Contact Us For Availability
15
GUIDE-DRWR FRNT (2) WCI K1315216 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
BRACKET-THERMOSTAT BULB (2) WCI K1311369 Contact Us For Availability
19
WCI 08003252 WCI 08003252 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
21
WCI 3204603 WCI 3204603 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
PLUG-BUTTON WCI 3051784 Contact Us For Availability
× ![]()
