Model Electrolux REP375GW4 RANGE – Common Parts & Diagrams

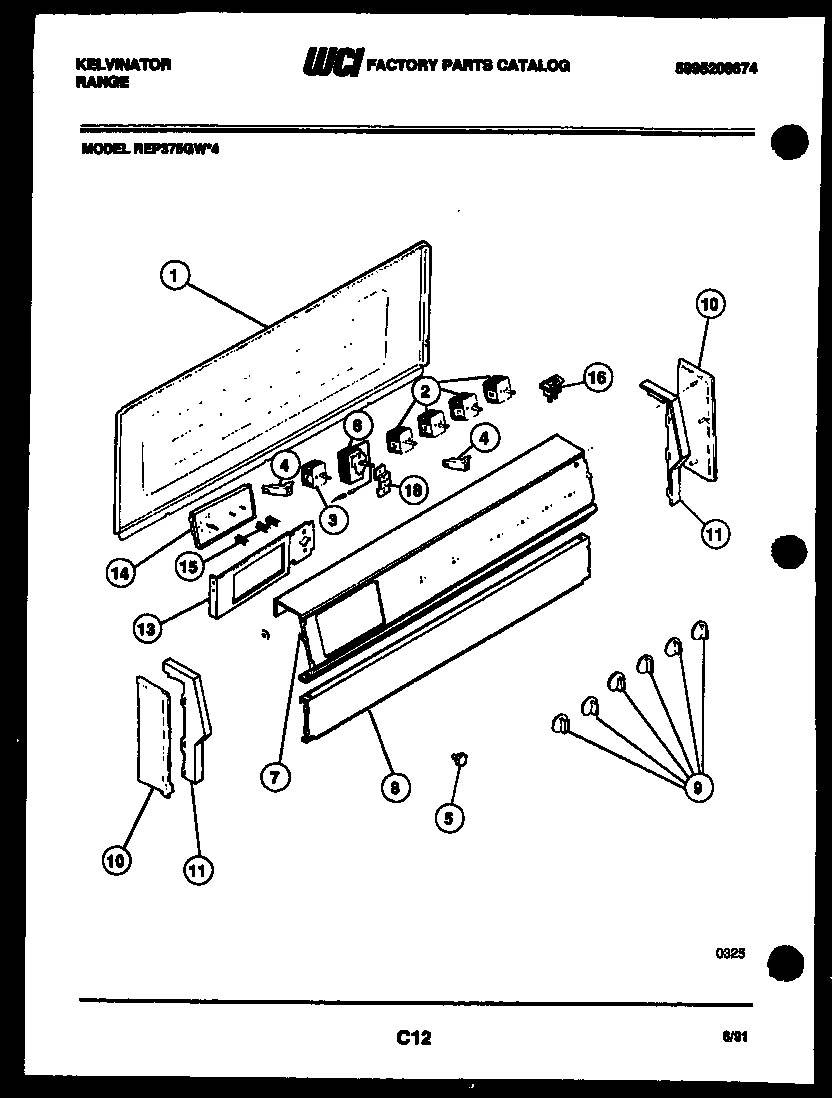

02 - BACKGUARD

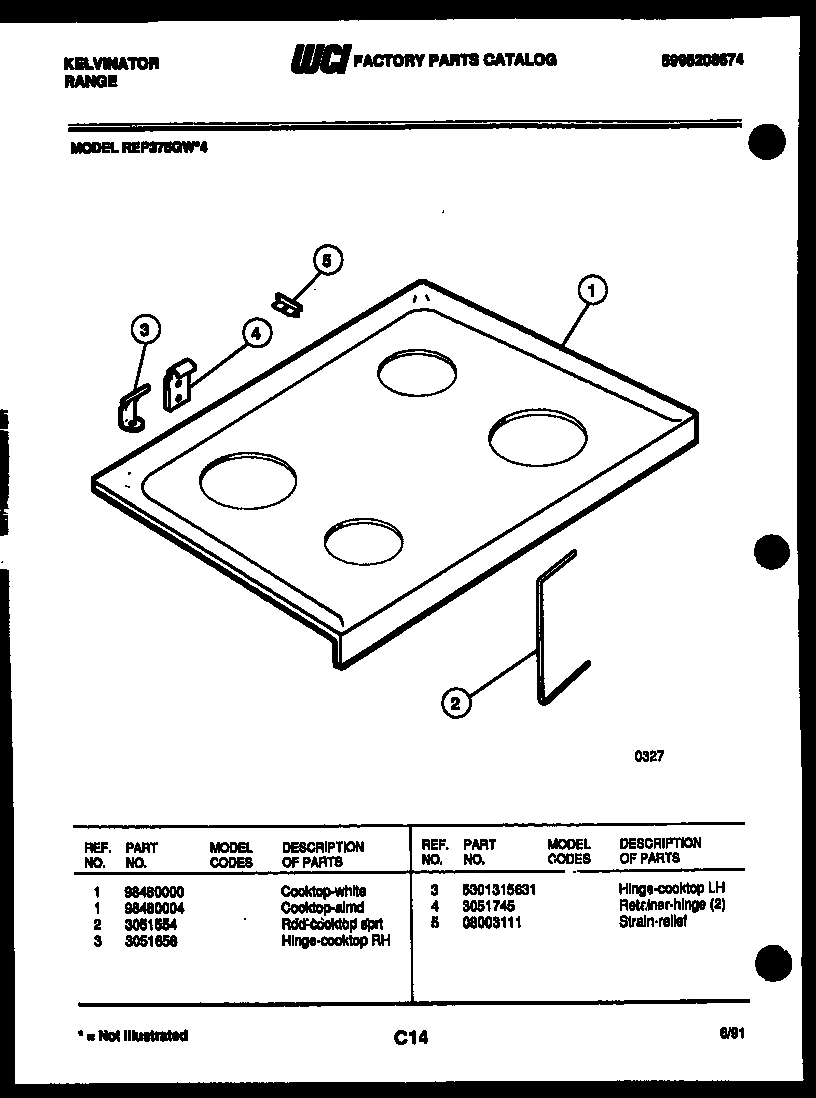

03 - COOKTOP PARTS
04 - BROILER PARTS
05 - DOOR PARTS
06 - OVEN BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux REP375GW4 RANGE
*20727
WCI 19100180130 WCI 19100180130 Contact Us For Availability
*20727
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
1
WCI 98480000 WCI 98480000 Contact Us For Availability
1
WCI 5308012546 WCI 5308012546 Contact Us For Availability
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
SIDE PANEL, LH WHITE WCI 5308012528 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
ROD - COOKTOP SPRT WCI 3051554 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HINGE-COOKTOP LH WCI 5301315631 Contact Us For Availability
3
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303212553 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 3017801 WCI 3017801 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
8
COLLAR-GLASS WELDMENT WCI 5303269564 Contact Us For Availability
9
KNOB-S/U (6) WCI 5303015698 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 3051674 WCI 3051674 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
WCI 5303207187 WCI 5303207187 Contact Us For Availability
11
WCI 3051672 WCI 3051672 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
13
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI K5260501 WCI K5260501 Contact Us For Availability
14
DOOR LINER WCI 3017530 Contact Us For Availability
15
KNOB-CLOCK (3) WCI 5301304907 Contact Us For Availability
15
DOOR HINGE ASSY (2) WCI 5303207589 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 5308003186 WCI 5308003186 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 5303051860 WCI 5303051860 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
BRACKET-THERMO MTG WCI 3202099 Contact Us For Availability
18
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
18
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
GASKET-GLASS WCI 5303269535 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
INSULATION-AIRWASH WCI 5303269530 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
46
WCI 3205755 WCI 3205755 Contact Us For Availability
48
WCI 3051810 WCI 3051810 Contact Us For Availability
48A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
49
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
