Model Electrolux REP375GW1 RANGE – Common Parts & Diagrams
02 - BACKGUARD PARTS
03 - COOKTOP PARTS

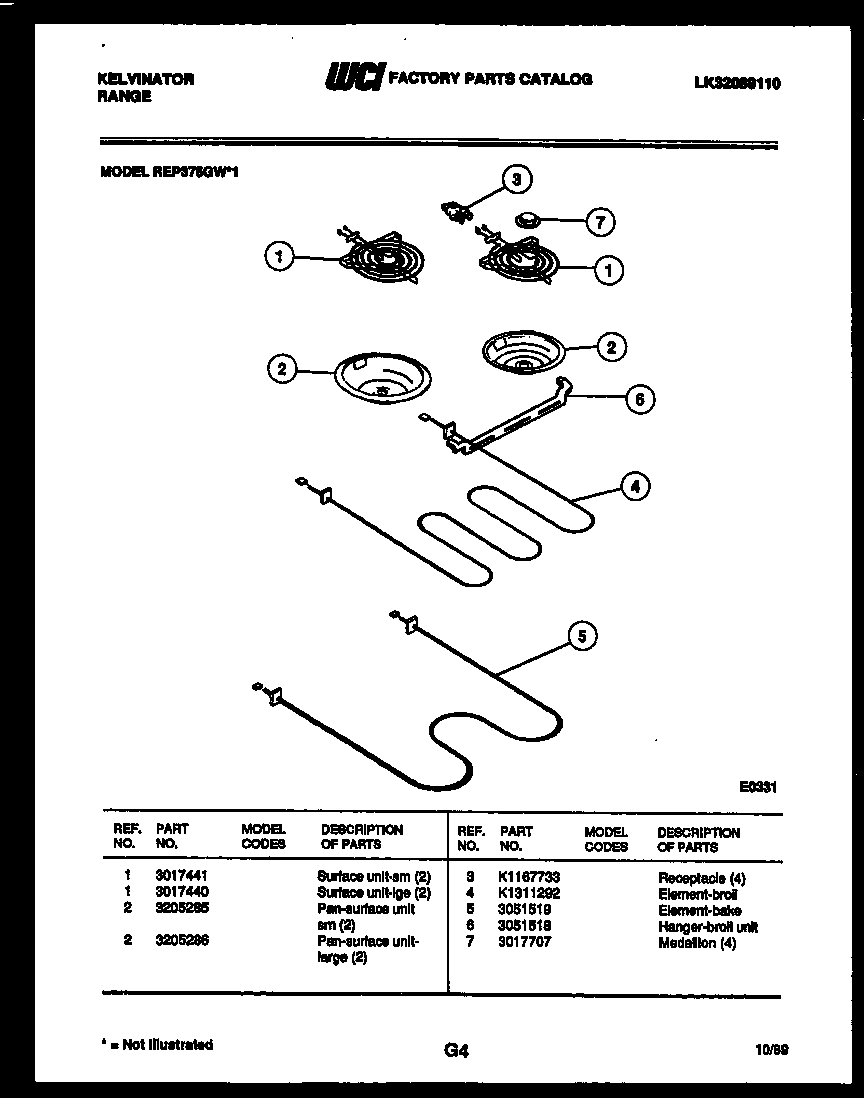

04 - BROILER PARTS

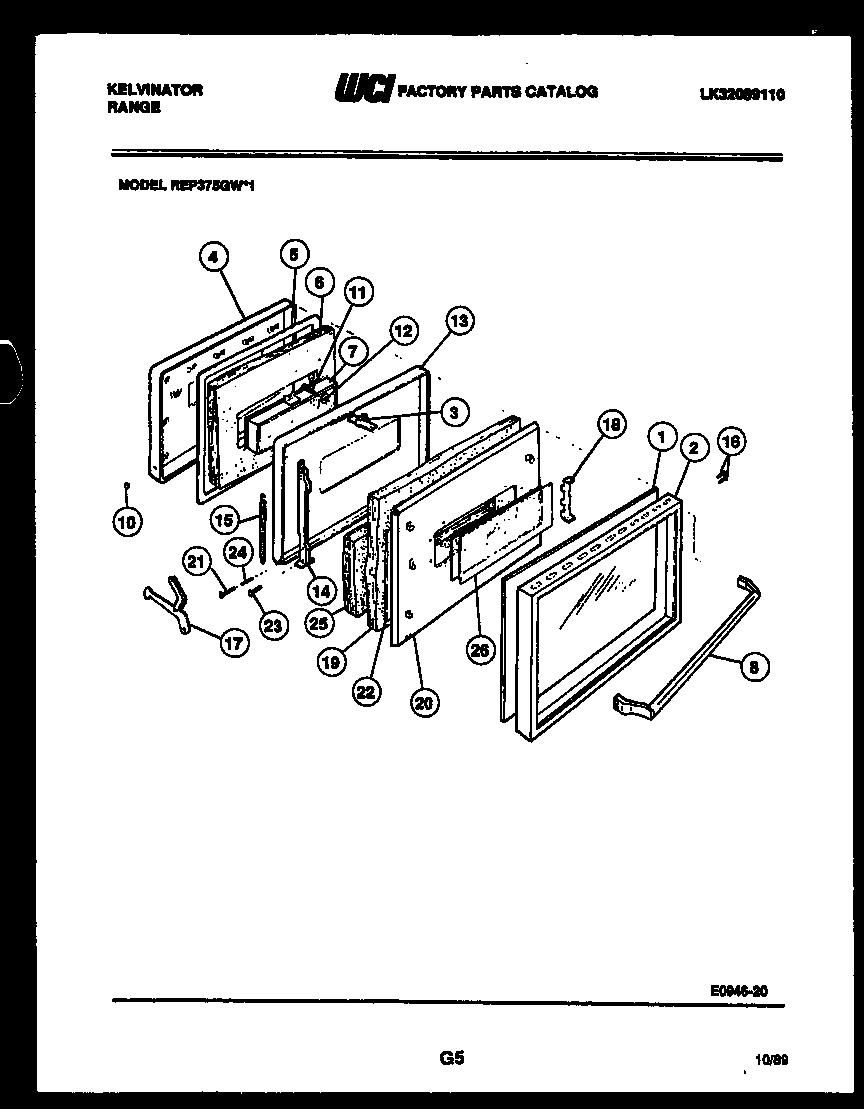

05 - DOOR PARTS

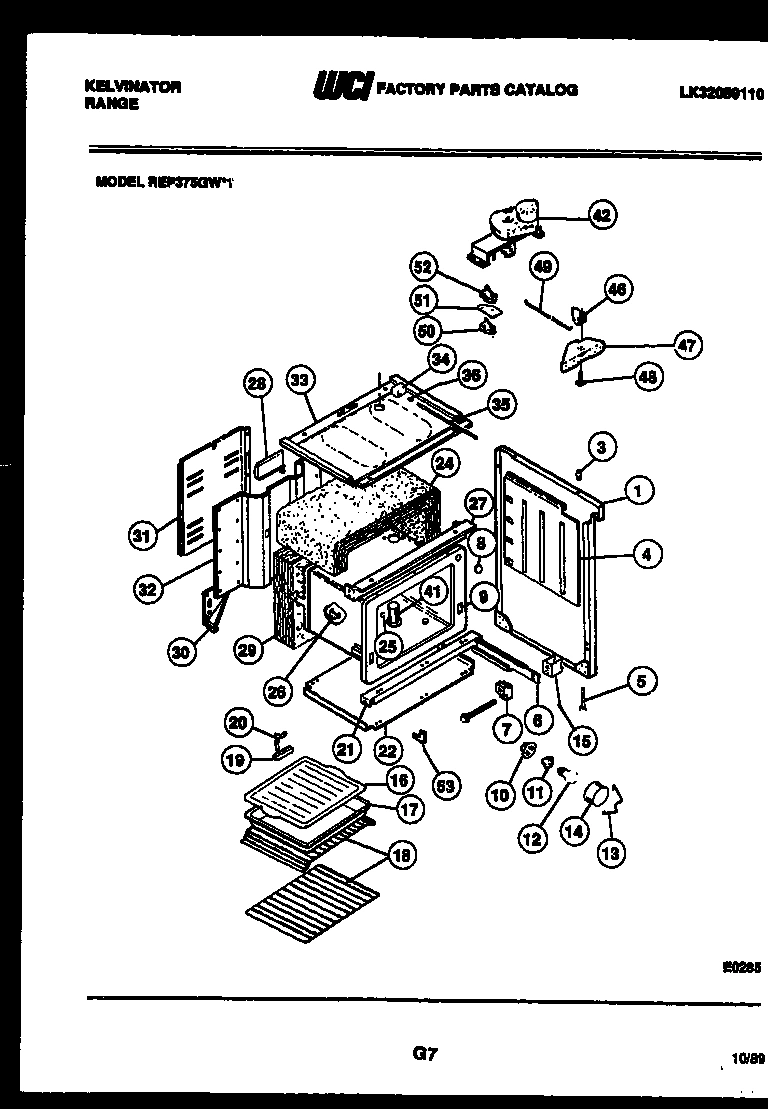

06 - BODY PARTS

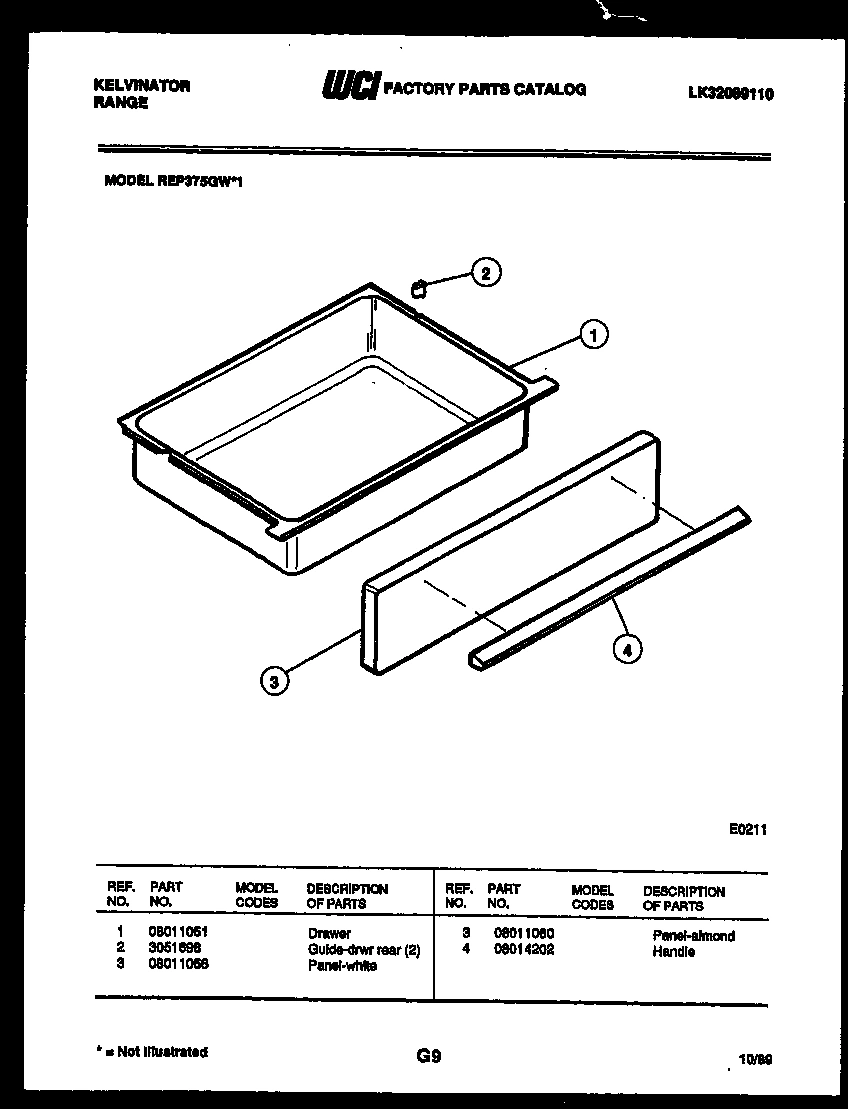

07 - DRAWER PARTS
Common parts from model Electrolux REP375GW1 RANGE
*81253
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
WCI K5270108 WCI K5270108 Contact Us For Availability
1
GLASS - OUTER WCI 08012546 Contact Us For Availability
1
SIDE PNL - RH (WHITE) WCI 08012527 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1A
SIDE PNL - LH (WHITE) WCI 08012528 Contact Us For Availability
2
ROD-COOKTOP SPRT WCI K1315232 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 3051698 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
4
WCI 3051679 WCI 3051679 Contact Us For Availability
4
SIGNAL LIGHT-S/U AND CLEAN (2) WCI K5138903 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
WCI 3017634 WCI 3017634 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
WCI 08014202 WCI 08014202 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
GASKET - OVEN DOOR WCI 3051704 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
WCI 08015771 WCI 08015771 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 3206298 WCI 3206298 Contact Us For Availability
7
MEDALLION (4) WCI 3017707 Contact Us For Availability
7
WCI 3205235 WCI 3205235 Contact Us For Availability
7
WCI 08003103 WCI 08003103 Contact Us For Availability
8
PANEL BACKSPLASH, WHITE WCI K5137602 Contact Us For Availability
8
WCI 3205317 WCI 3205317 Contact Us For Availability
8
PLUG BUTTON-OVEN LIGHT HOLE WCI 3051784 Contact Us For Availability
9
KNOB-S/U (6) WCI 3015698 Contact Us For Availability
9
OVEN LINER WCI 3204603 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 3051674 WCI 3051674 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
BUTTON-PLUG WCI 08003167 Contact Us For Availability
11
WCI 3051672 WCI 3051672 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
WCI 08004957 WCI 08004957 Contact Us For Availability
12
SUPPORT-BACKGRD RH WCI K5127701 Contact Us For Availability
12
SUPPORT-BACKGRD LH WCI K5127702 Contact Us For Availability
13
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
13
DOOR LINER WCI 3017530 Contact Us For Availability
13
RETAINER - LENS WCI 3205904 Contact Us For Availability
14
WCI K5260501 WCI K5260501 Contact Us For Availability
14
WCI 3051822 WCI 3051822 Contact Us For Availability
15
KNOB-CLOCK (3) WCI K1304907 Contact Us For Availability
15
DOOR - SPRING WCI 08003186 Contact Us For Availability
15
WCI 08011055 WCI 08011055 Contact Us For Availability
16
SWITCH-OVEN IT WCI 3051687 Contact Us For Availability
16
WCI 08012564 WCI 08012564 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI K5051701 WCI K5051701 Contact Us For Availability
17
WCI 08003183 WCI 08003183 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18
BRACKET-THERMO MTG WCI 08015745 Contact Us For Availability
18
WCI 08003178 WCI 08003178 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
20
WCI 3051712 WCI 3051712 Contact Us For Availability
20
WCI 08003146 WCI 08003146 Contact Us For Availability
21
RIVET-SQUARE HD (2) WCI 08012004 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
22
WCI 3051862 WCI 3051862 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
24
ROLLER PKG-OVEN DOOR WCI 08950070 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 3051628 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
PLUG-BUTTON THERMO WCI 3051796 Contact Us For Availability
26
WCI 3051713 WCI 3051713 Contact Us For Availability
26
BRKT, THERMOBULB WCI 3051552 Contact Us For Availability
27
CHANNEL-OVEN WCI K1325636 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
COVER - WIRE WCI 3051856 Contact Us For Availability
32
WCI 3017535 WCI 3017535 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED (NON-ILLUSTRATED) WCI 08002847 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
WCI 3051645 WCI 3051645 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
WCI 08015743 WCI 08015743 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3019074 Contact Us For Availability
48
WCI 08003184 WCI 08003184 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH - LOWER WCI 3007889 Contact Us For Availability
51
WCI 08003090 WCI 08003090 Contact Us For Availability
52
SWITCH - UPPER WCI 08003092 Contact Us For Availability
53
WCI 3051810 WCI 3051810 Contact Us For Availability
× ![]()
