Model Electrolux REP309CT2 RANGE – Common Parts & Diagrams
02 - BACKGUARD PARTS
03 - COOKTOP PARTS

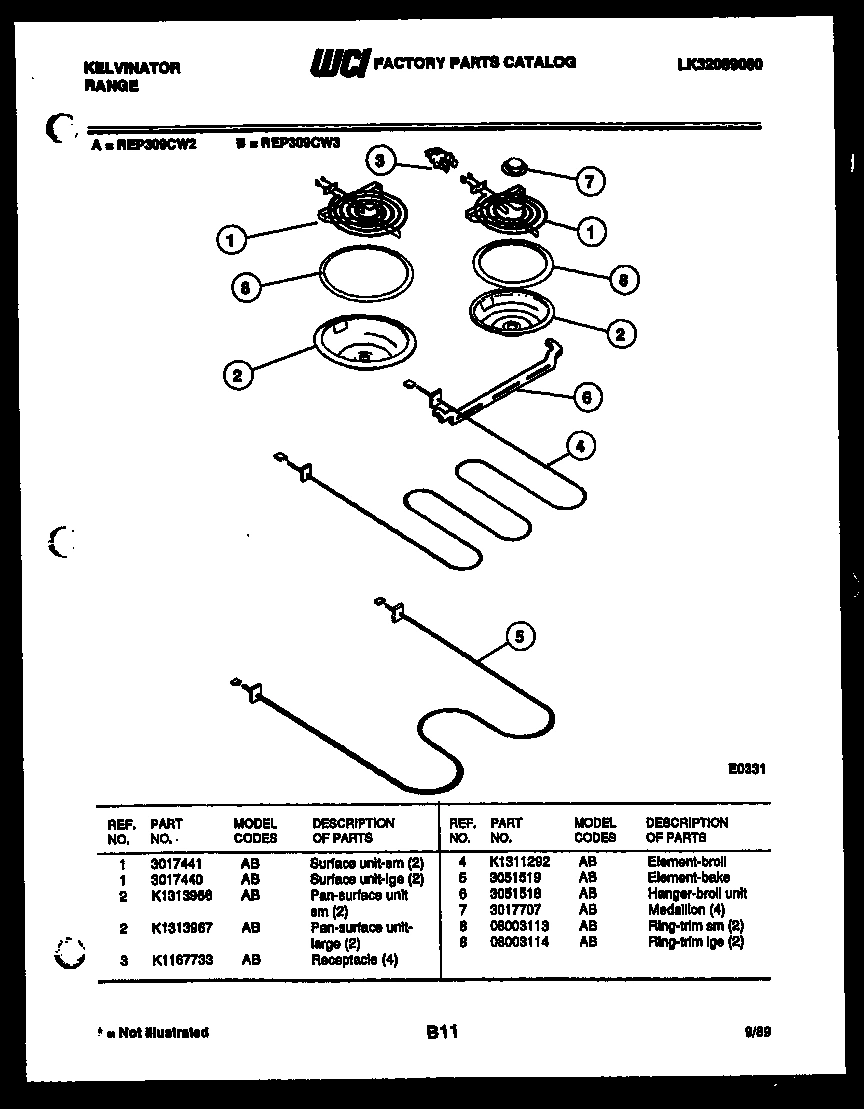

04 - BROILER PARTS

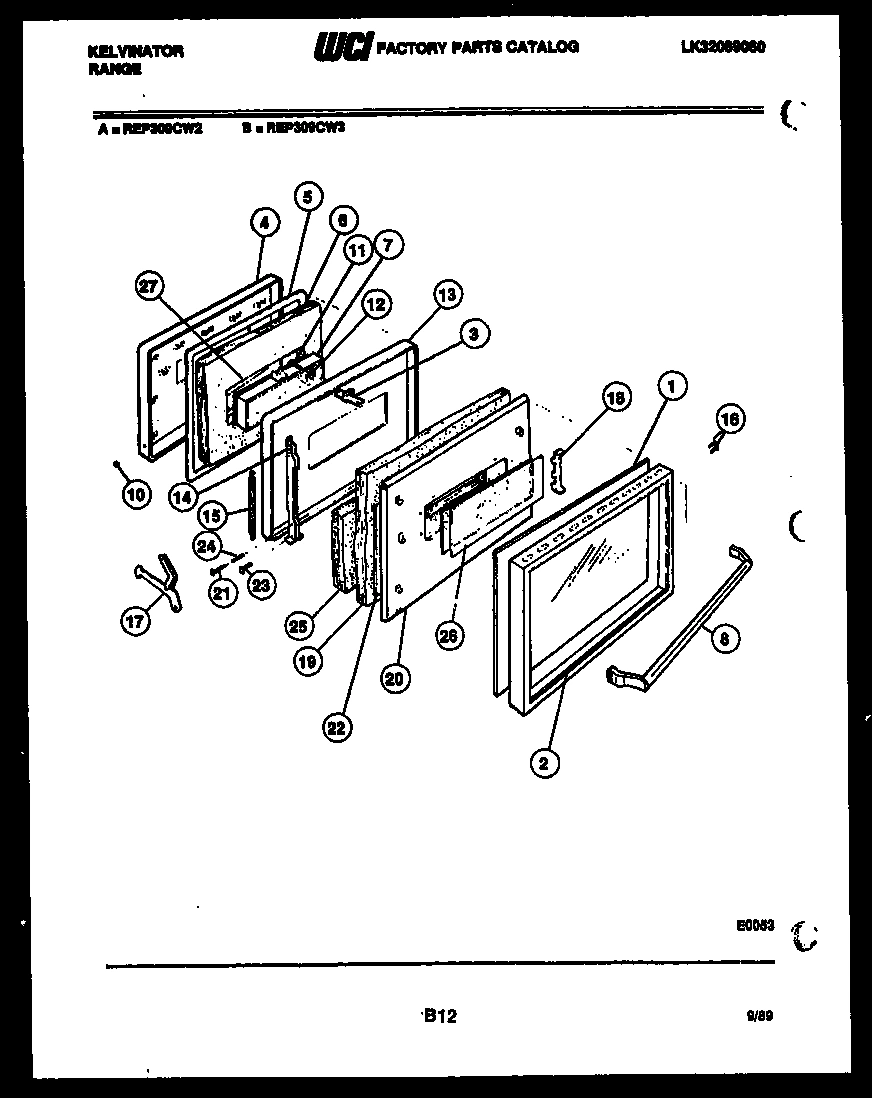

05 - DOOR PARTS

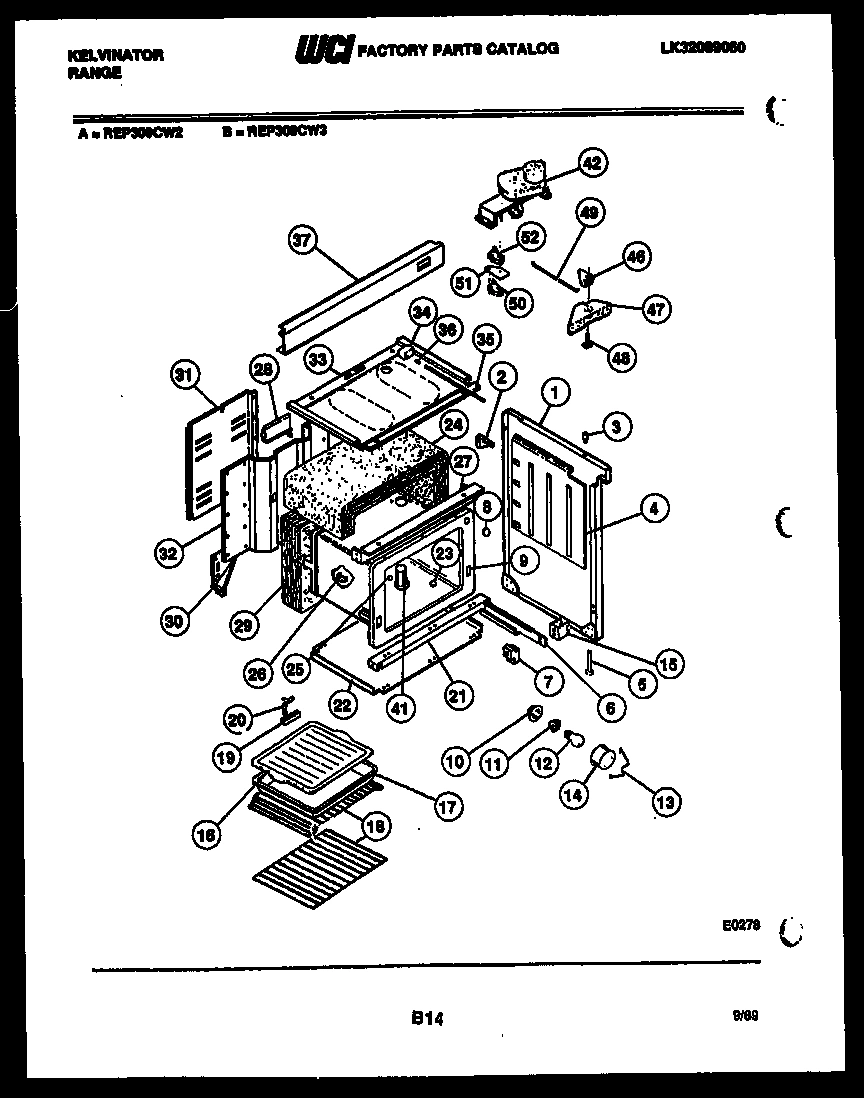

06 - BODY PARTS
Common parts from model Electrolux REP309CT2 RANGE
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
WCI K5270111 WCI K5270111 Contact Us For Availability
1
GLASS - OUTER WCI 08012546 Contact Us For Availability
1
SIDE PANEL-RH WHEAT WCI 08012535 Contact Us For Availability
1
WCI 3017479 WCI 3017479 Contact Us For Availability
1A
WCI 08012536 WCI 08012536 Contact Us For Availability
2
ROD-COOKTOP SPRT WCI K1315232 Contact Us For Availability
2
PAN-SURFACE UNIT SM (2) WCI K1313966 Contact Us For Availability
2
PAN-SURFACE UNIT-LARGE (2) WCI K1313967 Contact Us For Availability
2
WCI 3051715 WCI 3051715 Contact Us For Availability
2
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
2
WCI K1325099 WCI K1325099 Contact Us For Availability
2A
SWITCH-S/U LG (2) WCI K000131767 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
4
SIGNAL LIGHT-S/U AND CLEAN (2) WCI K5138903 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
WCI 3017634 WCI 3017634 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4A
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
5
LENS SIGNAL LIGHT (3) WCI K5139002 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
GASKET - OVEN DOOR WCI 3051704 Contact Us For Availability
5
GUIDE - DRAWER (2) WCI 3051698 Contact Us For Availability
5
LEG-LEVELLER (4) WCI K1322905 Contact Us For Availability
6
WCI 08015771 WCI 08015771 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K5266702 WCI K5266702 Contact Us For Availability
7
MEDALLION (4) WCI 3017707 Contact Us For Availability
7
WINDOW ASSY. WCI K1322068 Contact Us For Availability
7
GUIDE - DRWR FR (2) WCI K1315216 Contact Us For Availability
8
PANEL BACKSPLASH, WHEAT WCI K5137605 Contact Us For Availability
8
RING - TRIM SM (2) WCI 08003113 Contact Us For Availability
8
RING-TRIM LGE (2) WCI 08003114 Contact Us For Availability
8
HANDLE WCI K5026601 Contact Us For Availability
9
KNOB-S/U (6) WCI 3015698 Contact Us For Availability
9
OVEN LINER WCI K1325538 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
BUTTON PLUG WCI 3051807 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
WCI K1164550 WCI K1164550 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGRD LH WCI 3051670 Contact Us For Availability
12
SUPPORT-BACKGRD RH WCI 3051671 Contact Us For Availability
13
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
13
WCI 3017468 WCI 3017468 Contact Us For Availability
13
WCI K1325529 WCI K1325529 Contact Us For Availability
14
TIMER WCI K5260601 Contact Us For Availability
14
WCI 3051822 WCI 3051822 Contact Us For Availability
15
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
15
DOOR - SPRING WCI 08003186 Contact Us For Availability
15
SPACER-DRWR RAIL (2) WCI K1324860 Contact Us For Availability
16
SWITCH-OVEN IT WCI 3051687 Contact Us For Availability
16
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
16A
WCI 3205397 WCI 3205397 Contact Us For Availability
17
NUT-KNURLED WCI 08012572 Contact Us For Availability
17
DOOR HINGE ARM WCI K1310065 Contact Us For Availability
18
BRACKET - THERMO MTG WCI 3051552 Contact Us For Availability
18
BRACKET-THERMO MTG WCI K5267103 Contact Us For Availability
18
WCI 3051714 WCI 3051714 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
WCI K1322652 WCI K1322652 Contact Us For Availability
20
WCI K5276901 WCI K5276901 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
WCI K1100733 WCI K1100733 Contact Us For Availability
21
CHANNEL-OVEN SPRT LOWER WCI K1315108 Contact Us For Availability
22
WCI 08003175 WCI 08003175 Contact Us For Availability
22
WCI 3017394 WCI 3017394 Contact Us For Availability
23
AXLE-HINGE (2) WCI 08012004 Contact Us For Availability
23
PLUG-BUTTON 3/4`` WCI 3051784 Contact Us For Availability
24
ROLLER PACKAGE OVEN DOOR (2) WCI K1309794 Contact Us For Availability
24
WCI K1311331 WCI K1311331 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
WCI 3051713 WCI 3051713 Contact Us For Availability
26
WCI K1311369 WCI K1311369 Contact Us For Availability
27
WCI 3051706 WCI 3051706 Contact Us For Availability
27
CHANNEL-OVEN SPRT UPPER WCI K1325636 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3017535 WCI 3017535 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER, PADDED (3) WCI K1313226 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
WCI K1322683 WCI K1322683 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 3017633 WCI 3017633 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
WCI 08015743 WCI 08015743 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI K5038501 Contact Us For Availability
49
WCI K5271201 WCI K5271201 Contact Us For Availability
50
SWITCH-LOWER WCI K1315370 Contact Us For Availability
51
INSULATOR WCI K1308690 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
× ![]()
