Model Electrolux REP309CT0 RANGE – Common Parts & Diagrams

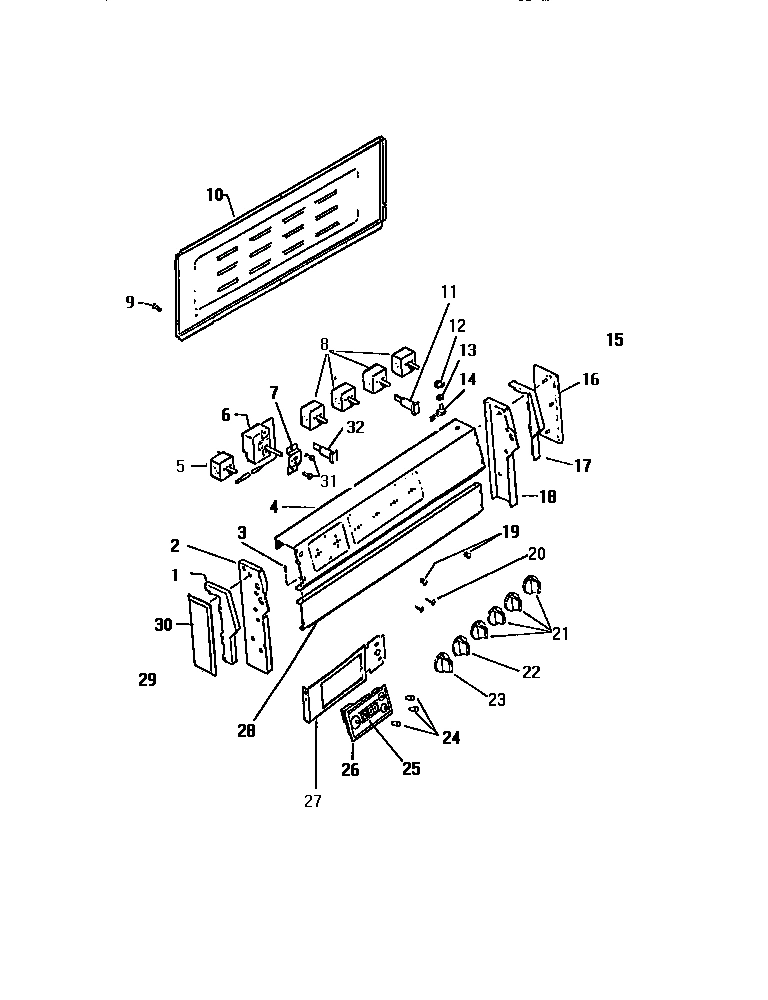

02 - BACKGUARD

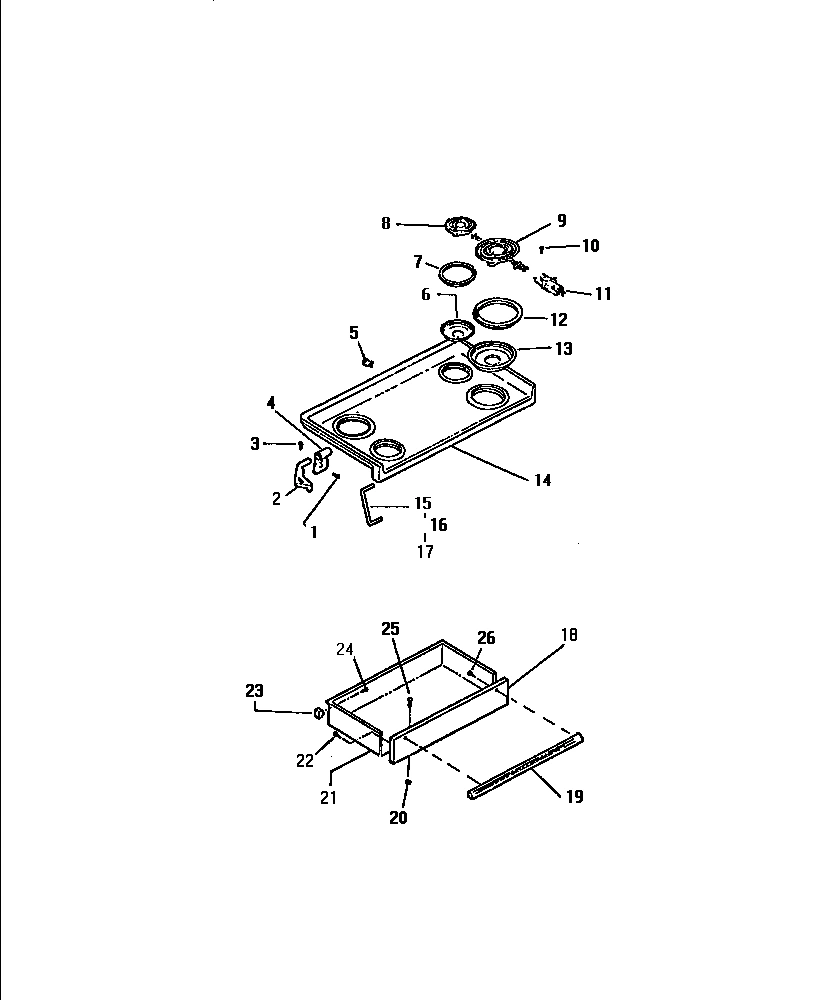

03 - TOP/DRAWER

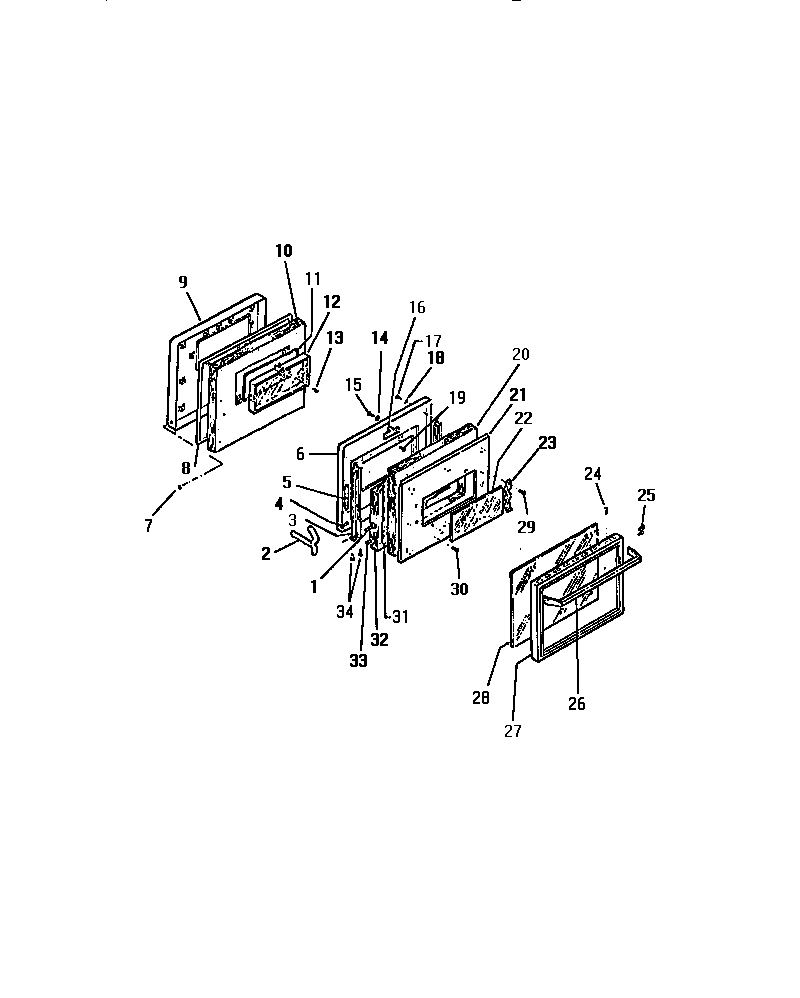

04 - DOOR

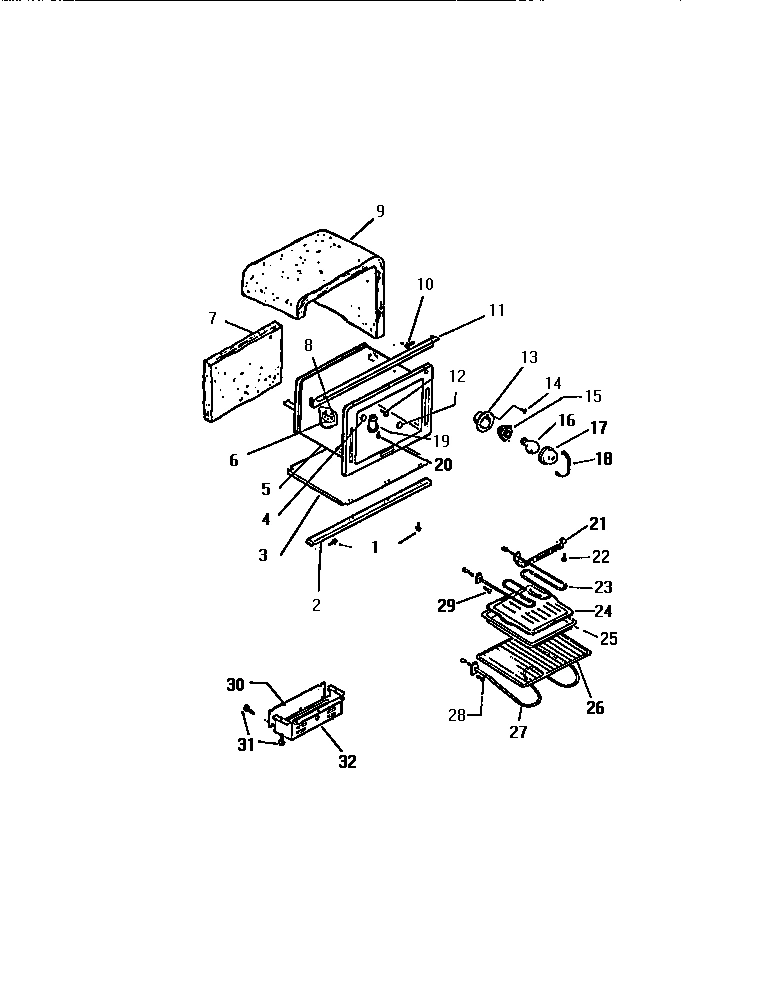

05 - OVEN CAVITY

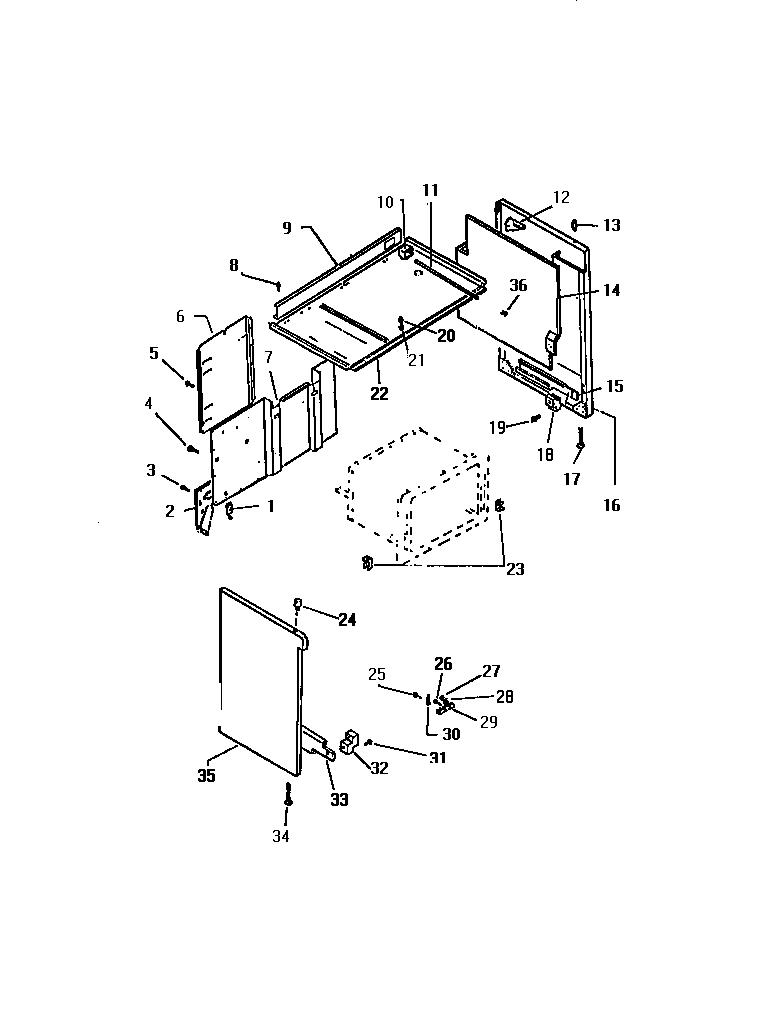

06 - PANELS

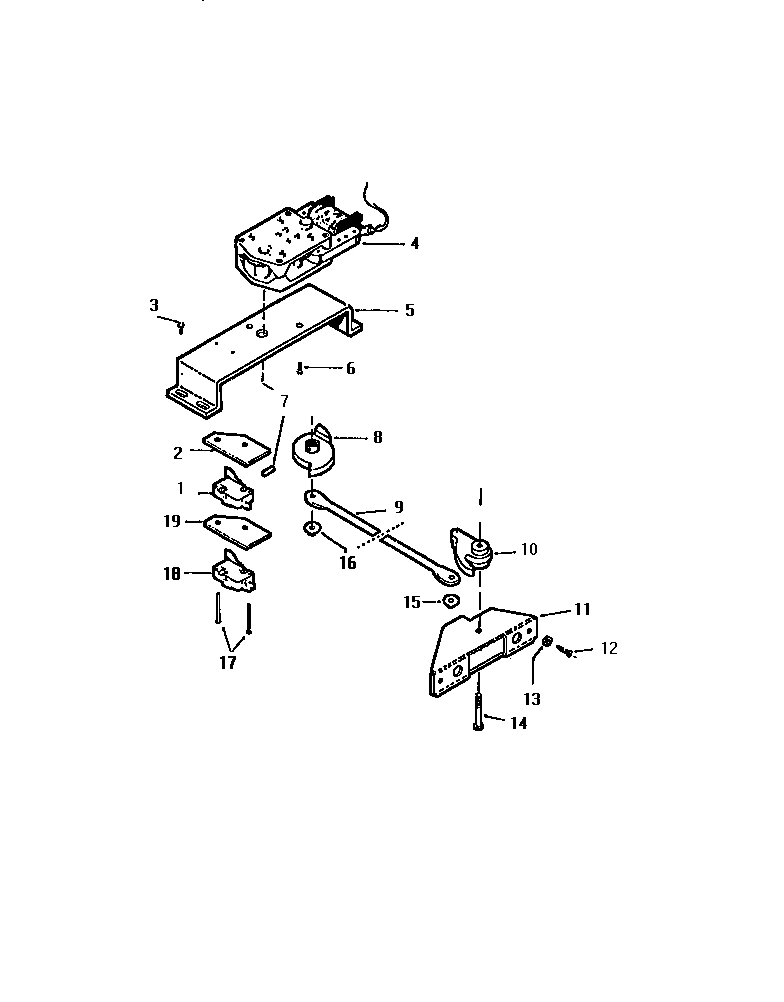

07 - LATCH ASSEMBLY
Common parts from model Electrolux REP309CT0 RANGE
*48520
WCI K5133501 WCI K5133501 Contact Us For Availability
*48521
WCI K5011207 WCI K5011207 Contact Us For Availability
*48522
WCI K1311571 WCI K1311571 Contact Us For Availability
*48523
WCI K5011203 WCI K5011203 Contact Us For Availability
*48524
WCI K1307785 WCI K1307785 Contact Us For Availability
1
WCI K5128106 WCI K5128106 Contact Us For Availability
1
SPEEDNUT (4) NOT USED WCI K1164411 Contact Us For Availability
1
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
2
SUPPORT LH WCI K5127702 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
WCI K5031803 WCI K5031803 Contact Us For Availability
2
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
2
WCI K1325114 WCI K1325114 Contact Us For Availability
2A
WCI K1315631 WCI K1315631 Contact Us For Availability
3
CHANNEL ASSEMBLY HINGE (2) WCI K1311514 Contact Us For Availability
3
WCI K1317644 WCI K1317644 Contact Us For Availability
3
WCI K1325113 WCI K1325113 Contact Us For Availability
4
WCI K5266702 WCI K5266702 Contact Us For Availability
4
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
4
RIVET WCI K1100773 Contact Us For Availability
4
BUTTON, PLUG WCI KGM142017 Contact Us For Availability
4
WCI K1323264 WCI K1323264 Contact Us For Availability
5
SWITCH OVEN SELEC. WCI K5099601 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
DOOR SPRING (2) WCI K1302501 Contact Us For Availability
5
OVEN LINER ASSY WCI K1325538 Contact Us For Availability
5
WCI K1324263 WCI K1324263 Contact Us For Availability
6
THERMO. CONTROL WCI K1324562 Contact Us For Availability
6
WCI K1313966 WCI K1313966 Contact Us For Availability
6
WCI K1324700 WCI K1324700 Contact Us For Availability
6
BRACKET WCI K1311369 Contact Us For Availability
6
WCI K5276202 WCI K5276202 Contact Us For Availability
6
SCREW, MOTOR SUPPORT (2) WCI K5157101 Contact Us For Availability
7
BRACKET-THERMOSTAT WCI K5267103 Contact Us For Availability
7
WCI K1307602 WCI K1307602 Contact Us For Availability
7
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
7
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
7
WCI K5275802 WCI K5275802 Contact Us For Availability
7
PIN, MOTOR CAM WCI KGM455105 Contact Us For Availability
8
WCI K1323811 WCI K1323811 Contact Us For Availability
8
WCI K1325071 WCI K1325071 Contact Us For Availability
8A
WCI K131367 WCI K131367 Contact Us For Availability
9
OVEN DOOR BAFFLE WCI K1323751 Contact Us For Availability
9
SHIELD, WIRE, DO NOT STOCK WCI K5287902 Contact Us For Availability
9
WCI K1317813 WCI K1317813 Contact Us For Availability
10
WCI K13151111 WCI K13151111 Contact Us For Availability
10
DOOR BAFFLE INSULATION WCI K1322622 Contact Us For Availability
10
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
10
WCI K131099 WCI K131099 Contact Us For Availability
10
WCI K5260201 WCI K5260201 Contact Us For Availability
11
SIGNAL LIGHT PKG., 125V SURFACE UNIT W / LEN WCI K5138903 Contact Us For Availability
11
WCI K1322069 WCI K1322069 Contact Us For Availability
11
CHANNEL, OVEN SUPPORT WCI K1325636 Contact Us For Availability
11
WCI K1323421 WCI K1323421 Contact Us For Availability
11
WCI K1324830 WCI K1324830 Contact Us For Availability
12
WCI K5051701 WCI K5051701 Contact Us For Availability
12
WCI K1307599 WCI K1307599 Contact Us For Availability
12
WCI K1164550 WCI K1164550 Contact Us For Availability
12
OVEN DOOR WINDOW WCI K1322068 Contact Us For Availability
12
PLUG BUTTON WCI KGM142025 Contact Us For Availability
12
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
13
NUT-HEX (3) WCI K1186512 Contact Us For Availability
13
WCI K1313967 WCI K1313967 Contact Us For Availability
13
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
13
WCI K1325530 WCI K1325530 Contact Us For Availability
14
WCI K5051801 WCI K5051801 Contact Us For Availability
14
AXLE, LATCH WCI K5038501 Contact Us For Availability
14
RETAINER, INSULATION, RH OR LH WCI K1325388 Contact Us For Availability
14D
WCI K5270111 WCI K5270111 Contact Us For Availability
15
NUT HEXT (6) END CAP BODY TO BACKGUARD SUPT WCI K5036602 Contact Us For Availability
15
WCI K1315232 WCI K1315232 Contact Us For Availability
15
WCI K5269901 WCI K5269901 Contact Us For Availability
16
WCI K5128001 WCI K5128001 Contact Us For Availability
16
WCI K1310049 WCI K1310049 Contact Us For Availability
16
CATCH, STRIKE ASSY WCI K1323556 Contact Us For Availability
16
WCI K1186196 WCI K1186196 Contact Us For Availability
16
PUSH NUT WCI K1164424 Contact Us For Availability
16 A
SIDE-PANEL RH WHEAT WCI K5024605 Contact Us For Availability
16 B
SIDE PANEL-RH, ALMOND WCI K5024603 Contact Us For Availability
17
TRIM, END CAP, R.H. WCI G5128105 Contact Us For Availability
17
SCREW-SWITCH MTG (2) WCI K1164502 Contact Us For Availability
18
SUPPORT RH WCI K5127701 Contact Us For Availability
18
WCI K1325529 WCI K1325529 Contact Us For Availability
18
SWITCH-LOWER LIMIT WCI K1308713 Contact Us For Availability
18D
PANEL, WHEAT WCI K1325099 Contact Us For Availability
19
HANDLE, DWR WCI K1325038 Contact Us For Availability
19
VENT TUBE WCI K5055002 Contact Us For Availability
19
INSULATOR WCI K1308690 Contact Us For Availability
20
WCI K5139002 WCI K5139002 Contact Us For Availability
20
AIR WASH, INSULATION WCI K1322652 Contact Us For Availability
20
SCREW VENT MOUNTING (2) WCI K1164309 Contact Us For Availability
21
WCI K1324095 WCI K1324095 Contact Us For Availability
21
AIR WASH, PANEL WCI K5276901 Contact Us For Availability
21
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
22
INNER, GLASS WCI K1317924 Contact Us For Availability
22
WCI K5025802 WCI K5025802 Contact Us For Availability
23
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
23
GUIDE, DRAWER WCI K1324091 Contact Us For Availability
23
INNER GLASS RETAINERS. (2) WCI K1317628 Contact Us For Availability
23
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
24
KNOB, CLOCK/TIMER (3) WCI K1167946 Contact Us For Availability
24
GRILLE, BROILER WCI K1313049 Contact Us For Availability
24
BUMPER COOKTOP WCI K1307110 Contact Us For Availability
25
WCI K1167986 WCI K1167986 Contact Us For Availability
25
SCREW (4) WCI K5046501 Contact Us For Availability
26
WCI K5260601 WCI K5260601 Contact Us For Availability
26
SCREW WCI K5022201 Contact Us For Availability
26
HANDLE ASSY, DOOR WCI K5026601 Contact Us For Availability
26
RACK, OVEN, REG WCI K1311570 Contact Us For Availability
26A
WCI K5132701 WCI K5132701 Contact Us For Availability
26B
WCI K5026807 WCI K5026807 Contact Us For Availability
27
BRACKET, MOUNTING CLOCK/TIMER WCI K5127901 Contact Us For Availability
27
WCI K5276801 WCI K5276801 Contact Us For Availability
27
NUT, HEX (3) WCI K1266 Contact Us For Availability
28
GLASS, OUTER (FULL) WCI K5027201 Contact Us For Availability
28
WASHER (3) WCI K1312074 Contact Us For Availability
28B
PANEL BACKSPLASH, WHEAT WCI K5137605 Contact Us For Availability
30
WCI K5128002 WCI K5128002 Contact Us For Availability
30
WCI K1303601 WCI K1303601 Contact Us For Availability
30
STRAP-GROUND WCI K1145190 Contact Us For Availability
31
FOIL- AIR WASH WCI K1318825 Contact Us For Availability
31
SCREW, GUIDE MOUNTING WCI K1164479 Contact Us For Availability
32
LINER, INSULATION WCI K1322651 Contact Us For Availability
32
WCI K1315121 WCI K1315121 Contact Us For Availability
32
WCI K1315216 WCI K1315216 Contact Us For Availability
33
ROLLER KIT WCI K1309794 Contact Us For Availability
33
WCI K5269902 WCI K5269902 Contact Us For Availability
34
WCI K1164285 WCI K1164285 Contact Us For Availability
34
LEVELLER (2) WCI K1322905 Contact Us For Availability
35B
WCI K5024610 WCI K5024610 Contact Us For Availability
36
ROD END SWITCH WCI K1322682 Contact Us For Availability
× ![]()
