Model Electrolux REP307GW0 RANGE – Common Parts & Diagrams

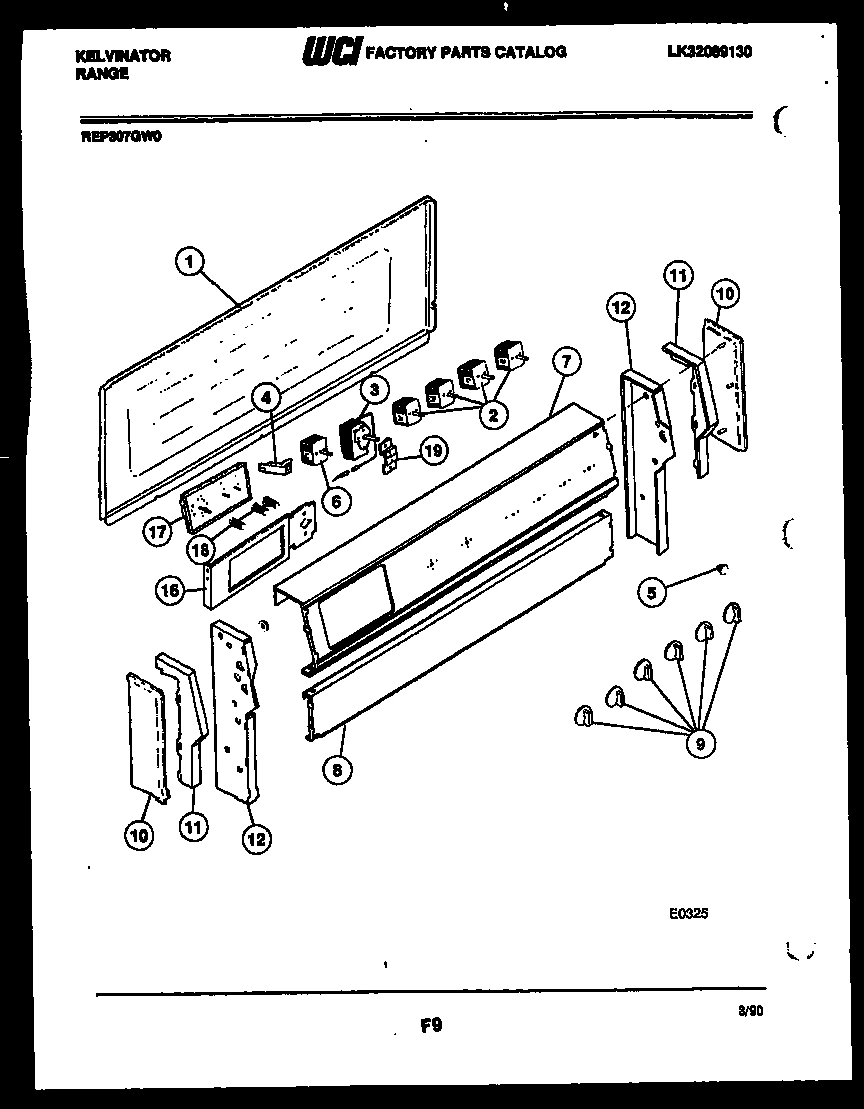

02 - BACKGUARD PARTS

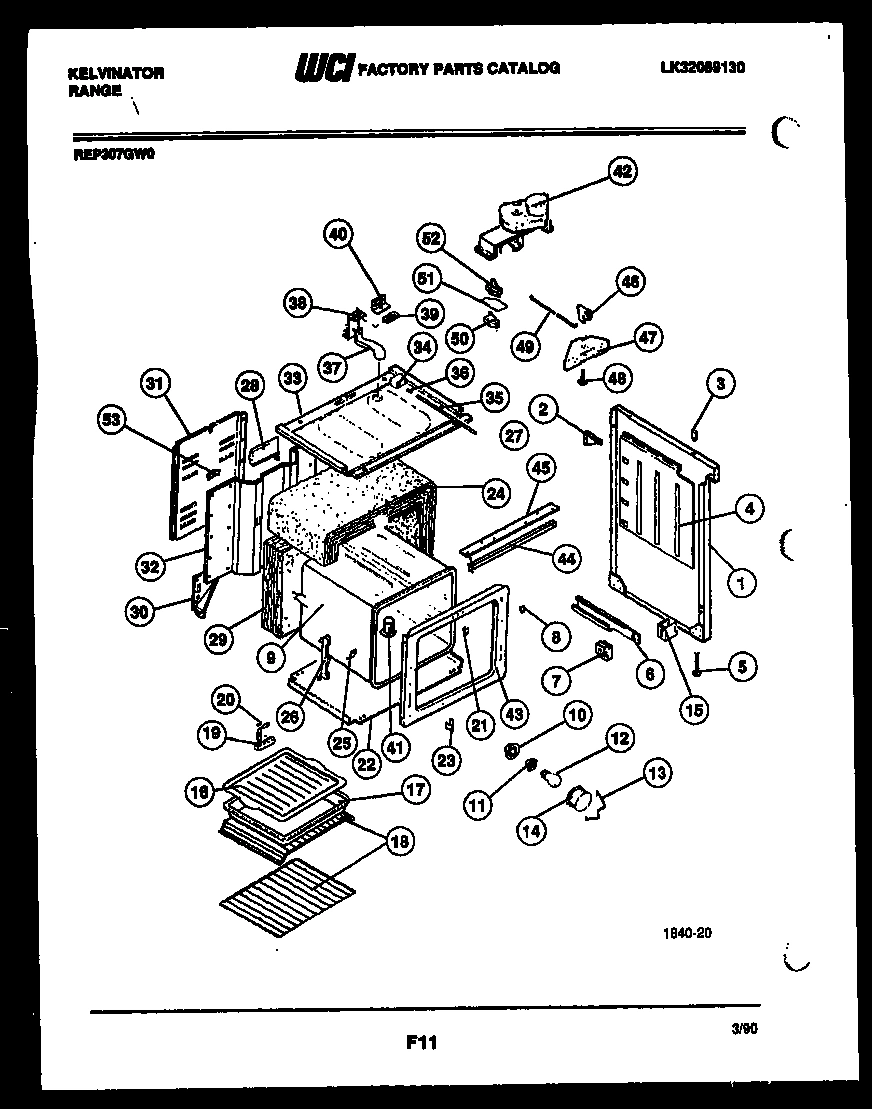

03 - BODY PARTS

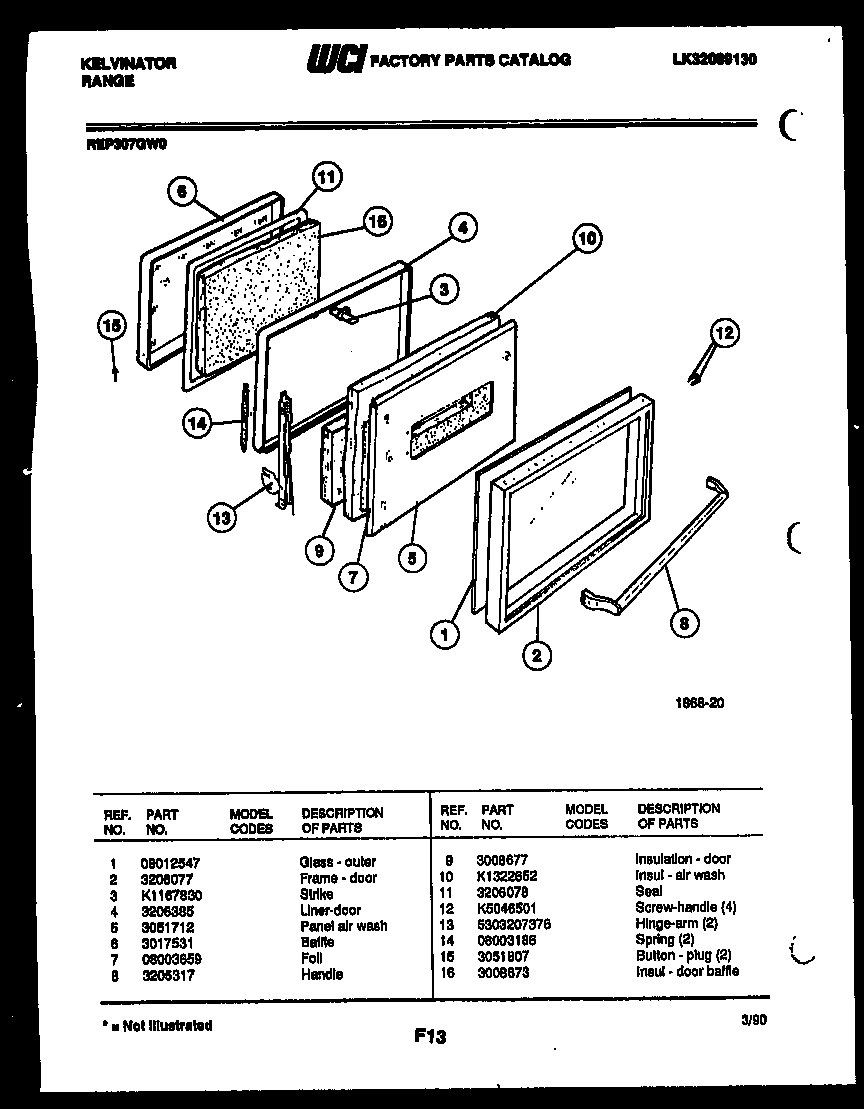

04 - DOOR PARTS

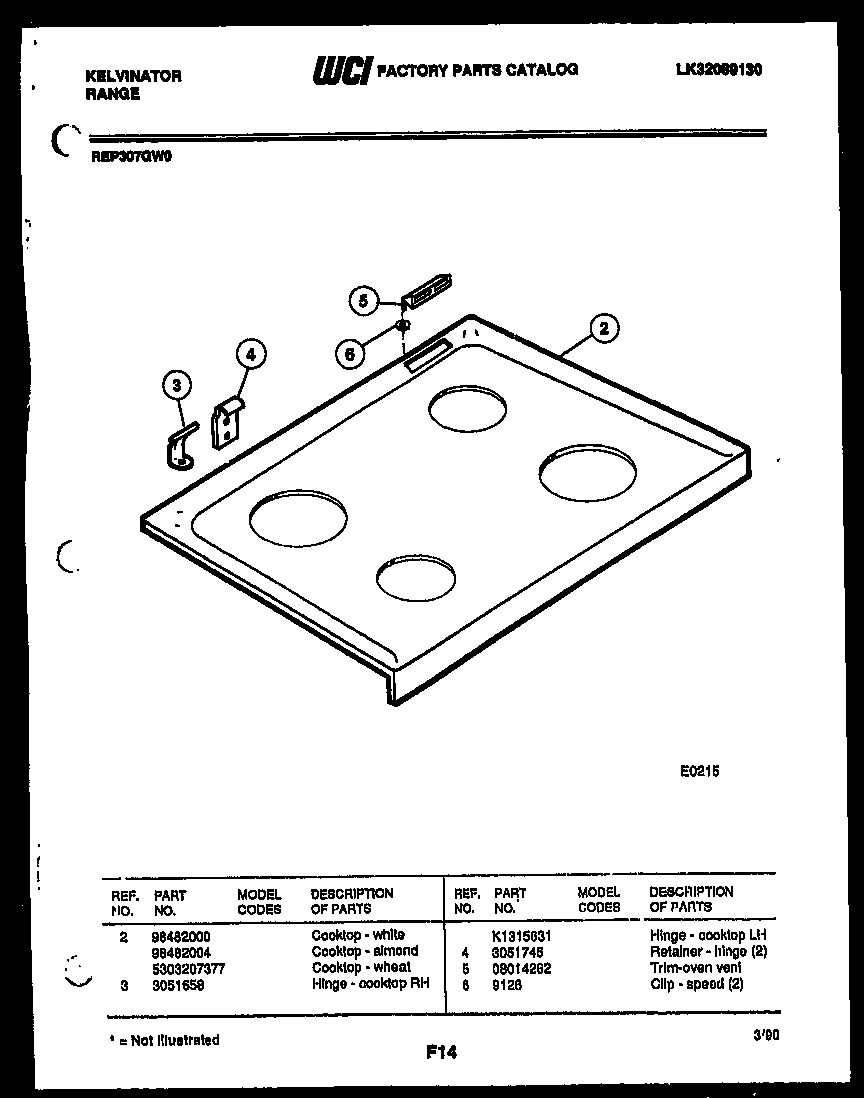

05 - COOKTOP PARTS

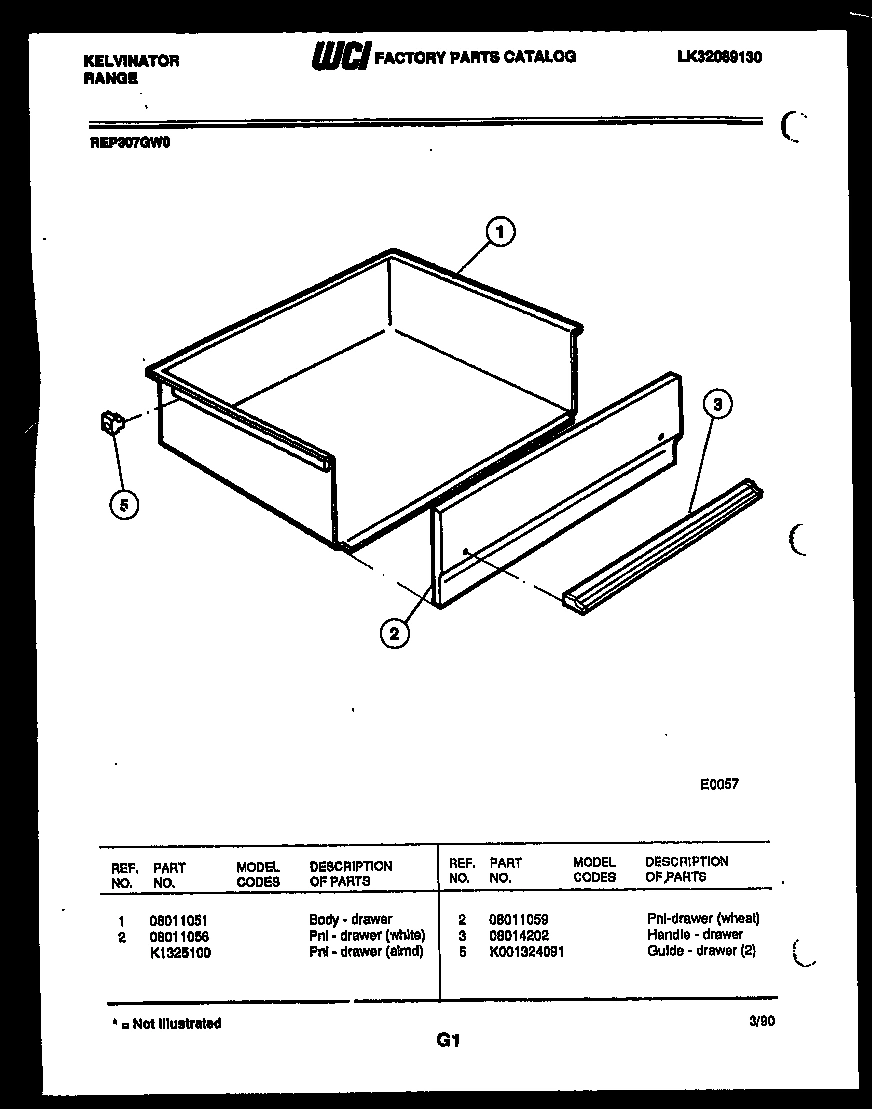

06 - DRAWER PARTS

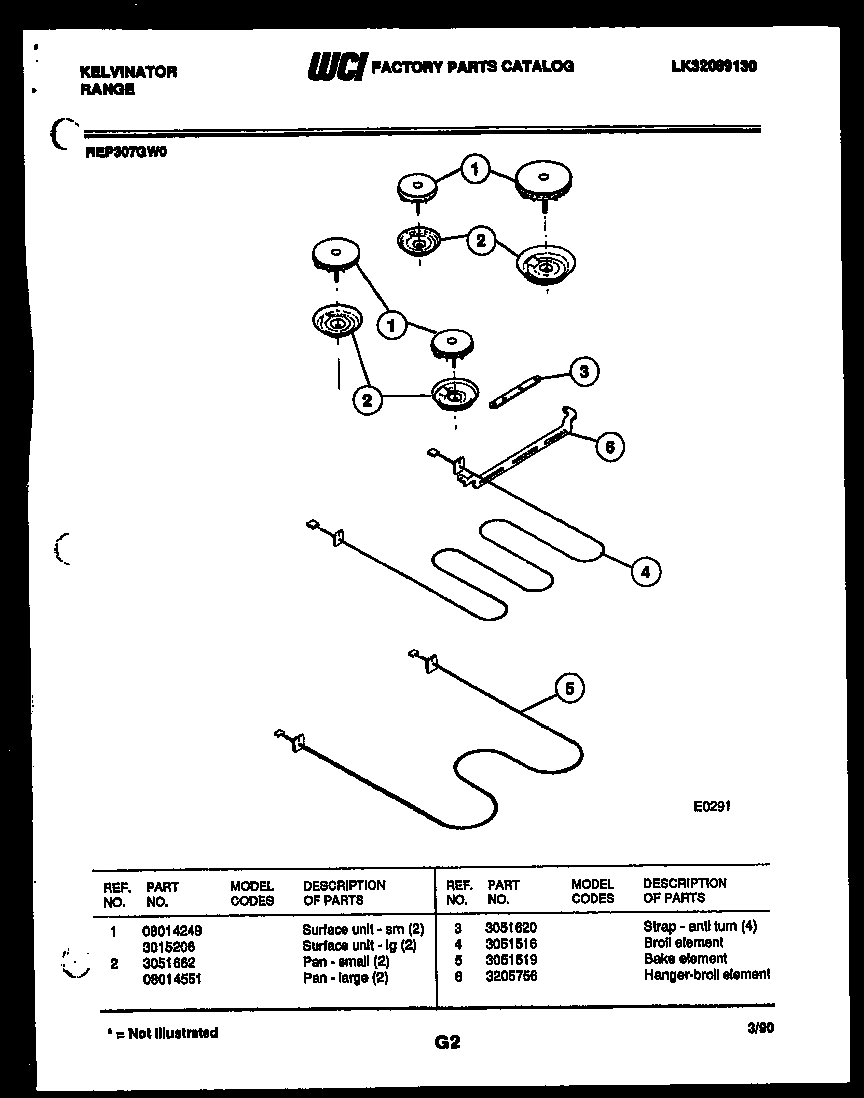

07 - BROILER PARTS
Common parts from model Electrolux REP307GW0 RANGE
1
SIDE PNL - RH (WHITE) WCI 08012527 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
1
WCI 08014249 WCI 08014249 Contact Us For Availability
1A
SIDE PNL - LH (WHITE) WCI 08012528 Contact Us For Availability
1A
SURFACE UNIT - LG (2) WCI 3015206 Contact Us For Availability
2
WCI 3204821 WCI 3204821 Contact Us For Availability
2
FRAME, DOOR WCI 3206077 Contact Us For Availability
2
WCI 98482000 WCI 98482000 Contact Us For Availability
2
PNL - DRAWER WHITE WCI 08011056 Contact Us For Availability
2
PAN-SMALL (2) WCI 3051662 Contact Us For Availability
2A
PAN - LARGE (2) WCI 08014551 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT - S/U & CLEAN (2) WCI 3051676 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
LINER-DOOR WCI 3206385 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4A
WCI 3051679 WCI 3051679 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 3205540 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
WCI 08014262 WCI 08014262 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08015771 Contact Us For Availability
6
CLIP-SPEED (2) WCI 9126 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
BAFFLE WCI 3017531 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K5310601 WCI K5310601 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
8
PANEL - BACKSPLASH (WHITE) WCI 3201460 Contact Us For Availability
8
PLUG BUTTON-OVEN LIGHT HOLE WCI 3051784 Contact Us For Availability
8
WCI 3205317 WCI 3205317 Contact Us For Availability
9
KNOB (6) WCI 3015698 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
9
INSULATION - DOOR WCI 3008677 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
INSUL - AIR WASH WCI K1322652 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
WCI 3206078 WCI 3206078 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGUARD RH WCI 3051670 Contact Us For Availability
12
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
12A
SUPPORT-BACKGUARD LH WCI 3051671 Contact Us For Availability
13
RETAINER - LENS WCI 3205904 Contact Us For Availability
13
HINGE-ARM (2) WCI 5303207376 Contact Us For Availability
14
SPRING (2) WCI 08003186 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
WCI 3051807 WCI 3051807 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
16
INSUL - DOOR BAFFLE WCI 3008673 Contact Us For Availability
17
WCI K5260501 WCI K5260501 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
BRACKET - THERMO MTG WCI K1317816 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
COVER-FRONT DRUM SEAM WCI 3202082 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3019063 WCI 3019063 Contact Us For Availability
25
SPACER-OVEN WCI 3201632 Contact Us For Availability
26
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
27
COVER, ROD END WCI 3051251 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI K1313226 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
WCI 3051645 WCI 3051645 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 3051655 WCI 3051655 Contact Us For Availability
38
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
40
BRKT-DOOR LATCH SWITCH WCI 3051643 Contact Us For Availability
41
VENT TUBE WCI 3205683 Contact Us For Availability
42
WCI 08015743 WCI 08015743 Contact Us For Availability
43
FRAME-FRONT WCI 5303207390 Contact Us For Availability
44
WCI 5303207391 WCI 5303207391 Contact Us For Availability
45
WCI 5303207389 WCI 5303207389 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
WCI 08012007 WCI 08012007 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH-LOWER WCI K1315370 Contact Us For Availability
51
INSULATOR WCI K1308690 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
52A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
53
SPRING-OVEN MTG. WCI 3016281 Contact Us For Availability
× ![]()
