Model Electrolux REP307CW5 RANGE – Common Parts & Diagrams

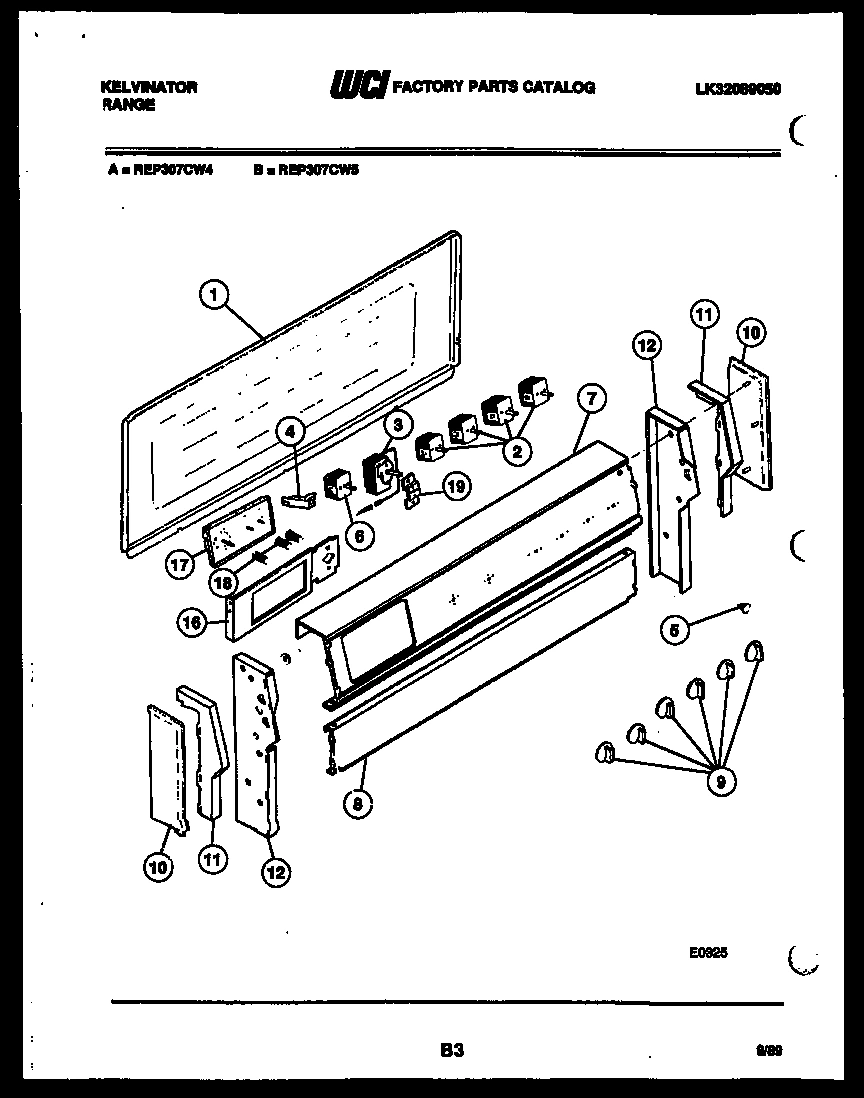

02 - BACKGUARD

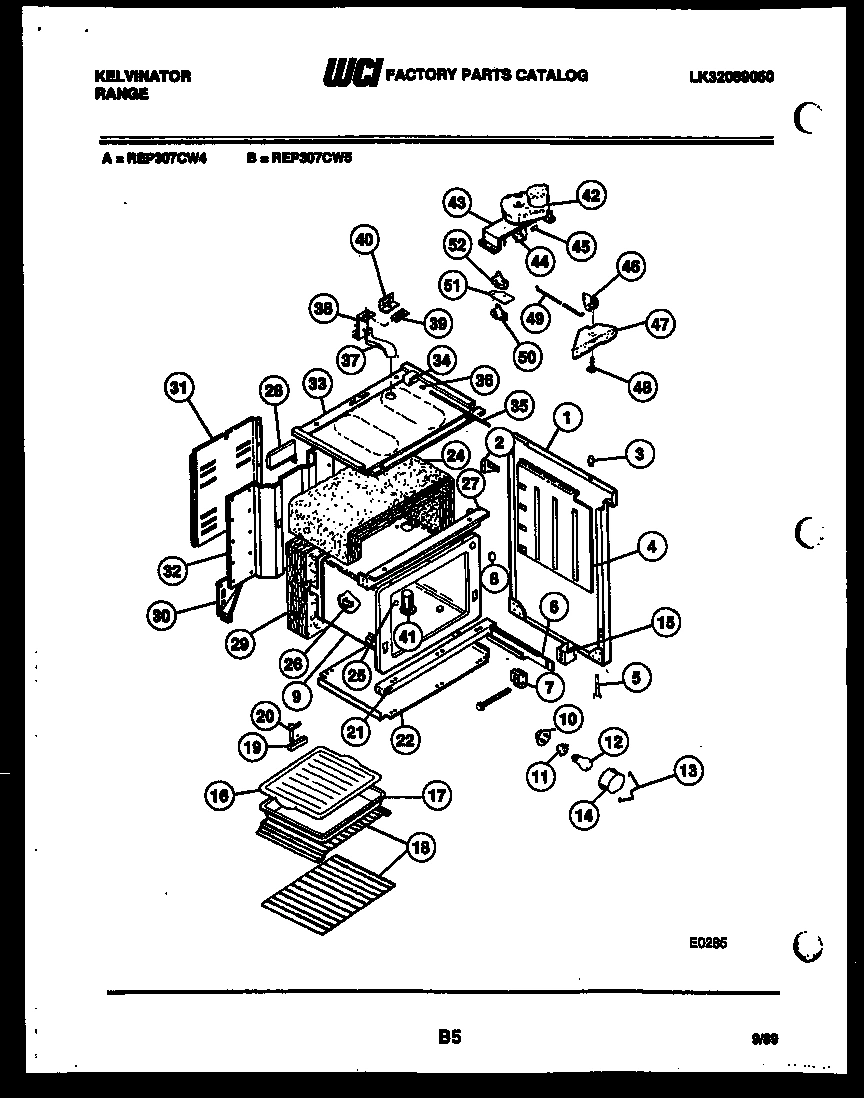

03 - BODY
04 - DOOR PARTS
05 - COOKTOP PARTS
06 - DRAWER
07 - BROILER PARTS
Common parts from model Electrolux REP307CW5 RANGE
*40496
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
SIDE PNL - RH (WHITE) WCI K5024601 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
1
WCI 08014249 WCI 08014249 Contact Us For Availability
1A
SIDE PNL - LH (WHITE) WCI 08012528 Contact Us For Availability
1A
SURFACE UNIT - LG (2) WCI 3015206 Contact Us For Availability
2
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
2
WCI 3051715 WCI 3051715 Contact Us For Availability
2
WCI 98482000 WCI 98482000 Contact Us For Availability
2
PNL - DRAWER (WHITE) WCI K1325096 Contact Us For Availability
2
PAN-SMALL (2) WCI K5134101 Contact Us For Availability
2A
PAN - LARGE (2) WCI K5129601 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
WCI K1167830 WCI K1167830 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
STRAP, ANTI-TURN (4) WCI K5129801 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT - S/U WCI K5138903 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
WCI 3017530 WCI 3017530 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4A
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
5
SHIELD - HEAT WCI K5276901 Contact Us For Availability
5
WCI 08014262 WCI 08014262 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K001324091 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08015771 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
BAFFLE WCI 3017531 Contact Us For Availability
6
WCI K1164567 WCI K1164567 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K5310601 WCI K5310601 Contact Us For Availability
7
GUIDE-DRAWER FRONT (2) WCI K1315216 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
8
PANEL - BACKSPLASH (WHITE) WCI 3201460 Contact Us For Availability
8
PLUG BUTTON-OVEN LIGHT HOLE WCI 3051784 Contact Us For Availability
8
WCI 3205317 WCI 3205317 Contact Us For Availability
9
KNOB (6) WCI 3015698 Contact Us For Availability
9
OVEN LINER WCI 3204603 Contact Us For Availability
9
INSULATION - DOOR WCI 3008677 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10
INSUL - HEAT SHIELD WCI K1322652 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
SEAL WCI 3051704 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGUARD RH WCI 3051670 Contact Us For Availability
12
SCREW-HANDLE (4) WCI K5046501 Contact Us For Availability
12A
SUPPORT-BACKGUARD LH WCI 3051671 Contact Us For Availability
13
WCI K1325529 WCI K1325529 Contact Us For Availability
13
WCI 3051822 WCI 3051822 Contact Us For Availability
14
SPRING (2) WCI 08003186 Contact Us For Availability
15
SPACER-DRAWER RAIL (2) WCI K1324860 Contact Us For Availability
15
DOOR HINGE ARM WCI K1310065 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
16
WCI K1167762 WCI K1167762 Contact Us For Availability
17
WCI K5260501 WCI K5260501 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
17
RIVET (2) WCI K1100733 Contact Us For Availability
18
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
18
STUD WCI K5038501 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
BRACKET - THERMO MTG WCI K1317816 Contact Us For Availability
19
WCI 3051807 WCI 3051807 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
20
INSUL - DOOR BAFFLE WCI 3008673 Contact Us For Availability
21
CHANNEL-OVEN SUPT LOWER WCI 3200927 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
24
WCI K1311331 WCI K1311331 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
BRKT-THERMOSTAT BULB WCI K1311369 Contact Us For Availability
27
WCI 3203178 WCI 3203178 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3009179 WCI 3009179 Contact Us For Availability
32
WCI 3017575 WCI 3017575 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI K1313226 Contact Us For Availability
34
SWITCH-DOOR WCI K1310199 Contact Us For Availability
35
WCI K1322683 WCI K1322683 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI K5130601 WCI K5130601 Contact Us For Availability
38
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
40
BRKT-DOOR LATCH SWITCH WCI K1311371 Contact Us For Availability
41
WCI K5055201 WCI K5055201 Contact Us For Availability
42
WCI 08015743 WCI 08015743 Contact Us For Availability
43
WCI K5151613 WCI K5151613 Contact Us For Availability
44
CAM - DOOR LATCH WCI K5151605 Contact Us For Availability
45
PIN WCI K5151606 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3019074 Contact Us For Availability
48
AXLE WCI 08012004 Contact Us For Availability
49
WCI K5271201 WCI K5271201 Contact Us For Availability
50
SWITCH-LOWER WCI K1315370 Contact Us For Availability
51
INSULATOR WCI K1308690 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
× ![]()
