Model Electrolux REP307CW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP/DRAWER

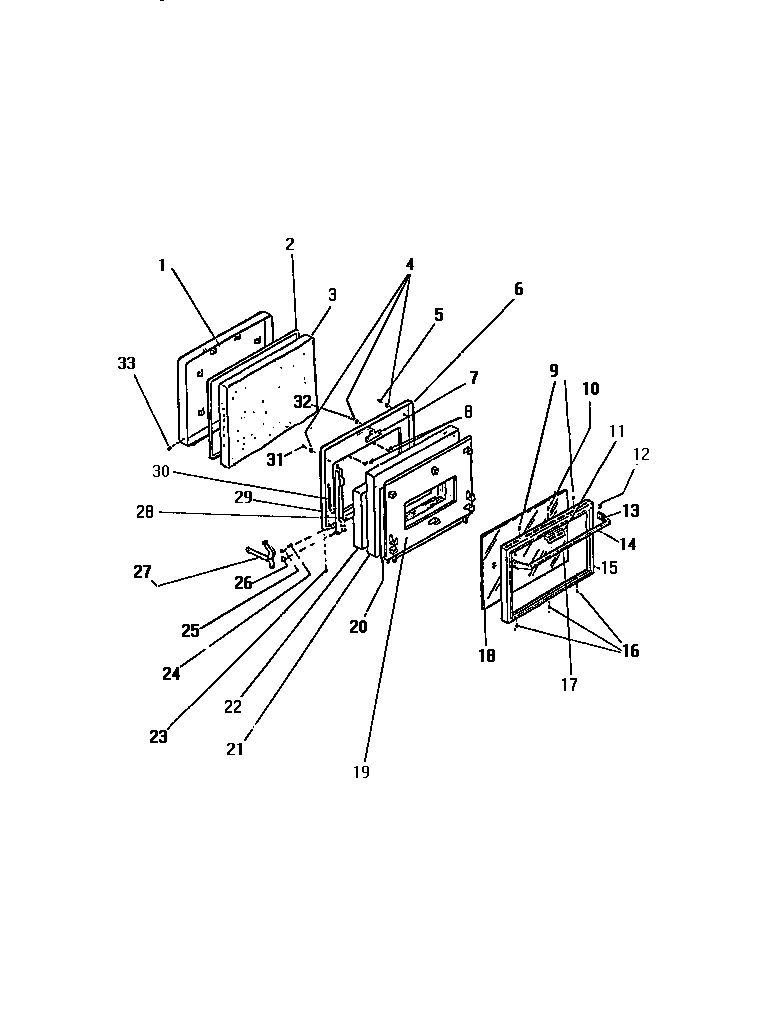

04 - DOOR

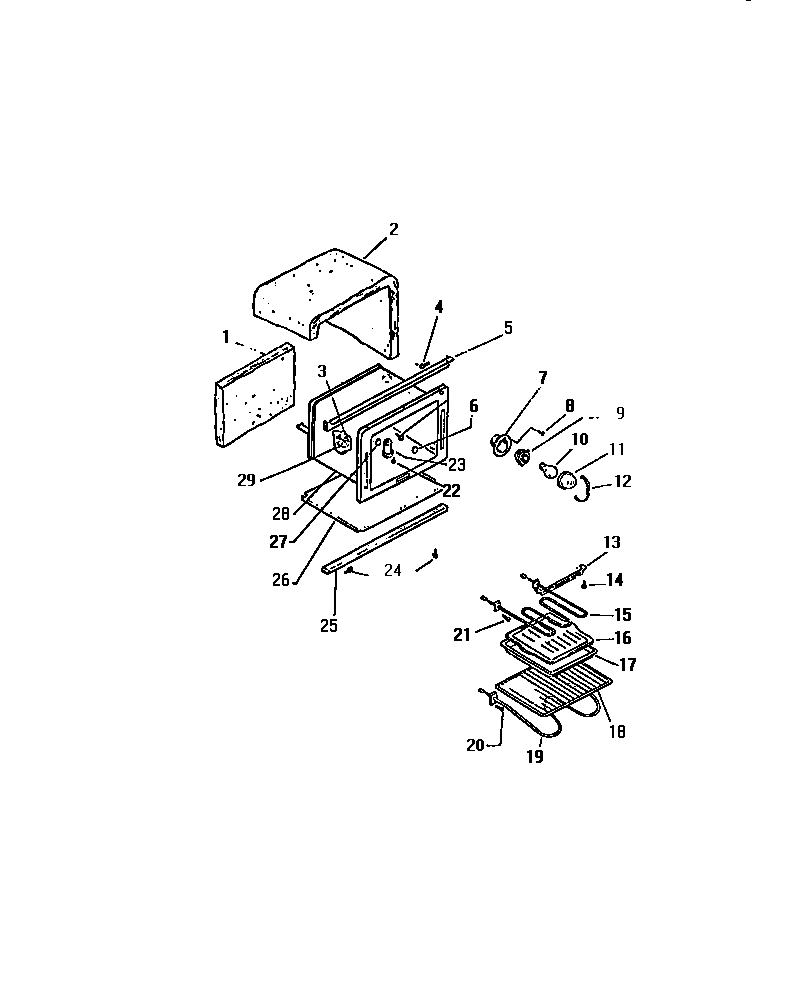

05 - OVEN CAVITY

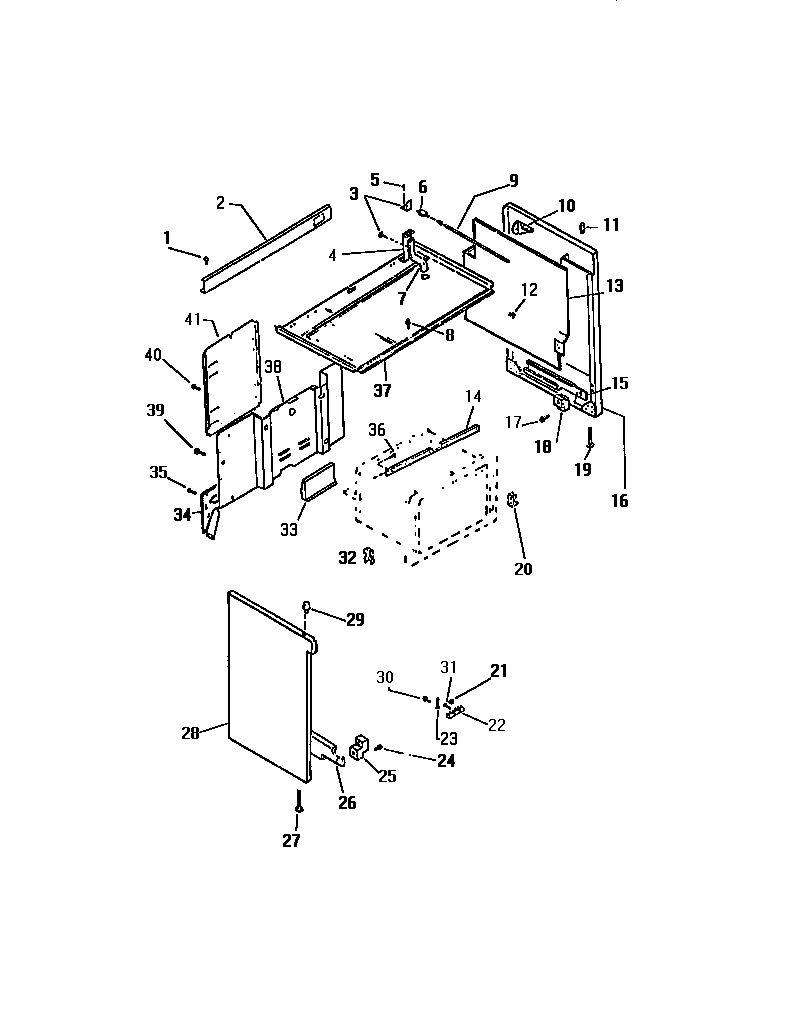

06 - PANELS

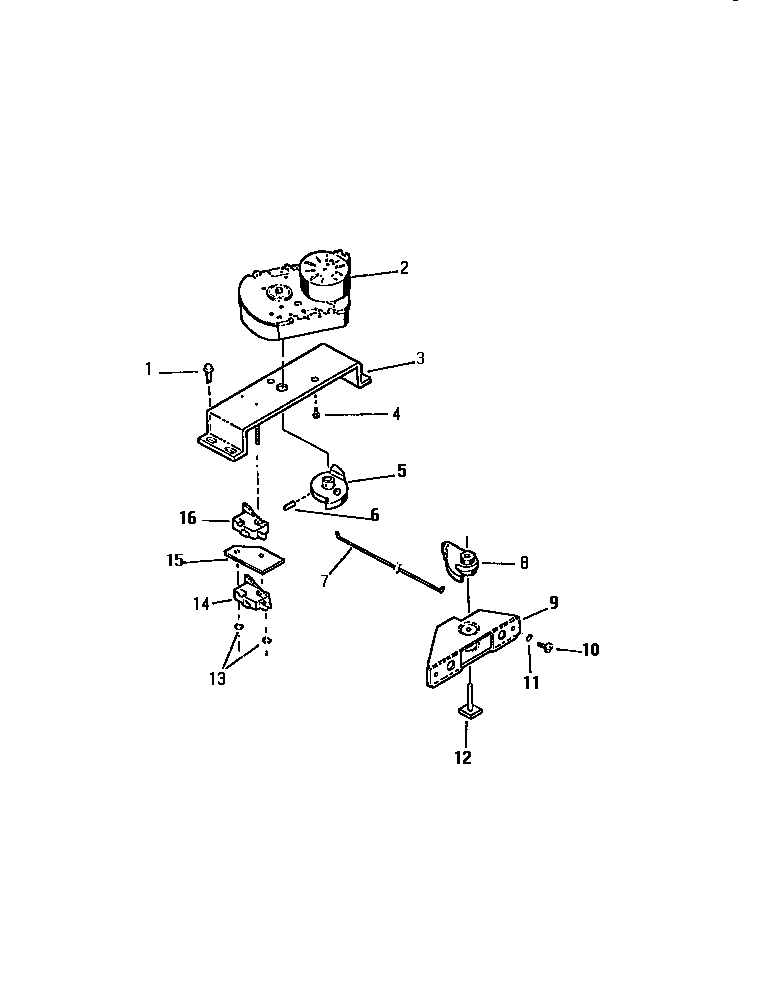

07 - LATCH ASSEMBLY
Common parts from model Electrolux REP307CW3 RANGE
*57760
OWNERS MANUAL WCI K5011207 Contact Us For Availability
*57762
WCI K5134702 WCI K5134702 Contact Us For Availability
*57763
RACK, OVEN (0FFSET) WCI K5133501 Contact Us For Availability
*57764
WCI K5011209 WCI K5011209 Contact Us For Availability
1
WCI K5128002 WCI K5128002 Contact Us For Availability
1
ROD, COOKTOP SUPT. WCI K1315232 Contact Us For Availability
1
OVEN DOOR BAFFLE WCI K1323840 Contact Us For Availability
1
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
1A
RETAINER SUPT. ROD WCI K1310049 Contact Us For Availability
2
WCI K5128106 WCI K5128106 Contact Us For Availability
2
WCI K1323811 WCI K1323811 Contact Us For Availability
2
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
2
WCI K5287902 WCI K5287902 Contact Us For Availability
2
MOTOR LATCH WCI K5151601 Contact Us For Availability
3
SUPPORT LH WCI K5127702 Contact Us For Availability
3
WCI K1315630 WCI K1315630 Contact Us For Availability
3
DOOR BAFFLE INSUL. WCI K1322622 Contact Us For Availability
3
SUPPORT MTR WCI K5151613 Contact Us For Availability
3A
WCI K1315631 WCI K1315631 Contact Us For Availability
4
BRKT. UPPER VENT TUBE WCI K5130701 Contact Us For Availability
5
WCI K5099001 WCI K5099001 Contact Us For Availability
5
WCI K1315632 WCI K1315632 Contact Us For Availability
5
CHANNEL, OVEN SUPT. WCI K5303702 Contact Us For Availability
5
SCREW WCI K1311371 Contact Us For Availability
5
CAM DOOR LATCH MTR. WCI K5151605 Contact Us For Availability
6
SLEEVING-INSULATING THERMOSTAT WCI K1301788 Contact Us For Availability
6
SURFACE UNIT MED. (2) WCI K5129401 Contact Us For Availability
6
DOOR LINER WCI K1324720 Contact Us For Availability
6
PLUG BUTTON WCI KGM142025 Contact Us For Availability
6
SWITCH-DOOR LATCH & OVEN LIGHT WCI K1310199 Contact Us For Availability
6
WCI K5271206 WCI K5271206 Contact Us For Availability
7
THERMO. CONTROL WCI K1324562 Contact Us For Availability
7
WCI K5000202 WCI K5000202 Contact Us For Availability
7
STRIKE ASSY. WCI K1323556 Contact Us For Availability
7
CUP, OVEN LT WCI K1325530 Contact Us For Availability
7
TUBE, OVEN VENT (UPPER) WCI K5130601 Contact Us For Availability
7
WCI K5271201 WCI K5271201 Contact Us For Availability
8
BRACKET-THERMOSTAT WCI K5267103 Contact Us For Availability
8
BRASS NUT (2) WCI K1167977 Contact Us For Availability
8
WCI K5260202 WCI K5260202 Contact Us For Availability
9
SCREW (AS REQ) WCI K5104301 Contact Us For Availability
9
SCREW (2) WCI K1167978 Contact Us For Availability
9
PUSH ROD, SWITCH WCI K1322683 Contact Us For Availability
9
HSG, DOOR LATCH WCI K1324830 Contact Us For Availability
10
PACKAGE, SIGNAL LIGHT WCI K5138904 Contact Us For Availability
10
WCI K1164550 WCI K1164550 Contact Us For Availability
10
TERMINAL BLOCK (2) WCI K1167979 Contact Us For Availability
10
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
11
UNIT SURFACE SM. (2) WCI K5129301 Contact Us For Availability
11
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
11
WCI K1323875 WCI K1323875 Contact Us For Availability
12
CLIP, (2 REQ) WCI K1164567 Contact Us For Availability
12
SCREW WCI K5046501 Contact Us For Availability
12
AXLE WCI K5038501 Contact Us For Availability
12
WCI K1325529 WCI K1325529 Contact Us For Availability
12
WCI K1322682 WCI K1322682 Contact Us For Availability
13
WCI K1315111 WCI K1315111 Contact Us For Availability
13
TRIM, VENT WCI K5130901 Contact Us For Availability
13
END, HANDLE WCI K5132701 Contact Us For Availability
13
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
13
RET. INSUL. RH OR LH WCI K1325388 Contact Us For Availability
14
PACKAGE, SIGNAL LIGHT (2) WCI K5138903 Contact Us For Availability
14
GASKET WCI K5130801 Contact Us For Availability
14
GRIP WCI K5026807 Contact Us For Availability
14
WCI K1324289 WCI K1324289 Contact Us For Availability
14
WCI K5151608 WCI K5151608 Contact Us For Availability
15
WCI K5266702 WCI K5266702 Contact Us For Availability
15
WCI K520120 WCI K520120 Contact Us For Availability
15
WCI K5276801 WCI K5276801 Contact Us For Availability
15
WCI K5269901 WCI K5269901 Contact Us For Availability
15
WCI K5151607 WCI K5151607 Contact Us For Availability
16
NUT, HEX (END CAP BODY TO BACKGUARD SUPT.) ( WCI K5036602 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
16
WCI K5024601 WCI K5024601 Contact Us For Availability
16
WCI K5151609 WCI K5151609 Contact Us For Availability
17
WCI K5128001 WCI K5128001 Contact Us For Availability
17
SHIELD, S.U. ,MED. WCI K5129601 Contact Us For Availability
17
HANDLE ASSY, DOOR WCI K5026601 Contact Us For Availability
18
TRIM, END CAP, R.H. WCI G5128105 Contact Us For Availability
18
PANEL, WHITE WCI K1325096 Contact Us For Availability
18
GLASS, OUTER WCI K5027202 Contact Us For Availability
18
RACK, OVEN, REG WCI K1311570 Contact Us For Availability
19
SUPPORT RH WCI K5127701 Contact Us For Availability
19
HANDLE, DWR WCI K1325038 Contact Us For Availability
19
AIR WASH, PANEL WCI K5276901 Contact Us For Availability
20
AIRWASH FOIL WCI K1313020 Contact Us For Availability
21
LENS SIGNAL LIGHT (3) WCI K5139002 Contact Us For Availability
21
WCI K1324095 WCI K1324095 Contact Us For Availability
21
AIRWASH INSUL. WCI K1322652 Contact Us For Availability
21
NUT, HEX (6) WCI K1266 Contact Us For Availability
22
LINER INSUL. WCI K1322651 Contact Us For Availability
22
SCREW VENT MTG (2) WCI K1164309 Contact Us For Availability
23
GUIDE, DRAWER WCI K1324091 Contact Us For Availability
23
VENT TUBE WCI K5055002 Contact Us For Availability
23
STRAP-GROUND WCI K1145190 Contact Us For Availability
24
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
24
ROLLER KIT WCI K1309794 Contact Us For Availability
24
SCREW GUIDE MTG WCI K1164569 Contact Us For Availability
25
KNOB, CLOCK/TIMER (3) WCI K1167946 Contact Us For Availability
25
RIVET WCI K1100773 Contact Us For Availability
25
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
25
WCI K1315216 WCI K1315216 Contact Us For Availability
26
WCI K1167984 WCI K1167984 Contact Us For Availability
26
SCREW WCI K5022201 Contact Us For Availability
26
WCI K5276502 WCI K5276502 Contact Us For Availability
26
WCI K5269902 WCI K5269902 Contact Us For Availability
27
WCI K5260501 WCI K5260501 Contact Us For Availability
27
NUT HEX WCI K5130001 Contact Us For Availability
27
DOOR HINGE ASSY WCI K1310065 Contact Us For Availability
27
BUTTON, PLUG WCI KGM142017 Contact Us For Availability
27
LEVELLER (2) WCI K1322905 Contact Us For Availability
28
BRKT., MTG., CLOCK/TIMER WCI K5127901 Contact Us For Availability
28
WCI K1164387 WCI K1164387 Contact Us For Availability
28
OVEN LINER ASSY WCI K1325538 Contact Us For Availability
28
WCI K5024602 WCI K5024602 Contact Us For Availability
29
PANEL BACKSPLASH WCI K5137610 Contact Us For Availability
29
STRAP, ANTI-TURN (4) WCI K5129801 Contact Us For Availability
29
RH OR LH DOOR HINGE CHANNEL WCI K1311514 Contact Us For Availability
29
BRACKET WCI K1311369 Contact Us For Availability
29
WCI K5106901 WCI K5106901 Contact Us For Availability
30
RH OR LH DOOR SPRING WCI K1302501 Contact Us For Availability
31
SCREW (2) WCI K1164479 Contact Us For Availability
32
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
33
PLUG BUTTON WCI KGM142001 Contact Us For Availability
33
WCI K5134501 WCI K5134501 Contact Us For Availability
34
WCI K1325113 WCI K1325113 Contact Us For Availability
35
WCI K1325114 WCI K1325114 Contact Us For Availability
37
WCI K5025704 WCI K5025704 Contact Us For Availability
38
WCI K5275802 WCI K5275802 Contact Us For Availability
40A
WASHER FLAT (3) WCI K1099962 Contact Us For Availability
41
WCI K5276202 WCI K5276202 Contact Us For Availability
× ![]()
