Model Electrolux REP306CF1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP/DRAWER

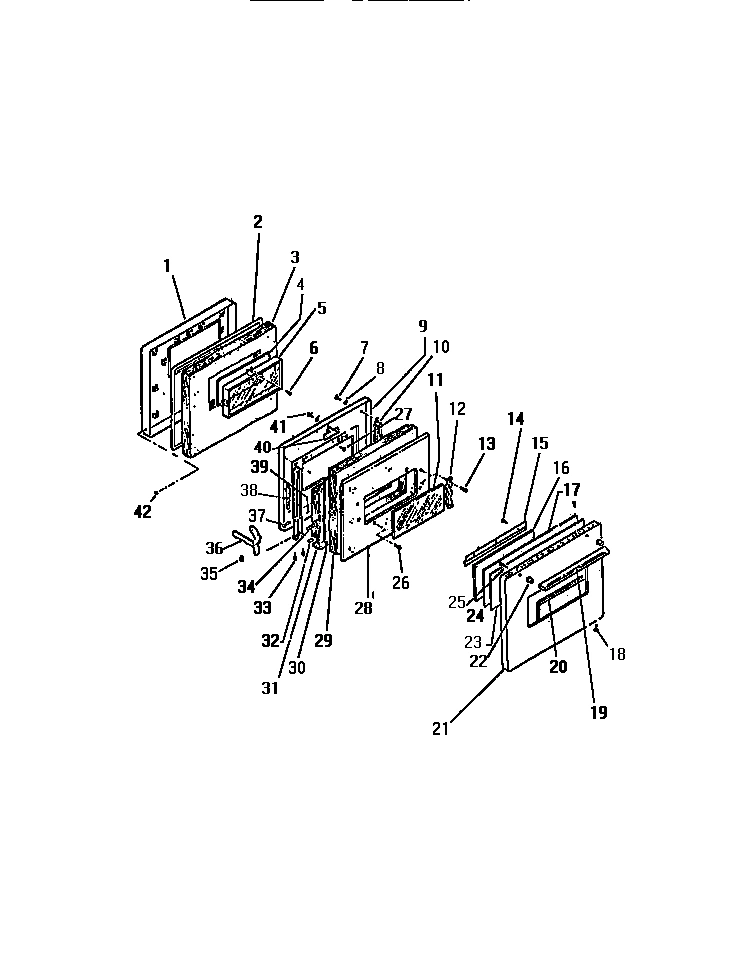

04 - DOOR

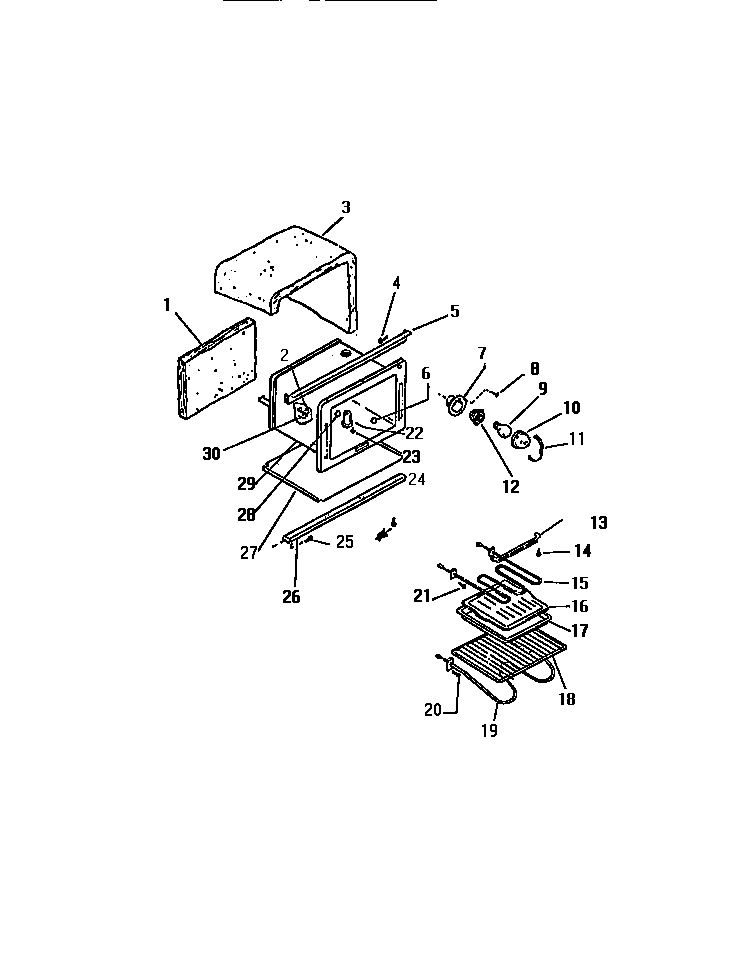

05 - OVEN CAVITY

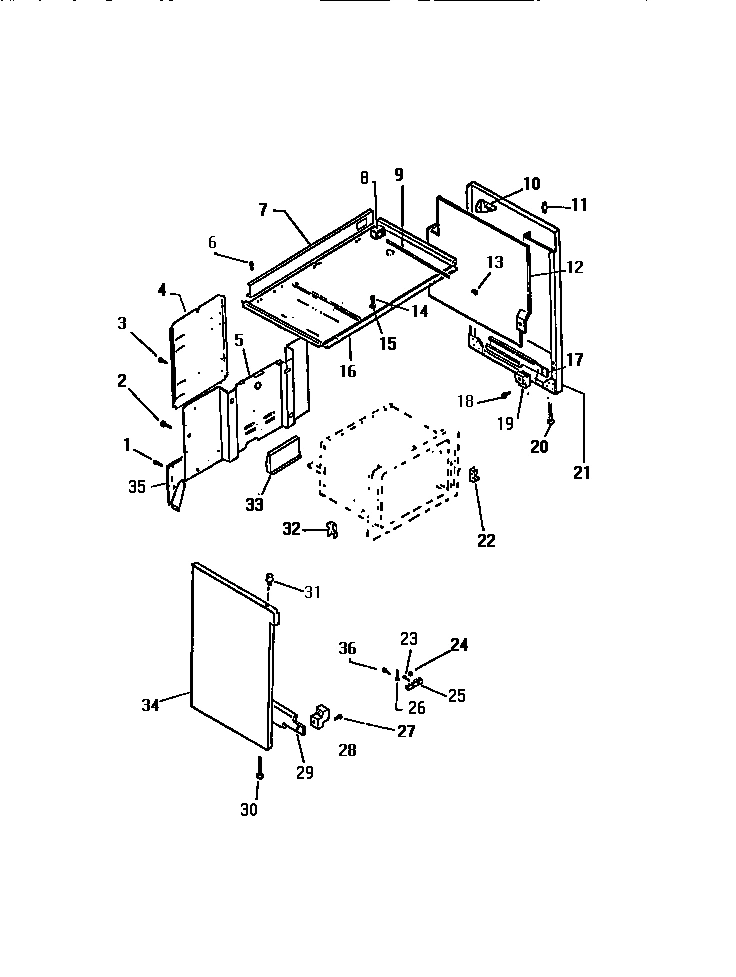

06 - PANELS

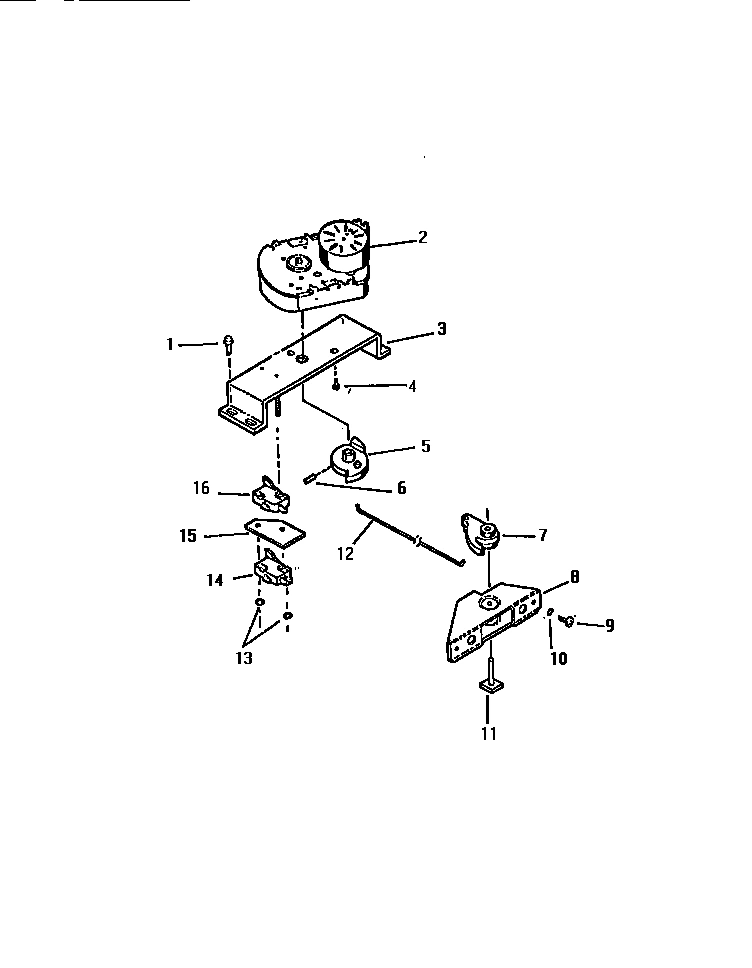

07 - LATCH ASSEMBLY
Common parts from model Electrolux REP306CF1 RANGE
*81081
WCI K5011207 WCI K5011207 Contact Us For Availability
1
WCI K5128002 WCI K5128002 Contact Us For Availability
1
OVEN DOOR BAFFLE WCI K1323751 Contact Us For Availability
1
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
1
WCI K5133501 WCI K5133501 Contact Us For Availability
2
WCI K5128106 WCI K5128106 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
WCI K1323811 WCI K1323811 Contact Us For Availability
2
MOTOR LATCH WCI K5151601 Contact Us For Availability
3
SUPPORT LH WCI K5127702 Contact Us For Availability
3
WCI K1322622 WCI K1322622 Contact Us For Availability
3
SUPPORT MTR WCI K5151613 Contact Us For Availability
3A
WASHER FLAT (3) WCI K1099962 Contact Us For Availability
4
SCREW (2) WCI K5104301 Contact Us For Availability
4
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
4
WCI K1322069 WCI K1322069 Contact Us For Availability
4
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
4
WCI K5276202 WCI K5276202 Contact Us For Availability
5
WCI K5266702 WCI K5266702 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
WINDOW ASSY. WCI K1322068 Contact Us For Availability
5
CHAN., OVEN SUPT. WCI K1325636 Contact Us For Availability
5
WCI K5275802 WCI K5275802 Contact Us For Availability
5
CAM DOOR LATCH MTR. WCI K5151605 Contact Us For Availability
6
BRKT, THERMO. WCI K5267103 Contact Us For Availability
6
PLUG BUTTON WCI KGM142025 Contact Us For Availability
6
WCI K5271206 WCI K5271206 Contact Us For Availability
7
SLEEVING INSULATING/THERMO. WCI K1301788 Contact Us For Availability
7
CUP, OVEN LT WCI K1325530 Contact Us For Availability
7
WCI K5287902 WCI K5287902 Contact Us For Availability
7
WCI K5260202 WCI K5260202 Contact Us For Availability
8
SWITCH, OVEN SELECTOR WCI K5099601 Contact Us For Availability
8
SWITCH-DOOR LATCH & OVEN LIGHT WCI K1310199 Contact Us For Availability
8
HSG, DOOR LATCH WCI K1324830 Contact Us For Availability
9
WCI K1164550 WCI K1164550 Contact Us For Availability
9
DOOR LINER WCI K1324720 Contact Us For Availability
9
WCI K1323421 WCI K1323421 Contact Us For Availability
10
THERMO. CONTROL WCI K1324562 Contact Us For Availability
10
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
10
CHANNEL ASSEMBLY HINGE (2) WCI K1311514 Contact Us For Availability
10
GUSSET, BACKGRD (2) WCI K1315230 Contact Us For Availability
11
WCI K1315111 WCI K1315111 Contact Us For Availability
11
INNER, GLASS WCI K1317924 Contact Us For Availability
11
AXLE WCI K5038501 Contact Us For Availability
11
WCI K1325529 WCI K1325529 Contact Us For Availability
12
SWITCH S.U. (OPT.) WCI K1311753 Contact Us For Availability
12
WCI K5270109 WCI K5270109 Contact Us For Availability
12
INNER, GLASS RETAINER (2) WCI K1317628 Contact Us For Availability
12
RET. INSUL. RH OR LH WCI K1325388 Contact Us For Availability
12
WCI K5271201 WCI K5271201 Contact Us For Availability
13
NUT, HEX (6), END CAP BODY TO BACKGUARD SUPT. WCI K5036602 Contact Us For Availability
13
ROD, COOKTOP SUPT. WCI K1315232 Contact Us For Availability
13
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
13
ROD END SWITCH WCI K1322682 Contact Us For Availability
13A
RETAINER SUPT. ROD WCI K1310049 Contact Us For Availability
14
WCI K5128001 WCI K5128001 Contact Us For Availability
14
SCREW (4) WCI K1313060 Contact Us For Availability
14
WCI K1325097 WCI K1325097 Contact Us For Availability
14
WCI K5151608 WCI K5151608 Contact Us For Availability
15
WCI K5051701 WCI K5051701 Contact Us For Availability
15
WCI K51325038 WCI K51325038 Contact Us For Availability
15
GLASS RETAINER (2) WCI K1313344 Contact Us For Availability
15
WCI K5151607 WCI K5151607 Contact Us For Availability
16
WCI K5128105 WCI K5128105 Contact Us For Availability
16
OUTER, GLASS WCI K1313244 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
16
WCI K5025802 WCI K5025802 Contact Us For Availability
16
WCI K5151609 WCI K5151609 Contact Us For Availability
17
NUT, HEX WCI K1186512 Contact Us For Availability
17
WCI K1324095 WCI K1324095 Contact Us For Availability
17
PNL,PAD INSULATOR WCI K1314506 Contact Us For Availability
17
WCI K5269901 WCI K5269901 Contact Us For Availability
18
WCI G5127701 WCI G5127701 Contact Us For Availability
18
RACK, OVEN, REG WCI K1311570 Contact Us For Availability
18
SCREW WCI K1164569 Contact Us For Availability
19
WCI K1312868 WCI K1312868 Contact Us For Availability
19
GUIDE, DRAWER WCI K1324091 Contact Us For Availability
19
HANDLE WCI K1325038 Contact Us For Availability
20
SIGNAL LIGHT (2) WCI K5138903 Contact Us For Availability
20
MOULDING WCI K1313568 Contact Us For Availability
21
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
21
PANEL, OVEN DOOR, COFFEE WCI K1317631 Contact Us For Availability
21
WCI K5024605 WCI K5024605 Contact Us For Availability
22
PANEL BACKSPLASH, COFFEE WCI K5137603 Contact Us For Availability
22
SCREW, HANDLE WCI K5022201 Contact Us For Availability
22
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
22
VENT TUBE WCI K5055001 Contact Us For Availability
23
WCI K1318805 WCI K1318805 Contact Us For Availability
23
SCREW VENT MTG (2) WCI K1164309 Contact Us For Availability
23
SCREW (2) WCI K1164479 Contact Us For Availability
24
WCI K5139002 WCI K5139002 Contact Us For Availability
24
NUT, HEX (6) WCI K1266 Contact Us For Availability
25
SCREW (2) WCI K5104201 Contact Us For Availability
26
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
26
STRAP-GROUND WCI K1145190 Contact Us For Availability
27
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
27
SCREW WCI K1164557 Contact Us For Availability
27
WCI K5276502 WCI K5276502 Contact Us For Availability
27
SCREW GUIDE MTG WCI K1164589 Contact Us For Availability
28
KNOB, CLOCK/TIMER WCI K1167946 Contact Us For Availability
28
AIR WASH, PANEL WCI K5276901 Contact Us For Availability
28
BUTTON, PLUG WCI KGM142017 Contact Us For Availability
28
WCI K1315216 WCI K1315216 Contact Us For Availability
28A
GLASS, TIMER WCI K1167984 Contact Us For Availability
29
WCI K5260501 WCI K5260501 Contact Us For Availability
29
AIR WASH, INSULATION WCI K1322652 Contact Us For Availability
29
OVEN LINER ASSY WCI K1325538 Contact Us For Availability
29
WCI K5269902 WCI K5269902 Contact Us For Availability
29A
BRKT MOUNTING WCI K5127901 Contact Us For Availability
30
FOIL- AIR WASH WCI K1318825 Contact Us For Availability
30
BRKT, THERMOBULB WCI K1311369 Contact Us For Availability
30
LEVELLER (2) WCI K1322905 Contact Us For Availability
31
LINER, INSULATION WCI K1322651 Contact Us For Availability
31
WCI K5106901 WCI K5106901 Contact Us For Availability
32
ROLLER KIT WCI K1309794 Contact Us For Availability
32
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
33
WCI K1164285 WCI K1164285 Contact Us For Availability
33
WCI K5134501 WCI K5134501 Contact Us For Availability
34
WCI K5024606 WCI K5024606 Contact Us For Availability
35
WCI K1311648 WCI K1311648 Contact Us For Availability
35
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
35
GUSSET REAR, LH WCI K5285804 Contact Us For Availability
36
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
37
RIVET WCI K1100773 Contact Us For Availability
38
WCI K1302501 WCI K1302501 Contact Us For Availability
39
WCI K1164387 WCI K1164387 Contact Us For Availability
40
STRIKE PKG WCI K1323556 Contact Us For Availability
42
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
× ![]()
