Model Electrolux REP306CF0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP/DRAWER

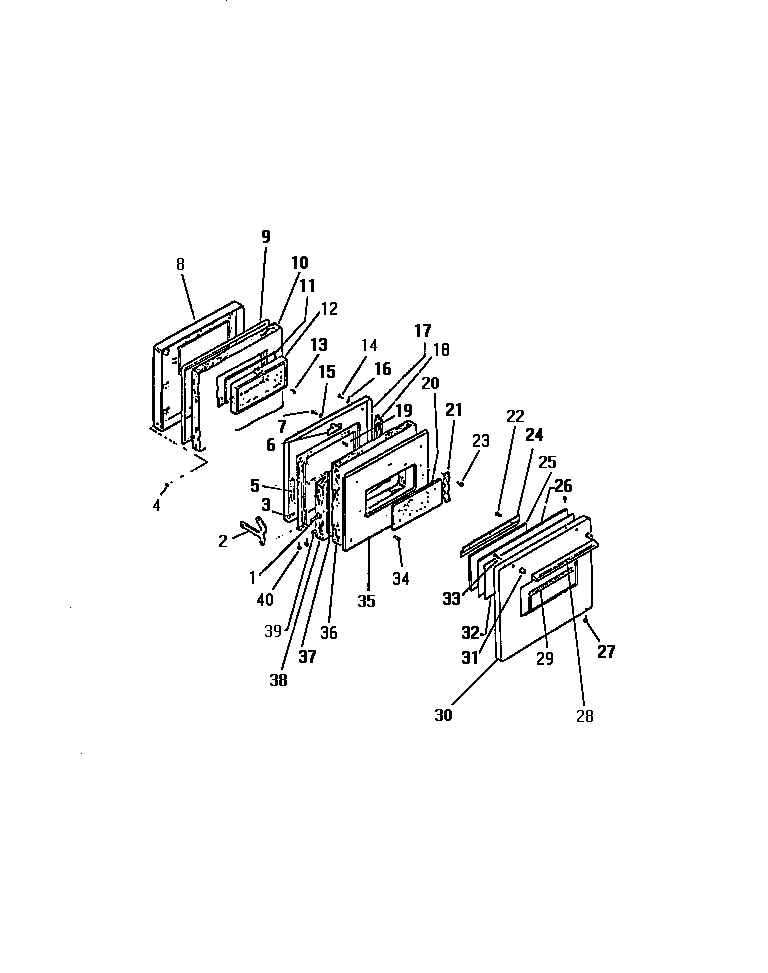

04 - DOOR

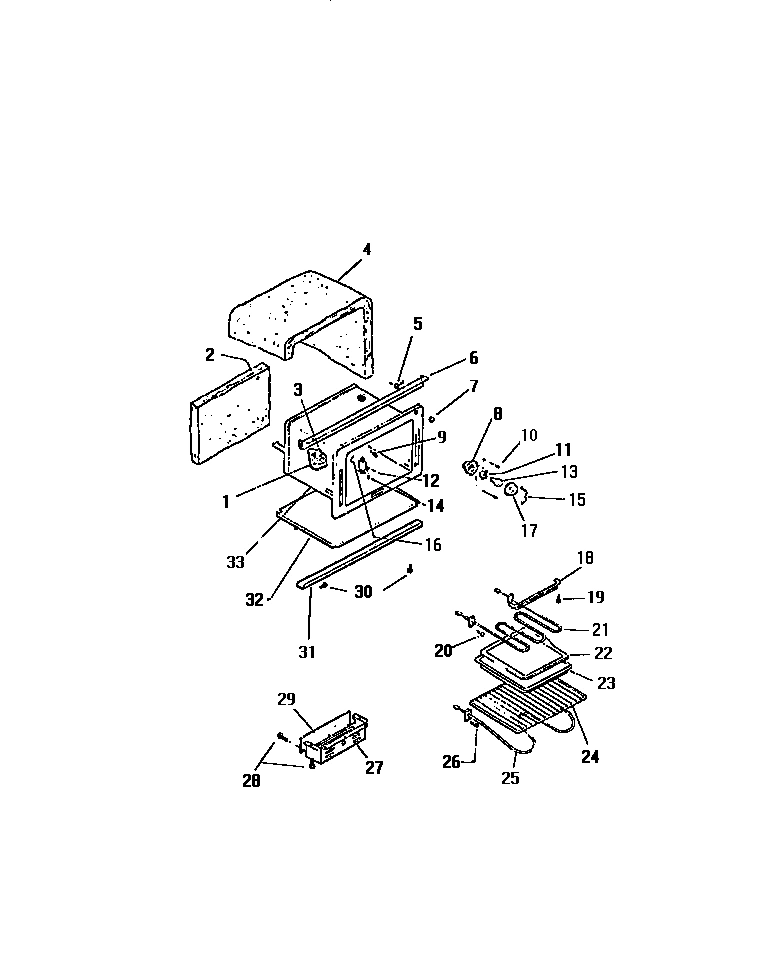

05 - OVEN CAVITY

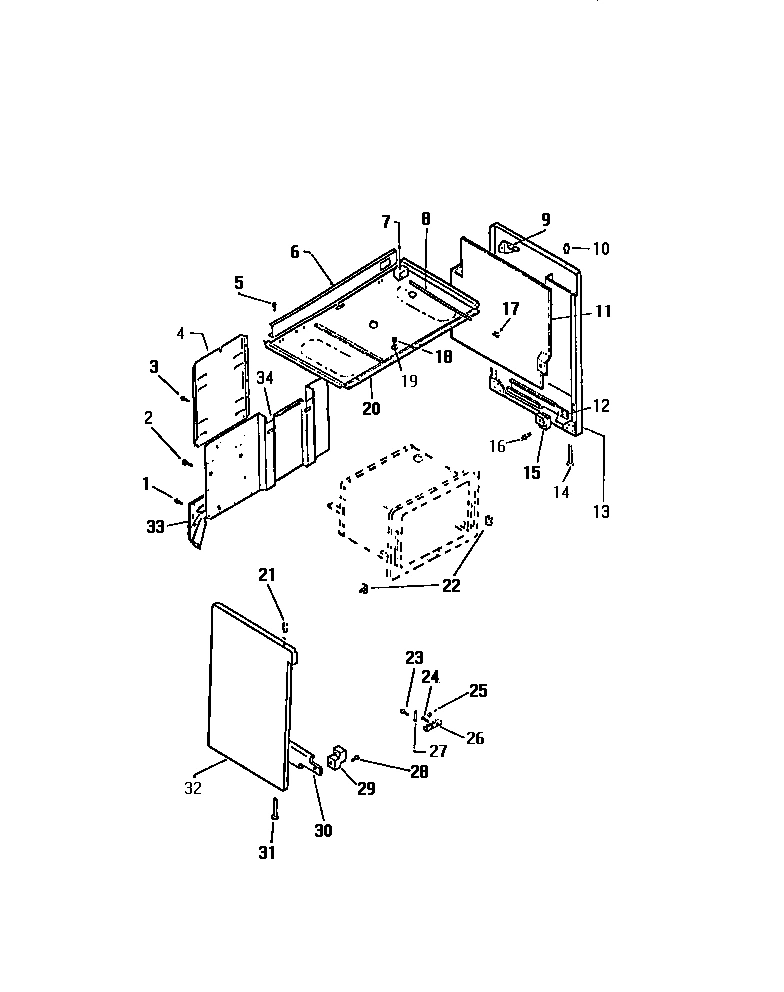

06 - PANELS

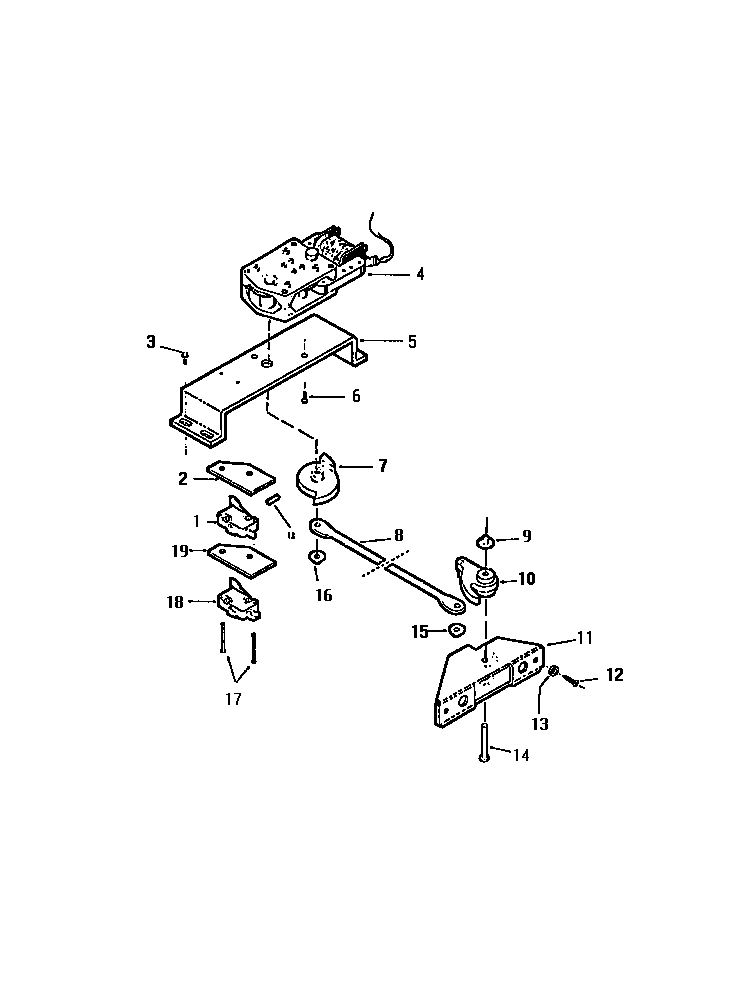

07 - LATCH ASSEMBLY
Common parts from model Electrolux REP306CF0 RANGE
*84241
WCI K5133501 WCI K5133501 Contact Us For Availability
*84242
OWNERS MANUAL WCI K5011207 Contact Us For Availability
1
SWITCH, OVEN SELECTOR WCI K5099601 Contact Us For Availability
1
WCI K1315631 WCI K1315631 Contact Us For Availability
1
AXLE, HINGES WCI K5038501 Contact Us For Availability
1
WCI K1311369 WCI K1311369 Contact Us For Availability
1
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
2
THERMOSTAT CONTROL WCI K1324562 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
2
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
3
BRACKET, OVEN THERMOSTAT MOUNTING WCI K5267103 Contact Us For Availability
3
RIVET WCI K1100773 Contact Us For Availability
4
RETAINER, HINGE WCI K1315632 Contact Us For Availability
4
PLUG BUTTON (2) WCI KGM142001 Contact Us For Availability
4
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
4
WCI K1323264 WCI K1323264 Contact Us For Availability
4B
SWITCH SURFACE UNIT. (OPTIONAL) WCI K1311753 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
DOOR SPRING (2) WCI K1302501 Contact Us For Availability
5
WCI K1324263 WCI K1324263 Contact Us For Availability
6
WCI K1315111 WCI K1315111 Contact Us For Availability
6
CATCH, STAKE ASSEMBLY WCI K1323556 Contact Us For Availability
6
WCI K1325636 WCI K1325636 Contact Us For Availability
6
WCI K5287902 WCI K5287902 Contact Us For Availability
6
SCREW, MOTOR SUPPORT (2) WCI K5157101 Contact Us For Availability
7
SIGNAL LIGHT (2) WCI K5138903 Contact Us For Availability
7
PLUG BUTTON WCI KGM142025 Contact Us For Availability
7
SWITCH, DOOR LATCH AND OVEN LIGHT WCI K1310199 Contact Us For Availability
7
CAM, DOOR LATCH MOTOR WCI K1309592 Contact Us For Availability
8
WCI K505180 WCI K505180 Contact Us For Availability
8
OVEN DOOR BAFFLE WCI K1323751 Contact Us For Availability
8
WCI K1325530 WCI K1325530 Contact Us For Availability
8
WCI K1323421 WCI K1323421 Contact Us For Availability
8
WCI K1317813 WCI K1317813 Contact Us For Availability
9
NUT, HEX WCI K1186512 Contact Us For Availability
9
WCI K1323811 WCI K1323811 Contact Us For Availability
9
WCI K1315230 WCI K1315230 Contact Us For Availability
10
WCI K5051801 WCI K5051801 Contact Us For Availability
10
DOOR BAFFLE INSULATION WCI K1322622 Contact Us For Availability
10
WCI K5260201 WCI K5260201 Contact Us For Availability
11
WCI K5128001 WCI K5128001 Contact Us For Availability
11
WCI K1322069 WCI K1322069 Contact Us For Availability
11
RETAINER, INSULATION, RH AND LH WCI K1325388 Contact Us For Availability
11
WCI K1324830 WCI K1324830 Contact Us For Availability
11A
NUT, HEX, END CAP BODY TO BACKGUARD SUPPORT ( WCI K5036602 Contact Us For Availability
12
WCI K5270109 WCI K5270109 Contact Us For Availability
12
WCI K1164550 WCI K1164550 Contact Us For Availability
12
OVEN DOOR WINDOW ASSEMBLY WCI K1322068 Contact Us For Availability
12
VENT TUBE WCI K5055001 Contact Us For Availability
12
WCI K5269901 WCI K5269901 Contact Us For Availability
13
PANEL, COFFEE WCI K1325097 Contact Us For Availability
13
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
13
WCI K5024605 WCI K5024605 Contact Us For Availability
14
WCI K5128105 WCI K5128105 Contact Us For Availability
14
SCREW VENT MOUNTING (2) WCI K1164309 Contact Us For Availability
14
WCI K1303756 WCI K1303756 Contact Us For Availability
15
SUPPORT RH WCI K5127701 Contact Us For Availability
15
WCI K1325529 WCI K1325529 Contact Us For Availability
15
PUSH NUT WCI K1164424 Contact Us For Availability
16
WCI K5139002 WCI K5139002 Contact Us For Availability
16
PLUG BUTTON, THERMOSTAT BULB WCI KGM142017 Contact Us For Availability
16
PIN, MOTOR CAM WCI KGM455105 Contact Us For Availability
17
GLIDE DRAWER (2) WCI K1324091 Contact Us For Availability
17
DOOR LINER WCI K1324720 Contact Us For Availability
17
ROD END SWITCH WCI K1322682 Contact Us For Availability
17
SCREW, SWITCH MOUNTING (2) WCI K1164502 Contact Us For Availability
18
CHANNEL ASSEMBLY HINGE (2) WCI K1311514 Contact Us For Availability
18
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
18
SWITCH-LOWER LIMIT WCI K1308713 Contact Us For Availability
19
INSULATOR WCI K1308690 Contact Us For Availability
20
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
20
SCREW (2) WCI K5022201 Contact Us For Availability
20
INNER, GLASS WCI K1317924 Contact Us For Availability
20
WCI K5025802 WCI K5025802 Contact Us For Availability
21
KNOB, CLOCK/TIMER WCI K1167946 Contact Us For Availability
21
WCI K1324095 WCI K1324095 Contact Us For Availability
21
INNER, GLASS RETAINER (2) WCI K1317628 Contact Us For Availability
21
BUMPER COOKTOP WCI K1307110 Contact Us For Availability
22
GLASS, TIMER WCI K1167984 Contact Us For Availability
22
SCREW (4) WCI K1313060 Contact Us For Availability
22
GRILLE, BROILER WCI K1313049 Contact Us For Availability
22
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
24
WCI K5260501 WCI K5260501 Contact Us For Availability
24
WCI K1315232 WCI K1315232 Contact Us For Availability
24
GLASS RETAINER (2) WCI K1313344 Contact Us For Availability
24
WCI K1311570 WCI K1311570 Contact Us For Availability
24
SCREW WCI K1164479 Contact Us For Availability
24B
WCI K1310049 WCI K1310049 Contact Us For Availability
25
BRACKET, MOUNTING CLOCK/TIMER WCI K5127901 Contact Us For Availability
25
OUTER, GLASS WCI K1313244 Contact Us For Availability
25
NUT WCI K1266 Contact Us For Availability
26
PANEL BACKSPLASH, COFFEE WCI K5137603 Contact Us For Availability
26
PANEL, PAD INSULATION WCI K1314506 Contact Us For Availability
27
WCI K1315121 WCI K1315121 Contact Us For Availability
27
WCI K1145190 WCI K1145190 Contact Us For Availability
28
WCI K5128002 WCI K5128002 Contact Us For Availability
28
HANDLE, DOOR WCI K1325038 Contact Us For Availability
28
SCREW, GUIDE MOUNTING WCI K1164569 Contact Us For Availability
29
WCI K5128106 WCI K5128106 Contact Us For Availability
29
MOULDING WCI K1313568 Contact Us For Availability
29
WCI K1303601 WCI K1303601 Contact Us For Availability
29
WCI K1315216 WCI K1315216 Contact Us For Availability
30
SUPPORT LH WCI K5127702 Contact Us For Availability
30
PANEL, OVEN DOOR, COFFEE WCI K1317631 Contact Us For Availability
30
WCI K5269902 WCI K5269902 Contact Us For Availability
31
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
31
CHANNEL, OVEN SUPPORT, LOWER WCI K1315108 Contact Us For Availability
31
LEVELLER (2) WCI K1322905 Contact Us For Availability
32
WCI K5266702 WCI K5266702 Contact Us For Availability
32
WCI K1318805 WCI K1318805 Contact Us For Availability
32
WCI K1317644 WCI K1317644 Contact Us For Availability
32
WCI K5024606 WCI K5024606 Contact Us For Availability
33
SCREW (AS REQUIRED) WCI K5104301 Contact Us For Availability
33
SCREW (2) WCI K5104201 Contact Us For Availability
33
OVEN LINER ASSEMBLY WCI K1325538 Contact Us For Availability
33
WCI K1325113 WCI K1325113 Contact Us For Availability
33A
WCI K1325114 WCI K1325114 Contact Us For Availability
34
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
34
BACK, RANGE WCI K5276202 Contact Us For Availability
35
AIR WASH, PANEL WCI K5276901 Contact Us For Availability
36
AIR WASH, INSULATION WCI K1322652 Contact Us For Availability
37
FOIL- AIR WASH WCI K1318825 Contact Us For Availability
38
LINER, INSULATION WCI K1322651 Contact Us For Availability
39
ROLLER KIT WCI K1309794 Contact Us For Availability
× ![]()
