Model Electrolux REP305GW0 RANGE – Common Parts & Diagrams

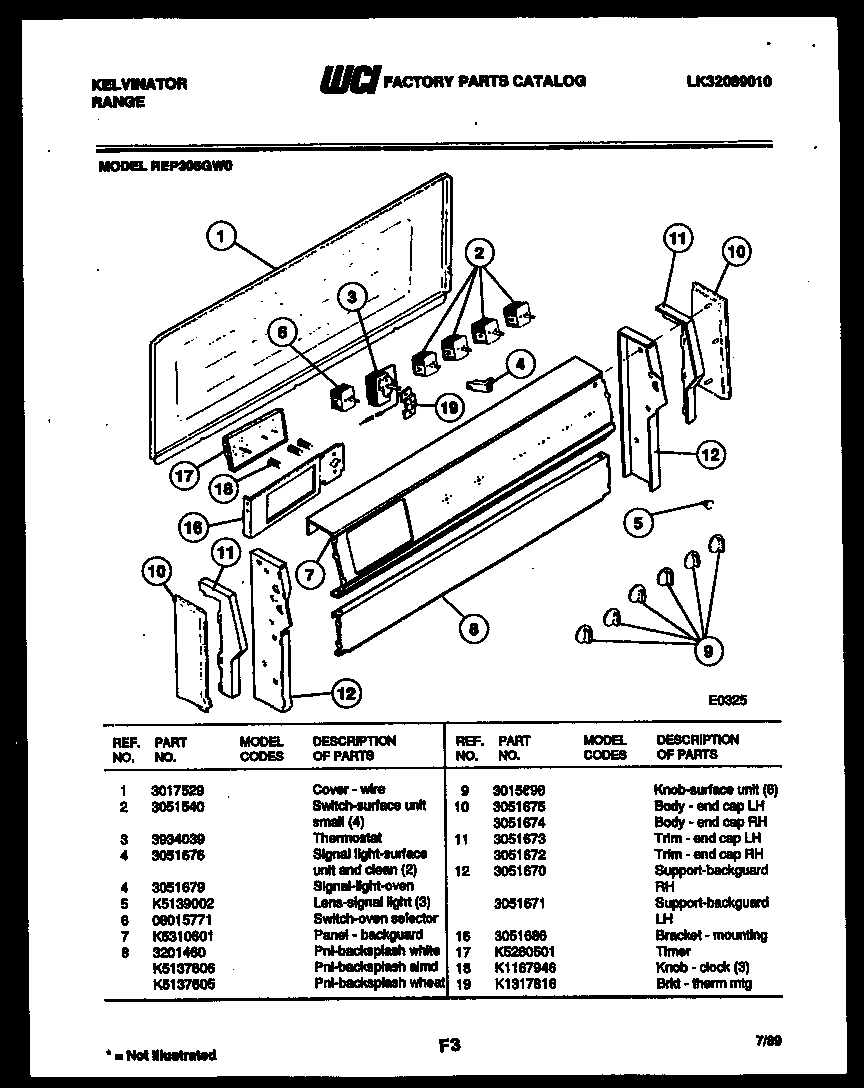

02 - BACKGUARD PARTS

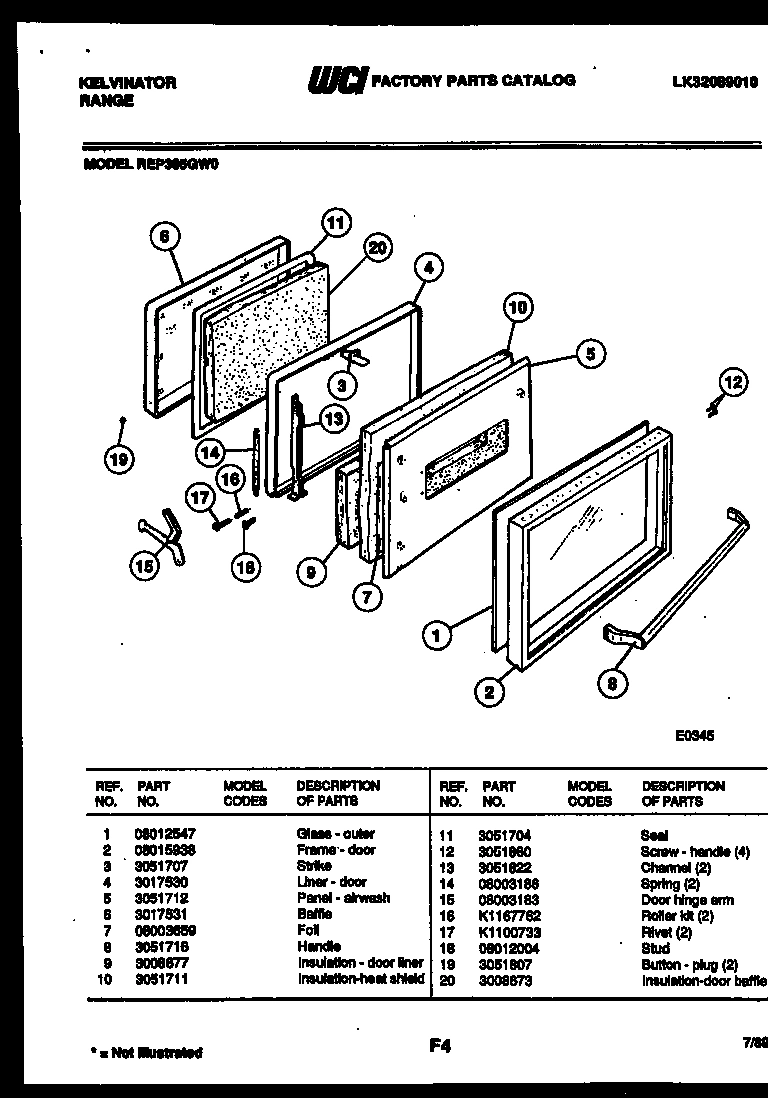

03 - DOOR PARTS

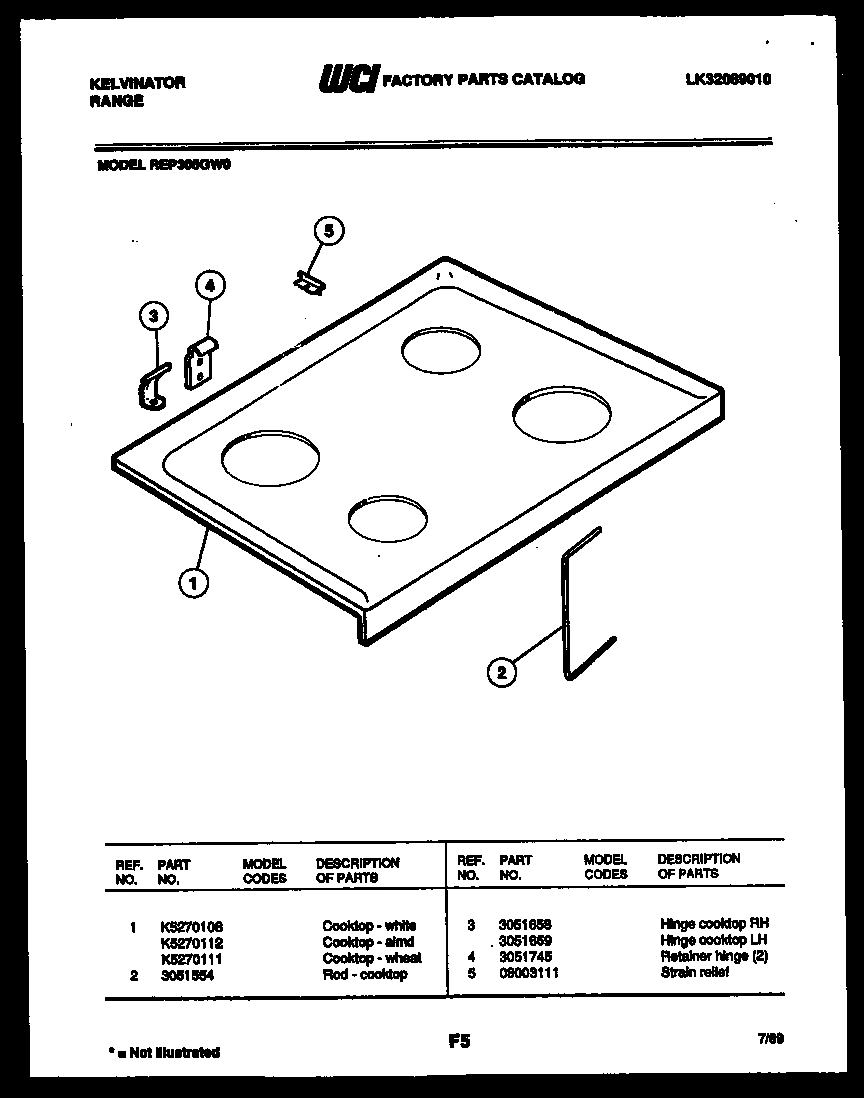

04 - COOKTOP PARTS

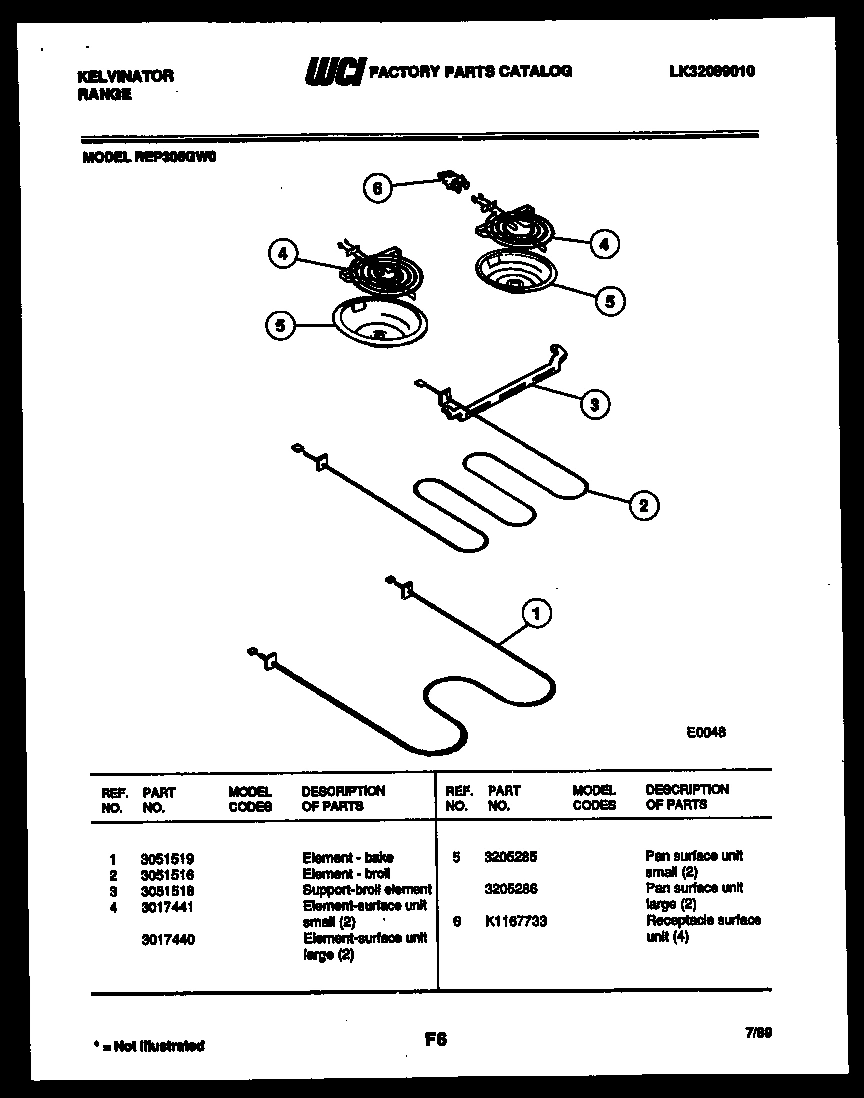

05 - BROILER PARTS

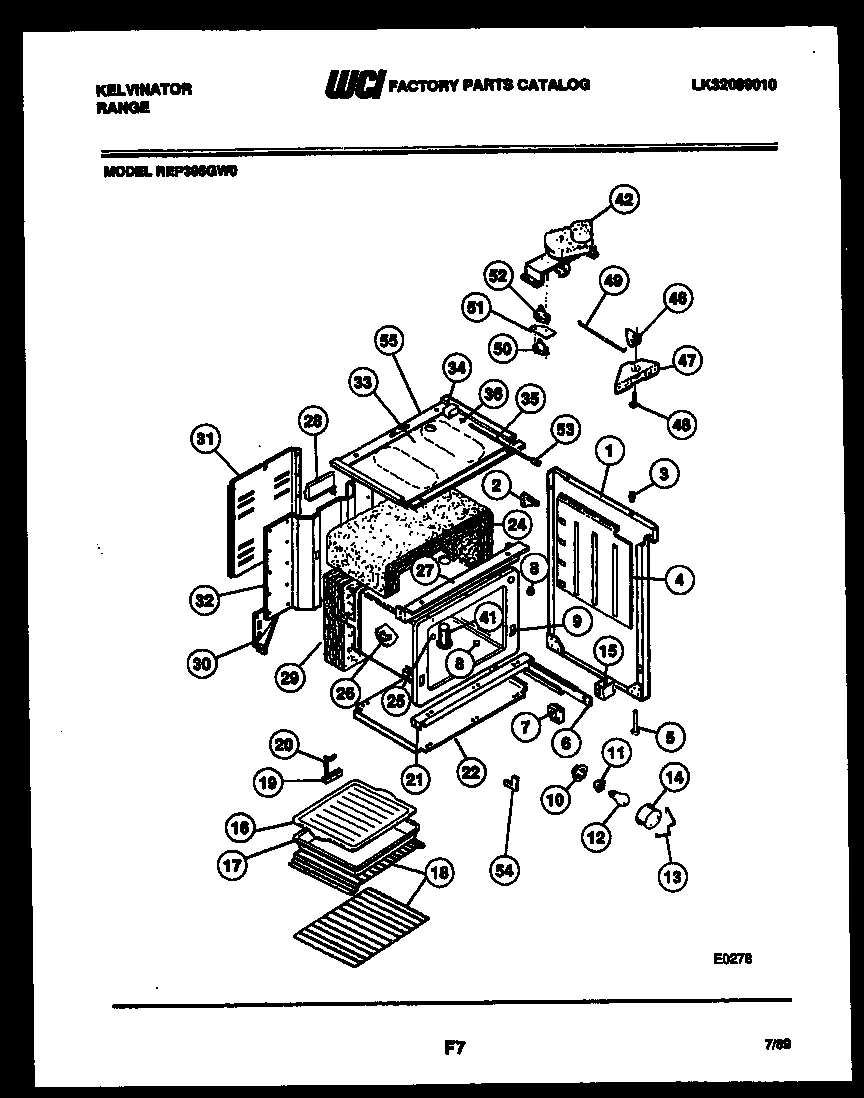

06 - BODY PARTS

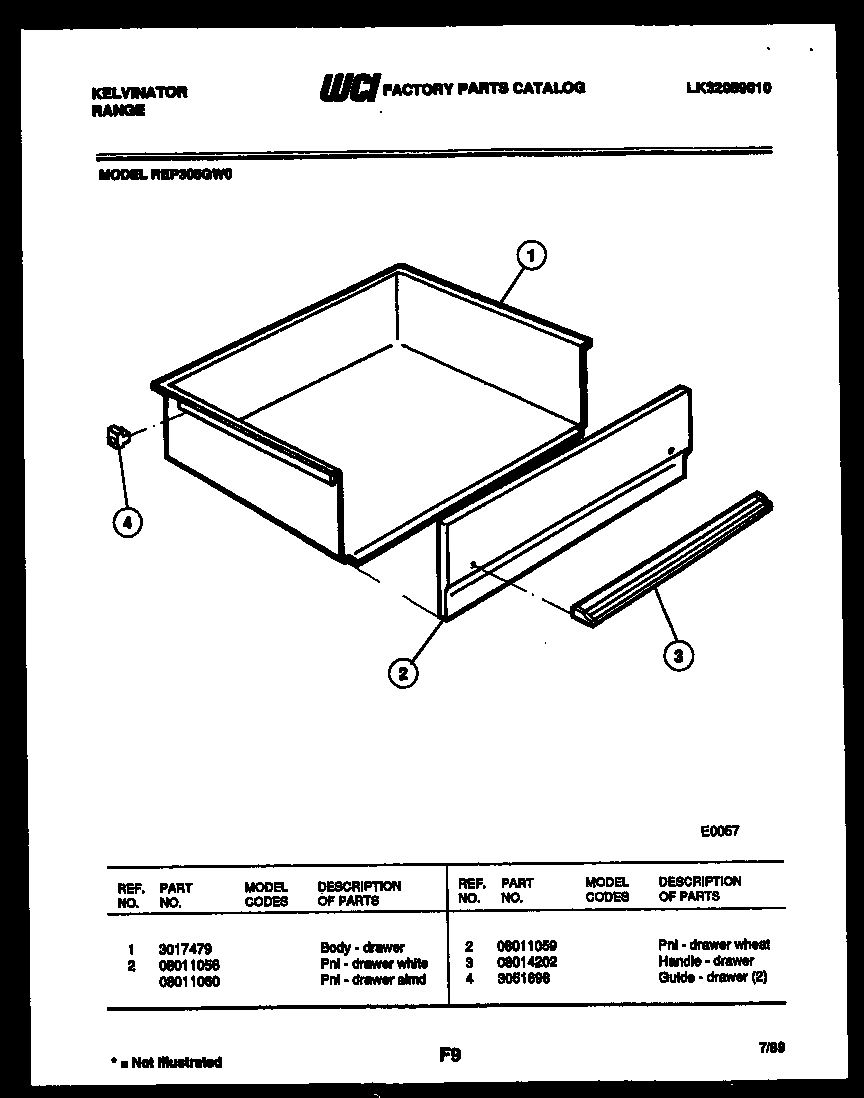

07 - DRAWER PARTS
Common parts from model Electrolux REP305GW0 RANGE
*98744
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 08012547 WCI 08012547 Contact Us For Availability
1
WCI K5270108 WCI K5270108 Contact Us For Availability
1
SIDE PNL - RH (WHITE) WCI 08012527 Contact Us For Availability
1
WCI 3017479 WCI 3017479 Contact Us For Availability
1A
SIDE PNL - LH (WHITE) WCI 08012528 Contact Us For Availability
2
FRAME - DOOR WCI 08015938 Contact Us For Availability
2
ROD COOKTOP WCI 3051554 Contact Us For Availability
2
GUSSET-BACKGUARD (2) WCI 3051657 Contact Us For Availability
2
PNL - DRAWER WHITE WCI 08011056 Contact Us For Availability
3
WCI 3934039 WCI 3934039 Contact Us For Availability
3
STRIKE WCI 3051707 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI 3051660 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3A
HINGE COOKTOP LH WCI 3051659 Contact Us For Availability
4
SIGNAL LIGHT-SURFACE UNIT AND CLEAN (2) WCI 3051676 Contact Us For Availability
4
WCI 3051679 WCI 3051679 Contact Us For Availability
4
WCI 3017530 WCI 3017530 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
GUIDE - DRAWER (2) WCI 3051698 Contact Us For Availability
5
LENS SIGNAL LIGHT (3) WCI K5139002 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
WCI 08003111 WCI 08003111 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
WCI 08015771 WCI 08015771 Contact Us For Availability
6
BAFFLE WCI 3017531 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI K5310601 WCI K5310601 Contact Us For Availability
7
WCI 08003659 WCI 08003659 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
8
PNL-BACKSPLASH WHITE WCI 3201460 Contact Us For Availability
8
WCI 3051716 WCI 3051716 Contact Us For Availability
8
PLUG-BUTTON-OVEN 3/4`` (2) WCI 3051784 Contact Us For Availability
9
KNOB-SURFACE UNIT (6) WCI 3015698 Contact Us For Availability
9
INSULATION - DOOR LINER WCI 3008677 Contact Us For Availability
9
OVEN LINER WCI 3204603 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
INSULATION-HEAT SHIELD WCI 3051711 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
SEAL WCI 3051704 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGUARD RH WCI 3051670 Contact Us For Availability
12
SCREW HANDLE (4) WCI 3051860 Contact Us For Availability
12A
SUPPORT-BACKGUARD LH WCI 3051671 Contact Us For Availability
13
WCI 3051822 WCI 3051822 Contact Us For Availability
13
WCI 3051515 WCI 3051515 Contact Us For Availability
14
SPRING (2) WCI 08003186 Contact Us For Availability
15
WCI 08003183 WCI 08003183 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
16
WCI 3051686 WCI 3051686 Contact Us For Availability
16
WCI K1167762 WCI K1167762 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI K5260501 WCI K5260501 Contact Us For Availability
17
RIVET (2) WCI K1100733 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
BRKT - THERM MTG WCI K1317816 Contact Us For Availability
19
WCI 3051807 WCI 3051807 Contact Us For Availability
20
INSULATION-DOOR BAFFLE WCI 3008673 Contact Us For Availability
20
WCI 3051696 WCI 3051696 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
25
PLUG BUTTON - THERMO BULB HOLE WCI 3051796 Contact Us For Availability
26
BRKT, THERMOBULB WCI 3051552 Contact Us For Availability
27
WCI K1325636 WCI K1325636 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
COVER - WIRE WCI 3051856 Contact Us For Availability
32
WCI 3017535 WCI 3017535 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI 3051785 Contact Us For Availability
34
WCI 3051644 WCI 3051644 Contact Us For Availability
35
WCI 0807445 WCI 0807445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
WCI 08015743 WCI 08015743 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3019074 Contact Us For Availability
48
AXLE WCI 08012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
WCI 3051740 WCI 3051740 Contact Us For Availability
51
WCI 3051861 WCI 3051861 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
53
COVER - ROD END WCI 3011924 Contact Us For Availability
54
WCI 3051810 WCI 3051810 Contact Us For Availability
55
WCI 3017633 WCI 3017633 Contact Us For Availability
× ![]()
