Model Electrolux REP305CW1 RANGE – Common Parts & Diagrams

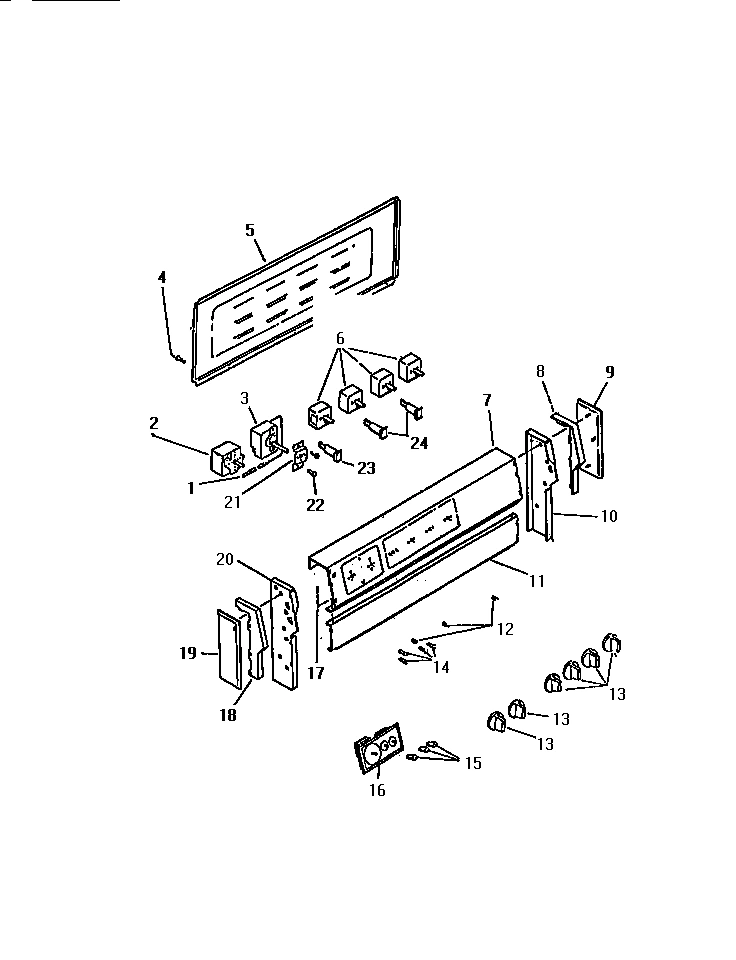

02 - BACKGUARD

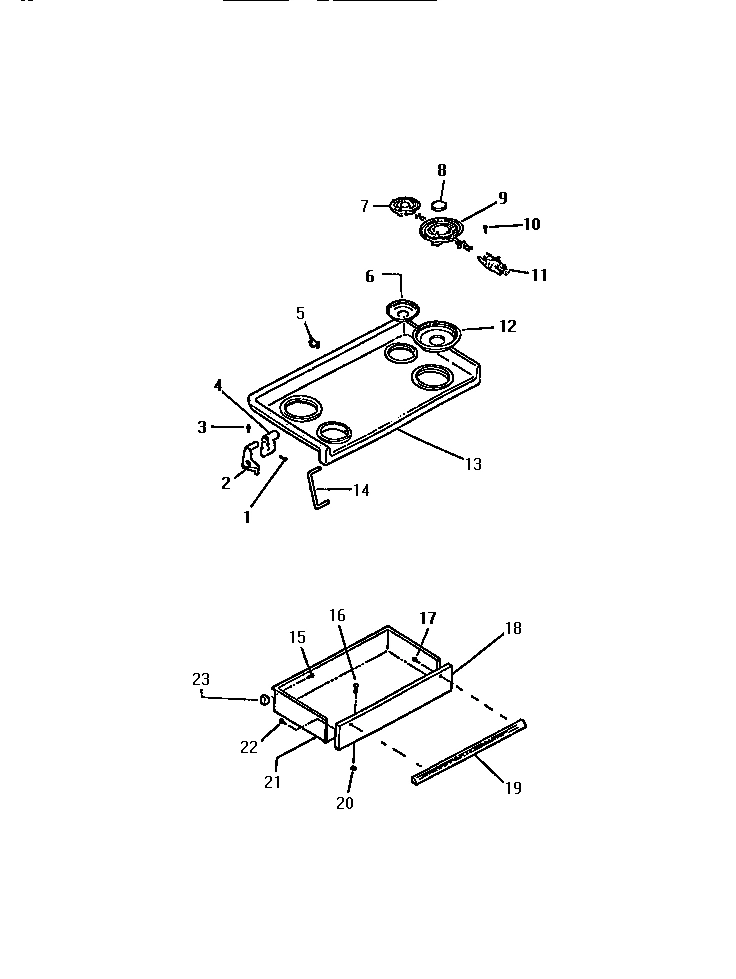

03 - TOP/DRAWER
04 - DOOR
05 - OVEN CAVITY
06 - PANELS
07 - LATCH ASSEMBLY
Common parts from model Electrolux REP305CW1 RANGE
*20841
NUT, HEX, END CAP BODY TO BACKGUARD SUPPORT ( WCI K5036602 Contact Us For Availability
*20842
OWNERS MANUAL WCI K5011207 Contact Us For Availability
1
SLEEVING-INSULATING THERMOSTAT WCI K1301788 Contact Us For Availability
1
BUTTON, PLUG WCI KGM142001 Contact Us For Availability
1
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
1
WCI K1325114 WCI K1325114 Contact Us For Availability
1A
WCI K1325113 WCI K1325113 Contact Us For Availability
2
SWITCH, OVEN SELECTOR WCI K5099601 Contact Us For Availability
2
WCI K1315630 WCI K1315630 Contact Us For Availability
2
WCI K1323840 WCI K1323840 Contact Us For Availability
2
WCI K5151608 WCI K5151608 Contact Us For Availability
2A
WCI K1315631 WCI K1315631 Contact Us For Availability
3
THERMOSTAT CONTROL WCI K1324562 Contact Us For Availability
3
WCI K1323811 WCI K1323811 Contact Us For Availability
3
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
3
WCI K5151607 WCI K5151607 Contact Us For Availability
4
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
4
INSULATION, DOOR BAFFLE WCI K1322622 Contact Us For Availability
4
WCI K5151609 WCI K5151609 Contact Us For Availability
4A
WASHER FLAT (3) WCI K1099962 Contact Us For Availability
5
WCI K1315111 WCI K1315111 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
CHANNEL, OVEN SUPPPORT WCI K1325636 Contact Us For Availability
5
WCI K5276202 WCI K5276202 Contact Us For Availability
6
PLUG, BOTTON WCI KGM142025 Contact Us For Availability
6
WCI K5275802 WCI K5275802 Contact Us For Availability
6
MOTOR LATCH WCI K5151601 Contact Us For Availability
6B
SWITCH SURFACE UNIT. (OPTIONAL) WCI K1311753 Contact Us For Availability
7
PANEL, BACKGROUND WCI K5266701 Contact Us For Availability
7
WCI K1325530 WCI K1325530 Contact Us For Availability
7
WCI K5151613 WCI K5151613 Contact Us For Availability
8
TRIM, END CAP, R.H. WCI G5128105 Contact Us For Availability
8
MEDALLION (4) WCI K1167679 Contact Us For Availability
8
WCI K1324720 WCI K1324720 Contact Us For Availability
8
SHIELD, WIRE, DO NOT STOCK WCI K5287902 Contact Us For Availability
9
BODY, END CAP, RH WCI G5128001 Contact Us For Availability
9
ASSEMBLY, STRIKE WCI K1323556 Contact Us For Availability
9
SWITCH-DOOR LATCH & OVEN LIGHT WCI K1310199 Contact Us For Availability
9
WCI K5151605 WCI K5151605 Contact Us For Availability
10
WCI G5127701 WCI G5127701 Contact Us For Availability
10
WCI K1323421 WCI K1323421 Contact Us For Availability
10
WCI K5271206 WCI K5271206 Contact Us For Availability
11
WCI K5137602 WCI K5137602 Contact Us For Availability
11
WCI K1325529 WCI K1325529 Contact Us For Availability
11
ROD END SWITCH WCI K1322682 Contact Us For Availability
11
WCI K5271201 WCI K5271201 Contact Us For Availability
12
WCI K5139002 WCI K5139002 Contact Us For Availability
12
WCI K1164566 WCI K1164566 Contact Us For Availability
12
WCI K5055001 WCI K5055001 Contact Us For Availability
12
GUSSET, BACKGROUND (2) WCI K1315230 Contact Us For Availability
12
WCI K5260202 WCI K5260202 Contact Us For Availability
13
KNOB (SURFACE UNIT(4), THERMOSTAT & OVEN SELE WCI K5158301 Contact Us For Availability
13
WCI K5270108 WCI K5270108 Contact Us For Availability
13
SCREW WCI K5046501 Contact Us For Availability
13
SCREW VENT MOUNTING (2) WCI K1164309 Contact Us For Availability
13
HOUSING, DOOR LATCH WCI K1324830 Contact Us For Availability
14
WCI K1315232 WCI K1315232 Contact Us For Availability
14
WCI K1164550 WCI K1164550 Contact Us For Availability
14
END, HANDLE WCI K5132701 Contact Us For Availability
14
RETAINER, INSULATION, RH OR LH WCI K1325388 Contact Us For Availability
14A
WCI K1310049 WCI K1310049 Contact Us For Availability
15
KNOB, CLOCK/TIMER WCI K1167946 Contact Us For Availability
15
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
15
GRIP WCI K5026807 Contact Us For Availability
15
WCI K5269901 WCI K5269901 Contact Us For Availability
15A
WCI G1167984 WCI G1167984 Contact Us For Availability
16
WCI K5260501 WCI K5260501 Contact Us For Availability
16
WCI K5276801 WCI K5276801 Contact Us For Availability
16
AXLE WCI K5038501 Contact Us For Availability
16
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
16A
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16B
SCREW (2) WCI K1313060 Contact Us For Availability
17
WCI K116447 WCI K116447 Contact Us For Availability
18
WCI K5128106 WCI K5128106 Contact Us For Availability
18
WCI K1325096 WCI K1325096 Contact Us For Availability
18
ASSEMBLY, DOOR HANDLE WCI K5026601 Contact Us For Availability
19
WCI K5128002 WCI K5128002 Contact Us For Availability
19
HANDLE - DRAWER WCI K1325038 Contact Us For Availability
19
GLASS, OUTER WCI K5027202 Contact Us For Availability
19
GRILLE, BROILER WCI K1313049 Contact Us For Availability
19
WCI K5024601 WCI K5024601 Contact Us For Availability
20
SUPPORT LH WCI K5127702 Contact Us For Availability
20
WCI K5276901 WCI K5276901 Contact Us For Availability
21
BRACKET-THERMOSTAT WCI K5267103 Contact Us For Availability
21
WCI K1324095 WCI K1324095 Contact Us For Availability
21
WCI K1313020 WCI K1313020 Contact Us For Availability
21
WCI K1311570 WCI K1311570 Contact Us For Availability
21
LEVELLER (2) WCI K1322905 Contact Us For Availability
21A
WCI K5133501 WCI K5133501 Contact Us For Availability
22
SCREW (2) WCI K5104301 Contact Us For Availability
22
SCREW (2) WCI K5022201 Contact Us For Availability
22
WCI K1322652 WCI K1322652 Contact Us For Availability
22
WCI K5269902 WCI K5269902 Contact Us For Availability
23
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
23
GUIDE, DRAWER WCI K1324091 Contact Us For Availability
23
WCI K1322651 WCI K1322651 Contact Us For Availability
23
WCI K1315216 WCI K1315216 Contact Us For Availability
24
SIGNAL LIGHT (2) WCI K5138903 Contact Us For Availability
24
SCREW, GUIDE MOUNTING WCI K1164569 Contact Us For Availability
25
KIT, ROLLER WCI K1309794 Contact Us For Availability
25
WCI K1145100 WCI K1145100 Contact Us For Availability
26
RIVET WCI K1100773 Contact Us For Availability
26
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
27
WCI K1317644 WCI K1317644 Contact Us For Availability
27
NUT, HEX (6) WCI K1266 Contact Us For Availability
28
ASSEMBLY, DOOR HINGE WCI K1310065 Contact Us For Availability
28
SCREW (2) WCI K1164479 Contact Us For Availability
28
BUTTON, PLUG WCI KGM142017 Contact Us For Availability
29
NUT, SPEED WCI K1311648 Contact Us For Availability
29
LINER ASSEMBLY, OVEN WCI K1325538 Contact Us For Availability
30
NUT, SPEED WCI K1164387 Contact Us For Availability
30
BRACKET, THERMO BULB WCI K1311369 Contact Us For Availability
30
WCI K5024602 WCI K5024602 Contact Us For Availability
31
CHANNEL, DOOR HINGE, RH OR LH WCI K1311514 Contact Us For Availability
31
WCI K5106901 WCI K5106901 Contact Us For Availability
32
SPRING, DOOR, RH OR LH WCI K1302501 Contact Us For Availability
32
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
33
WCI G5134501 WCI G5134501 Contact Us For Availability
34
WCI K5025802 WCI K5025802 Contact Us For Availability
× ![]()
