Model Electrolux REP305CW0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP/DRAWER

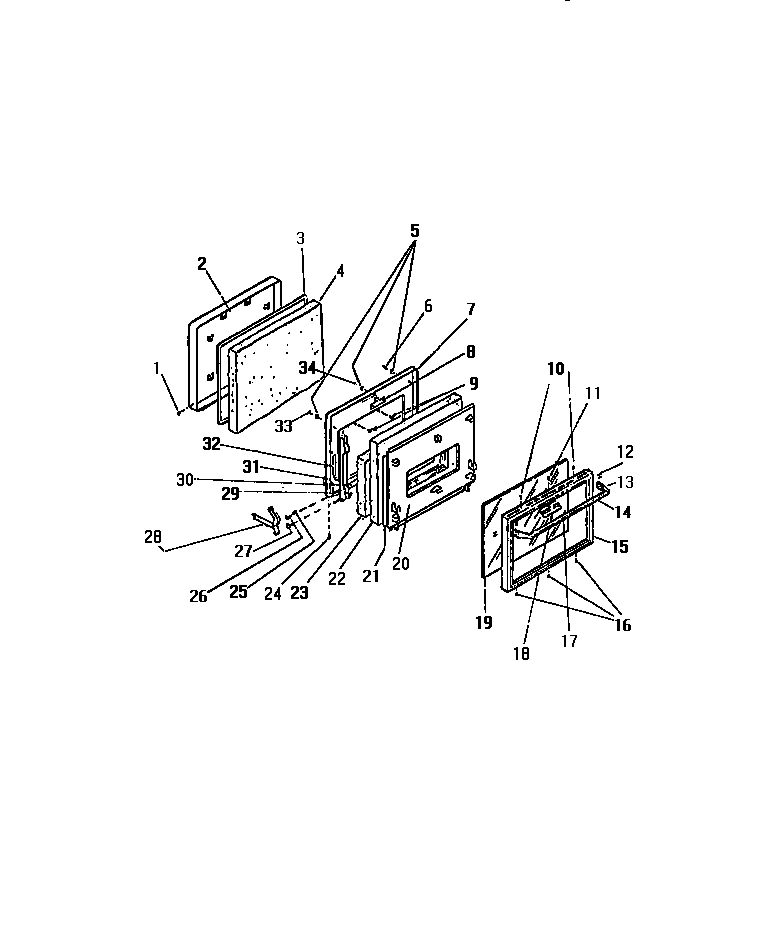

04 - DOOR

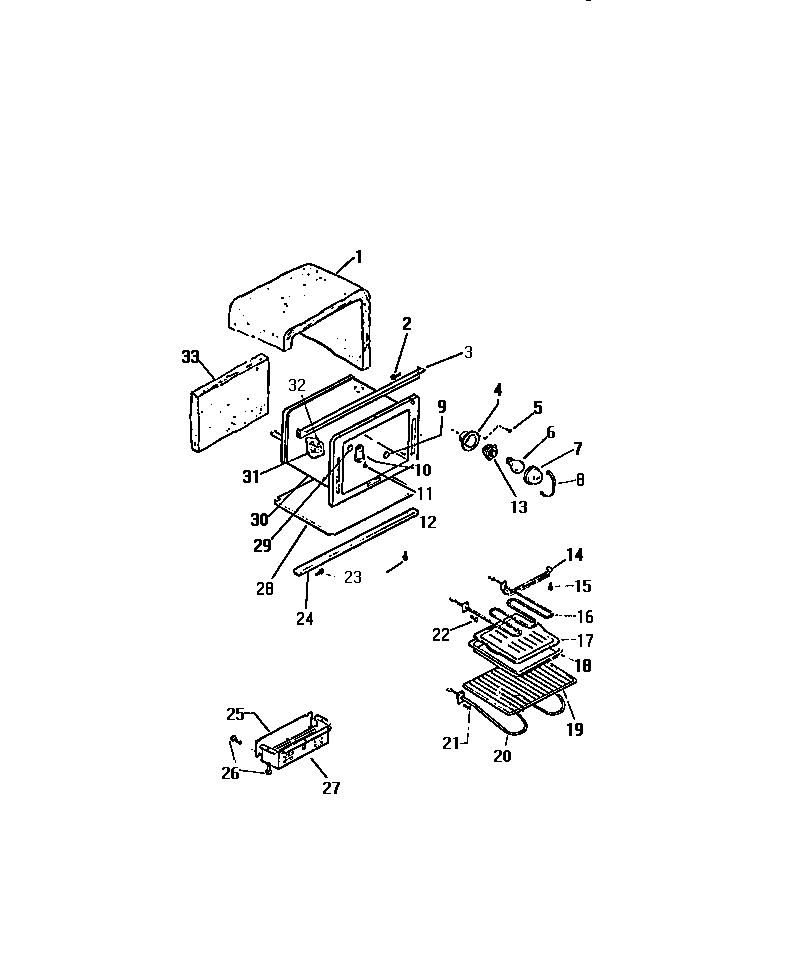

05 - OVEN CAVITY

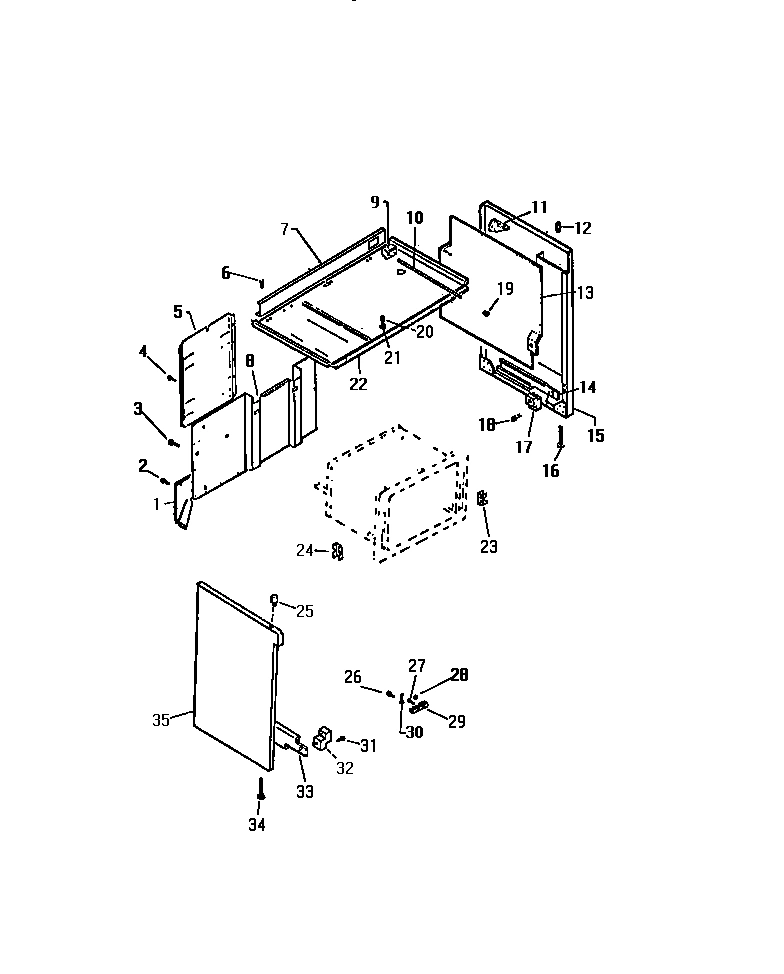

06 - PANELS

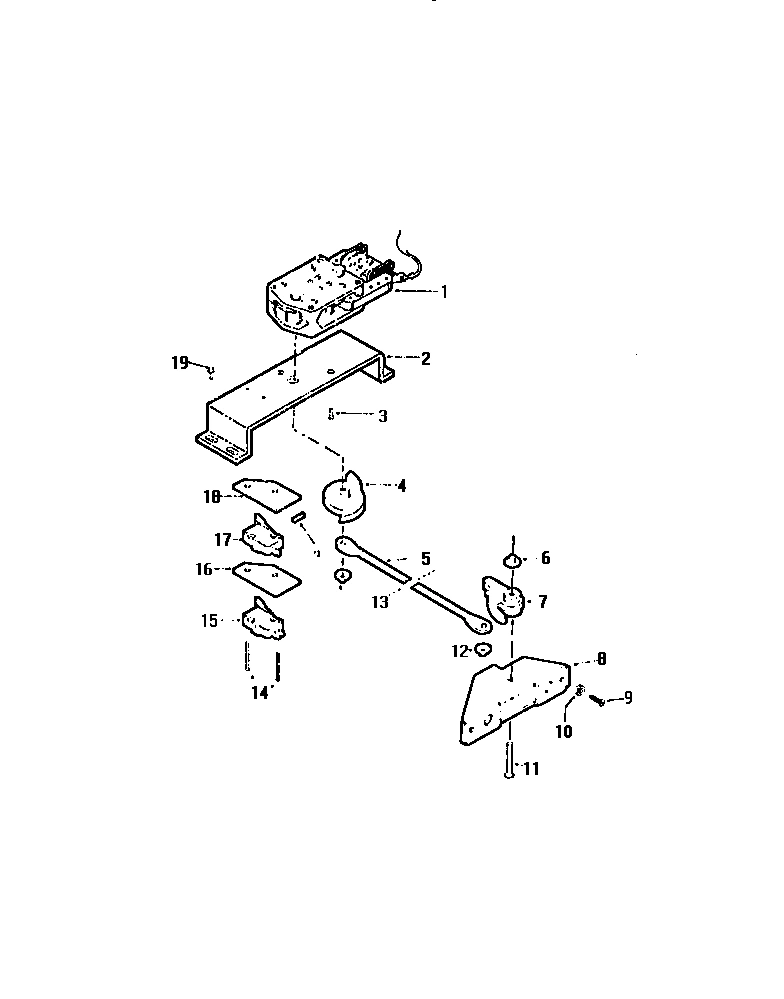

07 - LATCH ASSEMBLY
Common parts from model Electrolux REP305CW0 RANGE
*26240
OWNERS MANUAL (NON-ILLUSTRATED) WCI K5011207 Contact Us For Availability
1
MEDALLION (4) WCI K1167679 Contact Us For Availability
1
PLUG BUTTON WCI KGM142001 Contact Us For Availability
1
INSULATION OVEN WRAPPER WCI K1311331 Contact Us For Availability
1
WCI K1325114 WCI K1325114 Contact Us For Availability
1
WCI K1323264 WCI K1323264 Contact Us For Availability
1A
WCI K1325113 WCI K1325113 Contact Us For Availability
2
WCI K1315111 WCI K1315111 Contact Us For Availability
2
OVEN DOOR BAFFLE WCI K1323840 Contact Us For Availability
2
WCI K1324263 WCI K1324263 Contact Us For Availability
3
WCI K1311748 WCI K1311748 Contact Us For Availability
3
WCI K1323811 WCI K1323811 Contact Us For Availability
3
CHAN., OVEN SUPT. WCI K1325636 Contact Us For Availability
3
SCREW, MOTOR SUPPORT (2) WCI K5157101 Contact Us For Availability
3A
WCI K1311749 WCI K1311749 Contact Us For Availability
3B
SWITCH S.U. (OPT.) WCI K1311753 Contact Us For Availability
4
THERMOSTAT CONTROL WCI K1324562 Contact Us For Availability
4
DOOR BAFFLE INSUL. WCI K1322622 Contact Us For Availability
4
CUP, OVEN LT WCI K1325530 Contact Us For Availability
4
CAM, DOOR LATCH MOTOR WCI K1309592 Contact Us For Availability
5
SWITCH, OVEN SELECTOR WCI K5099601 Contact Us For Availability
5
WCI K5276202 WCI K5276202 Contact Us For Availability
5
WCI K1317813 WCI K1317813 Contact Us For Availability
6
BRKT THERMOSTAT WCI K5267103 Contact Us For Availability
6
WCI K5270108 WCI K5270108 Contact Us For Availability
7
WCI K1315232 WCI K1315232 Contact Us For Availability
7
DOOR LINER WCI K1324720 Contact Us For Availability
7
SHIELD, WIRE, DO NOT STOCK WCI K5287902 Contact Us For Availability
7
WCI K5260201 WCI K5260201 Contact Us For Availability
8
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
8
WCI K1310048 WCI K1310048 Contact Us For Availability
8
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
8
WCI K1325529 WCI K1325529 Contact Us For Availability
8
WCI K5275802 WCI K5275802 Contact Us For Availability
8
WCI K1324830 WCI K1324830 Contact Us For Availability
9
SIGNAL LIGHT (2) WCI K5138903 Contact Us For Availability
9
WCI K1164550 WCI K1164550 Contact Us For Availability
9
PLUG BUTTON WCI KGM142025 Contact Us For Availability
9
SWITCH-DOOR LATCH & OVEN LIGHT WCI K1310199 Contact Us For Availability
10
WCI K5266701 WCI K5266701 Contact Us For Availability
10
WCI K1315630 WCI K1315630 Contact Us For Availability
10
WASHER, ASBESTOS (2) WCI K1313226 Contact Us For Availability
10
VENT TUBE WCI K5055001 Contact Us For Availability
10
WCI K1323421 WCI K1323421 Contact Us For Availability
10A
WCI K1315631 WCI K1315631 Contact Us For Availability
11
TRIM, END CAP, R.H. WCI G5128105 Contact Us For Availability
11
WCI K1164566 WCI K1164566 Contact Us For Availability
11
SCREW VENT MTG (2) WCI K1164309 Contact Us For Availability
11
GUSSET, BACKGROUND (2) WCI K1315230 Contact Us For Availability
11
WCI K1303756 WCI K1303756 Contact Us For Availability
12
BODY, END CAP, RH WCI G5128001 Contact Us For Availability
12
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
12
SCREW WCI K5046501 Contact Us For Availability
12
WCI K5106901 WCI K5106901 Contact Us For Availability
12
PUSH NUT WCI K1164424 Contact Us For Availability
13
WCI G5127701 WCI G5127701 Contact Us For Availability
13
WCI K1315541 WCI K1315541 Contact Us For Availability
13
END, HANDLE WCI K5132701 Contact Us For Availability
13
RET. INSUL. RH OR LH WCI K1325388 Contact Us For Availability
13
PIN, MOTOR CAM WCI KGM455105 Contact Us For Availability
14
PANEL BACKSPLASH, WHITE WCI K5137602 Contact Us For Availability
14
GRIP WCI K5026807 Contact Us For Availability
14
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
14
WCI K5269901 WCI K5269901 Contact Us For Availability
14
SCREW-SWITCH MTG (2) WCI K1164502 Contact Us For Availability
15
WCI K5139002 WCI K5139002 Contact Us For Availability
15
OUTER DOOR FRAME WCI K5276801 Contact Us For Availability
15
WCI K5024601 WCI K5024601 Contact Us For Availability
15
SWITCH-LOWER LIMIT WCI K1308713 Contact Us For Availability
16
SCREW WCI K5104301 Contact Us For Availability
16
HANDLE - DRAWER WCI K1325038 Contact Us For Availability
17
HANDLE ASSEMBLY-DOOR WCI K5026601 Contact Us For Availability
17
GRILLE, BROILER WCI K1313049 Contact Us For Availability
17
SWITCH, UPPER LIMIT WCI K1315370 Contact Us For Availability
18
SUPPORT LH WCI K5127702 Contact Us For Availability
18
WCI K1324095 WCI K1324095 Contact Us For Availability
18
WCI K1323875 WCI K1323875 Contact Us For Availability
18
SCREW WCI K1164569 Contact Us For Availability
18
INSULATOR WCI K1308690 Contact Us For Availability
19
WCI K5128002 WCI K5128002 Contact Us For Availability
19
GLASS, OUTER WCI K5027202 Contact Us For Availability
19
RACK, OVEN, REG WCI K1311570 Contact Us For Availability
19
ROD END SWITCH WCI K1322682 Contact Us For Availability
19A
WCI K5133501 WCI K5133501 Contact Us For Availability
20
WCI K5123106 WCI K5123106 Contact Us For Availability
20
GUIDE, DRAWER WCI K1324091 Contact Us For Availability
20
AIR WASH, PANEL WCI K5276901 Contact Us For Availability
21
WCI K5260501 WCI K5260501 Contact Us For Availability
21
AIRWASH FOIL WCI K1313020 Contact Us For Availability
21A
BRKT MOUNTING (NON ILLUSTRATED) WCI K5127901 Contact Us For Availability
21B
SCREW (2) (NON ILLUSTRATED) WCI K1313060 Contact Us For Availability
22
WCI G1167984 WCI G1167984 Contact Us For Availability
22
AIRWASH INSUL. WCI K1322652 Contact Us For Availability
22
WCI K5025802 WCI K5025802 Contact Us For Availability
23
KNOB, CLOCK/TIMER WCI K1167946 Contact Us For Availability
23
SCREW, HANDLE WCI K5022201 Contact Us For Availability
23
LINER INSUL. WCI K1322651 Contact Us For Availability
24
WCI K1325096 WCI K1325096 Contact Us For Availability
24
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
24
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
25
ROLLER KIT WCI K1309794 Contact Us For Availability
25
WCI K1303601 WCI K1303601 Contact Us For Availability
25
WCI K5106001 WCI K5106001 Contact Us For Availability
26
KNOB ASSEMBLY-S.U. (4) WCI K5158301 Contact Us For Availability
26
RIVET WCI K1100773 Contact Us For Availability
27
HINGE PIN WCI K5038501 Contact Us For Availability
27
SCREW (2) WCI K1164479 Contact Us For Availability
27
WCI K1315121 WCI K1315121 Contact Us For Availability
28
DOOR HINGE ASSEMBLY WCI K1310065 Contact Us For Availability
28
WCI K1317644 WCI K1317644 Contact Us For Availability
28
NUT, HEX (6) WCI K1266 Contact Us For Availability
29
WCI K1311648 WCI K1311648 Contact Us For Availability
29
BUTTON, PLUG WCI KGM142017 Contact Us For Availability
30
WCI K1164387 WCI K1164387 Contact Us For Availability
30
OVEN LINER ASSEMBLY WCI K1325538 Contact Us For Availability
30
STRAP-GROUND WCI K1145190 Contact Us For Availability
31
DOOR HINGE CHANNEL, RH OR LH WCI K1311514 Contact Us For Availability
31
BRACKET WCI K1311369 Contact Us For Availability
31
WCI K1164500 WCI K1164500 Contact Us For Availability
32
DOOR SPRING, RH OR LH WCI K1302501 Contact Us For Availability
32
WCI K1315216 WCI K1315216 Contact Us For Availability
33
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
33
WCI K5269902 WCI K5269902 Contact Us For Availability
34
LEVELLER (2) WCI K1322905 Contact Us For Availability
35
WCI K5024602 WCI K5024602 Contact Us For Availability
× ![]()
