Model Electrolux REP302CD2 RANGE – Common Parts & Diagrams
02 - CONSOLE AND CONTROL PARTS
03 - COOKTOP PARTS

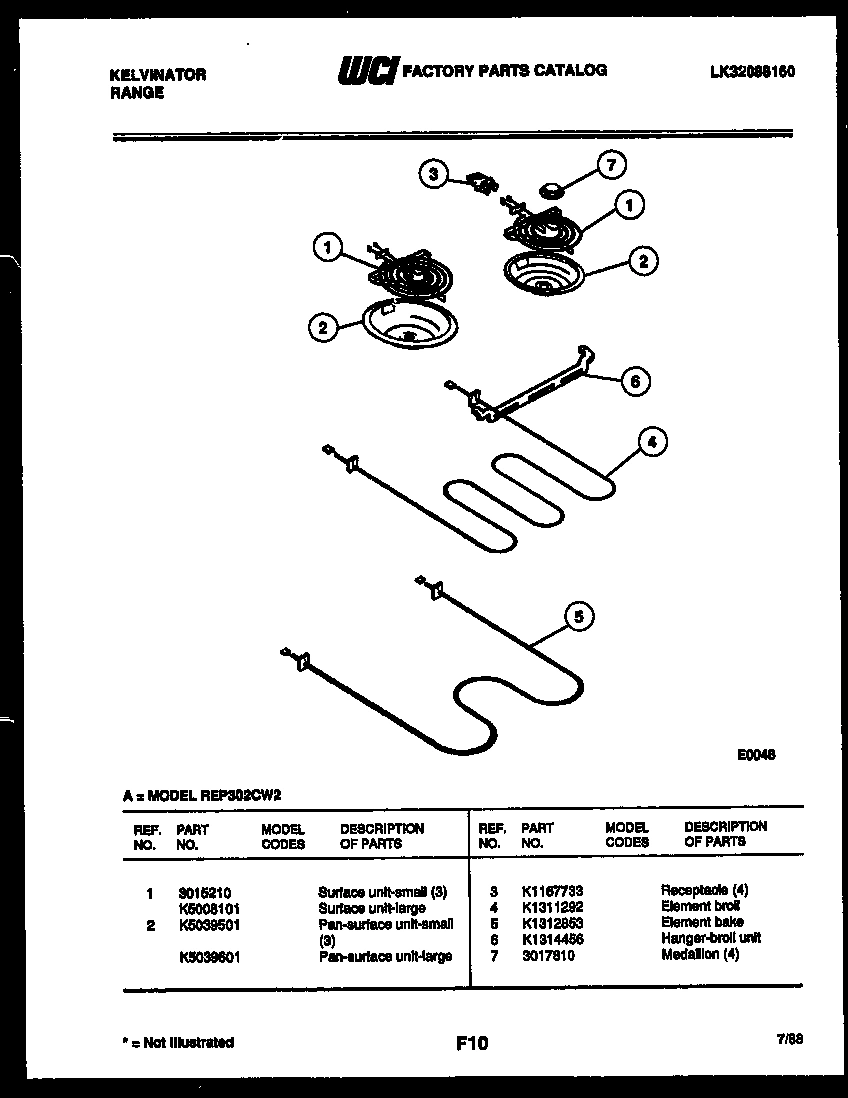

04 - BROILER PARTS

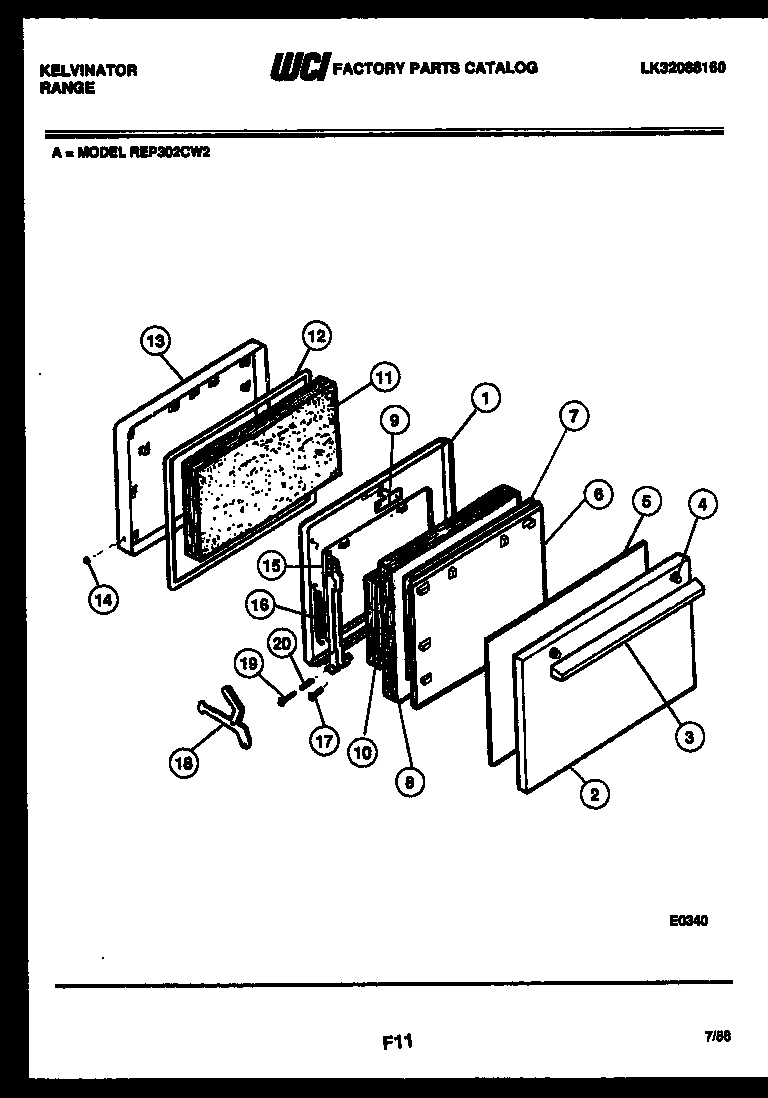

05 - DOOR PARTS

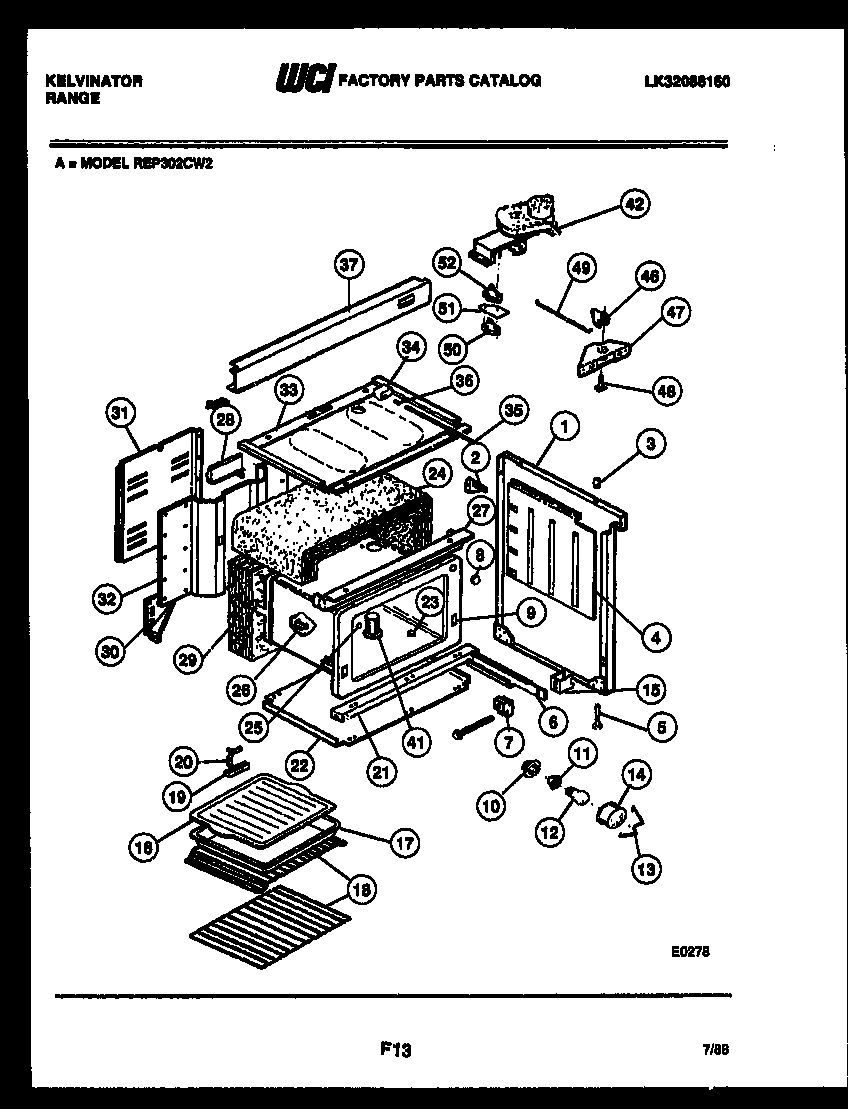

06 - BODY PARTS

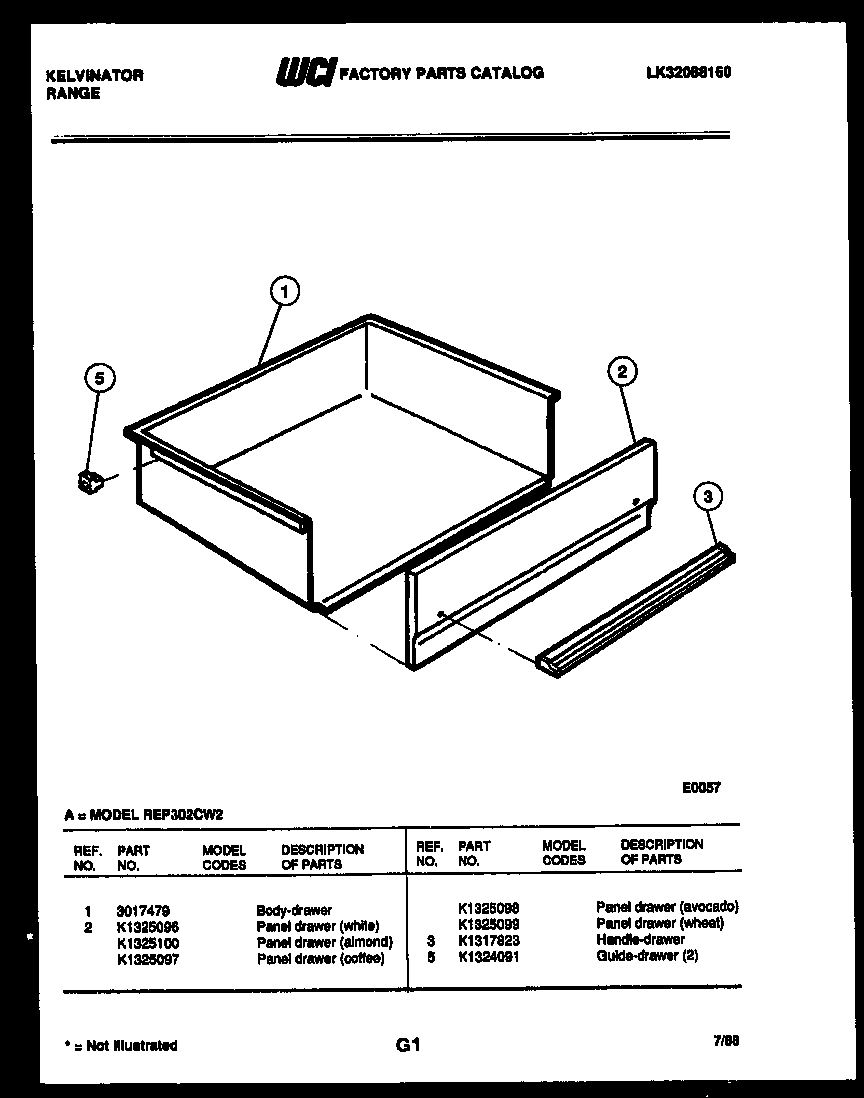

07 - DRAWER PARTS
Common parts from model Electrolux REP302CD2 RANGE
1
WCI 3017529 WCI 3017529 Contact Us For Availability
1
COOKTOP, ALMOND WCI K5270105 Contact Us For Availability
1
WCI 3017530 WCI 3017530 Contact Us For Availability
1
SIDE PANEL-RH, ALMOND WCI K5024603 Contact Us For Availability
1
WCI 3017479 WCI 3017479 Contact Us For Availability
1A
SIDE PANEL-LH, ALMOND WCI K5024604 Contact Us For Availability
2
SWITCH SURFACE UNIT WCI K1311753 Contact Us For Availability
2
WCI K1315232 WCI K1315232 Contact Us For Availability
2
WCI K1317745 WCI K1317745 Contact Us For Availability
2
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
2
PANEL DRAWER, ALMOND WCI K1325100 Contact Us For Availability
3
WCI K1324562 WCI K1324562 Contact Us For Availability
3
HINGE-COOKTOP RH WCI K1315630 Contact Us For Availability
3
HANDLE WCI K1325038 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
HANDLE, DRAWER WCI K1317823 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT-SURFACE UNIT AND CLEAN (2) WCI K5138903 Contact Us For Availability
4
SIGNAL LIGHT, OVEN WCI K5138904 Contact Us For Availability
4
RETAINER HINGE (2) WCI K1315632 Contact Us For Availability
4
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
4
RETAINER-INSULATION (2) WCI K1325388 Contact Us For Availability
5
LENS SIGNAL LIGHT (3) WCI K5139002 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
PANEL-INSULATOR PAD WCI K1314506 Contact Us For Availability
5
LEG-LEVELLER (4) WCI K1322905 Contact Us For Availability
5
GUIDE-DRAWER (2) WCI K1324091 Contact Us For Availability
6
SWITCH-OVEN SELECTOR WCI K5275701 Contact Us For Availability
6
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
6
WCI K5276901 WCI K5276901 Contact Us For Availability
6
WCI K5269901 WCI K5269901 Contact Us For Availability
6A
WCI K5269902 WCI K5269902 Contact Us For Availability
7
WCI K5269501 WCI K5269501 Contact Us For Availability
7
WCI 3017810 WCI 3017810 Contact Us For Availability
7
WCI K1313020 WCI K1313020 Contact Us For Availability
7
GUIDE-DRAWER FRONT (2) WCI K1315216 Contact Us For Availability
8
PANEL BACKSPLASH, ALMOND WCI K5137606 Contact Us For Availability
8
WCI K1322652 WCI K1322652 Contact Us For Availability
9
KNOB-SURFACE UNIT (6) WCI K5158301 Contact Us For Availability
9
STRIKE ASSEMBLY WCI K1323556 Contact Us For Availability
9
OVEN LINER WCI K1325538 Contact Us For Availability
10
WCI K5128002 WCI K5128002 Contact Us For Availability
10
WCI K1322651 WCI K1322651 Contact Us For Availability
10
WCI K1325530 WCI K1325530 Contact Us For Availability
10A
WCI K5128001 WCI K5128001 Contact Us For Availability
11
WCI K5128102 WCI K5128102 Contact Us For Availability
11
WCI K1322622 WCI K1322622 Contact Us For Availability
11A
WCI K5128101 WCI K5128101 Contact Us For Availability
12
WCI K5127702 WCI K5127702 Contact Us For Availability
12
GASKET-DOOR WCI K1323811 Contact Us For Availability
12A
WCI K5127701 WCI K5127701 Contact Us For Availability
13
WCI K5276103 WCI K5276103 Contact Us For Availability
13
WCI 3017531 WCI 3017531 Contact Us For Availability
13
WCI K1325529 WCI K1325529 Contact Us For Availability
14
PLUG BUTTON WCI KGM142001 Contact Us For Availability
15
CHANNEL-HINGE (2) WCI K1311514 Contact Us For Availability
15
SPACER-DRAWER RAIL (2) WCI K1324860 Contact Us For Availability
16
SPRING, DOOR (2) WCI K1302501 Contact Us For Availability
16
GRILLE, BROILER WCI K1313049 Contact Us For Availability
17
RIVET (2) WCI K1100773 Contact Us For Availability
18
ARM-HINGE (2) WCI K1310065 Contact Us For Availability
18A
WCI K5133501 WCI K5133501 Contact Us For Availability
20
ROLLER KIT WCI K1309794 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
21
CHANNEL-OVEN SUPT LOWER WCI K1315108 Contact Us For Availability
22
WCI 3017394 WCI 3017394 Contact Us For Availability
23
PLUG-BUTTON 3/4`` WCI KGM142025 Contact Us For Availability
24
WCI K1311331 WCI K1311331 Contact Us For Availability
25
WCI KGM142017 WCI KGM142017 Contact Us For Availability
26
WCI K1311369 WCI K1311369 Contact Us For Availability
27
CHANNEL-OVEN SUPT UPPER WCI K1325636 Contact Us For Availability
28
WCI K5134501 WCI K5134501 Contact Us For Availability
29
INSULATION-OVEN BACK WCI K5056901 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3017535 WCI 3017535 Contact Us For Availability
33
WCI K5025802 WCI K5025802 Contact Us For Availability
33A
WASHER-PADDED (3) (NON-ILLUSTRATED) WCI K1313226 Contact Us For Availability
34
SWITCH-DOOR WCI K1310199 Contact Us For Availability
35
PUSH ROD WCI K1323421 Contact Us For Availability
36
WCI K1322682 WCI K1322682 Contact Us For Availability
37
WCI 3017633 WCI 3017633 Contact Us For Availability
41
VENT TUBE WCI K5055001 Contact Us For Availability
42
LATCH-MOTOR WCI K5151601 Contact Us For Availability
46
WCI K5260202 WCI K5260202 Contact Us For Availability
47
HOUSING, DOOR LATCH WCI K1324830 Contact Us For Availability
48
AXLE WCI K5038501 Contact Us For Availability
49
WCI K5271201 WCI K5271201 Contact Us For Availability
50
SWITCH-LOWER WCI K1315370 Contact Us For Availability
51
INSULATOR WCI K1308690 Contact Us For Availability
52
WCI K1167190 WCI K1167190 Contact Us For Availability
× ![]()
