Model Electrolux REM638BDL5 RANGE – Common Parts & Diagrams
01 - COVER
02 - BACKGUARD
03 - BURNERS, HEATING ELEMENT

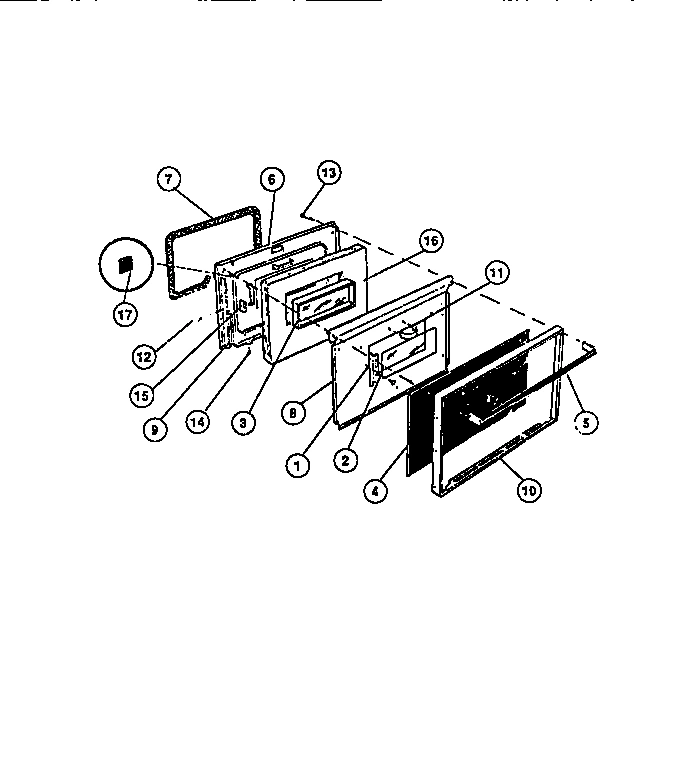

04 - DOOR

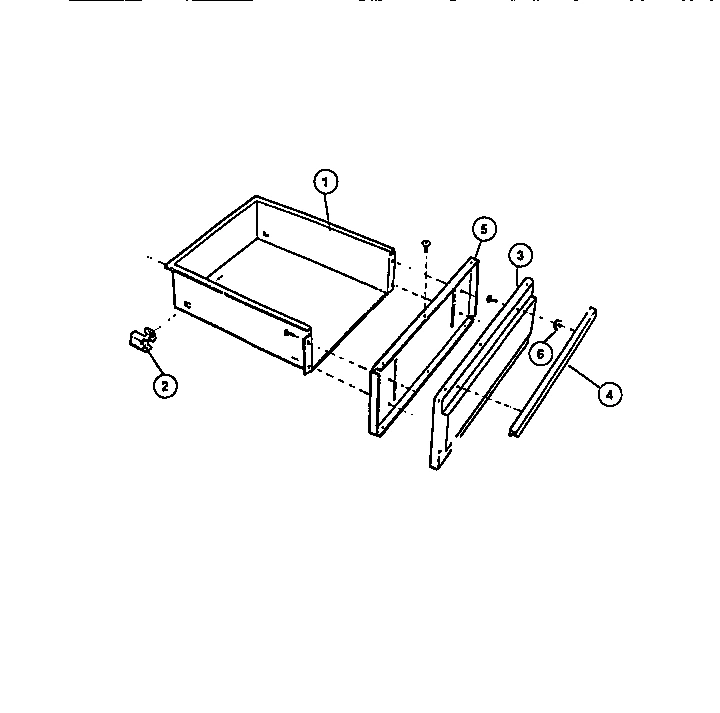

05 - DRAWER

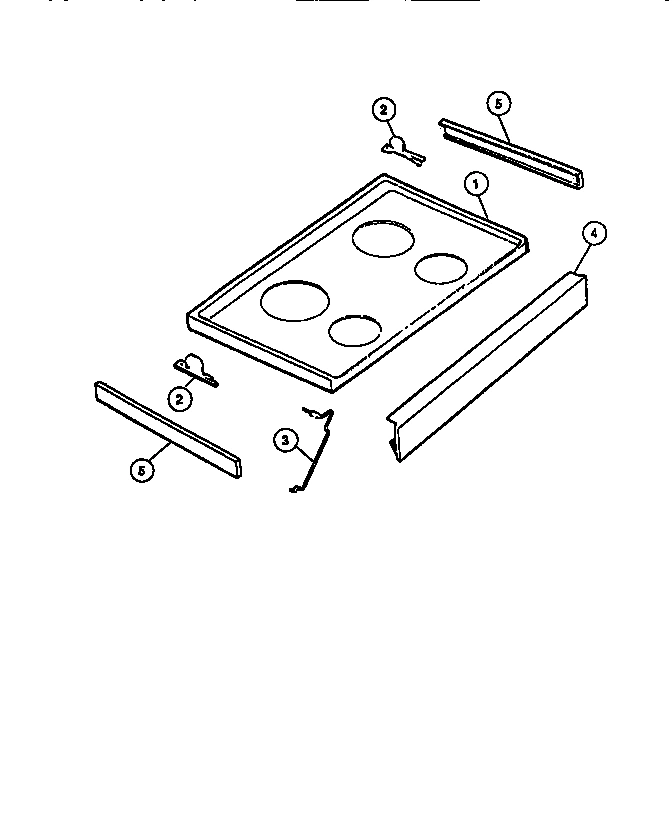

06 - TOP

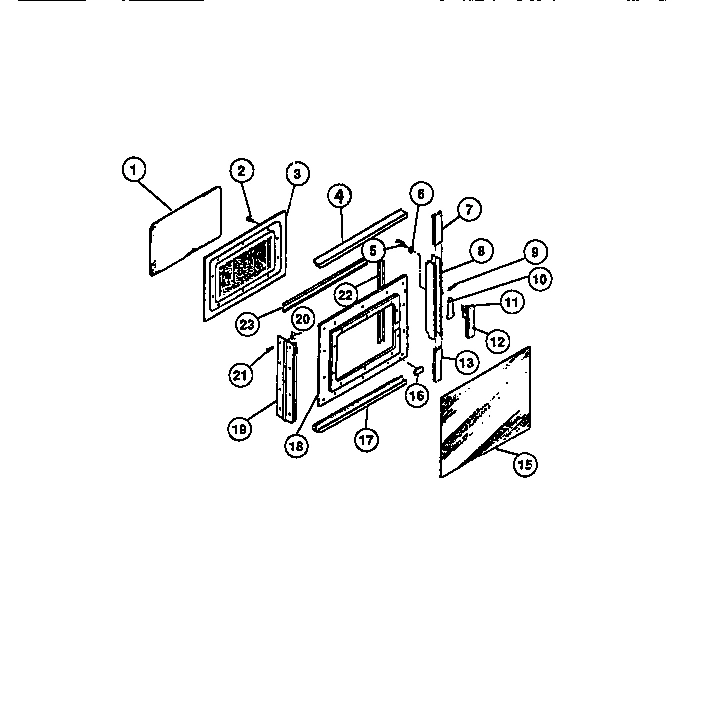

07 - DOOR PANEL

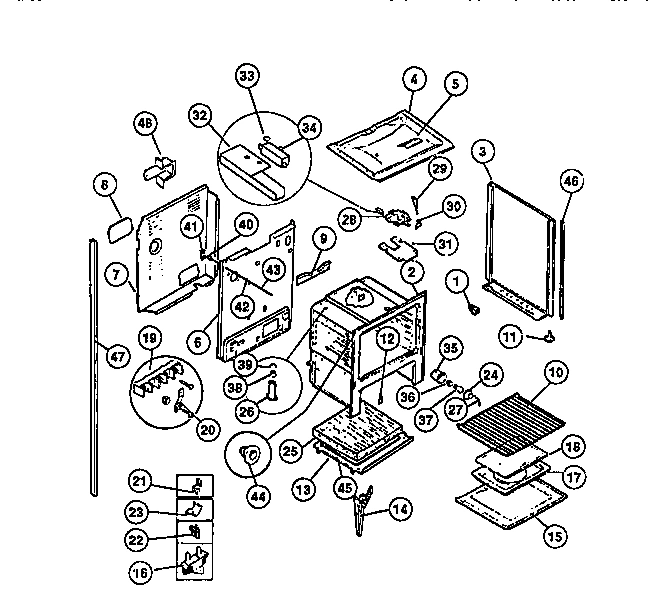

08 - LOWER OVEN, FRAME, SHELVES

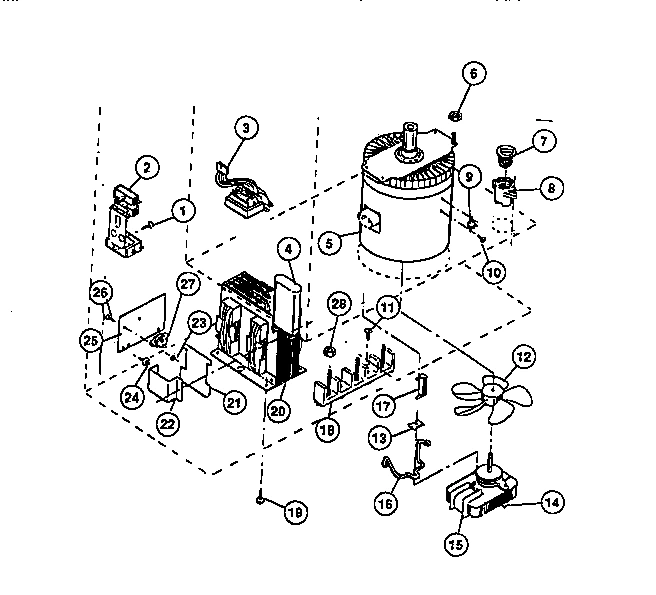

09 - MICROWAVE OVEN MAGNETRON, TRANSFORM

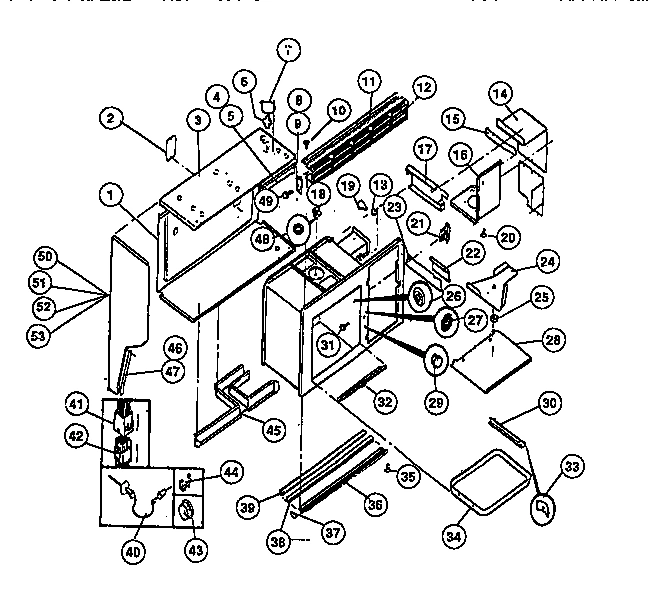

10 - MICROWAVE OVEN LINER
11 - CONTROL PANEL
Common parts from model Electrolux REM638BDL5 RANGE
1
SWITCH SURFACE (4) WCI 5308010418 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 08067996 WCI 08067996 Contact Us For Availability
1
DRAWER, UTILITY WCI 3051133 Contact Us For Availability
1
PANEL WCI 5308010431 Contact Us For Availability
1
WCI 08010488 WCI 08010488 Contact Us For Availability
1
PANEL, BACK & BTM. WCI 5308037913 Contact Us For Availability
1A
WCI 3013512 WCI 3013512 Contact Us For Availability
2
WCI 08067746 WCI 08067746 Contact Us For Availability
2
WCI 5303051148 WCI 5303051148 Contact Us For Availability
2
WCI N/A WCI N/A Contact Us For Availability
2
SWITCH KIT WCI 5303912591 Contact Us For Availability
2
WCI 08010540 WCI 08010540 Contact Us For Availability
2
THERMOSTAT OVEN WCI 5308037910 Contact Us For Availability
2A
WCI 08067747 WCI 08067747 Contact Us For Availability
3
BULB, FLUOR (WORK LIGHT) WCI 3131275 Contact Us For Availability
3
WCI 5308067828 WCI 5308067828 Contact Us For Availability
3
GLASS PACKAGE WCI 5303206271 Contact Us For Availability
3
PANEL, DRWR., BLACK WCI 3131324 Contact Us For Availability
3
TOP SUPPORT ROD (2) WCI 3013818 Contact Us For Availability
3
PANEL WCI 5303200605 Contact Us For Availability
3
TRANSFORMER (LOW VOLT ) WCI 5308010486 Contact Us For Availability
3
WCI 08010537 WCI 08010537 Contact Us For Availability
3
WCI 5308037896 WCI 5308037896 Contact Us For Availability
3A
PANEL BODYSIDE-LH-ALMOND WCI 3205621 Contact Us For Availability
3C
PANEL BODYSIDE-RH-ALMOND WCI 3205624 Contact Us For Availability
4
GLASS, FRONT WCI 5303131132 Contact Us For Availability
4
WCI 3131125 WCI 3131125 Contact Us For Availability
4
WCI 08067782 WCI 08067782 Contact Us For Availability
4
TRIM, TOP WCI 5308010439 Contact Us For Availability
4
WCI 08067749 WCI 08067749 Contact Us For Availability
4
WCI 5308037624 WCI 5308037624 Contact Us For Availability
4
WCI 08010535 WCI 08010535 Contact Us For Availability
4
SWITCH OVEN WCI 5303051315 Contact Us For Availability
5
WCI 08067968 WCI 08067968 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
TRIM, MAIN TOP (LH) WCI 08067794 Contact Us For Availability
5
WCI 08067757 WCI 08067757 Contact Us For Availability
5
WCI 5303204035 WCI 5303204035 Contact Us For Availability
5
WCI 08010536 WCI 08010536 Contact Us For Availability
5
RETAINER WCI 5308010409 Contact Us For Availability
5A
WCI 3051355 WCI 3051355 Contact Us For Availability
6
LINER WCI 3931014 Contact Us For Availability
6
FSTNR, SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
NUTS (4) WCI 5308008918 Contact Us For Availability
6
WCI 5303207739 WCI 5303207739 Contact Us For Availability
6
PANEL WCI 5303207857 Contact Us For Availability
6B
SCREW (8, 18 X 1/2`` HEX WSH. HD.) (2) (NON- WCI 08067785 Contact Us For Availability
7
INSERT WCI 5308012077 Contact Us For Availability
7
SHIELD-LOWER WALL WCI 3203549 Contact Us For Availability
7
WCI 5303200606 WCI 5303200606 Contact Us For Availability
7
COVER WCI 08067732 Contact Us For Availability
7
WCI 5303091216 WCI 5303091216 Contact Us For Availability
8
WCI 08067805 WCI 08067805 Contact Us For Availability
8
COVER, LWR. ACCESS WCI 3203405 Contact Us For Availability
8
RECEPTACLE WCI 5308012055 Contact Us For Availability
8
WCI 530801531 WCI 530801531 Contact Us For Availability
8
PANEL WCI 5303091468 Contact Us For Availability
9
WCI 3131323 WCI 3131323 Contact Us For Availability
9
RETAINER WCI 08010446 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
9
PROTECTOR THERMAL WCI 5308012862 Contact Us For Availability
9
WCI 5308010532 WCI 5308010532 Contact Us For Availability
9
WCI 5303091460 WCI 5303091460 Contact Us For Availability
10
WCI 08067807 WCI 08067807 Contact Us For Availability
10
WCI 08010445 WCI 08010445 Contact Us For Availability
10
WCI 5308008925 WCI 5308008925 Contact Us For Availability
10
WCI 5308010534 WCI 5308010534 Contact Us For Availability
11
WCI 5303203397 WCI 5303203397 Contact Us For Availability
11
CLIP, RETAINER (2) WCI 3131253 Contact Us For Availability
11
LATCH WCI 5303207361 Contact Us For Availability
11
WCI 08010492 WCI 08010492 Contact Us For Availability
11
WCI 5308037906 WCI 5308037906 Contact Us For Availability
11
WCI 5308037911 WCI 5308037911 Contact Us For Availability
12
KNOB (3) WCI 5308037901 Contact Us For Availability
12
CVR. HNG. CUTOUT (2) WCI 3131570 Contact Us For Availability
12
FASTENER, SPACER (6) WCI 3131974 Contact Us For Availability
12
HANDLE COMPL. WCI 5308011737 Contact Us For Availability
12
FAN WCI 5303011668 Contact Us For Availability
12
WCI 08010530 WCI 08010530 Contact Us For Availability
13
SCREW, HNDL. MTG. (2) WCI 08067786 Contact Us For Availability
13
INSERT WCI 5308012069 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
GUIDE WCI 5303207945 Contact Us For Availability
13
WCI 5308037639 WCI 5308037639 Contact Us For Availability
13
KNOB, OVEN SELEC. WCI 5303091221 Contact Us For Availability
13A
SCREW, DOOR STRIKE (NON-ILLUSTRATED) WCI 5308010447 Contact Us For Availability
14
SCRW., DR. MTG. (3) WCI 3131573 Contact Us For Availability
14
COVER WCI 08010527 Contact Us For Availability
14
KNOB, OVEN THERMO. WCI 5303091463 Contact Us For Availability
15
EXTRSN., CHANNEL (2) WCI 08067799 Contact Us For Availability
15
WCI 5308037914 WCI 5308037914 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
MOTOR WCI 5303011677 Contact Us For Availability
15
BRACKET WCI 5308010526 Contact Us For Availability
15
KNOB (4) WCI 5303091222 Contact Us For Availability
15A
WCI 08010463 WCI 08010463 Contact Us For Availability
16
FUSE, THRML. CUTOUT WCI 5303051385 Contact Us For Availability
16
TRIM, O/U SPL. GLS. FILTER WCI 3014435 Contact Us For Availability
16
INSULATION, WOOL WCI 08067803 Contact Us For Availability
16
SPACER (4) WCI 5308010437 Contact Us For Availability
16
BRACKET WCI 08010524 Contact Us For Availability
16
BUTTON (2) WCI 5308037916 Contact Us For Availability
17
WASHER, SPRING (2) WCI 08067832 Contact Us For Availability
17
SEAL, FOAM (4) WCI 3934033 Contact Us For Availability
17
TRIM (BTM) WCI 5308010438 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
17
RECTIFIER WCI 5303091303 Contact Us For Availability
17
BUSHING (2) WCI 5308010401 Contact Us For Availability
18
THERMOSTAT WCI 08067742 Contact Us For Availability
18
PANEL WCI 5308010436 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
18
MOTOR WCI 5308008977 Contact Us For Availability
18
COVER WCI 5308010410 Contact Us For Availability
19
ANGLE, SPPT S/C THERMO WCI 3051348 Contact Us For Availability
19
HINGE WCI 5308010435 Contact Us For Availability
19
WCI 5308008933 WCI 5308008933 Contact Us For Availability
19
BULB WCI 5308037902 Contact Us For Availability
19
BEZEL WCI 5308037890 Contact Us For Availability
20
WCI 08011708 WCI 08011708 Contact Us For Availability
20
TRANSFORMER H.V. WCI 5308014096 Contact Us For Availability
20
SCREW (2) WCI 636T090P05 Contact Us For Availability
20
WCI 5308037904 WCI 5308037904 Contact Us For Availability
21
SCREW (4) WCI 5308010406 Contact Us For Availability
21
CLIP, THRML. BLB. (2) WCI 08067754 Contact Us For Availability
21
WCI 08010484 WCI 08010484 Contact Us For Availability
21
SWITCH WCI 5308008972 Contact Us For Availability
22
SEAL (2) WCI 5308010434 Contact Us For Availability
22
BRACKET WCI 08010483 Contact Us For Availability
22
BAFFLE RH WCI 5308010522 Contact Us For Availability
23
NUTS (2) WCI 08009182 Contact Us For Availability
23
SEAL, TOP & BTM. WCI 5308010433 Contact Us For Availability
23
WCI 3051367 WCI 3051367 Contact Us For Availability
23
BAFFLE LH WCI 08010523 Contact Us For Availability
23
BOARD WCI 5308012868 Contact Us For Availability
23A
ROLLER, DR. LATCH (NON-ILLUSTRATED) WCI 5308037907 Contact Us For Availability
24
STIRRER WCI 5308037917 Contact Us For Availability
24
COVER, SEAL WCI 5308011890 Contact Us For Availability
25
PLATE WCI 08010489 Contact Us For Availability
25
WCI 5303013270 WCI 5303013270 Contact Us For Availability
25
WCI 5308010420 WCI 5308010420 Contact Us For Availability
26
WCI 3051344 WCI 3051344 Contact Us For Availability
26
WCI 5308008923 WCI 5308008923 Contact Us For Availability
26
NUT WCI 3018416 Contact Us For Availability
26
SPACERS (2) WCI 5308014510 Contact Us For Availability
27
WIRE, GLSS RETAINER WCI 3204585 Contact Us For Availability
27
TRIAC WCI 5303912602 Contact Us For Availability
27
STRIKE WCI 5308010512 Contact Us For Availability
27
WCI 5308008910 WCI 5308008910 Contact Us For Availability
27A
INSUL., WRAP (NON-ILLUSTRATED) WCI 08067773 Contact Us For Availability
27B
INSUL., BACK (NON-ILLUSTRATED) WCI 08067772 Contact Us For Availability
27D
SCRW. (HNG. MTG.) (6) (NON-ILLUSTRATED) WCI 08067836 Contact Us For Availability
27E
WCI 8067783 WCI 8067783 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
28
NUT (6) WCI 08067783 Contact Us For Availability
28
WCI 5303200598 WCI 5303200598 Contact Us For Availability
28
LAMP (1) 250V WCI 5303091462 Contact Us For Availability
28A
HARNESS W/DIODE (NON-ILLUSTRATED) WCI 5308010494 Contact Us For Availability
28B
HARNESS CABINET (NON-ILLUSTRATED) WCI 3091202 Contact Us For Availability
28C
WCI 08012062 WCI 08012062 Contact Us For Availability
28D
WCI 5303091204 WCI 5303091204 Contact Us For Availability
28E
HARNESS MAIN (NON-ILLUSTRATED) WCI 5308037894 Contact Us For Availability
28F
HARNESS CONTROL (NON-ILLUSTRATED) WCI 08037895 Contact Us For Availability
28G
ROD, FAN MTR. SUPT. (NON-ILLUSTRATED) WCI 5308010478 Contact Us For Availability
29
WCI 08067975 WCI 08067975 Contact Us For Availability
29
GROMMET WCI 5308010513 Contact Us For Availability
30
WCI 5308010597 WCI 5308010597 Contact Us For Availability
30
GLIDE, TRAY (2) WCI 5303200607 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD, LOWER WCI 08067779 Contact Us For Availability
32
SHLD., BI METAL LTCH. WCI 08067780 Contact Us For Availability
32
TRIM, FRONT WCI 5303200630 Contact Us For Availability
33
FSTNR., PUSH ON (3) WCI 08067776 Contact Us For Availability
33
NUT (4) WCI 5308010515 Contact Us For Availability
34
WCI 08067781 WCI 08067781 Contact Us For Availability
34
WCI 5308010514 WCI 5308010514 Contact Us For Availability
35
TUBE, OV. LIGHT WCI 08067809 Contact Us For Availability
35
SCREW WCI 5303091100 Contact Us For Availability
36
WCI 5308037912 WCI 5308037912 Contact Us For Availability
37
CAP (2) WCI 5308010510 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
38
COVER, SEAL (2) WCI 5303200597 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
39
SEAL (2) WCI 5303207965 Contact Us For Availability
40
WCI 695T128P03 WCI 695T128P03 Contact Us For Availability
40
WCI 5303011684 WCI 5303011684 Contact Us For Availability
41
BRACKET, LT. SW. WCI 08067748 Contact Us For Availability
42
ROD, LIGHT WCI 08067784 Contact Us For Availability
42
PLUG OVEN, RED WCI 08010551 Contact Us For Availability
43
WCI 08067758 WCI 08067758 Contact Us For Availability
43
WCI 08010555 WCI 08010555 Contact Us For Availability
44
BTTN., REMOTE LT. SW. WCI 08067750 Contact Us For Availability
44
RETAINER WCI 5308037677 Contact Us For Availability
45
WCI 3200848 WCI 3200848 Contact Us For Availability
45
WCI 08010550 WCI 08010550 Contact Us For Availability
45A
WCI 3131305 WCI 3131305 Contact Us For Availability
46
TRM., VERT. BDYSD. (2) WCI 08067796 Contact Us For Availability
46
TRIM LH WCI 08010548 Contact Us For Availability
47
WCI 08067743 WCI 08067743 Contact Us For Availability
47
TRIM-RH WCI 08010549 Contact Us For Availability
47B
WCI 08067744 WCI 08067744 Contact Us For Availability
48
WCI 3203582 WCI 3203582 Contact Us For Availability
48
SEAL WCI 5308008976 Contact Us For Availability
48B
SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
48C
FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability
48D
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
48E
BRKT, RANGE CABLE MTG (NON-ILLUSTRATED) WCI 3204525 Contact Us For Availability
48F
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
49
SCREW WCI 5303207949 Contact Us For Availability
51
PNL. SIDE LH, ALMOND WCI 3051261 Contact Us For Availability
53
PNL. SIDE RH, ALMOND WCI 3051264 Contact Us For Availability
53A
BTN. LINER TOP (NON-ILLUSTRATED) WCI 5303013626 Contact Us For Availability
53B
PLUG BTN. (NON-ILLUSTRATED) WCI 5308037664 Contact Us For Availability
53C
NUT NO. 8AU TYPE (NON-ILLUSTRATED) WCI 5303207548 Contact Us For Availability
53D
CLIP, HINGE MTG DR. (NON-ILLUSTRATED) WCI 5308008961 Contact Us For Availability
53G
COVER (NON-ILLUSTRATED) WCI 5308010617 Contact Us For Availability
× ![]()
