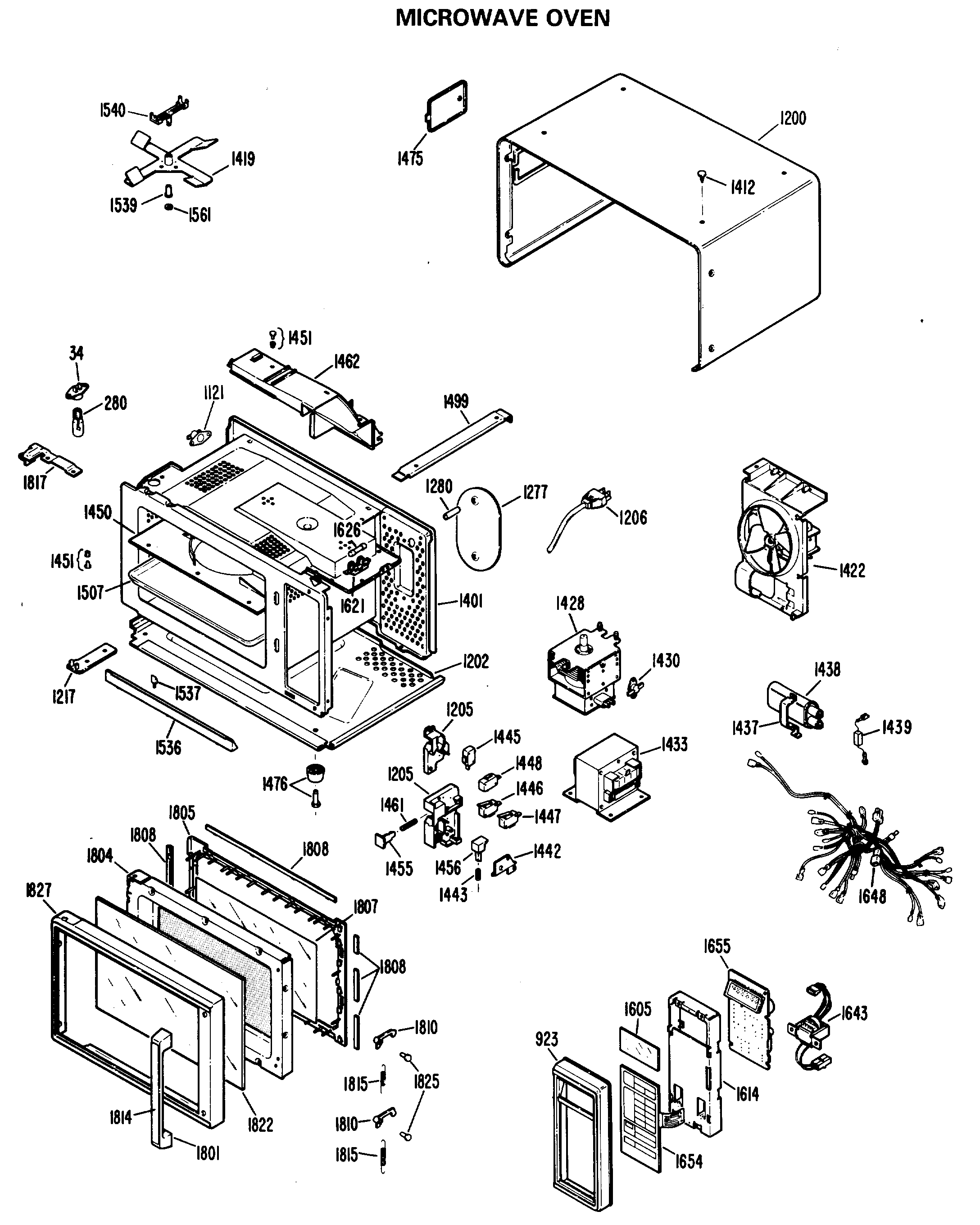

Model GE REM4H01 – Common Parts & Diagrams
MICROWAVE OVEN
Common parts from model GE REM4H01
280
LAMP-OVEN GEN WB02X4611 Contact Us For Availability
923
GEN WB07X1860 GEN WB07X1860 Contact Us For Availability
1200
GEN WB56X1773 GEN WB56X1773 Contact Us For Availability
1202
PLATE-BASE GEN WB49X0574 Contact Us For Availability
1205
BODY LATCH-LOWER GEN WB02X4678 Contact Us For Availability
1205
BODY LATCH-UPPER GEN WB02X4679 Contact Us For Availability
1206
CORD-POWER SUPPLY GEN WB18X0359 Contact Us For Availability
1217
HINGE-LOWER GEN WB10X0233 Contact Us For Availability
1277
GEN WB02X4683 GEN WB02X4683 Contact Us For Availability
1280
SUPPORT-CORD HOLDER GEN WB02X4682 Contact Us For Availability
1401
OVEN CAVITY GEN NOT AVAIL Contact Us For Availability
1412
PLUG BUTTON GEN WB02X4603 Contact Us For Availability
1419
BLADE-STIRRER GEN WB02X4687 Contact Us For Availability
1422
GEN WB26X0136 GEN WB26X0136 Contact Us For Availability
1428
GEN WB27X0348 GEN WB27X0348 Contact Us For Availability
1430
GEN WB24X0430 GEN WB24X0430 Contact Us For Availability
1433
GEN WB27X0627 GEN WB27X0627 Contact Us For Availability
1437
BRACKET-CAPACITOR GEN WB02X4677 Contact Us For Availability
1438
GEN WB27X0420 GEN WB27X0420 Contact Us For Availability
1442
COVER-SLIDER GEN WB02X4680 Contact Us For Availability
1443
SPRING-SLIDER GEN WB09X0219 Contact Us For Availability
1446
SWITCH-DOOR SENSING GEN WB24X0442 Contact Us For Availability
1448
GEN WB24X0443 GEN WB24X0443 Contact Us For Availability
1450
COVER-STIRRER GEN WB02X4689 Contact Us For Availability
1451
CLIP-COVER GEN WB02X7566 Contact Us For Availability
1455
GEN WB02X4681 GEN WB02X4681 Contact Us For Availability
1456
SLIDER-LATCH GEN WB02X4056 Contact Us For Availability
1461
SPRING-SLIDER GEN WB09X0218 Contact Us For Availability
1462
COVER-AIR GEN WB02X4676 Contact Us For Availability
1475
LAMP COVER GEN WB56X1751 Contact Us For Availability
1476
GEN WB02X7374 GEN WB02X7374 Contact Us For Availability
1476
PIN-FOOT GEN WB02X7376 Contact Us For Availability
1499
GEN WB02X4692 GEN WB02X4692 Contact Us For Availability
1499
GEN WB02X4693 GEN WB02X4693 Contact Us For Availability
1507
TRAY-COOKING-GLASS GEN WB48X0187 Contact Us For Availability
1536
STOP-COOKING TRAY GEN WB02X4690 Contact Us For Availability
1537
CLIP-COOKING TRAY GEN WB02X7672 Contact Us For Availability
1539
SPACER-STIRRER GEN WB02X4688 Contact Us For Availability
1540
SHAFT-STIRRER GEN WB02X4882 Contact Us For Availability
1561
RETAINER-STIRRER SHAFT GEN WB01X0651 Contact Us For Availability
1605
GEN WB36X0718 GEN WB36X0718 Contact Us For Availability
1614
BRACKET-CONTROL PANEL GEN WB02X4701 Contact Us For Availability
1621
HOLDER-FUSE GEN WB02X4627 Contact Us For Availability
1648
GEN WB18X0422 GEN WB18X0422 Contact Us For Availability
1654
GEN WB27X0628 GEN WB27X0628 Contact Us For Availability
1655
GEN WB27X0504 GEN WB27X0504 Contact Us For Availability
1801
GEN WB07X1653 GEN WB07X1653 Contact Us For Availability
1801
GEN WB15X0227 GEN WB15X0227 Contact Us For Availability
1804
CHOKE-DOOR GEN WB55X0593 Contact Us For Availability
1805
FRAME-DOOR-INNER GEN WB55X0594 Contact Us For Availability
1807
GEN WB55X0745 GEN WB55X0745 Contact Us For Availability
1808
FERRITE-RIGHT-CENTER GEN WB02X4695 Contact Us For Availability
1808
FERRITE-RIGHT-TOP GEN WB02X4696 Contact Us For Availability
1808
FERRITE-RIGHT-BOTTOM GEN WB02X4697 Contact Us For Availability
1808
FERRITE-TOP & BOTTOM GEN WB02X4699 Contact Us For Availability
1808
FERRITE-LEFT SIDE GEN WB02X4702 Contact Us For Availability
1815
SPRING-KEY-LOWER GEN WB09X0216 Contact Us For Availability
1815
SPRING-KEY-UPPER GEN WB09X0217 Contact Us For Availability
1817
HINGE-UPPER GEN WB10X0232 Contact Us For Availability
1822
OUTER DOOR GLASS GEN WB55X0596 Contact Us For Availability
1825
PIN-HANDLE KEY GEN WB02X7683 Contact Us For Availability
1827
GEN WB55X0744 GEN WB55X0744 Contact Us For Availability
32767
CAVITY TOUCH-UP(SPRAY) GEN WB64X5022 Contact Us For Availability
32767
INSTALLATION INSTRUCTION GEN 31-0611 Contact Us For Availability
32767
GEN 39-4615 GEN 39-4615 Contact Us For Availability
32767
GEN WB02X4726 GEN WB02X4726 Contact Us For Availability
× ![]()
