Model Hotpoint REM2F02 Microwave Or Advantium – Common Parts & Diagrams

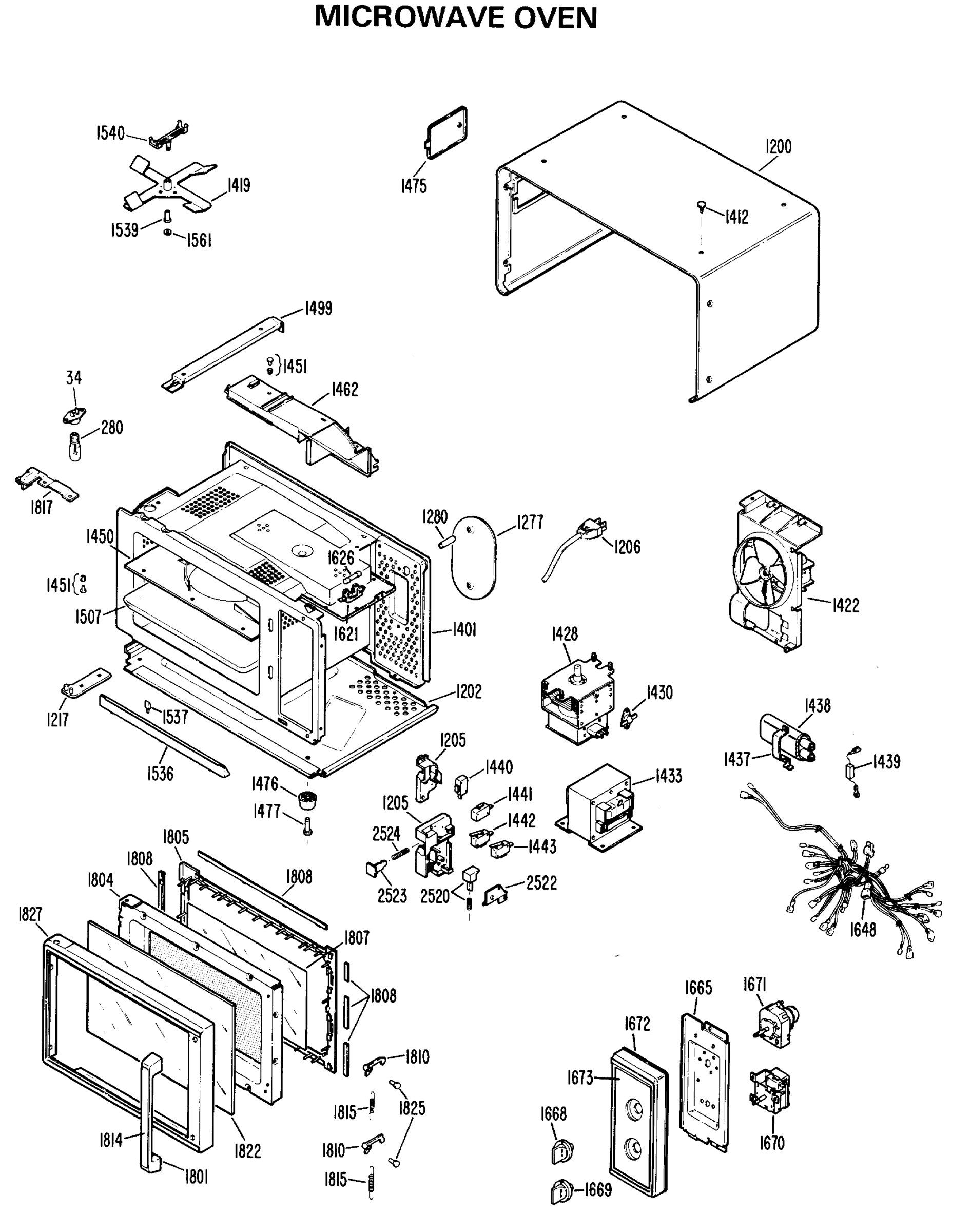

MICROWAVE OVEN
Common parts from model Hotpoint REM2F02 Microwave Or Advantium
280
LAMP-OVEN GEN WB02X4611 Contact Us For Availability
1200
GEN WB56X1773 GEN WB56X1773 Contact Us For Availability
1202
BASE PLATE GEN WB49X0574 Contact Us For Availability
1205
LATCH BODY-LOWER GEN WB02X4678 Contact Us For Availability
1205
LATCH BODY-UPPER GEN WB02X4679 Contact Us For Availability
1206
CORD-POWER SUPPLY GEN WB18X0250 Contact Us For Availability
1217
HINGE-LOWER GEN WB10X0233 Contact Us For Availability
1227
GEN WB02X4683 GEN WB02X4683 Contact Us For Availability
1280
SUPPORT-CORD HOLDER GEN WB02X4682 Contact Us For Availability
1401
CAVITY & FRAME ASSEMBLY GEN NOT AVAIL Contact Us For Availability
1412
PLUG BUTTON GEN WB02X4602 Contact Us For Availability
1419
BLADE-STIRRER GEN WB02X4687 Contact Us For Availability
1422
FAN MOTOR ASM GEN WB26X0086 Contact Us For Availability
1428
GEN WB27X0348 GEN WB27X0348 Contact Us For Availability
1430
GEN WB27X0231 GEN WB27X0231 Contact Us For Availability
1433
TRANSFORMER-HV GEN WB27X0349 Contact Us For Availability
1437
BRACKET-HVC GEN WB02X4677 Contact Us For Availability
1438
GEN WB27X0331 GEN WB27X0331 Contact Us For Availability
1441
SWITCH-MONITOR GEN WB24X0369 Contact Us For Availability
1443
SWITCH-DOOR SENSING GEN WB24X0370 Contact Us For Availability
1450
COVER-STIRRER GEN WB02X4689 Contact Us For Availability
1451
PIN-CLIP ASM GEN WB02X7566 Contact Us For Availability
1462
COVER-AIR GEN WB02X4676 Contact Us For Availability
1475
COVER-LAMP GEN WB56X1751 Contact Us For Availability
1476
GEN WB02X7374 GEN WB02X7374 Contact Us For Availability
1477
PIN-FOOT GEN WB02X7376 Contact Us For Availability
1499
GEN WB02X4692 GEN WB02X4692 Contact Us For Availability
1499
GEN WB02X4693 GEN WB02X4693 Contact Us For Availability
1507
TRAY-GLASS GEN WB48X0187 Contact Us For Availability
1536
STOP-COOK TRAY GEN WB02X4690 Contact Us For Availability
1537
CLIP-COOK TRAY STOP GEN WB02X7672 Contact Us For Availability
1539
SPACER-STIRRER GEN WB02X4688 Contact Us For Availability
1540
GEN WB02X4882 GEN WB02X4882 Contact Us For Availability
1561
GEN WB01X0651 GEN WB01X0651 Contact Us For Availability
1621
HOLDER-FUSE GEN WB02X4627 Contact Us For Availability
1648
GEN WB18X0291 GEN WB18X0291 Contact Us For Availability
1665
GEN WB02X4684 GEN WB02X4684 Contact Us For Availability
1668
KNOB-TIMER GEN WB03X0679 Contact Us For Availability
1669
SPRING-KNOB GEN WB09X0188 Contact Us For Availability
1669
KNOB-POWER GEN WB03X0677 Contact Us For Availability
1670
GEN WB19X0225 GEN WB19X0225 Contact Us For Availability
1671
GEN WB19X0228 GEN WB19X0228 Contact Us For Availability
1672
CONTROL PANEL GEN WB04X0114 Contact Us For Availability
1673
TRIM-CONTROL PANEL GEN WB02X4704 Contact Us For Availability
1801
HANDLE-DOOR GEN WB15X0227 Contact Us For Availability
1804
GEN WB55X0593 GEN WB55X0593 Contact Us For Availability
1805
FRAME-DOOR-INNER GEN WB55X0594 Contact Us For Availability
1807
FILM-DOOR GEN WB02X4698 Contact Us For Availability
1808
RUBBER-FERRITE-RH CENTER GEN WB02X4695 Contact Us For Availability
1808
RUBBER-FERRITE-RH TOP GEN WB02X4696 Contact Us For Availability
1808
RUBBER-FERRITE-RH BOTTOM GEN WB02X4697 Contact Us For Availability
1808
RUBBER-FERRITE-TOP/BOT GEN WB02X4699 Contact Us For Availability
1810
KEY-UPPER GEN WB10X5181 Contact Us For Availability
1810
KEY-LOWER GEN WB10X5182 Contact Us For Availability
1814
TRIM-HANDLE GEN WB15X0226 Contact Us For Availability
1815
SPRING-KEY-LOWER GEN WB09X0216 Contact Us For Availability
1815
SPRING-KEY-UPPER GEN WB09X0217 Contact Us For Availability
1817
HINGE-UPPER GEN WB10X0232 Contact Us For Availability
1822
GEN WB55X0596 GEN WB55X0596 Contact Us For Availability
1825
PIN-HANDLE KEY GEN WB02X7683 Contact Us For Availability
1827
GEN WB55X0595 GEN WB55X0595 Contact Us For Availability
2520
SPRING-SLIDER GEN WB09X0219 Contact Us For Availability
2521
SLIDE-LATCH GEN WB02X4056 Contact Us For Availability
2522
COVER-SLIDE GEN WB02X4680 Contact Us For Availability
2523
GEN WB02X4681 GEN WB02X4681 Contact Us For Availability
2524
SPRING-SLIDER GEN WB09X0218 Contact Us For Availability
32767
CAVITY TOUCH-UP(SPRAY) GEN WB64X5022 Contact Us For Availability
32767
INSTALLATION INSTRUCTION GEN 31-0611 Contact Us For Availability
32767
GEN 39-4568 GEN 39-4568 Contact Us For Availability
32767
GEN 39-4572 GEN 39-4572 Contact Us For Availability
32767
GEN WB02X4726 GEN WB02X4726 Contact Us For Availability
× ![]()
