Model Electrolux REGS39WNW4 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

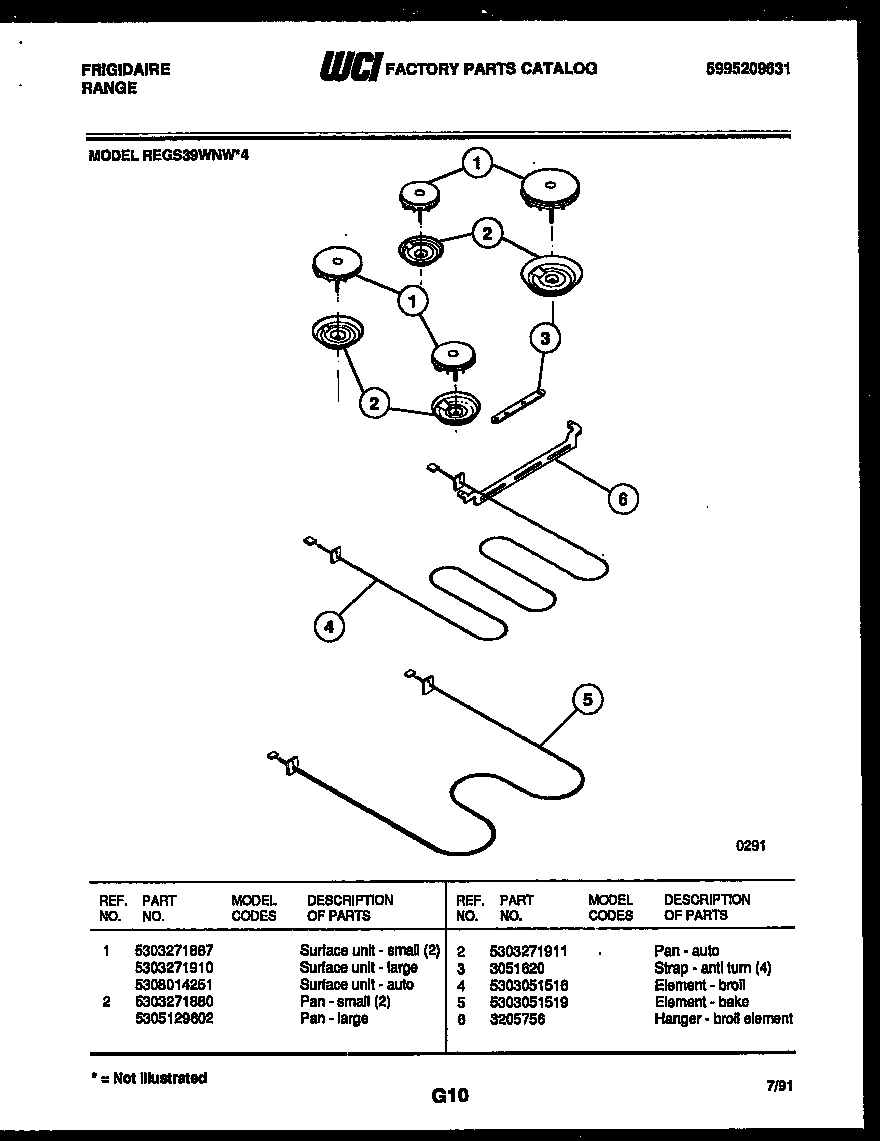

04 - BROILER PARTS

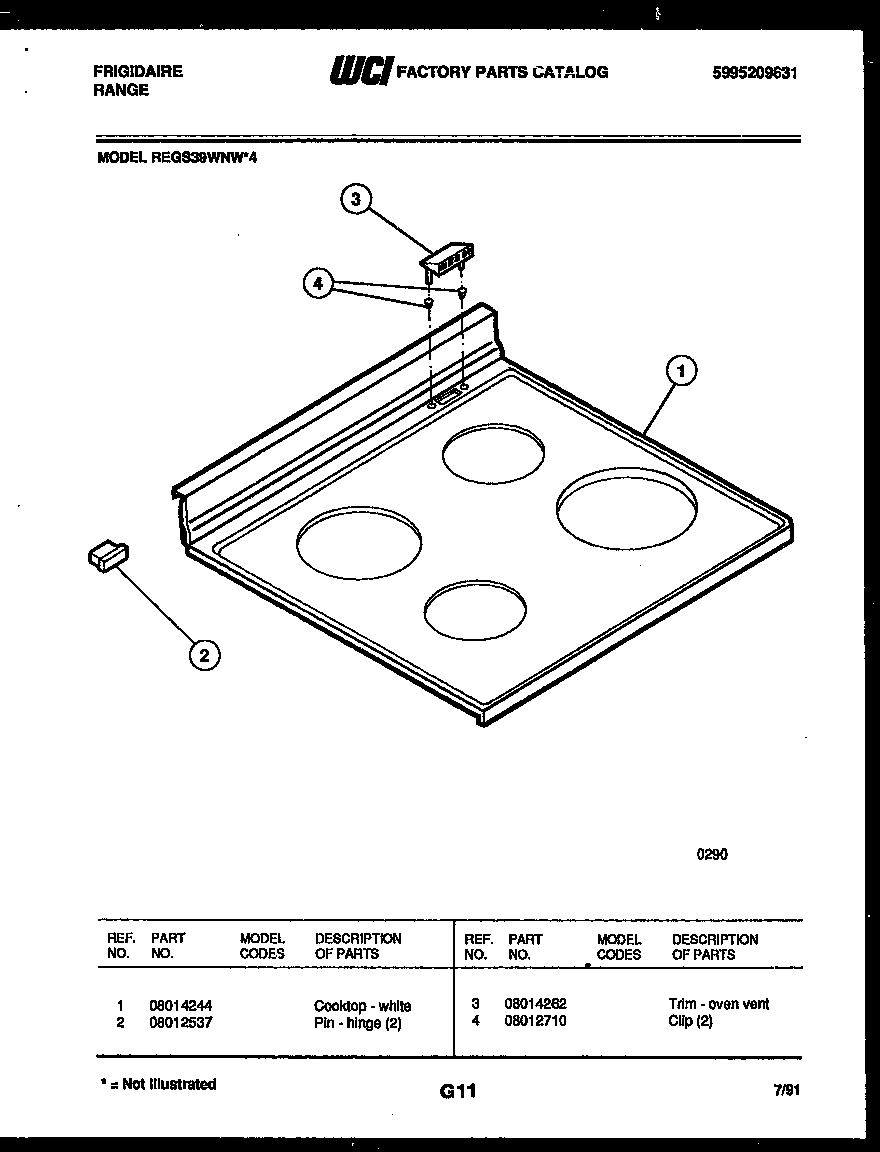

05 - COOKTOP PARTS

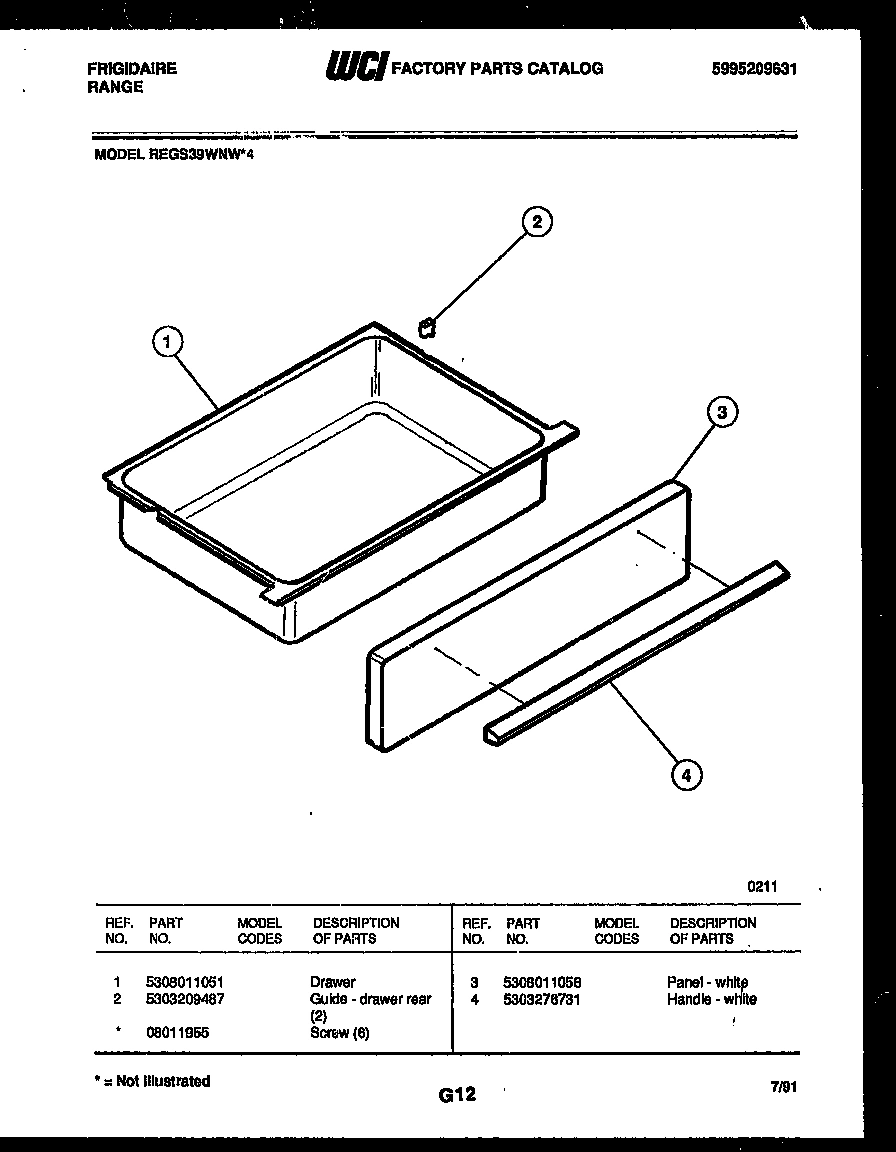

06 - DRAWER PARTS

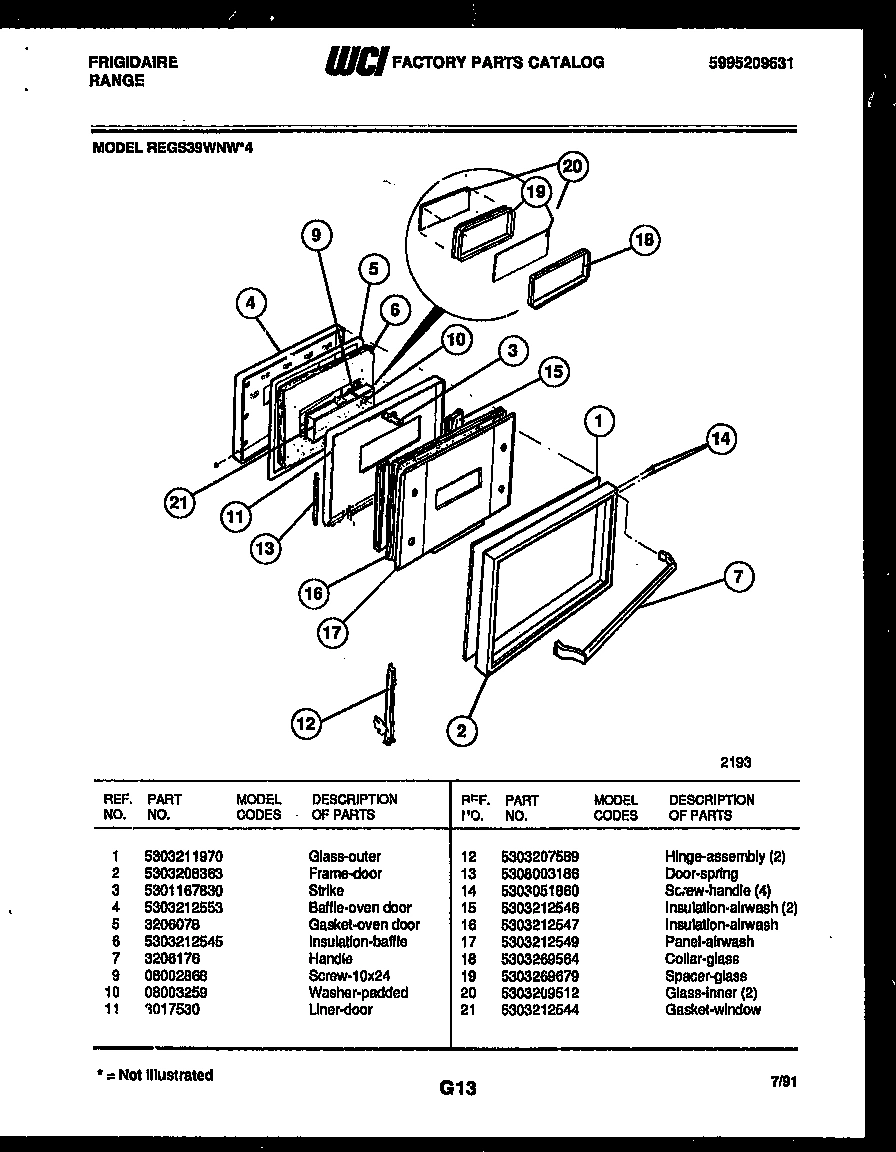

07 - DOOR PARTS
Common parts from model Electrolux REGS39WNW4 RANGE
*48886
WCI 19100210102 WCI 19100210102 Contact Us For Availability
1
SURFACE UNIT - SMALL (2) WCI 5303271867 Contact Us For Availability
1
SIDE PNL, RH (WHITE) WCI 5308012527 Contact Us For Availability
1
WCI 08014244 WCI 08014244 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
GLASS-OUTER WCI 5303211970 Contact Us For Availability
1A
SIDE PNL, LH (WHITE) WCI 5308012528 Contact Us For Availability
1A
SURFACE UNIT - LARGE WCI 5303271910 Contact Us For Availability
1B
SURFACE UNIT, AUTO. WCI 5308014251 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
PAN - SMALL (2) WCI 5303271880 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME-DOOR WCI 5303208363 Contact Us For Availability
2A
WCI 5305129602 WCI 5305129602 Contact Us For Availability
2B
PAN - AUTO WCI 5303271911 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
CLIP (2) WCI 08012710 Contact Us For Availability
4
WCI 5303276731 WCI 5303276731 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303212553 Contact Us For Availability
5
STARTER-FLUOR LIGHT WCI 3206218 Contact Us For Availability
5
LEG - LEVELLER WCI 5303205540 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
7
WCI 3206176 WCI 3206176 Contact Us For Availability
9
WCI 08002868 WCI 08002868 Contact Us For Availability
9
WCI 5303207514 WCI 5303207514 Contact Us For Availability
9A
WCI 08015974 WCI 08015974 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
TRIM - CONT PANEL (2) WHITE WCI 3206174 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303207589 Contact Us For Availability
13
ELECTRONIC CONTROL WCI 5303270370 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
13
DOOR, SPRING WCI 5308003186 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
KNOB - CLOCK WHITE WCI 3202625 Contact Us For Availability
15
BUTTON - CLOCK (8) WHITE WCI 3203026 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
16
SWITCH - FLUOR LIGHT & OVEN LIGHT (2) WCI 5303211969 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
16
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
17
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
18
BULB-FLUOR WCI 5308012712 Contact Us For Availability
18
WCI 5303269564 WCI 5303269564 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
19
WCI 5303269679 WCI 5303269679 Contact Us For Availability
20
GLASS-INNER (2) WCI 5303209512 Contact Us For Availability
20
WCI 3206172 WCI 3206172 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 08017089 WCI 08017089 Contact Us For Availability
21
FRAME-FRONT WCI 5303207390 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
22
WCI 08017090 WCI 08017090 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3017796 WCI 3017796 Contact Us For Availability
24
WCI 3017797 WCI 3017797 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 08013680 Contact Us For Availability
25
BEZEL - SWITCH (2) WHITE WCI 3206171 Contact Us For Availability
25
PLUG-BUTTON-THERM. BULB HOLE WCI 3016334 Contact Us For Availability
26
WCI 08015987 WCI 08015987 Contact Us For Availability
27
WCI 3201632 WCI 3201632 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
PUSH ROD-SWITCH WCI 3051645 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 5303207391 WCI 5303207391 Contact Us For Availability
38
WCI 3016281 WCI 3016281 Contact Us For Availability
39
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
40
BRKT - DOOR LATCH SWITCH WCI 3015356 Contact Us For Availability
41
VENT TUBE WCI 3205683 Contact Us For Availability
42
MOTOR - LATCH WCI 5303269766 Contact Us For Availability
43
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
44
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
45
GASKET-VENT TUBE WCI 3051666 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
53
WCI 3019063 WCI 3019063 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
56
WCI 3202082 WCI 3202082 Contact Us For Availability
56A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
57
WCI 5303207389 WCI 5303207389 Contact Us For Availability
× ![]()
