Model Electrolux REGS39WLL1 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER PARTS

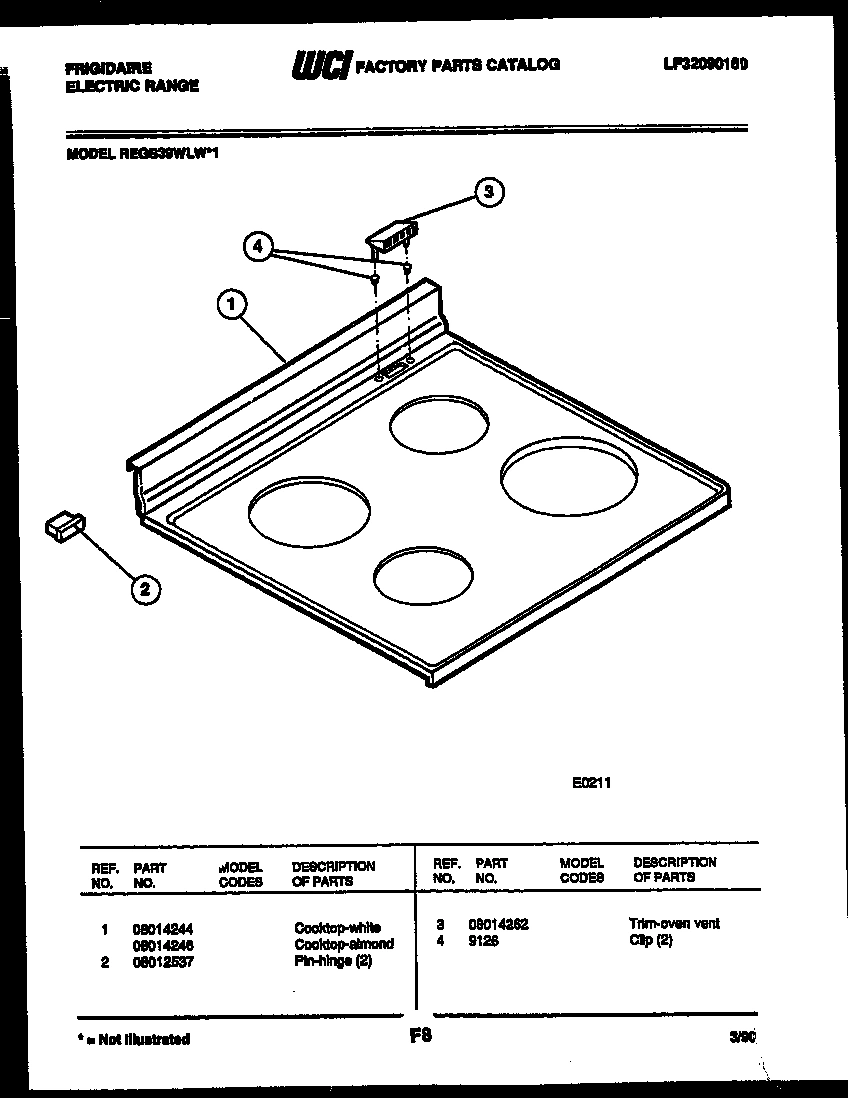

04 - COOKTOP PARTS

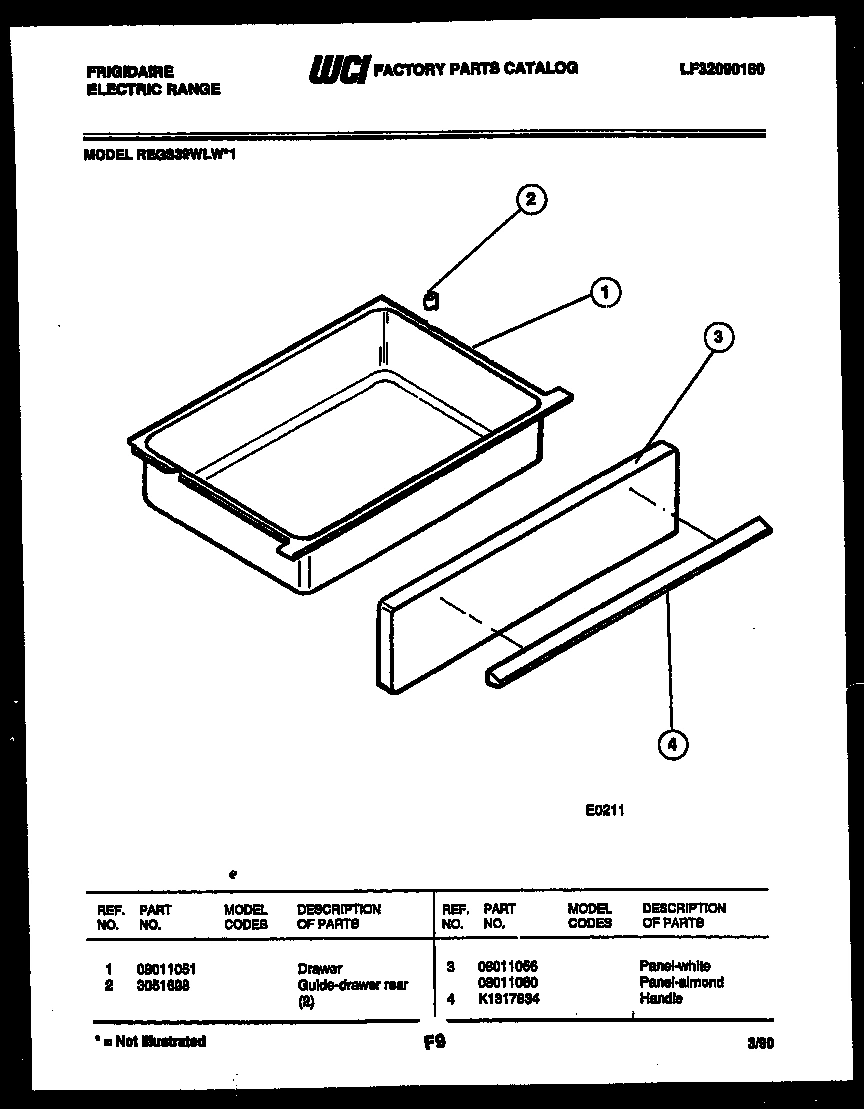

05 - DRAWER PARTS

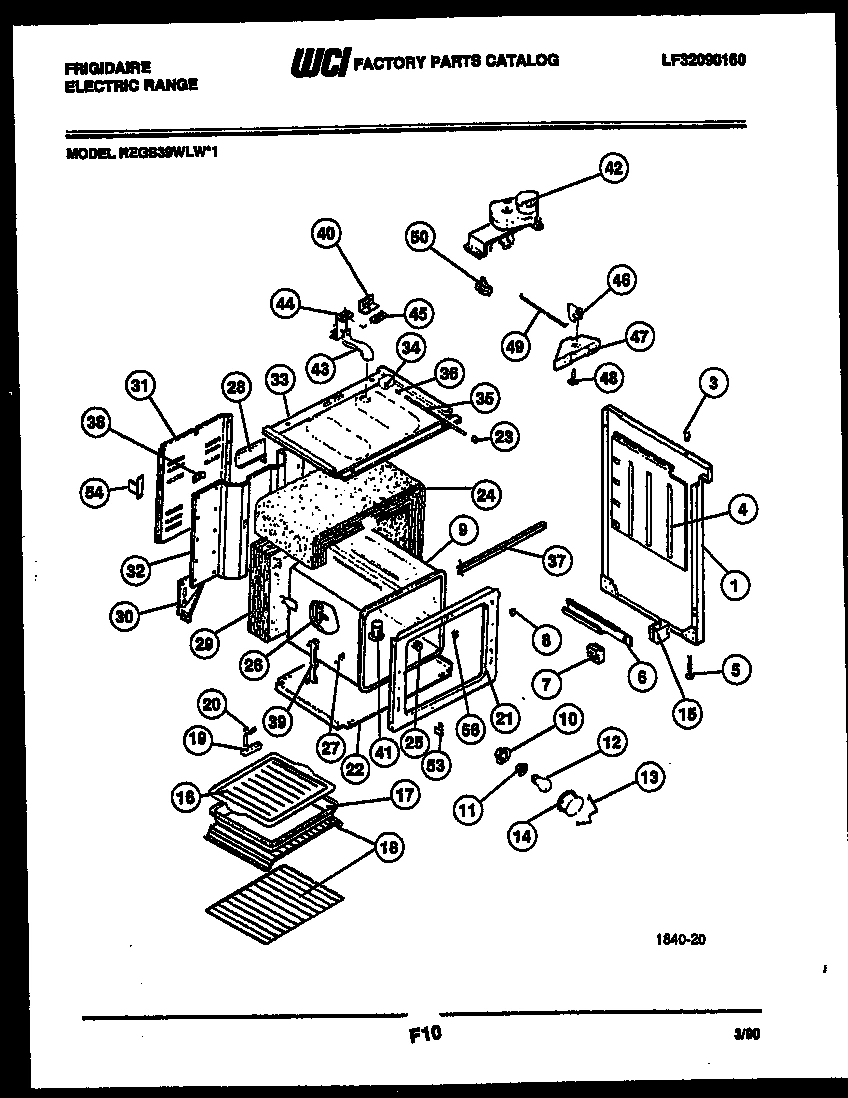

06 - BODY PARTS

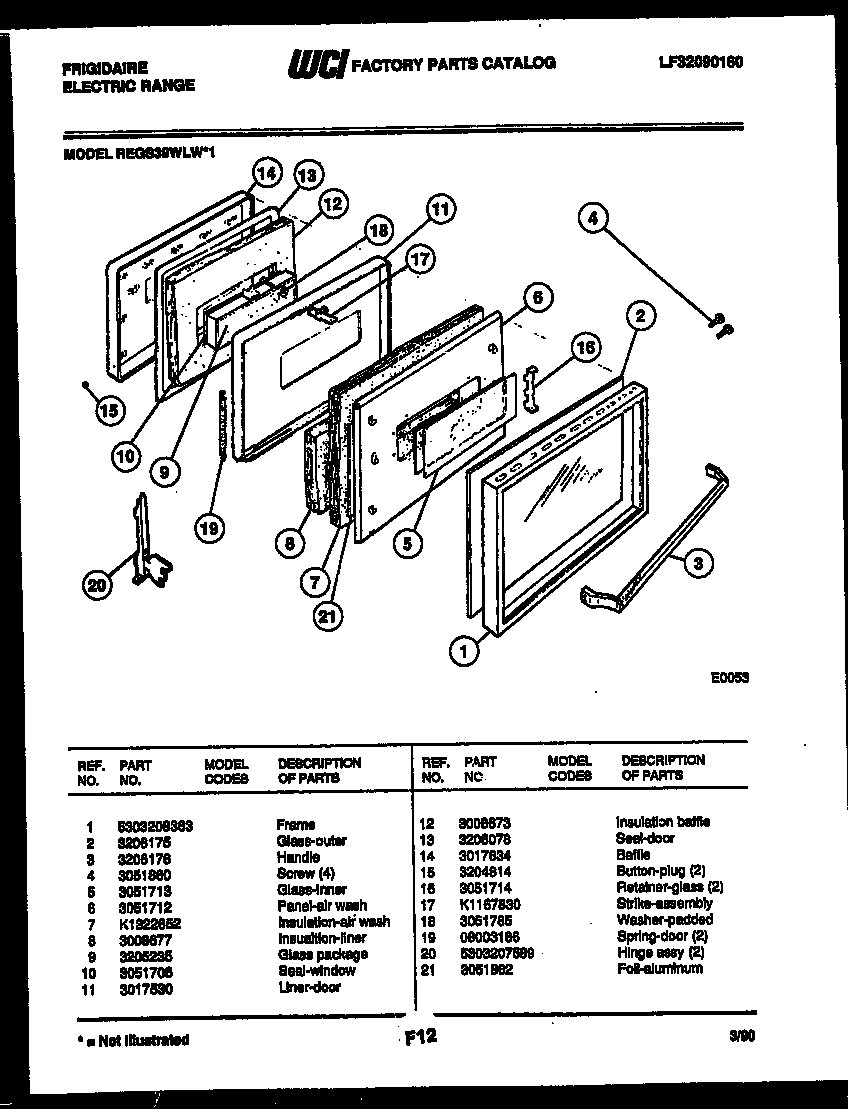

07 - DOOR PARTS
Common parts from model Electrolux REGS39WLL1 RANGE
*10400
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
SURFACE UNIT-SMALL (2) WCI 08014249 Contact Us For Availability
1
WCI 08014246 WCI 08014246 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
SIDE PNL - RH (ALMD) WCI 08012529 Contact Us For Availability
1
WCI 5303208363 WCI 5303208363 Contact Us For Availability
1A
SURFACE UNIT LARGE WCI 08014263 Contact Us For Availability
1A
SIDE PNL - LH (ALMD) WCI 08012530 Contact Us For Availability
1B
SURFACE UNIT - AUTO WCI 08014251 Contact Us For Availability
2
SWITCH S/U SMALL (2) WCI 3015702 Contact Us For Availability
2
PAN-SMALL (2) WCI 3051662 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
GUIDE-DRAWER REAR (2) WCI 3051698 Contact Us For Availability
2
WCI 3206175 WCI 3206175 Contact Us For Availability
2A
WCI 08017080 WCI 08017080 Contact Us For Availability
2A
WCI 3051664 WCI 3051664 Contact Us For Availability
2B
WCI 08017083 WCI 08017083 Contact Us For Availability
2B
WCI K005129701 WCI K005129701 Contact Us For Availability
3
BASE-FLUOR LIGHT STARTER WCI 3201542 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
PANEL, ALMOND WCI 08011060 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
3
WCI 3206176 WCI 3206176 Contact Us For Availability
4
LIGHT-PILOT AUTO S/U WCI 08017085 Contact Us For Availability
4
CLIP (2) WCI 9126 Contact Us For Availability
4
HANDLE WCI K1317834 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
SCREW (4) WCI 3051860 Contact Us For Availability
5
STARTER-FLUOR LIGHT WCI 3017795 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
5
WCI 3051713 WCI 3051713 Contact Us For Availability
6
WCI 3206118 WCI 3206118 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
WCI 3051712 WCI 3051712 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 3206184 WCI 3206184 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
7
WCI K1322652 WCI K1322652 Contact Us For Availability
8
WCI 3206170 WCI 3206170 Contact Us For Availability
8
PLUG BUTTON-OVEN LIGHT HOLE WCI 3051784 Contact Us For Availability
8
WCI 3008677 WCI 3008677 Contact Us For Availability
9
WCI 08015975 WCI 08015975 Contact Us For Availability
9
WCI 5303207514 WCI 5303207514 Contact Us For Availability
9
GLASS, PACKAGE WCI 3205235 Contact Us For Availability
9A
WCI 08015974 WCI 08015974 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
SEAL WINDOW WCI 3051706 Contact Us For Availability
10A
SUPPORT LH WCI 08015967 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
TRIM-CONT PANEL (2) WCI 3206174 Contact Us For Availability
12
WCI 3008673 WCI 3008673 Contact Us For Availability
13
WCI 3205213 WCI 3205213 Contact Us For Availability
13
RETAINER - LENS WCI 3205904 Contact Us For Availability
13
SEAL-DOOR WCI 3206078 Contact Us For Availability
14
KNOB-CLOCK WCI 3202625 Contact Us For Availability
14
BAFFLE WCI 3017634 Contact Us For Availability
15
BUTTON CLOCK (8) WCI 3203026 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
WCI 3204814 WCI 3204814 Contact Us For Availability
16
WCI 3206173 WCI 3206173 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
16
WCI 3051714 WCI 3051714 Contact Us For Availability
17
NUT-SWITCH (2) WCI 08003125 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
17
STRIKE-ASSEMBLY WCI K1167830 Contact Us For Availability
18
WCI 08012712 WCI 08012712 Contact Us For Availability
18
WASHER, PADDED WCI 3051785 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
19
WCI 08003186 WCI 08003186 Contact Us For Availability
20
WCI 3206172 WCI 3206172 Contact Us For Availability
20
STRAP-GROUND WCI K1145190 Contact Us For Availability
20
HINGE, ASSY (2) WCI 5303207589 Contact Us For Availability
21
WCI 08017089 WCI 08017089 Contact Us For Availability
21
FRAME-FRONT WCI 5303207390 Contact Us For Availability
21
WCI 3051862 WCI 3051862 Contact Us For Availability
22
WCI 08017090 WCI 08017090 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3017796 WCI 3017796 Contact Us For Availability
23
COVER, ROD END WCI 3051251 Contact Us For Availability
24
WCI 3017797 WCI 3017797 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 3051628 Contact Us For Availability
25
BEZEL-SWITCH WCI 3206171 Contact Us For Availability
25
PLUG-BUTTON-THERM. BULB HOLE WCI 3016334 Contact Us For Availability
26
WCI 08015987 WCI 08015987 Contact Us For Availability
27
WCI 3201632 WCI 3201632 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
34
WCI 3205260 WCI 3205260 Contact Us For Availability
35
PUSH ROD SWITCH WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 5303207391 WCI 5303207391 Contact Us For Availability
38
WCI 3016281 WCI 3016281 Contact Us For Availability
39
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
40
BRKT-DOOR LATCH SWITCH WCI 3017800 Contact Us For Availability
41
VENT TUBE WCI 3205683 Contact Us For Availability
42
MOTOR - LATCH WCI 3202381 Contact Us For Availability
43
TUBE-VENT UPPER WCI 3051655 Contact Us For Availability
44
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
45
WCI 4051666 WCI 4051666 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 08012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
WCI 3202393 WCI 3202393 Contact Us For Availability
53
WCI 3019063 WCI 3019063 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
56
WCI 3202082 WCI 3202082 Contact Us For Availability
× ![]()
