Model Electrolux REGS38BKW0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER PARTS

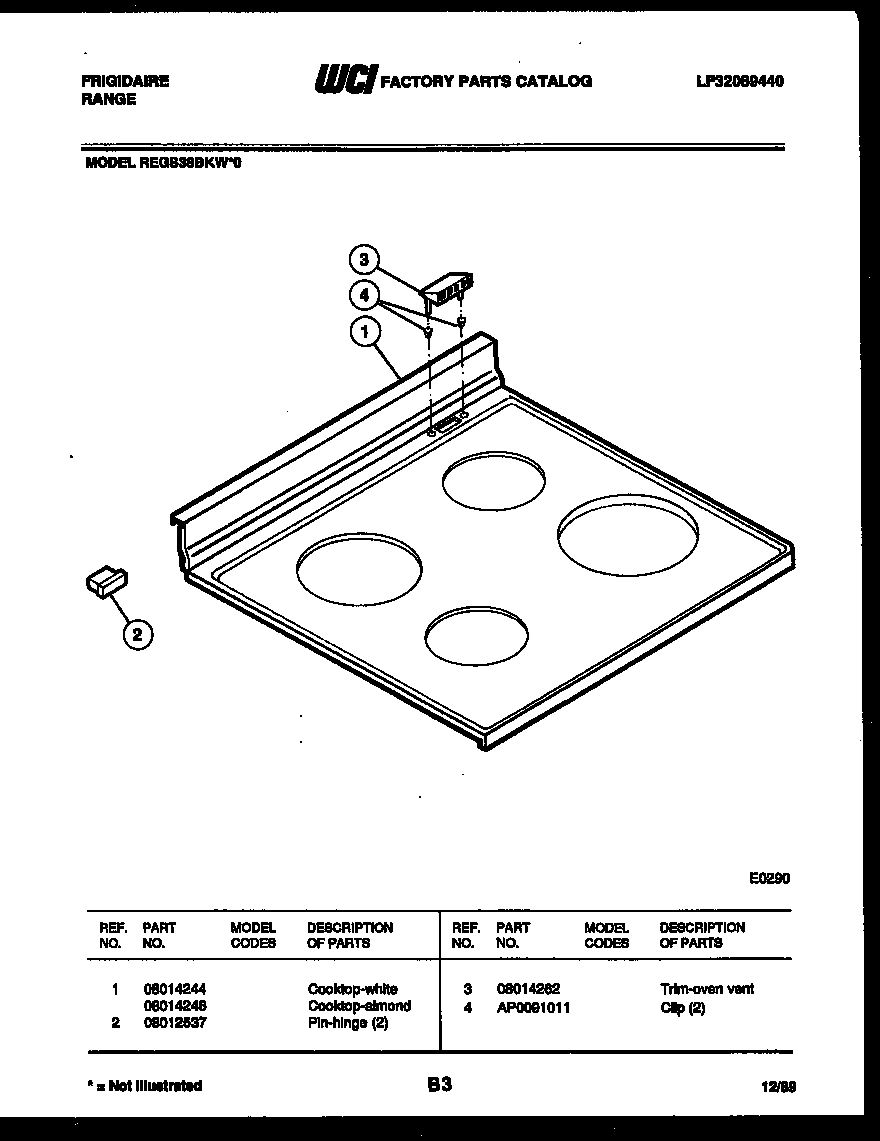

04 - COOKTOP PARTS

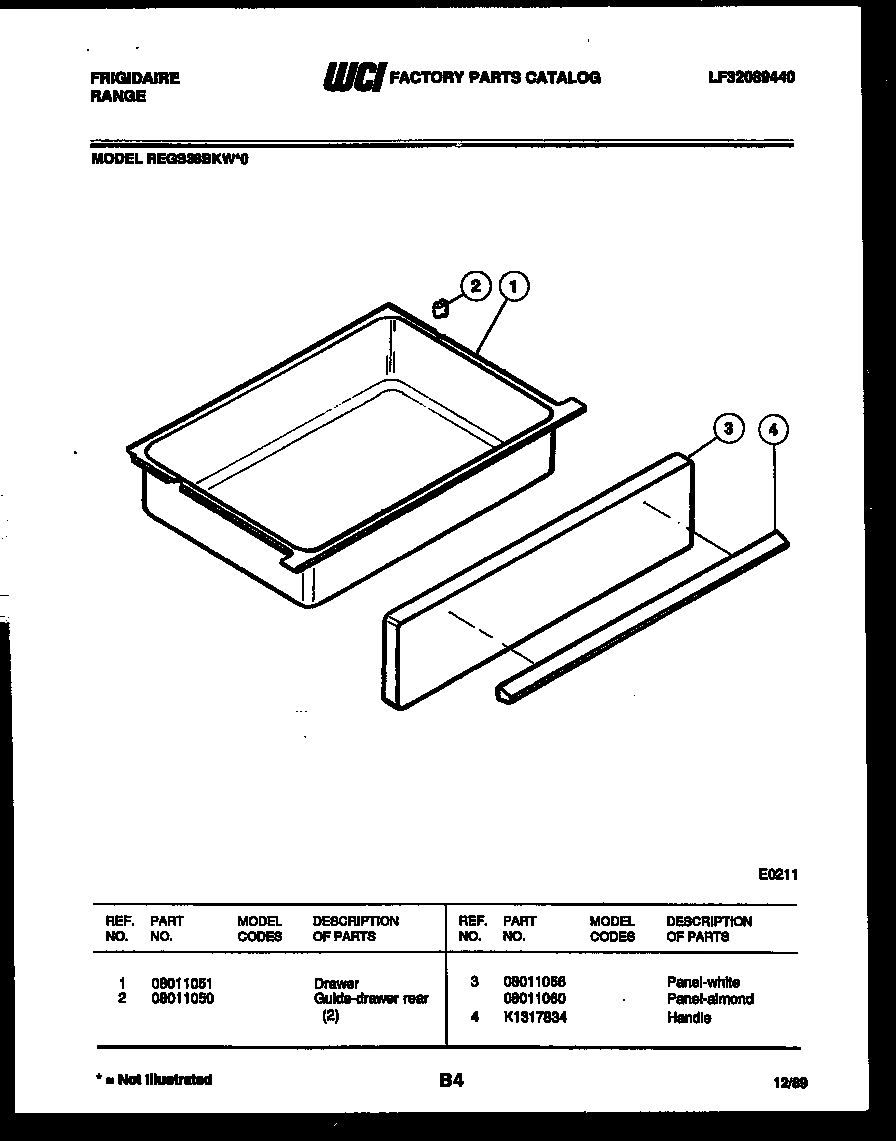

05 - DRAWER PARTS

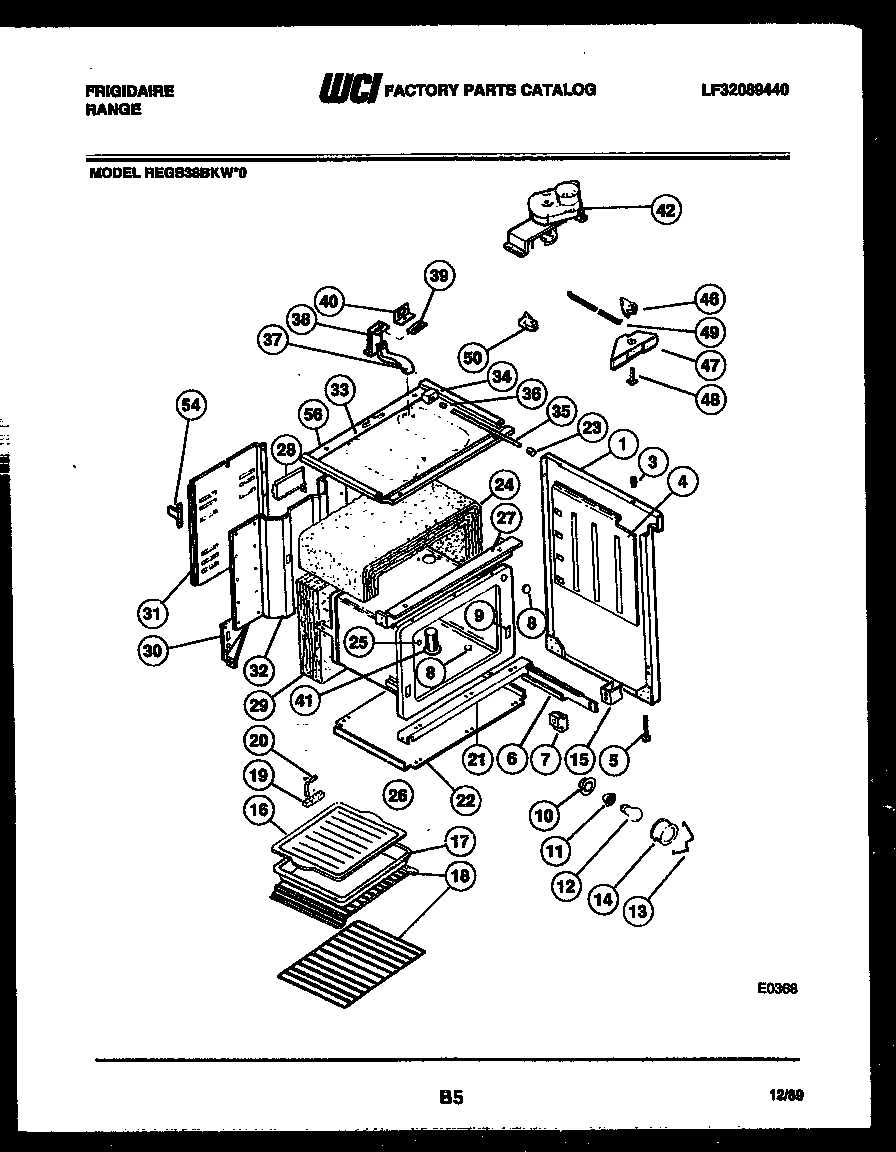

06 - BODY PARTS

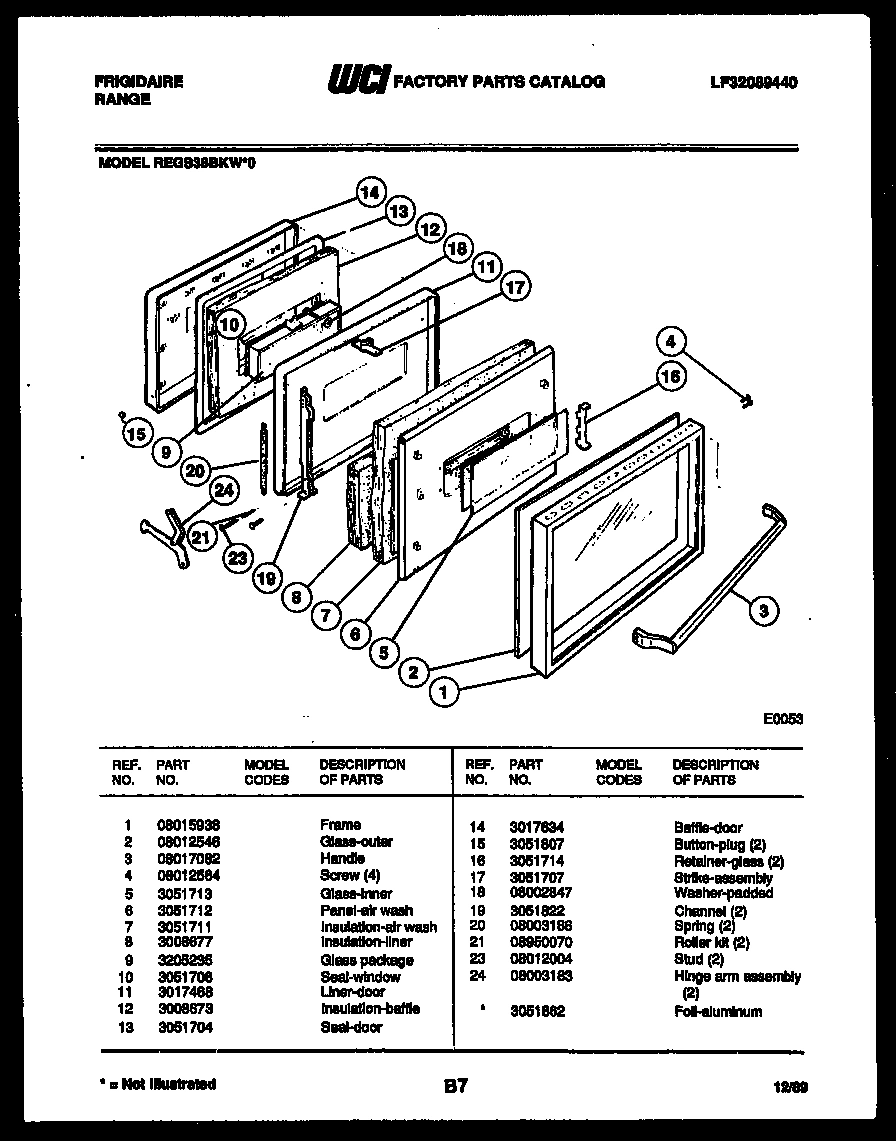

07 - DOOR PARTS
Common parts from model Electrolux REGS38BKW0 RANGE
*28164
ANIT-TIP KIT WCI 3934063 Contact Us For Availability
*28165
WCI 3051862 WCI 3051862 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
SURFACE UNIT-SMALL (2) WCI 08014249 Contact Us For Availability
1
WCI 08014244 WCI 08014244 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
SIDE PANEL-RH WHITE WCI 08012527 Contact Us For Availability
1
WCI 08015938 WCI 08015938 Contact Us For Availability
1A
WCI 3051486 WCI 3051486 Contact Us For Availability
1A
WCI 08012528 WCI 08012528 Contact Us For Availability
1B
SURFACE UNIT - AUTO WCI 08014251 Contact Us For Availability
2
WCI 08017079 WCI 08017079 Contact Us For Availability
2
PAN-SMALL (2) WCI 3051662 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
GUIDE-DRAWER REAR (2) WCI 08011050 Contact Us For Availability
2
GLASS - OUTER WCI 08012546 Contact Us For Availability
2A
WCI 08017080 WCI 08017080 Contact Us For Availability
2A
WCI 3051664 WCI 3051664 Contact Us For Availability
2B
WCI 08017083 WCI 08017083 Contact Us For Availability
2B
WCI K005129701 WCI K005129701 Contact Us For Availability
3
BASE-FLUOR LIGHT STARTER WCI 3201542 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
PANEL - WHITE WCI 08011056 Contact Us For Availability
3
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
3
WCI 08017082 WCI 08017082 Contact Us For Availability
4
LIGHT-PILOT AUTO S/U WCI 08017085 Contact Us For Availability
4
WCI AP0091011 WCI AP0091011 Contact Us For Availability
4
HANDLE WCI K1317834 Contact Us For Availability
4
WCI 08012235 WCI 08012235 Contact Us For Availability
4
SCREW (4) WCI 08012564 Contact Us For Availability
5
STARTER-FLUOR LIGH WCI 3017795 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
5
WCI 3051713 WCI 3051713 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6
WCI 3051712 WCI 3051712 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 3205216 WCI 3205216 Contact Us For Availability
7
WCI 08003103 WCI 08003103 Contact Us For Availability
7
WCI 3051711 WCI 3051711 Contact Us For Availability
8
KNOBS (4) WCI 08015741 Contact Us For Availability
8
WCI 3008677 WCI 3008677 Contact Us For Availability
9
WCI 08015975 WCI 08015975 Contact Us For Availability
9
WCI 3205272 WCI 3205272 Contact Us For Availability
9
GLASS, PACKAGE WCI 3205235 Contact Us For Availability
9A
WCI 08015974 WCI 08015974 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
SEAL WINDOW WCI 3051706 Contact Us For Availability
10A
SUPPORT LH WCI 08015967 Contact Us For Availability
11
WCI 08012538 WCI 08012538 Contact Us For Availability
11
LINER, DOOR WCI 3017468 Contact Us For Availability
12
TRIM-CONT PANEL (2) WCI 08017099 Contact Us For Availability
12
WCI 3008673 WCI 3008673 Contact Us For Availability
13
WCI 3205213 WCI 3205213 Contact Us For Availability
13
WCI 3051515 WCI 3051515 Contact Us For Availability
13
SEAL-DOOR WCI 3051704 Contact Us For Availability
14
KNOB-CLOCK WCI 3204590 Contact Us For Availability
14
BAFFLE-DOOR WCI 3017634 Contact Us For Availability
15
BUTTON-CLOCK (7) WCI 3204586 Contact Us For Availability
15
SPACER-DRAWER RAIL (2) WCI 08011055 Contact Us For Availability
15
WCI 3051807 WCI 3051807 Contact Us For Availability
16
SWITCH-FLUOR LIGHT & OVEN LIGHT (2) WCI 3205227 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
16
WCI 3051714 WCI 3051714 Contact Us For Availability
17
NUT-SWITCH (2) WCI 08003125 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
17
WCI 3051707 WCI 3051707 Contact Us For Availability
18
WCI 08012712 WCI 08012712 Contact Us For Availability
18
WASHER-PADDED WCI 08002847 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
19
WCI 3051822 WCI 3051822 Contact Us For Availability
20
WCI 08017091 WCI 08017091 Contact Us For Availability
20
WCI 3051696 WCI 3051696 Contact Us For Availability
20
SPRING (2) WCI 08003186 Contact Us For Availability
21
WCI 08017089 WCI 08017089 Contact Us For Availability
21
CHANNEL, OVEN SUPPORT COVER WCI 3200927 Contact Us For Availability
21
ROLLER KIT (2) WCI 08950070 Contact Us For Availability
22
WCI 08017090 WCI 08017090 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
23
WCI 3017796 WCI 3017796 Contact Us For Availability
23
COVER, ROD END WCI 3051251 Contact Us For Availability
23
STUD (2) WCI 08012004 Contact Us For Availability
24
WCI 3017797 WCI 3017797 Contact Us For Availability
24
INSULATION-OVEN WRAP WCI 3051628 Contact Us For Availability
24
WCI 08003183 WCI 08003183 Contact Us For Availability
25
BEZEL-SWITCH (2) WCI 3016305 Contact Us For Availability
25
PLUG, BUTTON, THERM BULB HOLE WCI 3051796 Contact Us For Availability
26
WCI 08015987 WCI 08015987 Contact Us For Availability
27
CHANNEL, OVEN SUPPORT UPPER WCI 3203178 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 3051856 WCI 3051856 Contact Us For Availability
32
WCI 3205259 WCI 3205259 Contact Us For Availability
33
WCI K005025704 WCI K005025704 Contact Us For Availability
34
WCI 3205260 WCI 3205260 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
VENT-TUBE UPPER WCI 08014259 Contact Us For Availability
38
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
40
BRACKET-DOOR LATCH SWITCH WCI 3017800 Contact Us For Availability
41
VENT TUBE WCI 08012752 Contact Us For Availability
42
MOTOR - LATCH WCI 3202381 Contact Us For Availability
46
LATCH, DOOR WCI 3202387 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3019074 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
SWITCH LOWER/UPPER (2) WCI 3202393 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
56
CHANNEL - SUB TOP WCI 08015993 Contact Us For Availability
× ![]()
