Model Electrolux REGS37BNL5 RANGE – Common Parts & Diagrams

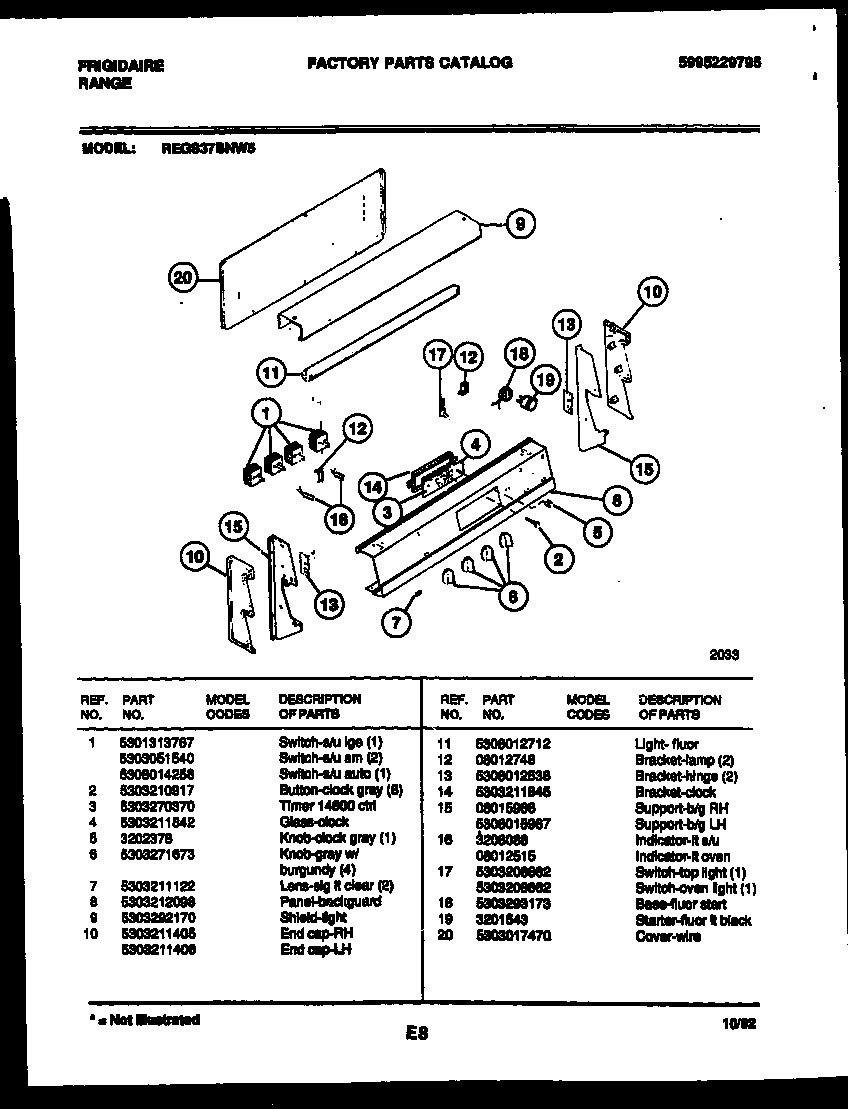

02 - BACKGUARD

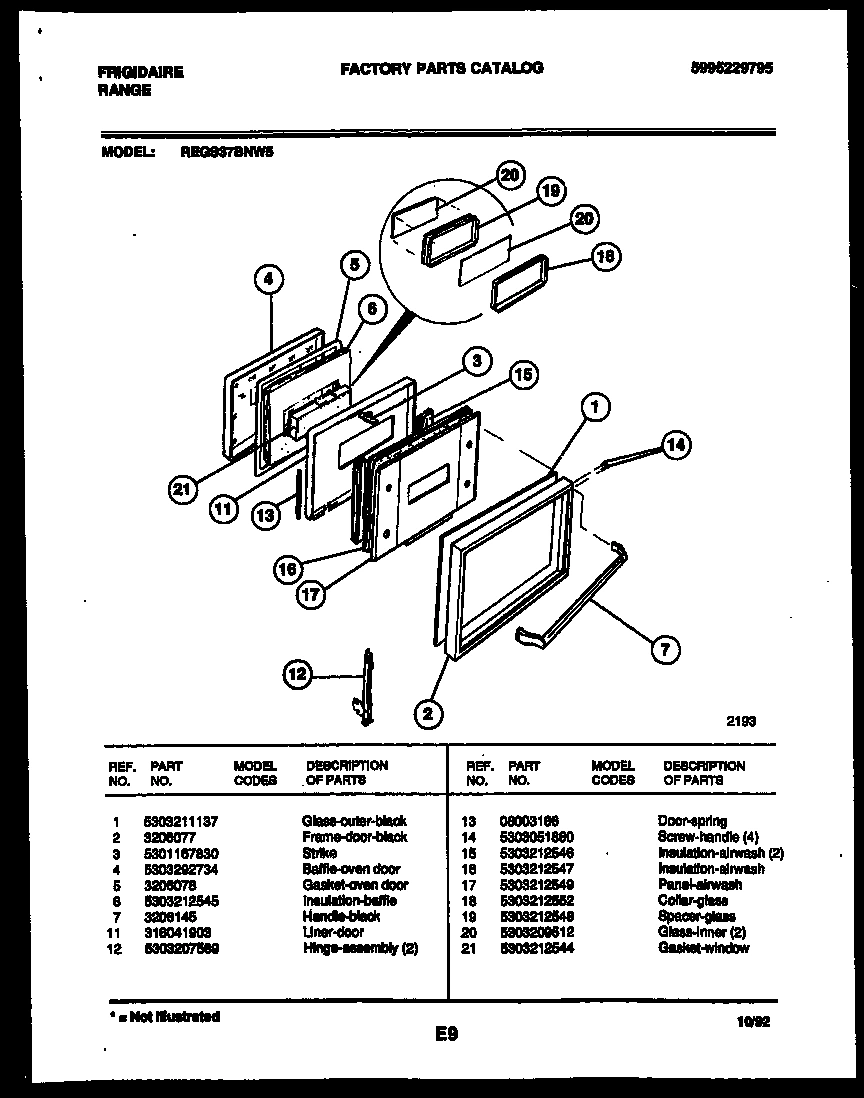

03 - DOOR PARTS

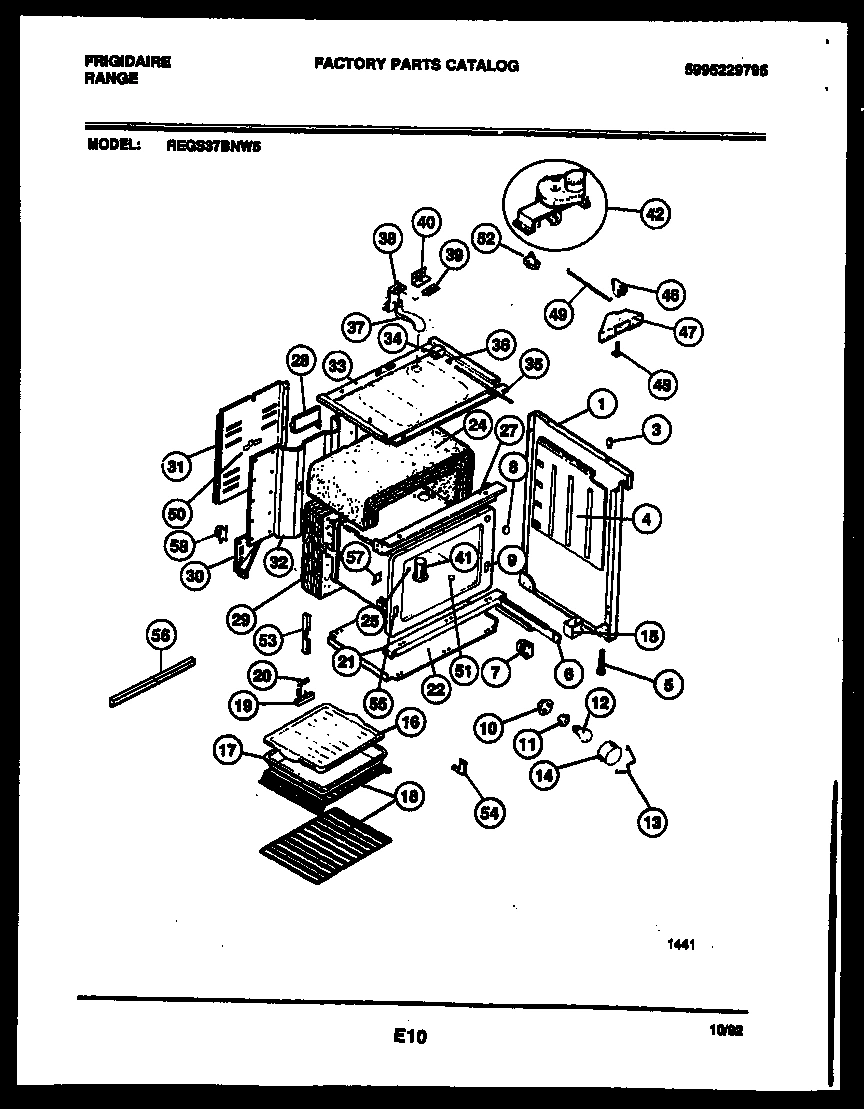

04 - BODY PARTS

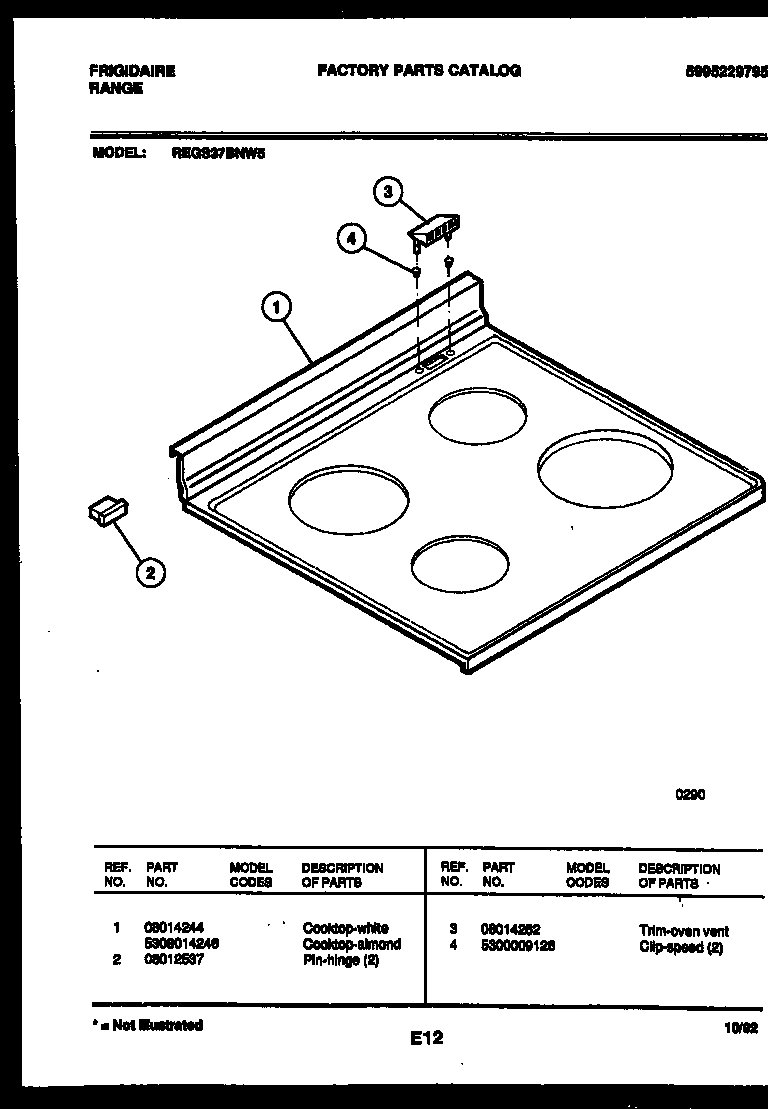

05 - COOKTOP PARTS

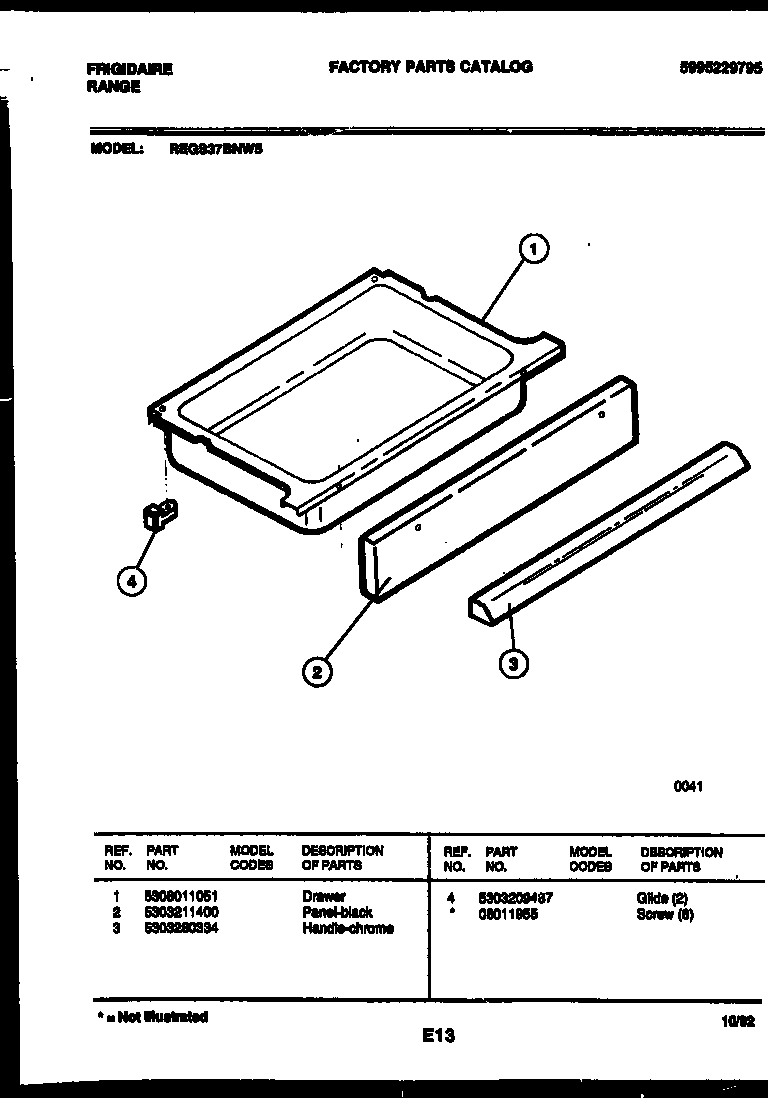

06 - DRAWER PARTS

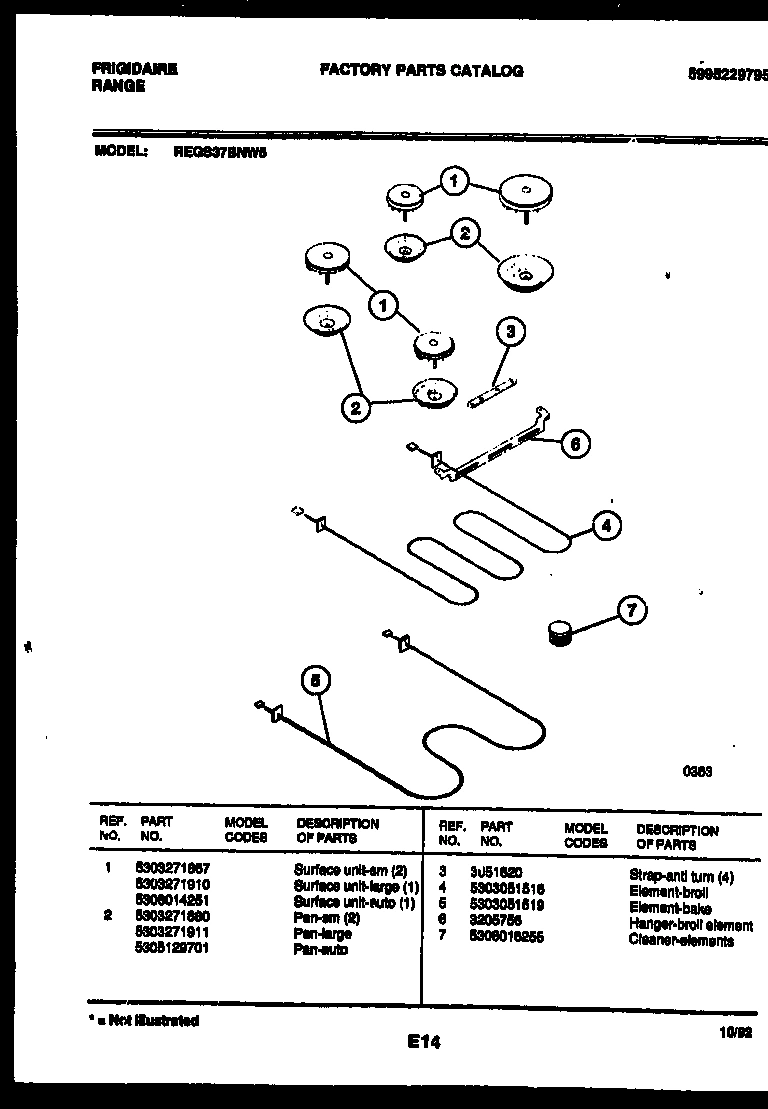

07 - BROILER PARTS
Common parts from model Electrolux REGS37BNL5 RANGE
*68784
WCI 19100210083 WCI 19100210083 Contact Us For Availability
1
WCI 5303271867 WCI 5303271867 Contact Us For Availability
1
WCI 5303211137 WCI 5303211137 Contact Us For Availability
1
SIDE PANEL RH-ALMD WCI 5308012529 Contact Us For Availability
1
WCI 5308014246 WCI 5308014246 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1A
SIDE PANEL LH-ALMD WCI 5308012530 Contact Us For Availability
1A
SURFACE UNIT-LARGE (1) WCI 5303271910 Contact Us For Availability
1B
SURFACE UNIT-AUTO (1) WCI 5308014251 Contact Us For Availability
2
FRAME-DOOR (BLACK) WCI 3206077 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 5303211400 WCI 5303211400 Contact Us For Availability
2
PAN - SM (2) WCI 5303271880 Contact Us For Availability
2A
PAN-LARGE WCI 5303271911 Contact Us For Availability
2B
PAN, AUTO WCI 5305129701 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
WCI 08014262 WCI 08014262 Contact Us For Availability
3
HANDLE-CHROME WCI 5303280334 Contact Us For Availability
3
STRAP, ANTI TURN (4) WCI 3051620 Contact Us For Availability
4
GLIDE (2) WCI 5303209487 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303292734 Contact Us For Availability
4
RETAINER, INSUL (2) WCI 3051632 Contact Us For Availability
4
WCI 5300009126 WCI 5300009126 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
5
LEG LEVELER (4) WCI 5303205540 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6
HANGER, BROIL ELEMENT WCI 3205756 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
HANDLE-BLACK WCI 3206145 Contact Us For Availability
7
GUIDE, DRAWER FR (2) WCI 3051654 Contact Us For Availability
7
CLEANER-ELEMENTS WCI 5308016255 Contact Us For Availability
8
WCI 5303212098 WCI 5303212098 Contact Us For Availability
8
PLUG BUTTON-OVEN LIGHT HOLE WCI 3051784 Contact Us For Availability
9
WCI 5303292170 WCI 5303292170 Contact Us For Availability
9
OVEN LINER WCI 5303293178 Contact Us For Availability
10
WCI 5303211405 WCI 5303211405 Contact Us For Availability
10
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
10A
WCI 5303211406 WCI 5303211406 Contact Us For Availability
11
LIGHT, FLUOR. WCI 5308012712 Contact Us For Availability
11
LINER-DOOR WCI 316041903 Contact Us For Availability
12
BRACKET, LAMP (2) WCI 08012748 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303207589 Contact Us For Availability
13
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
13
DOOR - SPRING WCI 08003186 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
BRACKET-CLOCK WCI 5303211845 Contact Us For Availability
15
SUPPORT-B/G RH WCI 08015966 Contact Us For Availability
15
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
15A
SUPPORT-B/G LH WCI 5308015967 Contact Us For Availability
16
INDICATOR-LT S/U WCI 3206088 Contact Us For Availability
16
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
16
GRILLE - BROILER WCI 5303293176 Contact Us For Availability
16A
INDICATOR-LT OVEN WCI 08012515 Contact Us For Availability
17
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
17
WCI 5303292688 WCI 5303292688 Contact Us For Availability
18
BASE-FLUOR START WCI 5303293173 Contact Us For Availability
18
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
STARTER-FLUOR LT BLACK WCI 3201543 Contact Us For Availability
19
WCI 5303212548 WCI 5303212548 Contact Us For Availability
20
GLASS-INNER (2) WCI 5303209512 Contact Us For Availability
20
COVER, WIRE. WCI 5303017470 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
21
CHANNEL-OVEN SUPPORT LOWER WCI 3205257 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
24
INSUL-OVEN WRAP WCI 3203029 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
27
CHANNEL-OVEN SUPPORT UPPER WCI 5303207389 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSUL, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 5303292687 WCI 5303292687 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 3051645 WCI 3051645 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 3051655 WCI 3051655 Contact Us For Availability
38
BRACKET, VENT TUBE WCI 3051656 Contact Us For Availability
39
GASKET, OVEN VENT TUBE WCI 3051666 Contact Us For Availability
40
BRACKET-DR LATCH SWITCH WCI 3051643 Contact Us For Availability
41
VENT TUBE WCI 3205683 Contact Us For Availability
42
LATCH-MOTOR WCI 5303269766 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING, DR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
WCI 3016281 WCI 3016281 Contact Us For Availability
51
COVER-FRONT DRUM SEAL WCI 3202082 Contact Us For Availability
53
CHANNEL-ASSY HINGE WCI 3201631 Contact Us For Availability
54
RETAINER-DOOR WCI 3019063 Contact Us For Availability
55
FRONT - OVEN WCI 316042101 Contact Us For Availability
55A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
56
WCI 5303207391 WCI 5303207391 Contact Us For Availability
57
WCI 3201632 WCI 3201632 Contact Us For Availability
58
WCI 3017556 WCI 3017556 Contact Us For Availability
× ![]()
