Model Electrolux REGC39BNW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BODY PARTS

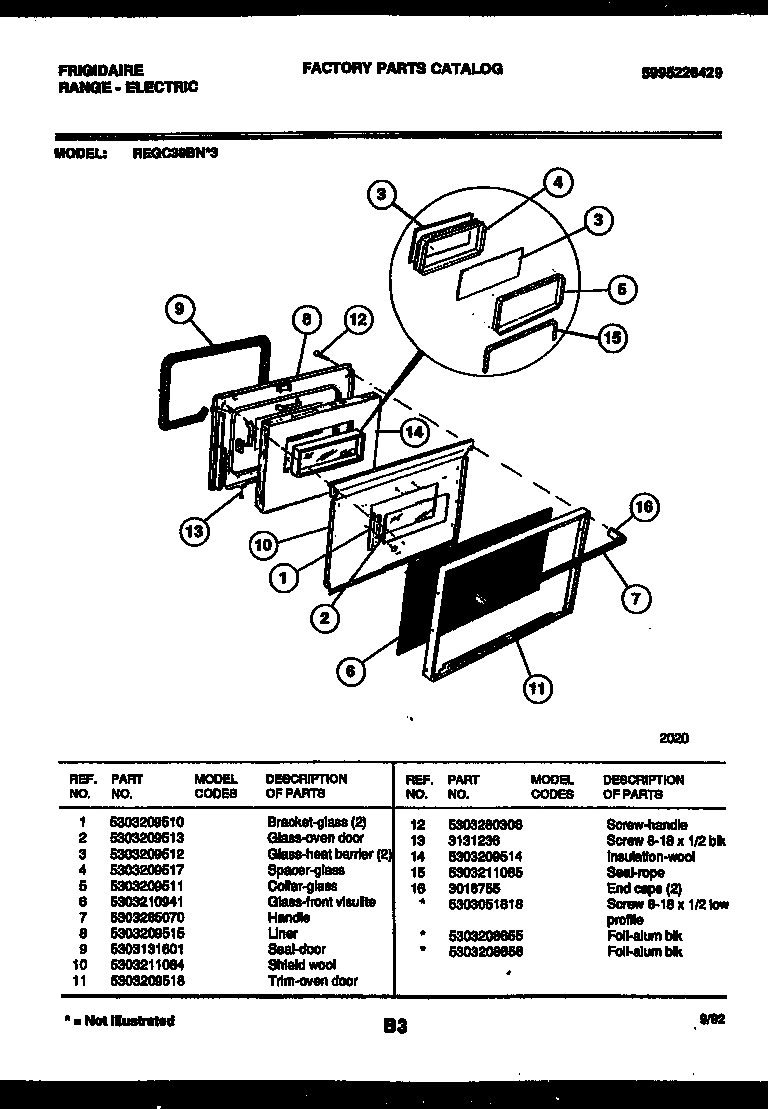

04 - DOOR PARTS

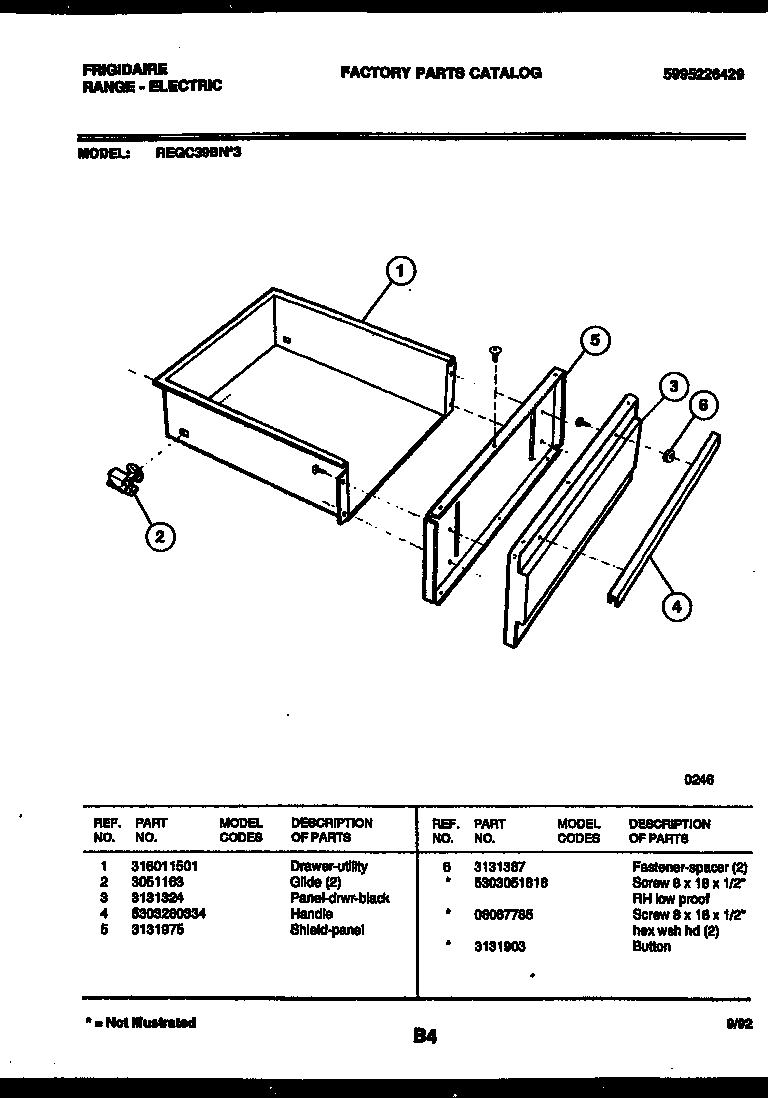

05 - DRAWER PARTS

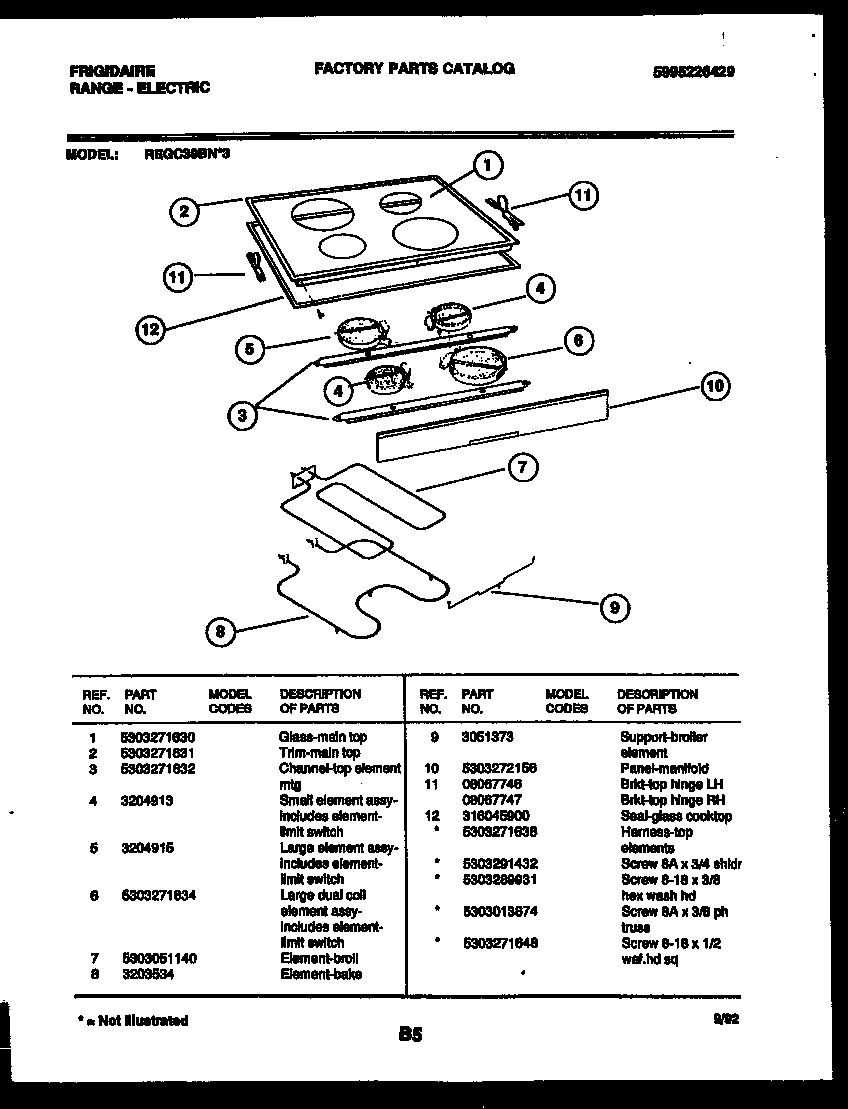

06 - COOKTOP AND BROILER PARTS
Common parts from model Electrolux REGC39BNW3 RANGE
*67209
WCI 08067757 WCI 08067757 Contact Us For Availability
*67209
SHIELD HEAT B/S (2) WCI 3200834 Contact Us For Availability
*67209
FSTNR-EDGE MTG (2) WCI 3200846 Contact Us For Availability
*67209
ANTI-TIP KIT WCI 3934056 Contact Us For Availability
*67209
WCI 5303206618 WCI 5303206618 Contact Us For Availability
*67210
WCI 19100210123 WCI 19100210123 Contact Us For Availability
*67211
FOIL-ALUM BLK WCI 5303208656 Contact Us For Availability
*67212
SCREW 8 X 18 X 1/2`` HEX WSH HD (2) WCI 08067785 Contact Us For Availability
*67213
SCREW 8A X 3/8 PH TRUSS WCI 5303013874 Contact Us For Availability
*67213
WCI 5303271638 WCI 5303271638 Contact Us For Availability
*67213
WCI 5303291432 WCI 5303291432 Contact Us For Availability
1
SPACER, B/S (8) WCI 3014099 Contact Us For Availability
1
BRACKET-GLASS (2) WCI 5303209510 Contact Us For Availability
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
1
WCI 5303271630 WCI 5303271630 Contact Us For Availability
2
WCI 5303209513 WCI 5303209513 Contact Us For Availability
2
TRIM-MAIN TOP WCI 5303271631 Contact Us For Availability
3
WCI 5303209512 WCI 5303209512 Contact Us For Availability
3
WCI 5303269546 WCI 5303269546 Contact Us For Availability
3
PANEL, DRWR., BLACK WCI 3131324 Contact Us For Availability
3
CHANNEL-TOP ELEMENT MTG WCI 5303271632 Contact Us For Availability
3A
WCI 5303269544 WCI 5303269544 Contact Us For Availability
4
WCI 5303271658 WCI 5303271658 Contact Us For Availability
4
WCI 5303209517 WCI 5303209517 Contact Us For Availability
4
HANDLE WCI 5303280334 Contact Us For Availability
4
SMALL ELEMENT ASSY-INCLUDES ELEMENT-LIMIT SWI WCI 3204913 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
WCI 5303209511 WCI 5303209511 Contact Us For Availability
6
WCI 3203082 WCI 3203082 Contact Us For Availability
6
GLASS-FRONT VISULITE WCI 5303210941 Contact Us For Availability
6
FASTENER-SPACER (2) WCI 3131387 Contact Us For Availability
6
WCI 5303271634 WCI 5303271634 Contact Us For Availability
7
SHIELD-LOWER ACCESS WCI 3203549 Contact Us For Availability
7
WCI 5303285070 WCI 5303285070 Contact Us For Availability
8
WCI 3203405 WCI 3203405 Contact Us For Availability
8
LINER WCI 5303209515 Contact Us For Availability
9
COVER-FLUE WCI 3051368 Contact Us For Availability
10
WCI 5303211084 WCI 5303211084 Contact Us For Availability
10
WCI 5303272156 WCI 5303272156 Contact Us For Availability
11
BRKT-TOP HINGE LH WCI 08067746 Contact Us For Availability
11
SCREW-LEVEL (4) WCI 3206285 Contact Us For Availability
11
WCI 5303209518 WCI 5303209518 Contact Us For Availability
11A
BRKT-TOP HINGE RH WCI 08067747 Contact Us For Availability
12
WCI 5303280308 WCI 5303280308 Contact Us For Availability
12
COVER-HNG CUTOUT WCI 3131570 Contact Us For Availability
12
SEAL-GLASS COOKTOP WCI 316045900 Contact Us For Availability
13
WCI 3200825 WCI 3200825 Contact Us For Availability
13
SCREW 8-18 X 1/2 BLK WCI 3131236 Contact Us For Availability
14
CHANNEL-DOOR HNG WCI 316007002 Contact Us For Availability
14
INSULATION-WOOL WCI 5303209514 Contact Us For Availability
15
WCI 3203540 WCI 3203540 Contact Us For Availability
15
WCI 5303211085 WCI 5303211085 Contact Us For Availability
16
SW-OVEN LIGHT WCI 5303200479 Contact Us For Availability
16
WCI 3203582 WCI 3203582 Contact Us For Availability
17
WCI 3131275 WCI 3131275 Contact Us For Availability
17
WCI 5303013568 WCI 5303013568 Contact Us For Availability
18
WCI 5303131356 WCI 5303131356 Contact Us For Availability
19
WCI 5303051115 WCI 5303051115 Contact Us For Availability
20
WCI 5303210968 WCI 5303210968 Contact Us For Availability
20
WCI 5303212739 WCI 5303212739 Contact Us For Availability
21
RECPT-FLUOR LT LH WCI 3051222 Contact Us For Availability
21
WCI 5303051326 WCI 5303051326 Contact Us For Availability
21A
RECPT-FLUOR LT RH WCI 3051223 Contact Us For Availability
22
WCI 5303210917 WCI 5303210917 Contact Us For Availability
23
WCI 5303131237 WCI 5303131237 Contact Us For Availability
24
WCI 5303211001 WCI 5303211001 Contact Us For Availability
26
WCI 3051345 WCI 3051345 Contact Us For Availability
27
WIRE GLASS RETAINER WCI 3204585 Contact Us For Availability
27A
INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
27B
WCI 3204582 WCI 3204582 Contact Us For Availability
27D
SCREW-HINGE MTG (4) (NON-ILLUSTRATED) WCI 5303212740 Contact Us For Availability
28
WCI 5303015361 WCI 5303015361 Contact Us For Availability
29
WCI 5303131357 WCI 5303131357 Contact Us For Availability
30
WCI 3203218 WCI 3203218 Contact Us For Availability
30A
WCI 08013188 WCI 08013188 Contact Us For Availability
31
SHIELD-LATCH WCI 3131593 Contact Us For Availability
32
SHIELD-BI METAL LATCH WCI 3051413 Contact Us For Availability
33
FASTENER-PUSH ON (3) WCI 08067776 Contact Us For Availability
34
WCI 5303269499 WCI 5303269499 Contact Us For Availability
38
WCI 08067810 WCI 08067810 Contact Us For Availability
39
WCI 08010606 WCI 08010606 Contact Us For Availability
40
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
41
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
42
ROD LIGHT WCI 5303209316 Contact Us For Availability
43
WCI 3200848 WCI 3200848 Contact Us For Availability
43A
INSULATION-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
45
FLUE BOX WCI 5303275279 Contact Us For Availability
45A
WCI 3015337 WCI 3015337 Contact Us For Availability
46
WCI 3051242 WCI 3051242 Contact Us For Availability
46A
WCI 3051243 WCI 3051243 Contact Us For Availability
47
COVER-ROD END WCI 5303285692 Contact Us For Availability
× ![]()
