Model Electrolux REG638BDW3 RANGE – Common Parts &amp; Diagrams

1

WCI 08067826 WCI 08067826 Contact Us For Availability

1

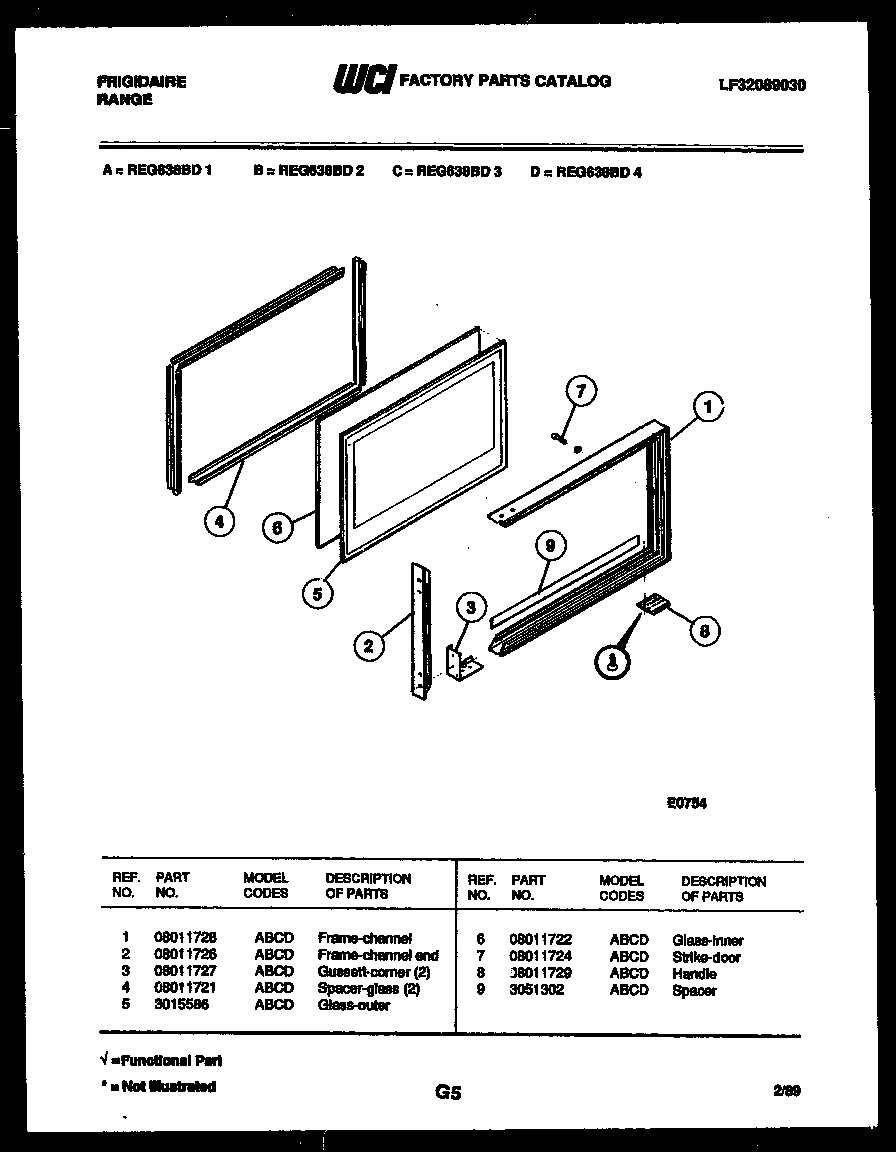

FRAME-CHANNEL WCI 08011728 Contact Us For Availability

1

BRACKT-GLASS (2) WCI 08067996 Contact Us For Availability

1

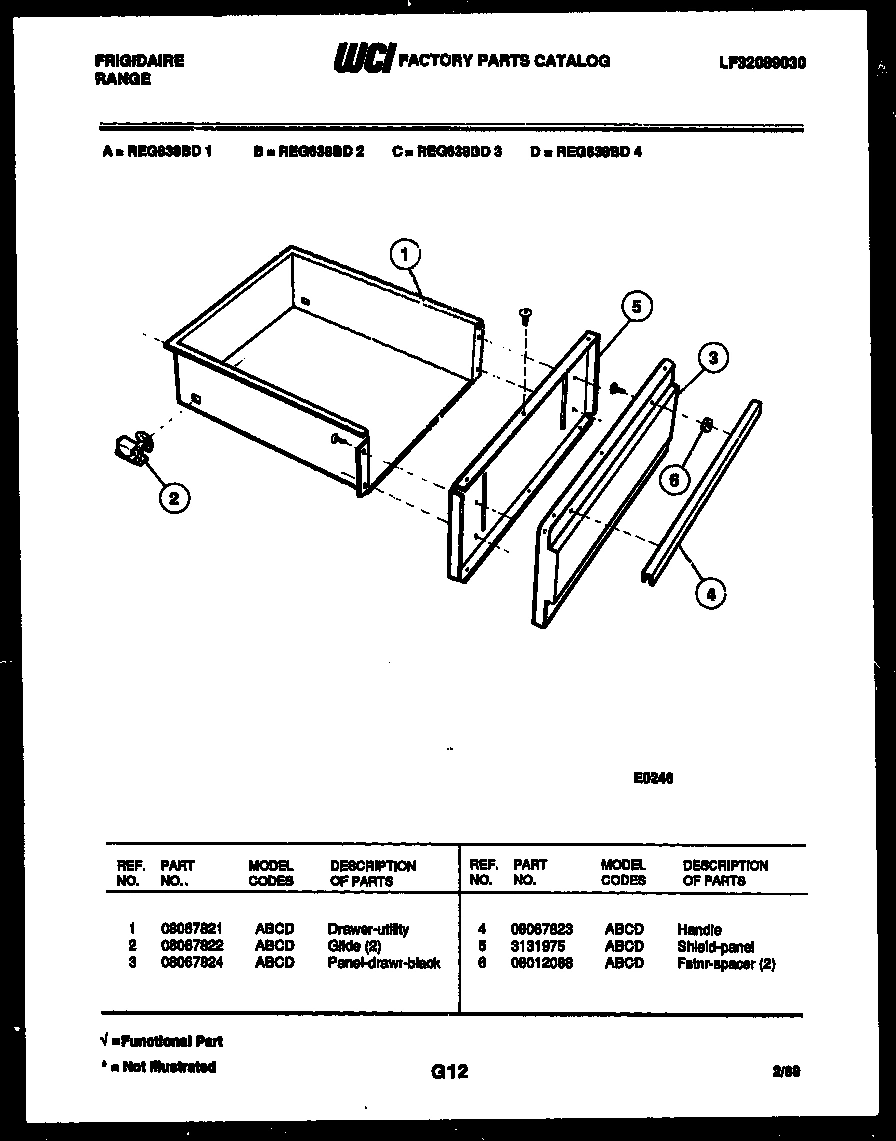

DRAWER, UTILITY WCI 08067821 Contact Us For Availability

1A

318372211 Frigidaire Oven 6" Electric Range B In Stock WCI 318372211 $31.30

2

3051163 Frigidaire Oven Range Rear Broiler Dr In Stock WCI 3051163 $2.37

2

316048413 Frigidaire Oven Range Chrome 8" Dri In Stock WCI 316048413 $6.38

2

REFLECTOR-WORK LAMP WCI 08067740 Contact Us For Availability

2

BRACKT-HNG-LH WCI 08067932 Contact Us For Availability

2

WCI 08011726 WCI 08011726 Contact Us For Availability

2

GLASS-HEAT BARRIER CTNG WCI 08067800 Contact Us For Availability

2

ANGLE-STIFFENER WCI 08011672 Contact Us For Availability

2A

316048414 Frigidaire Oven Range Chrome 6" Dri In Stock WCI 316048414 $4.91

2A

FASTNR-CLOCK (3) (NON-ILLUSTRATED) WCI 08011713 Contact Us For Availability

2A

INSULATION-BOTTOM 1 1/2 X 13 X 221/2 (NON-ILL WCI 3015590 Contact Us For Availability

2B

INSULATION-TOP 3 X 12 1/2 X 24 (NON-ILLUSTRAT WCI 328T018P33 Contact Us For Availability

2C

INSULATION-BCK & SIDE 2 X 6 X 50 (NON-ILLUSTR WCI 3015591 Contact Us For Availability

3

5303284616 Frigidaire Range Bulb Clip Thermos In Stock WCI 5303284616 $5.88

3

PANEL-CNTRL MTG. WCI 3015593 Contact Us For Availability

3

WCI 08067739 WCI 08067739 Contact Us For Availability

3

TOP SUPT ROD (2) WCI 08010428 Contact Us For Availability

3

GUSSETT-CORNER (2) WCI 08011727 Contact Us For Availability

3

GLASS-PACKAGE WCI 08067801 Contact Us For Availability

3

WCI 08067828 WCI 08067828 Contact Us For Availability

3

PANEL, BODYSIDE (RH) WHITE WCI 3200789 Contact Us For Availability

3

PANEL, BODYSIDE (LH) WHITE WCI 3200792 Contact Us For Availability

3

PANEL-DRAWR-BLACK WCI 08067824 Contact Us For Availability

4

5303935058 Frigidaire Oven Burner Receptacle In Stock WCI 5303935058 $5.43

4

INSULATOR-FLUOR LIGHT RECEPTACLE (2) WCI 08067775 Contact Us For Availability

4

WCI 08067782 WCI 08067782 Contact Us For Availability

4

SPACER-GLASS (2) WCI 08011721 Contact Us For Availability

4

WCI 08067802 WCI 08067802 Contact Us For Availability

4

BOX LIGHT WCI 08011684 Contact Us For Availability

4

WCI 08067749 WCI 08067749 Contact Us For Availability

4

WCI 08067823 WCI 08067823 Contact Us For Availability

4A

5303935086 Frigidaire Oven Burner Top Switch In Stock WCI 5303935086 $28.53

5

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

5

5303307010 Frigidaire Bake Element In Stock WCI 5303307010 $98.15

5

WCI 08037909 WCI 08037909 Contact Us For Availability

5

SW.-SELECTOR 5 POS.-UPPER WCI 3051316 Contact Us For Availability

5

RECEPTACLE-FLUOR LT (2) WCI 08011885 Contact Us For Availability

5

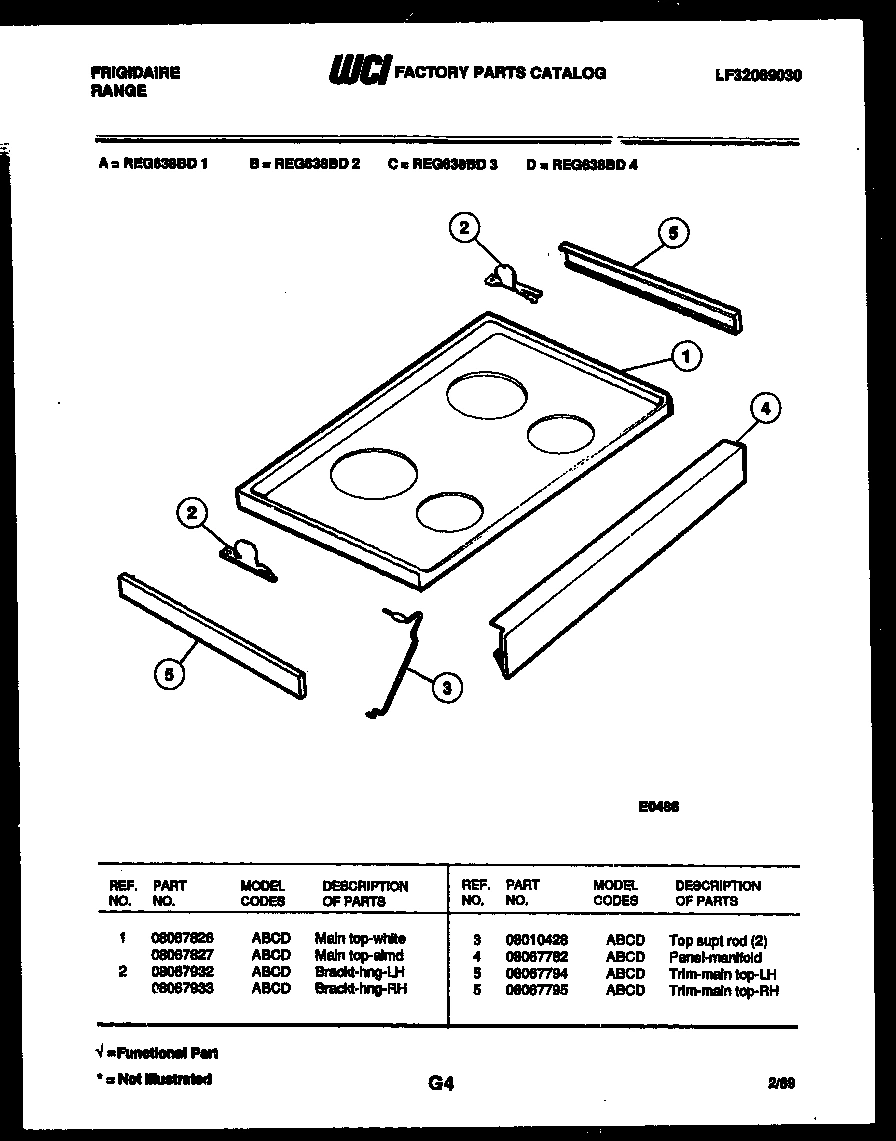

TRIM, MAIN TOP (LH) WCI 08067794 Contact Us For Availability

5

WCI 3015586 WCI 3015586 Contact Us For Availability

5

WCI 08067968 WCI 08067968 Contact Us For Availability

5

WCI 08067761 WCI 08067761 Contact Us For Availability

5

WCI 08067757 WCI 08067757 Contact Us For Availability

5

WCI 3131975 WCI 3131975 Contact Us For Availability

5A

TRIM-MAIN TOP-RH WCI 08067795 Contact Us For Availability

6

5303051140 Frigidaire Broil Element Backorder WCI 5303051140 $121.22

6

GLASS-INNER WCI 08011722 Contact Us For Availability

6

WCI 08037910 WCI 08037910 Contact Us For Availability

6

THERMO-OVEN-UPPER WCI 3015189 Contact Us For Availability

6

WCI 08067808 WCI 08067808 Contact Us For Availability

6

LINER WCI 3202147 Contact Us For Availability

6

WCI 08087649 WCI 08087649 Contact Us For Availability

6

WCI 08067728 WCI 08067728 Contact Us For Availability

6

WCI 08012088 WCI 08012088 Contact Us For Availability

6A

ELMNT-BROIL-UPPER WCI 3015187 Contact Us For Availability

7

316203400 Frigidaire Oven Support Backorder WCI 316203400 $41.86

7

5303131601 Frigidaire Oven Seal Backorder WCI 5303131601 $203.31

7

WCI 3015188 WCI 3015188 Contact Us For Availability

7

WCI 08014785 WCI 08014785 Contact Us For Availability

7

WCI 08011724 WCI 08011724 Contact Us For Availability

7

LENS-OVEN LIGHT WCI 08011668 Contact Us For Availability

7

WCI 08067789 WCI 08067789 Contact Us For Availability

7A

WCI 08014786 WCI 08014786 Contact Us For Availability

7A

SUPT-ELMNT-UPPER WCI 3015584 Contact Us For Availability

8

HANDLE WCI 08011729 Contact Us For Availability

8

WCI 08037901 WCI 08037901 Contact Us For Availability

8

WCI 08067736 WCI 08067736 Contact Us For Availability

8

WCI 3202151 WCI 3202151 Contact Us For Availability

8

COVER LENS WCI 08011669 Contact Us For Availability

8

WCI 08067756 WCI 08067756 Contact Us For Availability

9

IND. LITE-125 (3) WCI 08037896 Contact Us For Availability

9

PANEL-PLSHR UPPER WCI 08013191 Contact Us For Availability

9

SPACER WCI 3051302 Contact Us For Availability

9

SUPT-GLASS (2) WCI 08067806 Contact Us For Availability

9

WCI 08011674 WCI 08011674 Contact Us For Availability

9

WCI 08067755 WCI 08067755 Contact Us For Availability

9A

IND. LITE-250 V (2) WCI 08037897 Contact Us For Availability

316067902 Frigidaire Oven Rack Backorder WCI 316067902 $65.19

BUSING-CNTRL PNL GLASS WCI 08010401 Contact Us For Availability

WCI 08067730 WCI 08067730 Contact Us For Availability

WCI 08067807 WCI 08067807 Contact Us For Availability

10A

WCI 08010398 WCI 08010398 Contact Us For Availability

WCI 08037900 WCI 08037900 Contact Us For Availability

WCI 08067997 WCI 08067997 Contact Us For Availability

PANEL-TOP WCI 3131625 Contact Us For Availability

WCI 08010569 WCI 08010569 Contact Us For Availability

11A

WCI 3015592 WCI 3015592 Contact Us For Availability

11B

WCI 08037899 WCI 08037899 Contact Us For Availability

11C

WCI 08068087 WCI 08068087 Contact Us For Availability

11D

WCI 08037898 WCI 08037898 Contact Us For Availability

BACK-OVN WALL-UPR WCI 3051236 Contact Us For Availability

WCI 08067731 WCI 08067731 Contact Us For Availability

FASTNR-SPACER (6) WCI 3131974 Contact Us For Availability

CVR-HNG CUTOUT (2) WCI 08067759 Contact Us For Availability

HARNS-O/U LITE SW. WCI 08067769 Contact Us For Availability

SCREW-HNDL MT (2) WCI 08067786 Contact Us For Availability

WCI 08067812 WCI 08067812 Contact Us For Availability

WCI 08067814 WCI 08067814 Contact Us For Availability

SHIELD-WOOL LWR WCI 3200825 Contact Us For Availability

CHANL-DR HNG (2) WCI 316007002 No Longer Available

TRIM LH WCI 08010548 Contact Us For Availability

TRIM-RH WCI 08010549 Contact Us For Availability

SCREW-DR MTG (3) WCI 08011735 Contact Us For Availability

TRIM-O/U SPL. G. FILLER WCI 08067929 Contact Us For Availability

EXTRUSION-CHANL (2) WCI 08067799 Contact Us For Availability

WCI 08011686 WCI 08011686 Contact Us For Availability

WCI 08067745 WCI 08067745 Contact Us For Availability

15A

WCI 08010463 WCI 08010463 Contact Us For Availability

15B

5303300265 Frigidaire Oven Screw Backorder WCI 5303300265 $9.04

WASHER, SPRING (2) WCI 08067832 Contact Us For Availability

INSULATION, WOOL WCI 08067803 Contact Us For Availability

WCI 08011663 WCI 08011663 Contact Us For Availability

WCI 08067764 WCI 08067764 Contact Us For Availability

17

WCI 08067804 WCI 08067804 Contact Us For Availability

17

PLATE-HINGE WCI 08011665 Contact Us For Availability

17

BROILER PAN WCI 08016612 Contact Us For Availability

18

ANGLE SUPT S/C THERMO. WCI 08067831 Contact Us For Availability

18

WCI 08011685 WCI 08011685 Contact Us For Availability

18

WCI 08016608 WCI 08016608 Contact Us For Availability

19

5304409888 Frigidaire Oven Terminal Block Ass In Stock WCI 5304409888 $16.27

19

WCI 08011664 WCI 08011664 Contact Us For Availability

20

GROUND STRAP WCI 08067742 Contact Us For Availability

20

SHIELD-WOOL (SIDE) WCI 3131679 Contact Us For Availability

21

WCI 08011680 WCI 08011680 Contact Us For Availability

21

CLIP-THERMAL BULB (2) WCI 08067754 Contact Us For Availability

22

3051162 Frigidaire Oven Range Front Broiler D In Stock WCI 3051162 $1.76

22

WCI 08011670 WCI 08011670 Contact Us For Availability

23

WCI 08011671 WCI 08011671 Contact Us For Availability

23

WCI 08067753 WCI 08067753 Contact Us For Availability

24

WCI 08067732 WCI 08067732 Contact Us For Availability

24

WCI 08067765 WCI 08067765 Contact Us For Availability

25

STRIKE-DOOR WCI 08011676 Contact Us For Availability

26

5304442087 Frigidaire Range Wall Oven Broil P Backorder WCI 5304442087 $33.26

26

WCI 08067811 WCI 08067811 Contact Us For Availability

27

WIRE-GLASS RETAINR WCI 08067835 Contact Us For Availability

27B

INSULATION-BACK (NON-ILLUSTRATED) WCI 08067772 Contact Us For Availability

27C

3131903 Frigidaire Door/Drawer Bumper Backorder WCI 3131903 $33.06

28

WCI 08067778 WCI 08067778 Contact Us For Availability

29

WCI 08067777 WCI 08067777 Contact Us For Availability

30

WCI 08013189 WCI 08013189 Contact Us For Availability

30A

WCI 08013188 WCI 08013188 Contact Us For Availability

31

WCI 08067780 WCI 08067780 Contact Us For Availability

32

SHIELD-BI MTL LATCH WCI 08067779 Contact Us For Availability

33

FASTNR-PUSHON (3) WCI 08067776 Contact Us For Availability

34

WCI 08067781 WCI 08067781 Contact Us For Availability

35

WCI 08067809 WCI 08067809 Contact Us For Availability

36

SOCKET-OVEN LIGHT WCI 08067792 Contact Us For Availability

37

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

38

WCI 08010607 WCI 08010607 Contact Us For Availability

39

WCI 08010606 WCI 08010606 Contact Us For Availability

40

WCI 08067993 WCI 08067993 Contact Us For Availability

41

BRACKET-LT SWITCH WCI 08067933 Contact Us For Availability

42

ROD, LIGHT WCI 08067784 Contact Us For Availability

43

WCI 08067758 WCI 08067758 Contact Us For Availability

44

WCI 08067750 WCI 08067750 Contact Us For Availability

45

WCI 3200848 WCI 3200848 Contact Us For Availability

45A

INSULATION-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability

45B

SHIELD-HEAT BODYSIDE (2) (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability

45C

316403803 Frigidaire Insulation Backorder WCI 316403803 $28.09

45D

FASTENER-EDGE MOUNT (2) (NON-ILLUSTRATED) WCI 3200846 Contact Us For Availability

46

TRIM-VERTICAL BODYSIDE (2) WCI 08067796 Contact Us For Availability

47

WCI 08067743 WCI 08067743 Contact Us For Availability

47

WCI 08067744 WCI 08067744 Contact Us For Availability
