Model Electrolux REG533DH3 RANGE – Common Parts & Diagrams

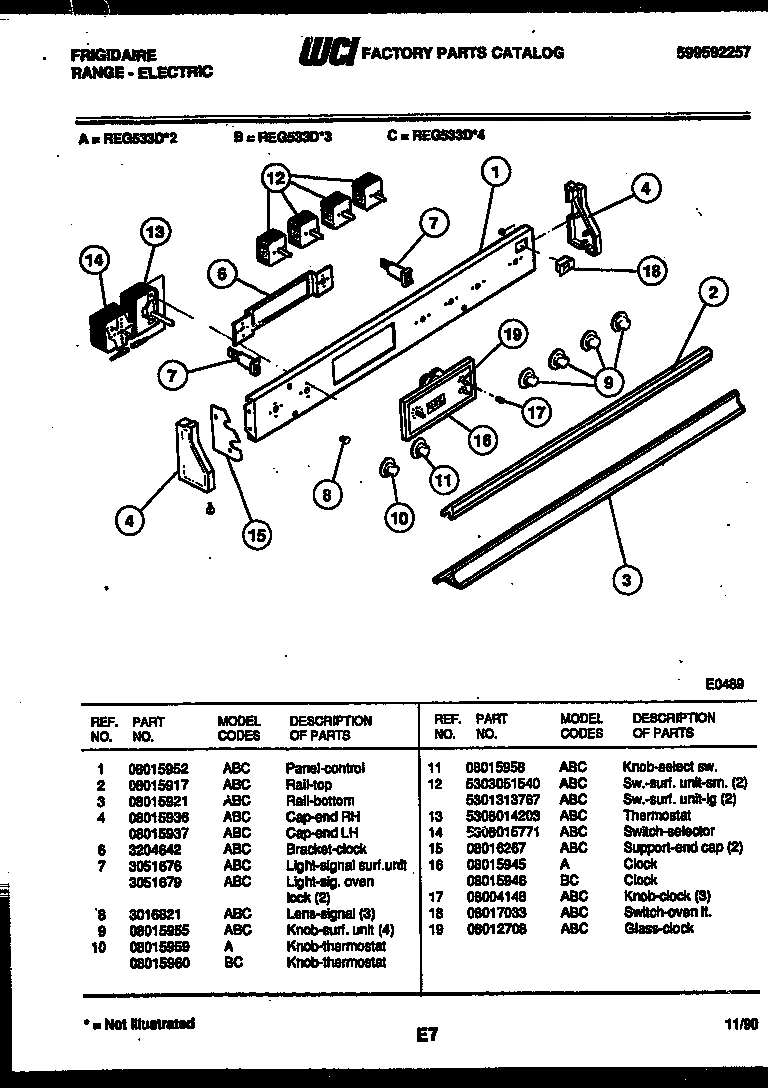

02 - CONTROL PANEL

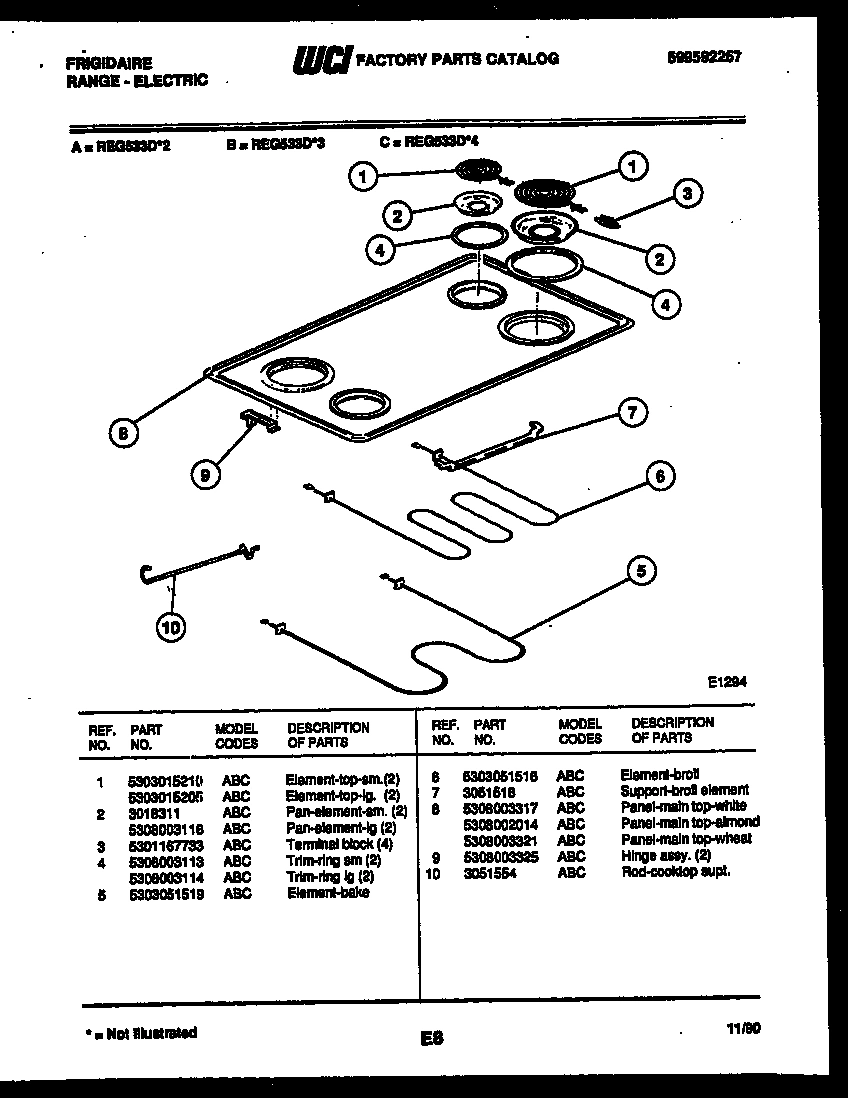

03 - COOKTOP AND BROILER PARTS

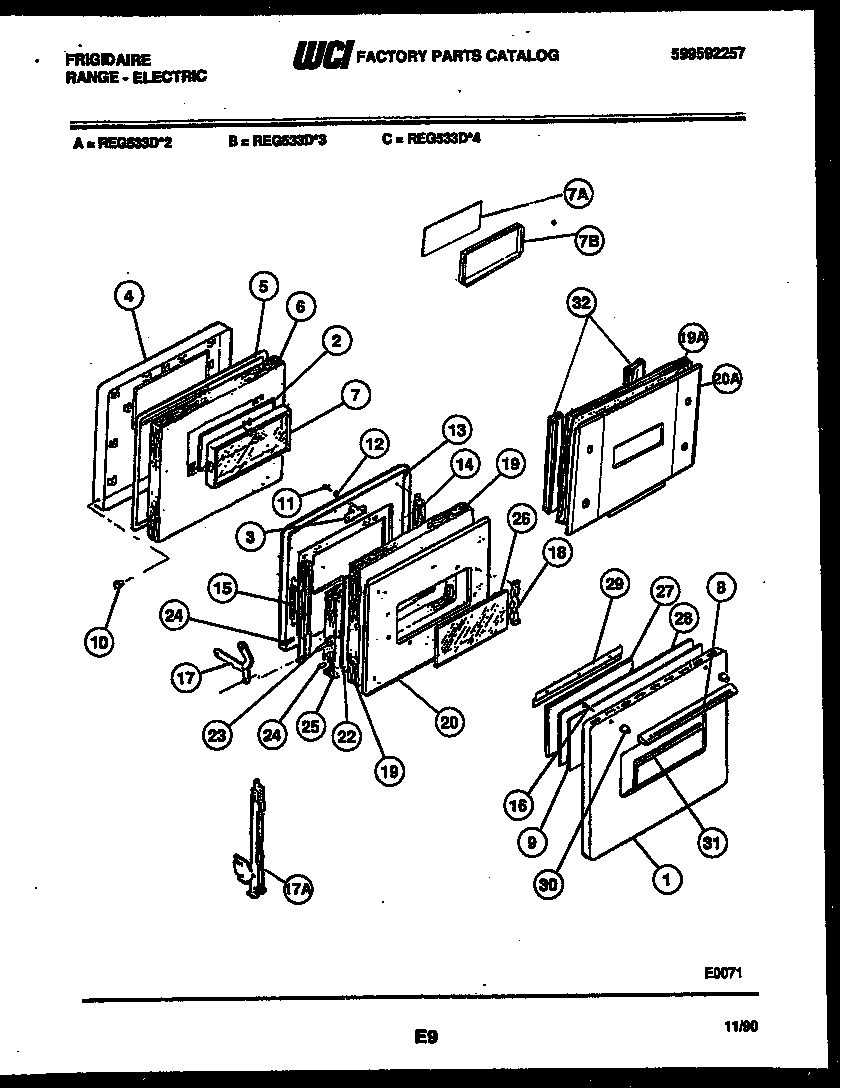

04 - DOOR PARTS

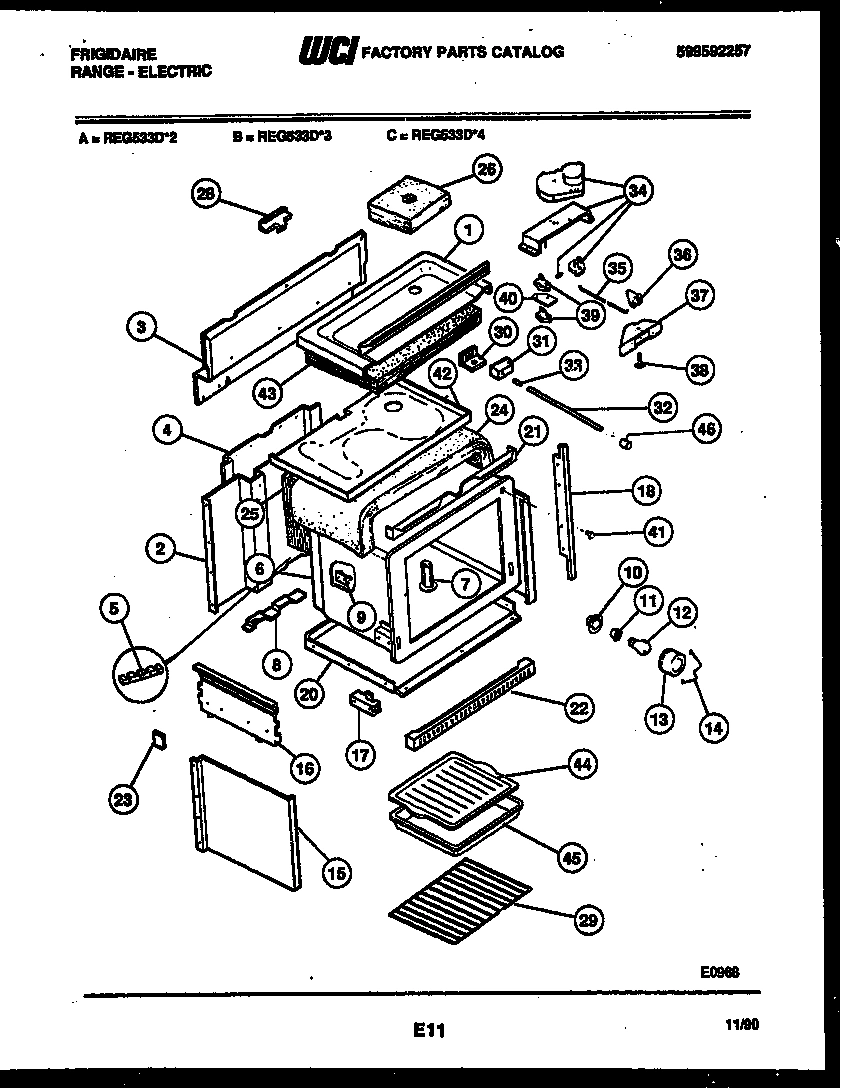

05 - BODY PARTS
Common parts from model Electrolux REG533DH3 RANGE
*38094
WCI 3051810 WCI 3051810 Contact Us For Availability
*38094
WCI 3203578 WCI 3203578 Contact Us For Availability
*38094
Rivet,pop WCI 3203618 Contact Us For Availability
*38094
PLUG BUTTON (2) WCI 3204825 Contact Us For Availability
1
PANEL-DOOR-ALMOND WCI 5301317634 Contact Us For Availability
1
WCI 5303051553 WCI 5303051553 Contact Us For Availability
2
PAN-ELEMENT SM (2) WCI 3018311 Contact Us For Availability
2
WCI 3051706 WCI 3051706 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
2A
PAN-ELEMENT-LG (2) WCI 5308003116 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
WCI 5308008689 WCI 5308008689 Contact Us For Availability
4
TRIM-RING SM (2) WCI 5308003113 Contact Us For Availability
4
WCI 5303210035 WCI 5303210035 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
4A
TRIM-RING LG (2) WCI 5308003114 Contact Us For Availability
5
GASKET WCI 5303051704 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
7
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
7
WINDOW-ASSY WCI 5303210230 Contact Us For Availability
7
WCI 3051773 WCI 3051773 Contact Us For Availability
8
PANEL, MAIN TOP, WHEAT WCI 5308003321 Contact Us For Availability
8
HANDLE WCI 5308012552 Contact Us For Availability
8
PLATE-MTG WCI 3203574 Contact Us For Availability
9
WCI 5308003325 WCI 5308003325 Contact Us For Availability
9
WCI 5301318805 WCI 5301318805 Contact Us For Availability
9
BRACKET-THERM BULB WCI 3051552 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
KNOB-THERMOSTAT WCI 08015960 Contact Us For Availability
10
WCI 3051554 WCI 3051554 Contact Us For Availability
10
WCI 3051807 WCI 3051807 Contact Us For Availability
11
WCI 08002868 WCI 08002868 Contact Us For Availability
11
KNOB-SELECT SW. WCI 08015958 Contact Us For Availability
12
WASHER-PADDED (2) WCI 08003259 Contact Us For Availability
13
WCI 5308014203 WCI 5308014203 Contact Us For Availability
13
LINER, DOOR WCI 3017468 Contact Us For Availability
14
WCI 5308015771 WCI 5308015771 Contact Us For Availability
14
RETAINER-LENS WCI 5303205904 Contact Us For Availability
15
WCI 08016267 WCI 08016267 Contact Us For Availability
15
SPRING (2) WCI 08003186 Contact Us For Availability
15
RETAINER, INSUL (2) WCI 08012226 Contact Us For Availability
16
WCI 08015946 WCI 08015946 Contact Us For Availability
16
SCREW-HANDLE WCI 08003155 Contact Us For Availability
16
WCI 5308015935 WCI 5308015935 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
17
WCI 3051527 WCI 3051527 Contact Us For Availability
17A
DOOR HINGE ASSY WCI 5303210232 Contact Us For Availability
17A
WCI 3051528 WCI 3051528 Contact Us For Availability
18
SWITCH-OVEN LT WCI 08017033 Contact Us For Availability
18
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
18
TRIM-OVEN FRNT (2) WCI 08003334 Contact Us For Availability
19
WCI 08012708 WCI 08012708 Contact Us For Availability
19
WCI 3051711 WCI 3051711 Contact Us For Availability
20
WCI 3051712 WCI 3051712 Contact Us For Availability
20
RETAINER, INSUL BTM WCI 3204634 Contact Us For Availability
21
WCI 08008686 WCI 08008686 Contact Us For Availability
22
WCI 3051862 WCI 3051862 Contact Us For Availability
22
WCI 5308012249 WCI 5308012249 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
WCI 08013680 WCI 08013680 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
WCI 5303051630 WCI 5303051630 Contact Us For Availability
26
WCI 5303051713 WCI 5303051713 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
26A
WCI 191S021P29 WCI 191S021P29 Contact Us For Availability
27
WCI 5303210231 WCI 5303210231 Contact Us For Availability
28
PANEL-INSULATOR PAD WCI 5301314506 Contact Us For Availability
28
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
29
BRKT MTG (2) WCI 5303269554 Contact Us For Availability
29A
WCI 08014219 WCI 08014219 Contact Us For Availability
30
WCI 5308003153 WCI 5308003153 Contact Us For Availability
30
BRKT-DOOR SW. WCI 3051643 Contact Us For Availability
31
MOULDING-J WCI 3201571 Contact Us For Availability
31
SWITCH-DR LATCH WCI 5308003081 Contact Us For Availability
32
PUSH ROD-SW. WCI 3051645 Contact Us For Availability
33
WCI 08007444 WCI 08007444 Contact Us For Availability
34
WCI 5308015743 WCI 5308015743 Contact Us For Availability
35
WCI 3051649 WCI 3051649 Contact Us For Availability
36
LATCH-DOOR WCI 3051648 Contact Us For Availability
37
HSG-DOOR LATCH WCI 3051647 Contact Us For Availability
38
AXLE WCI 5308012004 Contact Us For Availability
39
WCI 5303051740 WCI 5303051740 Contact Us For Availability
39A
WCI 5308006582 WCI 5308006582 Contact Us For Availability
40
INSUL.-DR LATCH (2) WCI 08003090 Contact Us For Availability
41
WCI 3204817 WCI 3204817 Contact Us For Availability
42
RETAINER-INSUL. (TOP) WCI 3051782 Contact Us For Availability
43
WCI 3051788 WCI 3051788 Contact Us For Availability
44
GRILL, BROILER WCI 5303131356 Contact Us For Availability
45
PAN-BROILER WCI 5303013568 Contact Us For Availability
46
WCI 3051251 WCI 3051251 Contact Us For Availability
× ![]()
