Model Electrolux REG533D2 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP AND BROILER PARTS

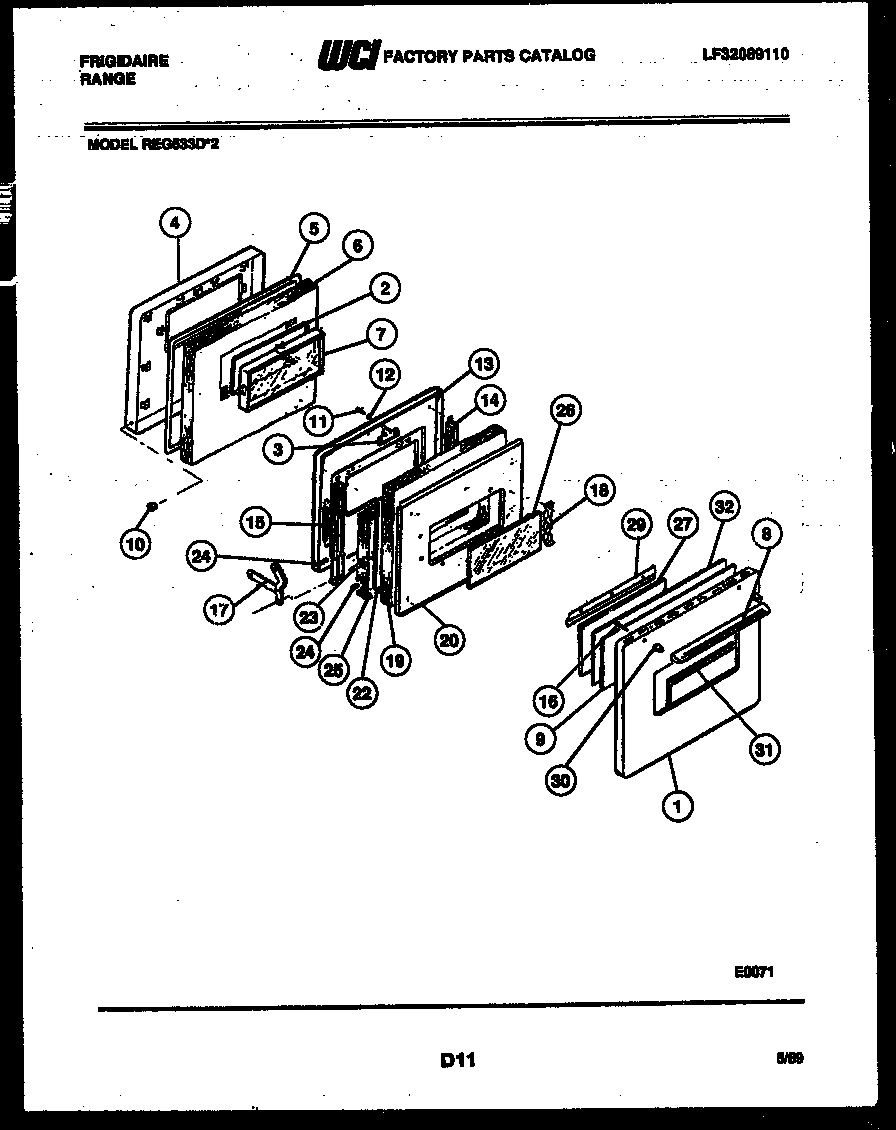

04 - DOOR PARTS

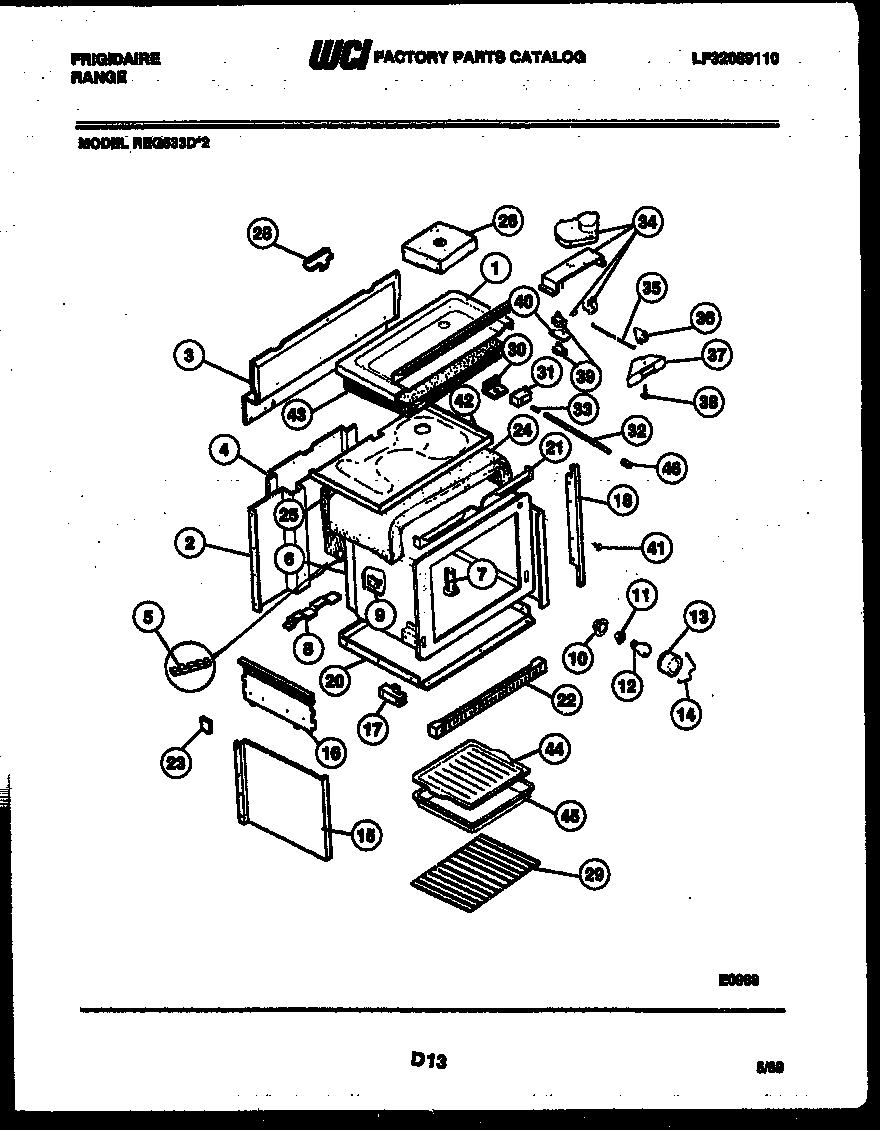

05 - BODY PARTS
Common parts from model Electrolux REG533D2 RANGE
*29278
RIVET, POP WCI 3203396 Contact Us For Availability
*29278
WCI 3203578 WCI 3203578 Contact Us For Availability
*29279
PLUG BUTTON (2) WCI 3051796 Contact Us For Availability
*29279
WCI 3051810 WCI 3051810 Contact Us For Availability
1
WCI 08003150 WCI 08003150 Contact Us For Availability
1
PANEL-DOOR-ALMOND WCI 08003222 Contact Us For Availability
1
WCI 08003225 WCI 08003225 Contact Us For Availability
1
WCI 3051553 WCI 3051553 Contact Us For Availability
2
WCI 08015917 WCI 08015917 Contact Us For Availability
2
PAN-ELEMENT-SM. (2) WCI 08008330 Contact Us For Availability
2
WCI 3051706 WCI 3051706 Contact Us For Availability
2
WCI 3204649 WCI 3204649 Contact Us For Availability
2A
PAN-ELEMENT-LG (2) WCI 08003116 Contact Us For Availability
3
WCI 08015921 WCI 08015921 Contact Us For Availability
3
STRIKE WCI 3051707 Contact Us For Availability
3
WCI 08008689 WCI 08008689 Contact Us For Availability
4
CAP, END RH WCI 08015936 Contact Us For Availability
4
TRIM-RING SM (2) WCI 08003113 Contact Us For Availability
4
BAFFLE WCI 3051702 Contact Us For Availability
4
WCI 3204650 WCI 3204650 Contact Us For Availability
4A
CAP, END LH WCI 08015937 Contact Us For Availability
4A
TRIM-RING LG (2) WCI 08003114 Contact Us For Availability
5
GASKET WCI 3051704 Contact Us For Availability
6
WCI 3204642 WCI 3204642 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
7
LIGHT-SIGNAL SURF. UNIT WCI 3051676 Contact Us For Availability
7
SUPPORT BROIL ELEMENT WCI 3051518 Contact Us For Availability
7
WCI 3051705 WCI 3051705 Contact Us For Availability
7
WCI 3051773 WCI 3051773 Contact Us For Availability
7A
LIGHT-SIG. OVEN LOCK (2) WCI 08015932 Contact Us For Availability
8
LENS-SIGNAL (3) WCI 3016821 Contact Us For Availability
8
PANEL-MAIN TOP ALMOND WCI 08002014 Contact Us For Availability
8
PANEL-MAIN TOP-WHITE WCI 08003317 Contact Us For Availability
8
PANEL-MAIN TOP WHEAT WCI 08003321 Contact Us For Availability
8
WCI 08012552 WCI 08012552 Contact Us For Availability
8
PLATE-MTG WCI 3203574 Contact Us For Availability
9
KNOB-SURF. UNIT (4) WCI 08015955 Contact Us For Availability
9
WCI 08003325 WCI 08003325 Contact Us For Availability
9
WCI 3008605 WCI 3008605 Contact Us For Availability
9
BRACKET-THERM BULB WCI 3051552 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
WCI 08015959 WCI 08015959 Contact Us For Availability
10
WCI 3051554 WCI 3051554 Contact Us For Availability
10
BUTTON-PLUG (2) WCI 3051809 Contact Us For Availability
11
KNOB-SELECT SW. WCI 08015958 Contact Us For Availability
11
WCI 08004957 WCI 08004957 Contact Us For Availability
12
WASHER-PADDED (2) WCI 3051785 Contact Us For Availability
13
WCI 3204653 WCI 3204653 Contact Us For Availability
13
LINER, DOOR WCI 3017468 Contact Us For Availability
14
SWITCH-SELECTOR WCI 08015771 Contact Us For Availability
14
WCI 08012511 WCI 08012511 Contact Us For Availability
14
WCI 3051515 WCI 3051515 Contact Us For Availability
15
WCI 08016267 WCI 08016267 Contact Us For Availability
15
SPRING (2) WCI 08003186 Contact Us For Availability
15
WCI 3051526 WCI 3051526 Contact Us For Availability
16
WCI 08015946 WCI 08015946 Contact Us For Availability
16
SCREW-HANDLE WCI 08003155 Contact Us For Availability
16
WCI 08015935 WCI 08015935 Contact Us For Availability
17
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
17
WCI 08003183 WCI 08003183 Contact Us For Availability
17
WCI 3051527 WCI 3051527 Contact Us For Availability
17A
WCI 3051528 WCI 3051528 Contact Us For Availability
18
SWITCH-OVEN IT. WCI 08017033 Contact Us For Availability
18
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
18
TRIM-OVEN FRNT (2) WCI 08003334 Contact Us For Availability
19
WCI 08012708 WCI 08012708 Contact Us For Availability
19
WCI 3051711 WCI 3051711 Contact Us For Availability
20
WCI 3051712 WCI 3051712 Contact Us For Availability
20
RETAINER, INSUL BTM WCI 3204634 Contact Us For Availability
21
WCI 08008686 WCI 08008686 Contact Us For Availability
22
WCI 3051862 WCI 3051862 Contact Us For Availability
22
WCI 08012249 WCI 08012249 Contact Us For Availability
23
AXLE-HINGE (2) WCI 08012004 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
ROLLER KIT (2) WCI 08950070 Contact Us For Availability
24
INSULATION-WRAP WCI 3051628 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
INSULATION-BACK WCI 3051630 Contact Us For Availability
26
WCI 3051713 WCI 3051713 Contact Us For Availability
26
WCI 3051523 WCI 3051523 Contact Us For Availability
27
WCI 08012512 WCI 08012512 Contact Us For Availability
28
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
29
WCI 08003158 WCI 08003158 Contact Us For Availability
29A
WCI 08014219 WCI 08014219 Contact Us For Availability
30
WCI 08003153 WCI 08003153 Contact Us For Availability
30
BRKT-DOOR SW. WCI 3051643 Contact Us For Availability
31
MOULDING-J WCI 3201571 Contact Us For Availability
31
SWITCH-DR LATCH WCI 08003081 Contact Us For Availability
32
PANEL-INSUL. RETAINER WCI 08003151 Contact Us For Availability
32
PUSH ROD-SW. WCI 3051645 Contact Us For Availability
33
WCI 08007444 WCI 08007444 Contact Us For Availability
34
LATCH MOTOR ASSY. WCI 08015743 Contact Us For Availability
35
WCI 3051649 WCI 3051649 Contact Us For Availability
36
LATCH-DOOR WCI 3051648 Contact Us For Availability
37
HSG-DOOR LATCH WCI 3015647 Contact Us For Availability
38
AXLE WCI 3051572 Contact Us For Availability
39
SWITCH-TOP WCI 3051740 Contact Us For Availability
39A
WCI 08006582 WCI 08006582 Contact Us For Availability
40
INSUL.-DR LATCH (2) WCI 3051861 Contact Us For Availability
41
PLUG-BUTTON WCI 3051784 Contact Us For Availability
42
RETAINER-INSUL. (TOP) WCI 3051782 Contact Us For Availability
43
WCI 3051788 WCI 3051788 Contact Us For Availability
44
GRILL-BROILER WCI 3051562 Contact Us For Availability
46
WCI 3051251 WCI 3051251 Contact Us For Availability
× ![]()
