Model Electrolux REG46NL2 RANGE – Common Parts & Diagrams

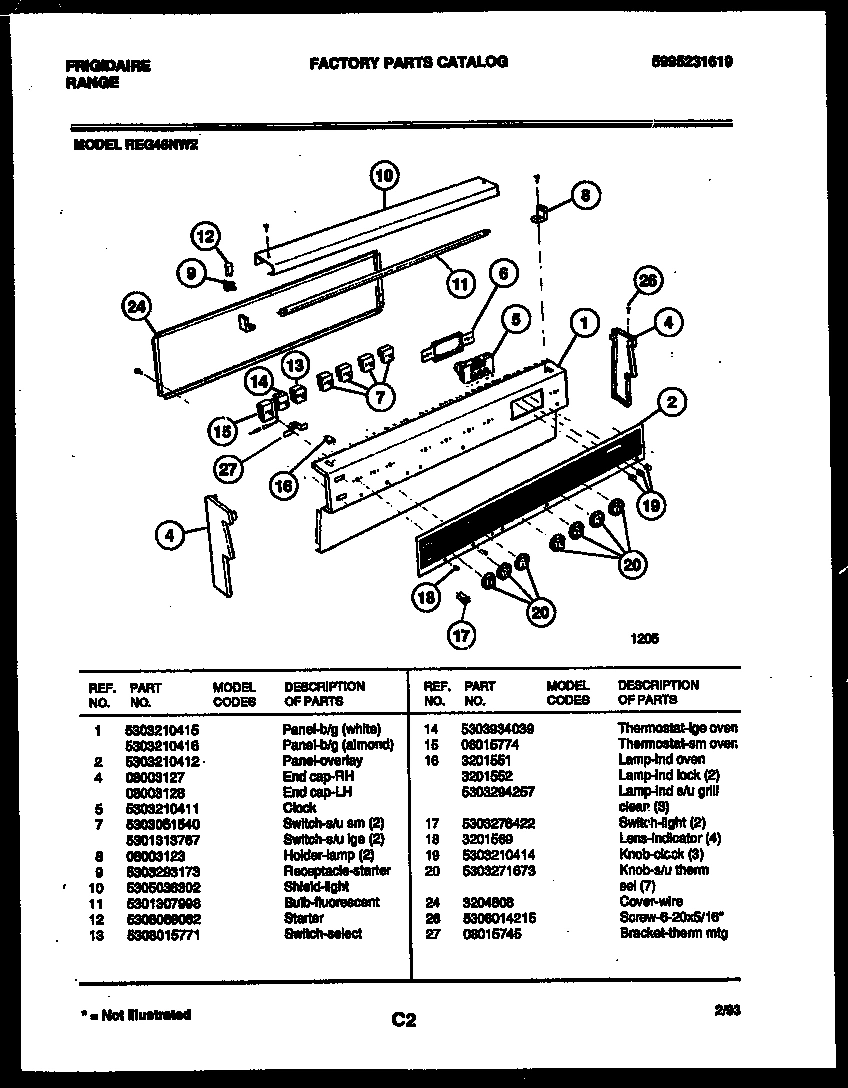

02 - CONTROL PANEL

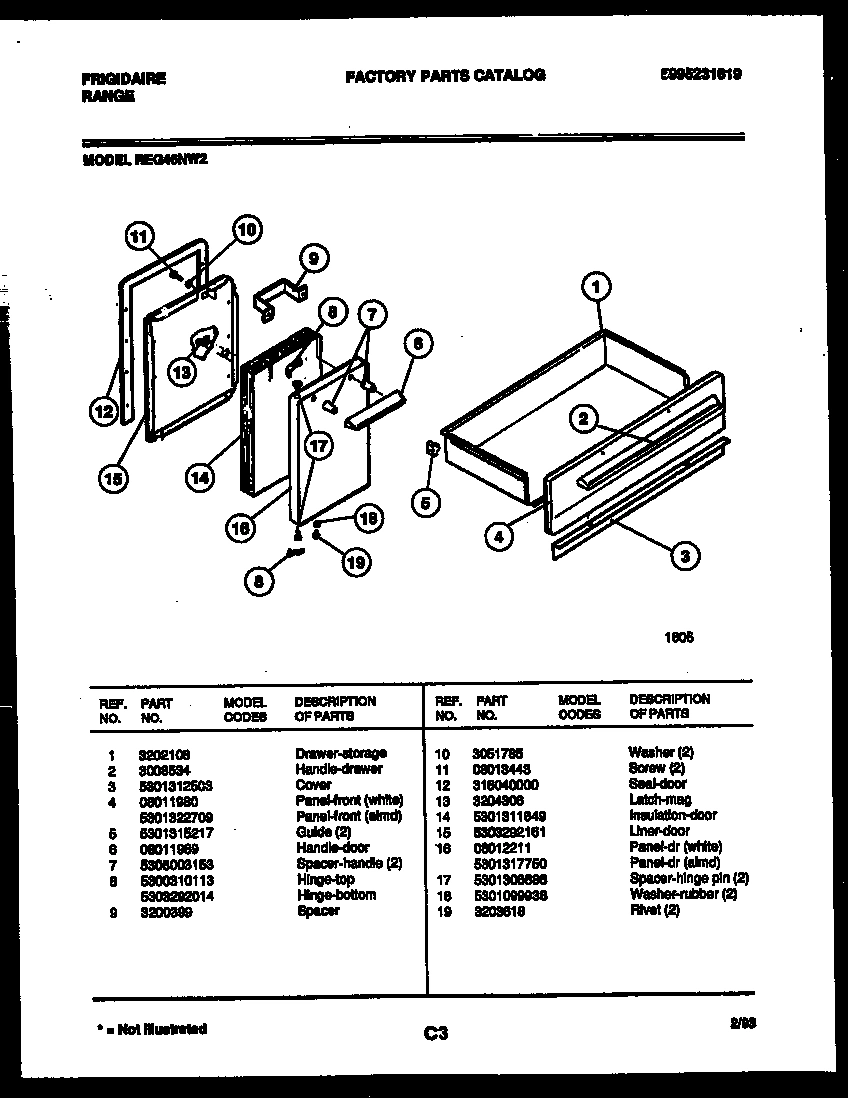

03 - DOOR AND DRAWER PARTS

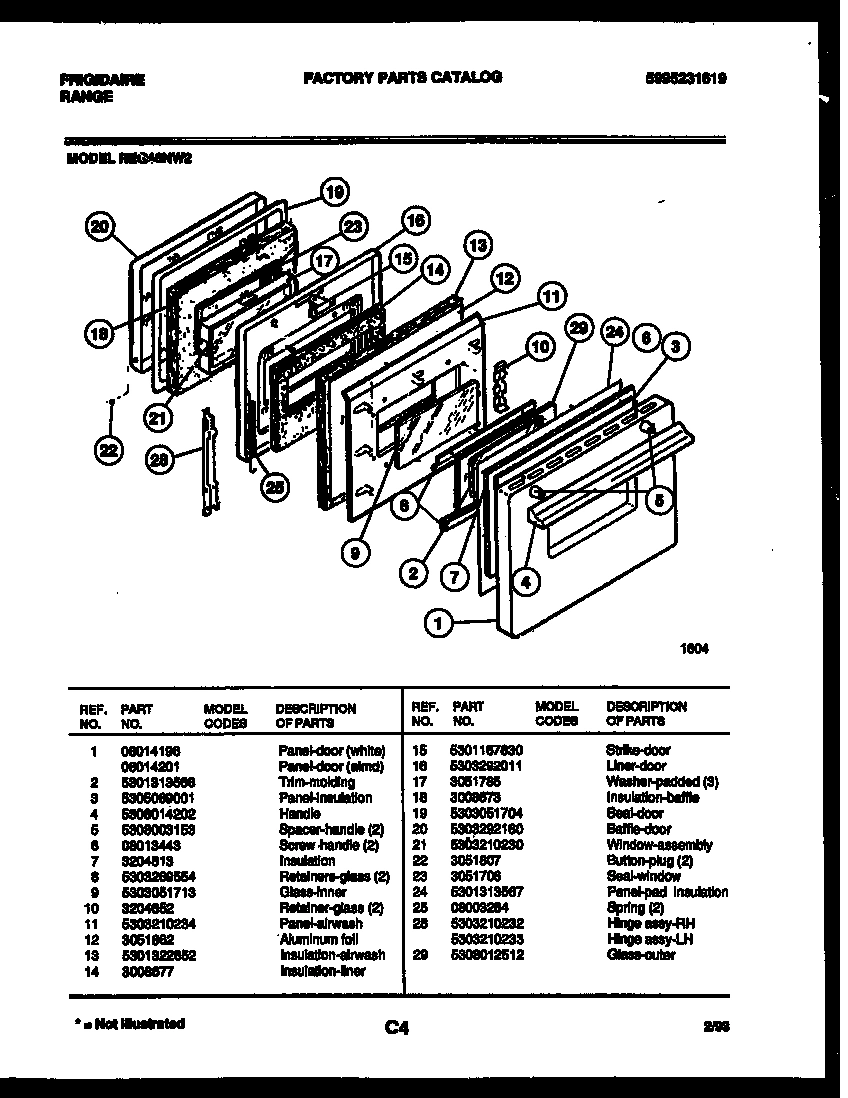

04 - DOOR PARTS

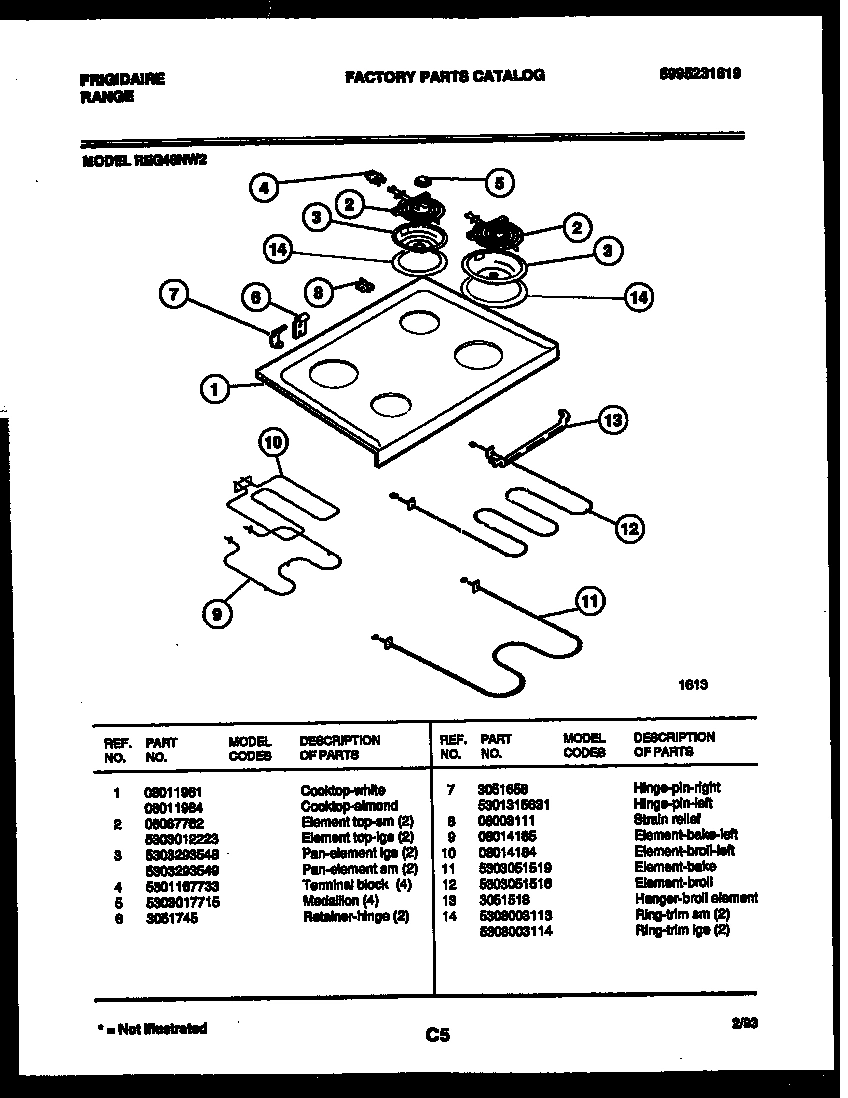

05 - COOKTOP AND BROILER PARTS

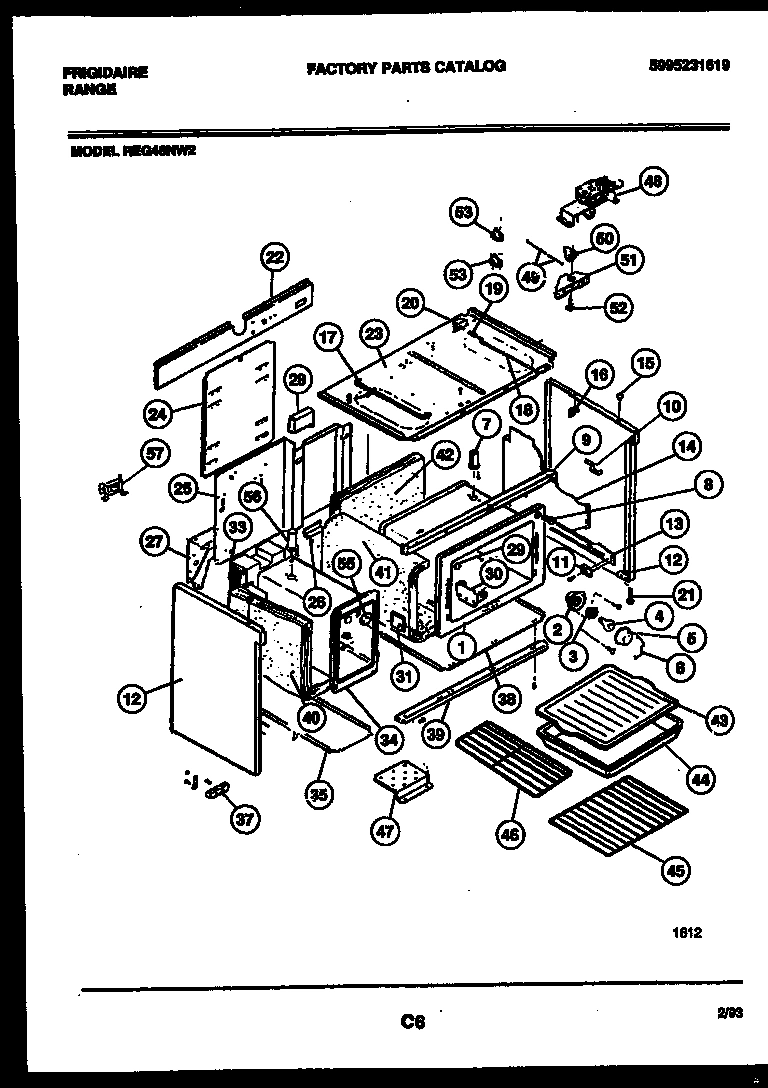

06 - BODY PARTS
Common parts from model Electrolux REG46NL2 RANGE
*72510
GRILL-BROILER WCI 08014183 Contact Us For Availability
*72511
WCI 3051810 WCI 3051810 Contact Us For Availability
*72511
ANTI-TIP BRKT WCI 3203575 Contact Us For Availability
*72511
ANTI-TIP BRKT WCI 3203576 Contact Us For Availability
1
WCI 3202108 WCI 3202108 Contact Us For Availability
1
WCI 08014201 WCI 08014201 Contact Us For Availability
1
WCI 08011984 WCI 08011984 Contact Us For Availability
1
OVEN ASSEMBLY-RIGHT WCI 5303292166 Contact Us For Availability
2
HOUSING-OVEN LIGHT WCI 3051511 Contact Us For Availability
2
HANDLE, DRAWER WCI 3008534 Contact Us For Availability
2
TRIM-MOLDING WCI 5301313568 Contact Us For Availability
3
COVER WCI 5301312503 Contact Us For Availability
3
PANEL, INSULATION WCI 5305069001 Contact Us For Availability
3
WCI 5303293548 WCI 5303293548 Contact Us For Availability
3A
WCI 5303293549 WCI 5303293549 Contact Us For Availability
4
WCI 5301322709 WCI 5301322709 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
5
GUIDE (2) WCI 5301315217 Contact Us For Availability
5
WCI 5308003153 WCI 5308003153 Contact Us For Availability
6
WCI 08011969 WCI 08011969 Contact Us For Availability
6
SCREW HANDLE (2) WCI 08013443 Contact Us For Availability
6
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
6
RETAINER-LENS WCI 5303205904 Contact Us For Availability
7
INSULATION WCI 3204813 Contact Us For Availability
7
HINGE-PIN-RIGHT WCI 3051658 Contact Us For Availability
7
WCI 5305055002 WCI 5305055002 Contact Us For Availability
7A
HINGE-PIN-LEFT WCI 5301315631 Contact Us For Availability
8
HINGE-TOP WCI 5300310113 Contact Us For Availability
8
HINGE-BOTTOM WCI 5303292014 Contact Us For Availability
8
RETAINERS-GLASS (2) WCI 5303269554 Contact Us For Availability
8
WCI 08003111 WCI 08003111 Contact Us For Availability
8
BUTTON-PLUG WCI 3204817 Contact Us For Availability
9
SPACER WCI 3200399 Contact Us For Availability
9
WCI 5303051713 WCI 5303051713 Contact Us For Availability
10
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
10
ELEMENT-BROIL-LEFT WCI 08014184 Contact Us For Availability
10
BRACKET-FILTER WCI 08008878 Contact Us For Availability
11
WCI 5303210234 WCI 5303210234 Contact Us For Availability
11
DRAWER GLIDE WCI 3051654 Contact Us For Availability
12
WCI 5308068062 WCI 5308068062 Contact Us For Availability
12
WCI 316040000 WCI 316040000 Contact Us For Availability
12
ALUMINUM FOIL WCI 3051862 Contact Us For Availability
12
PANEL-END RH (ALMD) WCI 5308012529 Contact Us For Availability
12A
PANEL-END LH (ALMD) WCI 5308012530 Contact Us For Availability
13
LATCH-MAG WCI 3204306 Contact Us For Availability
13
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
13
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
13
WCI 5308015746 WCI 5308015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
WCI 5308003113 WCI 5308003113 Contact Us For Availability
14
THERMOSTAT-LGE OVEN WCI 5303934039 Contact Us For Availability
14
WCI 5301311649 WCI 5301311649 Contact Us For Availability
14
WCI 3008677 WCI 3008677 Contact Us For Availability
14
INSULATION-RETAINER WCI 3051632 Contact Us For Availability
14A
WCI 5308003114 WCI 5308003114 Contact Us For Availability
15
THERMOSTAT-SM OVEN WCI 08015774 Contact Us For Availability
15
WCI 5303292161 WCI 5303292161 Contact Us For Availability
15
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
15
BUMPER-COOKTOP WCI 5308003107 Contact Us For Availability
16
WCI 3201551 WCI 3201551 Contact Us For Availability
16
PANEL-DR (ALMD) WCI 5301317750 Contact Us For Availability
16
WCI 5303292011 WCI 5303292011 Contact Us For Availability
16
GUSSET WCI 3204821 Contact Us For Availability
16A
WCI 3201552 WCI 3201552 Contact Us For Availability
16B
WCI 5303294257 WCI 5303294257 Contact Us For Availability
17
SWITCH-LIGHT (2) WCI 5303276422 Contact Us For Availability
17
WASHER, PADDED (3) WCI 3051785 Contact Us For Availability
17
SPACER-HINGE PIN (2) WCI 5301306686 Contact Us For Availability
17
ROD - TOP SUPPORT-COOKTOP WCI 3051554 Contact Us For Availability
18
WCI 3201569 WCI 3201569 Contact Us For Availability
18
WCI 5301099938 WCI 5301099938 Contact Us For Availability
18
WCI 3008673 WCI 3008673 Contact Us For Availability
18
WCI 3051645 WCI 3051645 Contact Us For Availability
19
SEAL, DOOR WCI 5303051704 Contact Us For Availability
19
KNOB - CLOCK (3) WCI 5303210414 Contact Us For Availability
19
RIVET (2) WCI 3203618 Contact Us For Availability
19
WCI 08007444 WCI 08007444 Contact Us For Availability
20
KNOB-S/U THERM SEL (7) WCI 5303271673 Contact Us For Availability
20
WCI 5303292160 WCI 5303292160 Contact Us For Availability
20
SWITCH-DOOR LIGHT WCI 5308003081 Contact Us For Availability
21
WINDOW-ASSEMBLY WCI 5303210230 Contact Us For Availability
21
LEG, LEVELING (4) WCI 5303205540 Contact Us For Availability
22
WCI 3051807 WCI 3051807 Contact Us For Availability
22
WCI 5303209319 WCI 5303209319 Contact Us For Availability
23
SEAL WINDOW WCI 3051706 Contact Us For Availability
23
PANEL-SUB TOP WCI 5303292165 Contact Us For Availability
24
WCI 3204808 WCI 3204808 Contact Us For Availability
24
WCI 5301313567 WCI 5301313567 Contact Us For Availability
24
WIRING COVER WCI 5303051856 Contact Us For Availability
25
WCI 08003264 WCI 08003264 Contact Us For Availability
25
BACK WCI 3204827 Contact Us For Availability
26
WCI 5301307085 WCI 5301307085 Contact Us For Availability
27
BRACKET-THERM MTG WCI 08015745 Contact Us For Availability
27
WCI 3204822 WCI 3204822 Contact Us For Availability
27A
WCI 3204823 WCI 3204823 Contact Us For Availability
28
HINGE ASSY-RH WCI 5303210232 Contact Us For Availability
28
WCI 3204824 WCI 3204824 Contact Us For Availability
28A
WCI 5303210233 WCI 5303210233 Contact Us For Availability
29
GLASS, OUTER WCI 5308012512 Contact Us For Availability
29
WCI 3204825 WCI 3204825 Contact Us For Availability
30
BRKT, THERMOBULB WCI 3051552 Contact Us For Availability
31
WCI 3204318 WCI 3204318 Contact Us For Availability
33
WCI 5301167905 WCI 5301167905 Contact Us For Availability
34
WCI 5303294321 WCI 5303294321 Contact Us For Availability
35
WCI 3204828 WCI 3204828 Contact Us For Availability
38
WCI 3206275 WCI 3206275 Contact Us For Availability
39
CHANNEL - OVEN SPRT WCI 08011954 Contact Us For Availability
40
OVEN-INSUL-WRAPPER WCI 5301305817 Contact Us For Availability
41
OVEN-INSUL-WRAPPER WCI 3203029 Contact Us For Availability
42
OVEN-INSUL-BACK WCI 5303051630 Contact Us For Availability
43
WCI 5303293415 WCI 5303293415 Contact Us For Availability
44
WCI 5303293416 WCI 5303293416 Contact Us For Availability
45
RACK - LGE OVEN OFFSET WCI 08014219 Contact Us For Availability
46
WCI 08014191 WCI 08014191 Contact Us For Availability
47
WCI 5303292163 WCI 5303292163 Contact Us For Availability
48
MOTOR - LOCK ASSY WCI 5308015743 Contact Us For Availability
49
BAR, TIE WCI 3051649 Contact Us For Availability
50
LATCH-DOOR WCI 3051648 Contact Us For Availability
51
WCI 3051647 WCI 3051647 Contact Us For Availability
52
AXLE WCI 5308012004 Contact Us For Availability
53
WCI 5303051740 WCI 5303051740 Contact Us For Availability
53A
WCI 5308006582 WCI 5308006582 Contact Us For Availability
55
WCI 3017576 WCI 3017576 Contact Us For Availability
56
WCI 3017402 WCI 3017402 Contact Us For Availability
57
WCI 5301308270 WCI 5301308270 Contact Us For Availability
× ![]()
