Model Electrolux REG46CW3 RANGE – Common Parts & Diagrams

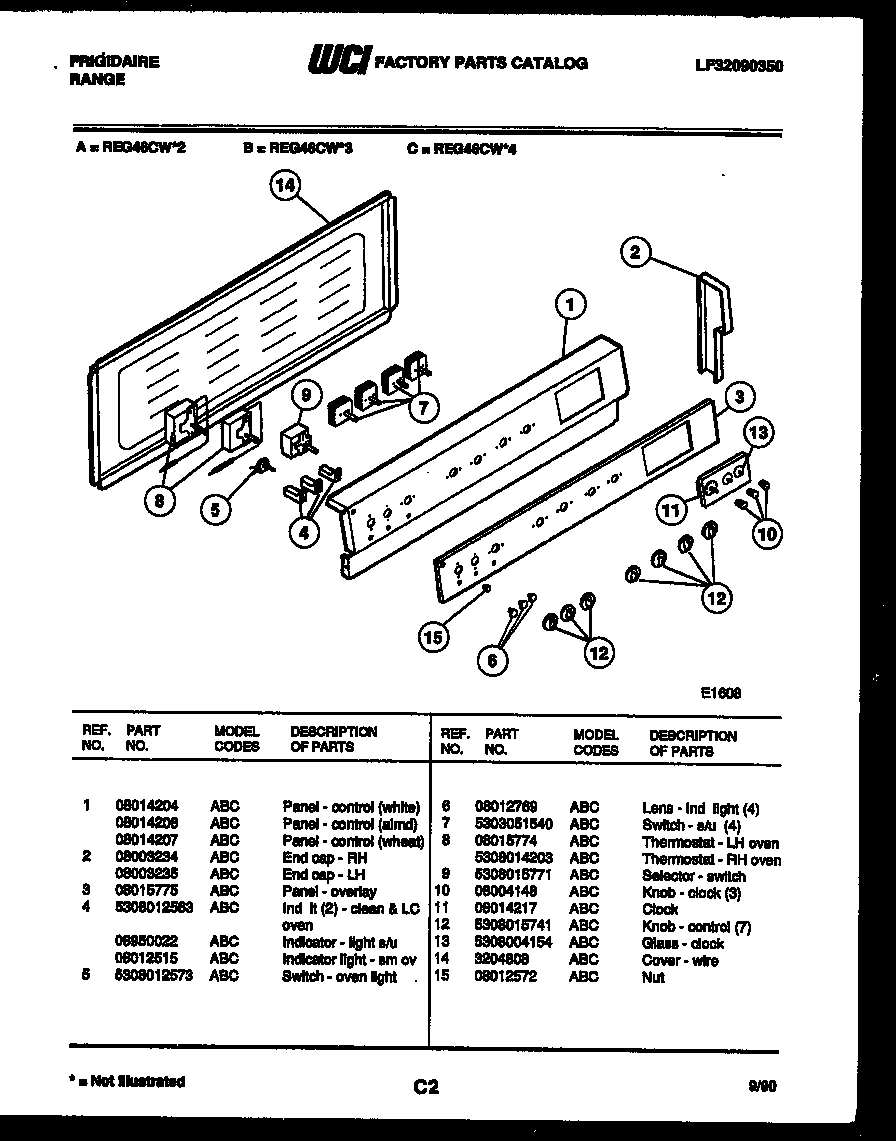

02 - CONTROL PANEL

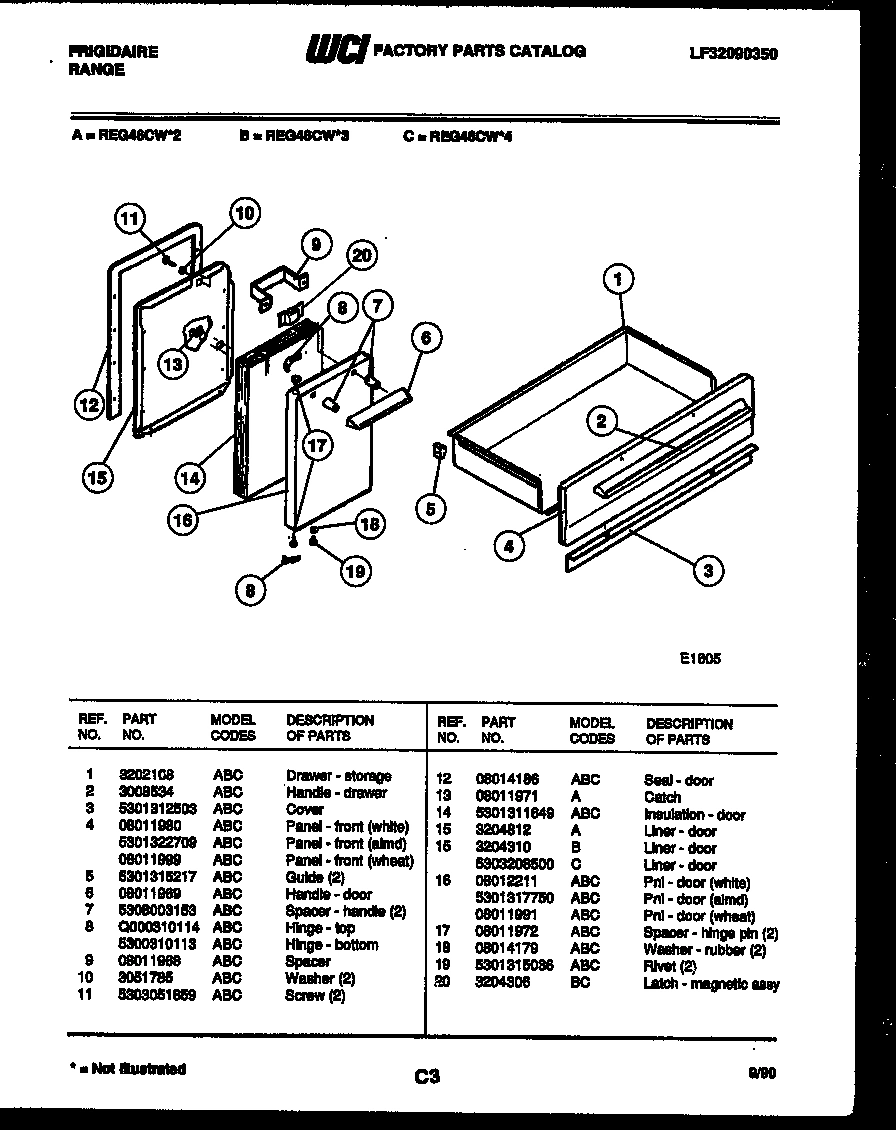

03 - DOOR AND DRAWER PARTS
04 - DOOR PARTS
05 - COOKTOP AND BROILER PARTS
06 - BODY PARTS
Common parts from model Electrolux REG46CW3 RANGE
1
WCI 3202108 WCI 3202108 Contact Us For Availability
1
TOP - COOK (WHITE) WCI 08011961 Contact Us For Availability
1
WCI 08014196 WCI 08014196 Contact Us For Availability
1
WCI 5303203691 WCI 5303203691 Contact Us For Availability
2
HANDLE, DRAWER WCI 3008534 Contact Us For Availability
2
TRIM, MOLDING WCI 3201571 Contact Us For Availability
2
WCI 3204816 WCI 3204816 Contact Us For Availability
3
COVER WCI 5301312503 Contact Us For Availability
3
PANEL, INSULATION WCI 5305069001 Contact Us For Availability
4
WCI 08011980 WCI 08011980 Contact Us For Availability
4
WCI 5308014202 WCI 5308014202 Contact Us For Availability
5
GUIDE (2) WCI 5301315217 Contact Us For Availability
5
WCI 5308003153 WCI 5308003153 Contact Us For Availability
5
WCI 5303017810 WCI 5303017810 Contact Us For Availability
6
WCI 08011969 WCI 08011969 Contact Us For Availability
6
SCREW, HANDLE (2) WCI K5104201 Contact Us For Availability
6
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
6
RTNR - LENS OVEN LT WCI 5303205904 Contact Us For Availability
7
INSULATION WCI 3204813 Contact Us For Availability
7
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
7
WCI 08012252 WCI 08012252 Contact Us For Availability
7A
HINGE COOKTOP LH WCI 3051659 Contact Us For Availability
8
THERMOSTAT, LH OVEN WCI 08015774 Contact Us For Availability
8
WCI Q000310114 WCI Q000310114 Contact Us For Availability
8
RETAINERS - GLASS (2) WCI 08003158 Contact Us For Availability
8
WCI 08003111 WCI 08003111 Contact Us For Availability
8
BUTTON, PLUG (2) WCI 3204817 Contact Us For Availability
8A
THERMOSTAT, RH OVEN WCI 5308014203 Contact Us For Availability
8A
WCI 5300310113 WCI 5300310113 Contact Us For Availability
9
SELECTOR SWITCH WCI 5308015771 Contact Us For Availability
9
WCI 08011968 WCI 08011968 Contact Us For Availability
9
WCI 5303051713 WCI 5303051713 Contact Us For Availability
9
WCI 3204321 WCI 3204321 Contact Us For Availability
10
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
10
RETAINER, GLASS (2) WCI 3204652 Contact Us For Availability
10
ELEMENT-BROIL SM OV WCI 08014184 Contact Us For Availability
10
WCI 08008878 WCI 08008878 Contact Us For Availability
11
WCI 08014217 WCI 08014217 Contact Us For Availability
11
WCI 5303051859 WCI 5303051859 Contact Us For Availability
11
WCI K5276902 WCI K5276902 Contact Us For Availability
11
GUIDE (2) FRONT WCI 3051654 Contact Us For Availability
12
KNOB, CONTROL (7) WCI 5308015741 Contact Us For Availability
12
WCI 08014186 WCI 08014186 Contact Us For Availability
12
ALUMINUM FOIL WCI 3051862 Contact Us For Availability
12
PNL - END RH (WHITE) WCI 5308012527 Contact Us For Availability
12A
PNL - END LH (WHITE) WCI 5308012528 Contact Us For Availability
13
WCI 5308004154 WCI 5308004154 Contact Us For Availability
13
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
13
SPRT - BROIL ELEMENT WCI 3051518 Contact Us For Availability
13
GLIDE, DRAWER, RH WCI 3204818 Contact Us For Availability
13A
GLIDE, DRAWER, LH WCI 3204819 Contact Us For Availability
14
WCI 3204808 WCI 3204808 Contact Us For Availability
14
WCI 5301311649 WCI 5301311649 Contact Us For Availability
14
WCI 3008677 WCI 3008677 Contact Us For Availability
14
WCI 3204820 WCI 3204820 Contact Us For Availability
15
NUT WCI 08012572 Contact Us For Availability
15
WCI 3204310 WCI 3204310 Contact Us For Availability
15
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
15
BUMPER, COOKTOP (2) WCI 5308003107 Contact Us For Availability
16
WCI 08012211 WCI 08012211 Contact Us For Availability
16
WCI K1324722 WCI K1324722 Contact Us For Availability
16
WCI 3204821 WCI 3204821 Contact Us For Availability
17
WASHER, PADDED (3) WCI 3051785 Contact Us For Availability
17
WCI 08011972 WCI 08011972 Contact Us For Availability
17
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
18
WCI 08014179 WCI 08014179 Contact Us For Availability
18
WCI 3008673 WCI 3008673 Contact Us For Availability
18
ROD, SWITCH WCI 08007445 Contact Us For Availability
19
SEAL, DOOR WCI 5303051704 Contact Us For Availability
19
WCI 5301315036 WCI 5301315036 Contact Us For Availability
19
WCI 08007444 WCI 08007444 Contact Us For Availability
20
WCI 3204306 WCI 3204306 Contact Us For Availability
20
BAFFLE, DOOR WCI 3201573 Contact Us For Availability
20
SWITCH, LIGHT WCI 5308003081 Contact Us For Availability
21
WINDOW ASSEMBLY WCI 3051705 Contact Us For Availability
21
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
22
WCI 3204814 WCI 3204814 Contact Us For Availability
22
WCI 08016543 WCI 08016543 Contact Us For Availability
23
SEAL WINDOW WCI 3051706 Contact Us For Availability
23
WCI 08014195 WCI 08014195 Contact Us For Availability
24
HINGE (2) WCI 5308003183 Contact Us For Availability
24
COVER WCI 3204650 Contact Us For Availability
25
SPRING (2) WCI 5308003186 Contact Us For Availability
25
WCI 3204827 WCI 3204827 Contact Us For Availability
26
WCI 08950070 WCI 08950070 Contact Us For Availability
26
SUPPORT WCI 08011953 Contact Us For Availability
27
WCI 3204822 WCI 3204822 Contact Us For Availability
27
WCI 3204823 WCI 3204823 Contact Us For Availability
28
CHANNEL, RH WCI 5303051822 Contact Us For Availability
28
WCI 3204824 WCI 3204824 Contact Us For Availability
28A
CHANNEL, LH WCI 5303931006 Contact Us For Availability
29
GLASS, OUTER WCI 5308012512 Contact Us For Availability
29
WCI 3204825 WCI 3204825 Contact Us For Availability
30
BRKT - THERMO BULB WCI 3051550 Contact Us For Availability
33
WCI 5301167905 WCI 5301167905 Contact Us For Availability
34
LINER - SM OVEN WCI 3205600 Contact Us For Availability
35
PANEL, BOTTOM, LH WCI 3204828 Contact Us For Availability
36
CLIP WCI 08003146 Contact Us For Availability
38
PANEL, BOTTOM, RH WCI 3203574 Contact Us For Availability
39
CHANNEL - OVEN SPRT WCI 08011954 Contact Us For Availability
39A
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934058 Contact Us For Availability
40
INSUL - WRAP SM OVEN WCI 5301305817 Contact Us For Availability
41
INSUL - WRAP LGE OVEN WCI 5303061630 Contact Us For Availability
42
INSUL - BACK LGE OVEN WCI 5303051630 Contact Us For Availability
43
WCI 5303131356 WCI 5303131356 Contact Us For Availability
44
WCI 3200723 WCI 3200723 Contact Us For Availability
44
WCI 5303207208 WCI 5303207208 Contact Us For Availability
45
RACK - LGE OVEN OFFSET WCI 08014219 Contact Us For Availability
46
WCI 08014191 WCI 08014191 Contact Us For Availability
47
WCI 08014188 WCI 08014188 Contact Us For Availability
48
MOTOR - LOCK ASSY WCI 5308015743 Contact Us For Availability
49
BAR, TIE WCI 3051649 Contact Us For Availability
50
LATCH WCI 3051684 Contact Us For Availability
51
WCI 3051647 WCI 3051647 Contact Us For Availability
52
PIN, LATCH AXLE WCI 5308012004 Contact Us For Availability
53
SWITCH (2) WCI 5308006582 Contact Us For Availability
54
INSULATOR (2) WCI 08003090 Contact Us For Availability
55
COVER, LIGHT WCI 3204815 Contact Us For Availability
56
WCI 3204318 WCI 3204318 Contact Us For Availability
57
PAN - INSERT BROILER SM WCI 08014183 Contact Us For Availability
× ![]()
