Model Electrolux REG438QME0 RANGE – Common Parts & Diagrams

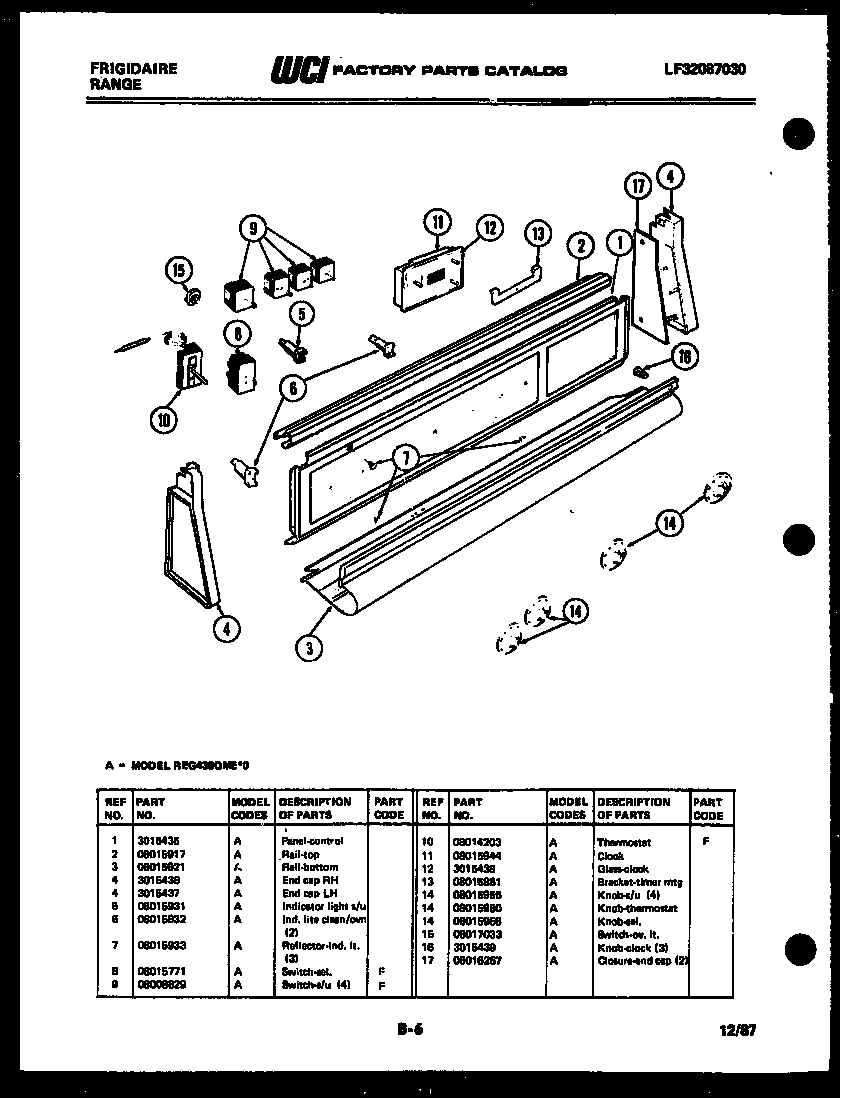

02 - CONTROL PANEL

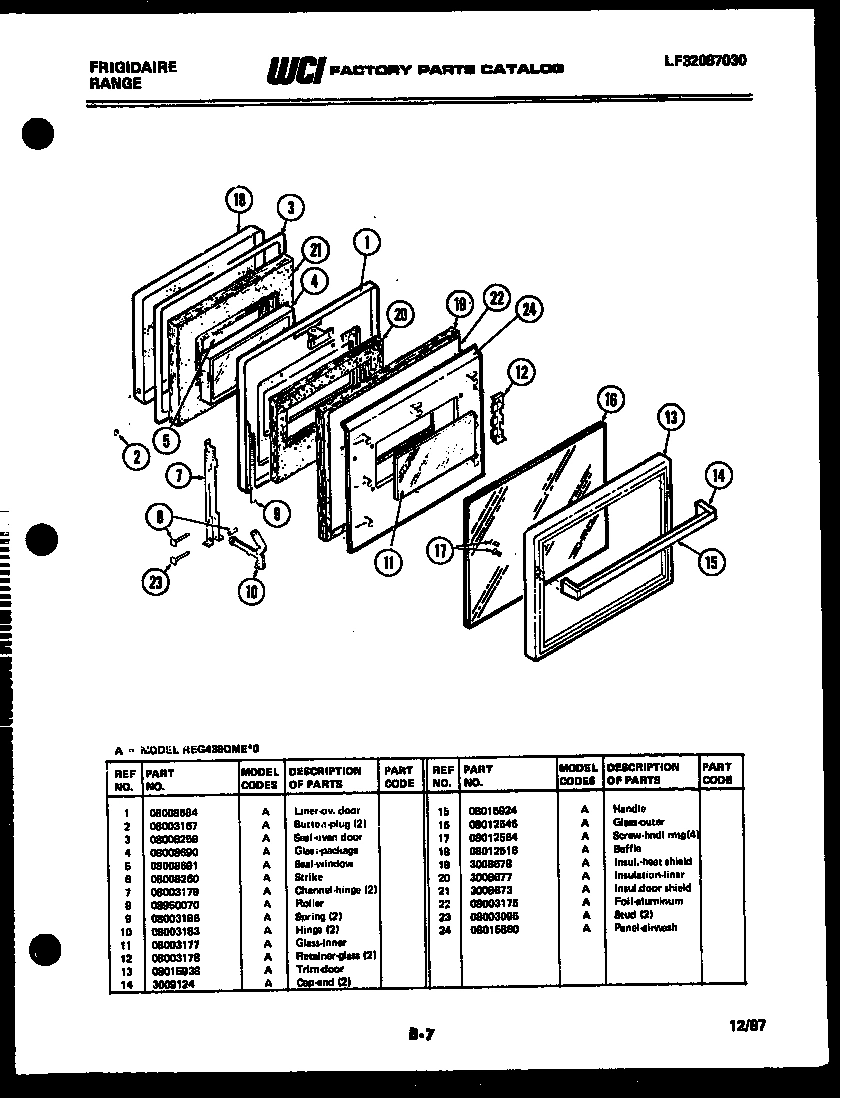

03 - DOOR PARTS

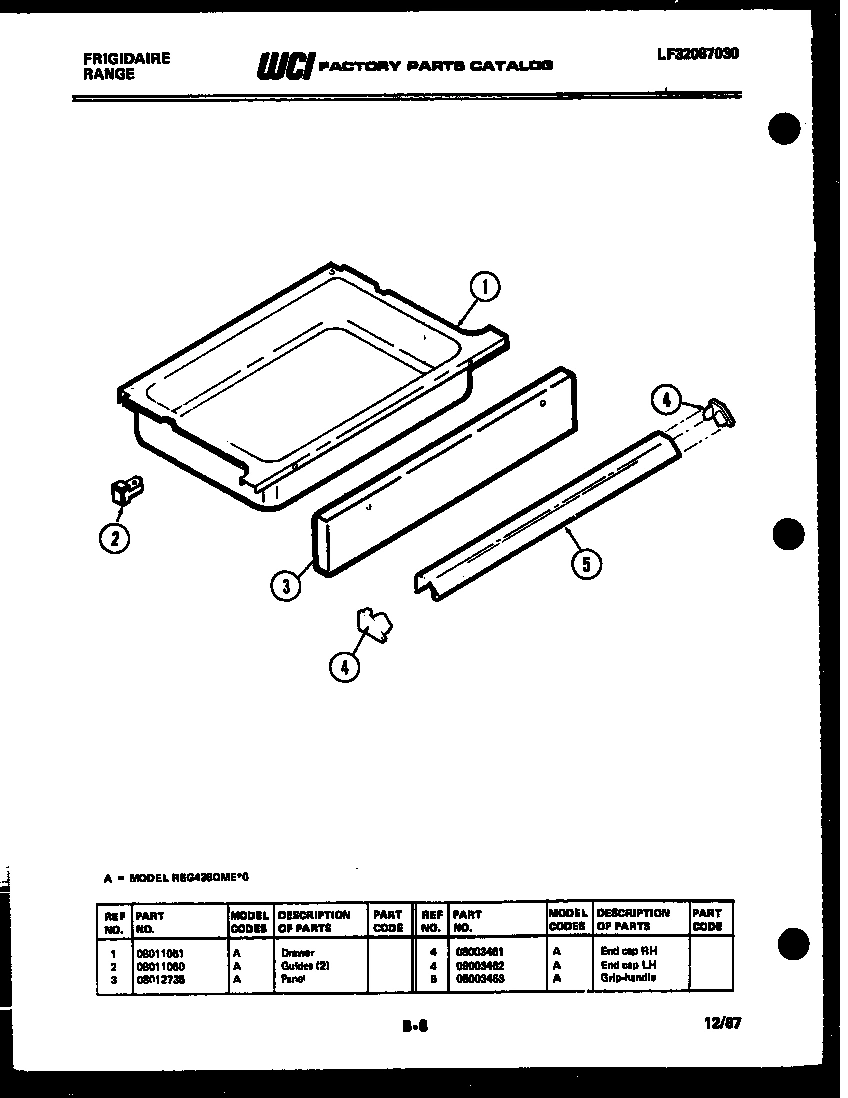

04 - DRAWER PARTS

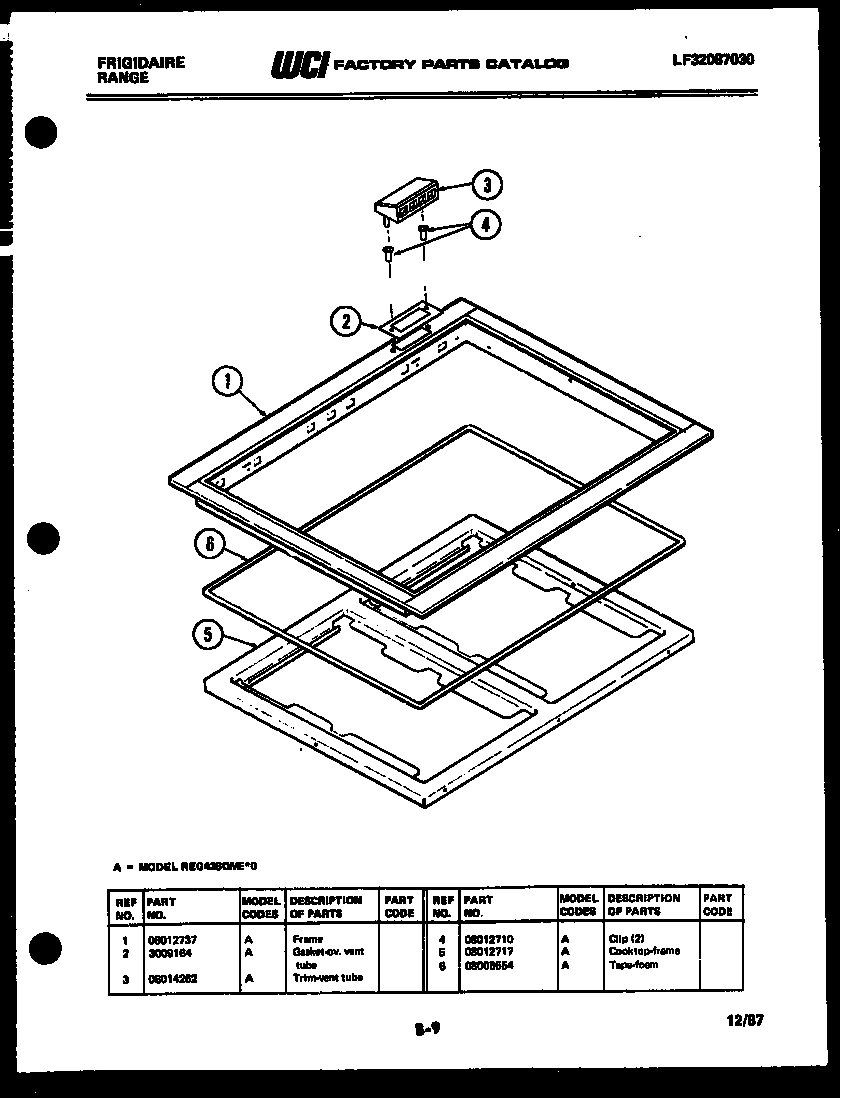

05 - COOKTOP FRAME PARTS

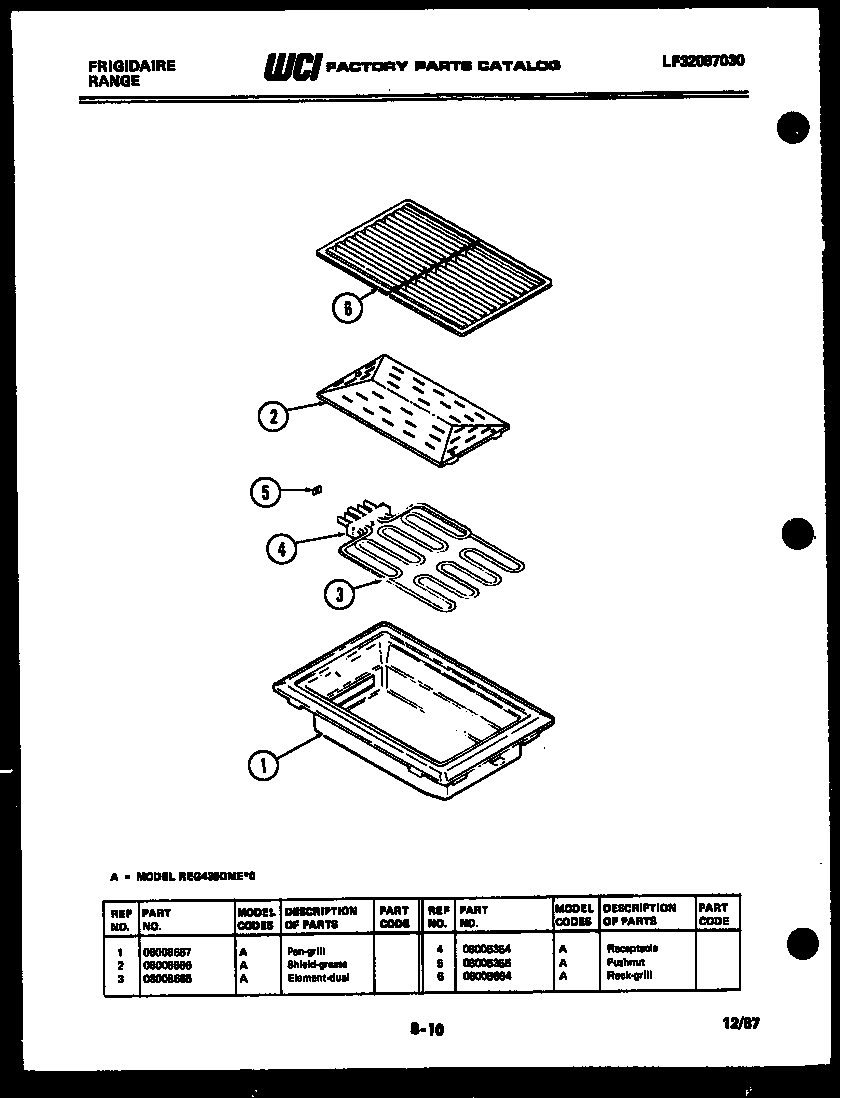

06 - OPTIONAL KIT

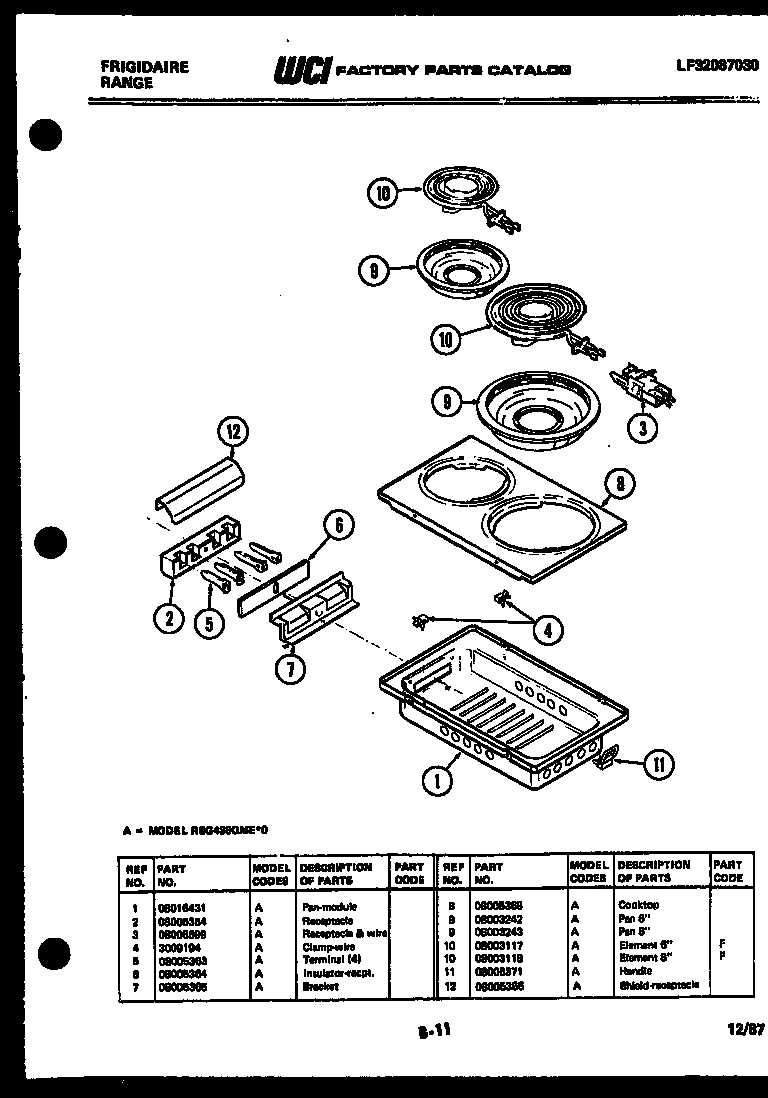

07 - COOKTOP PARTS

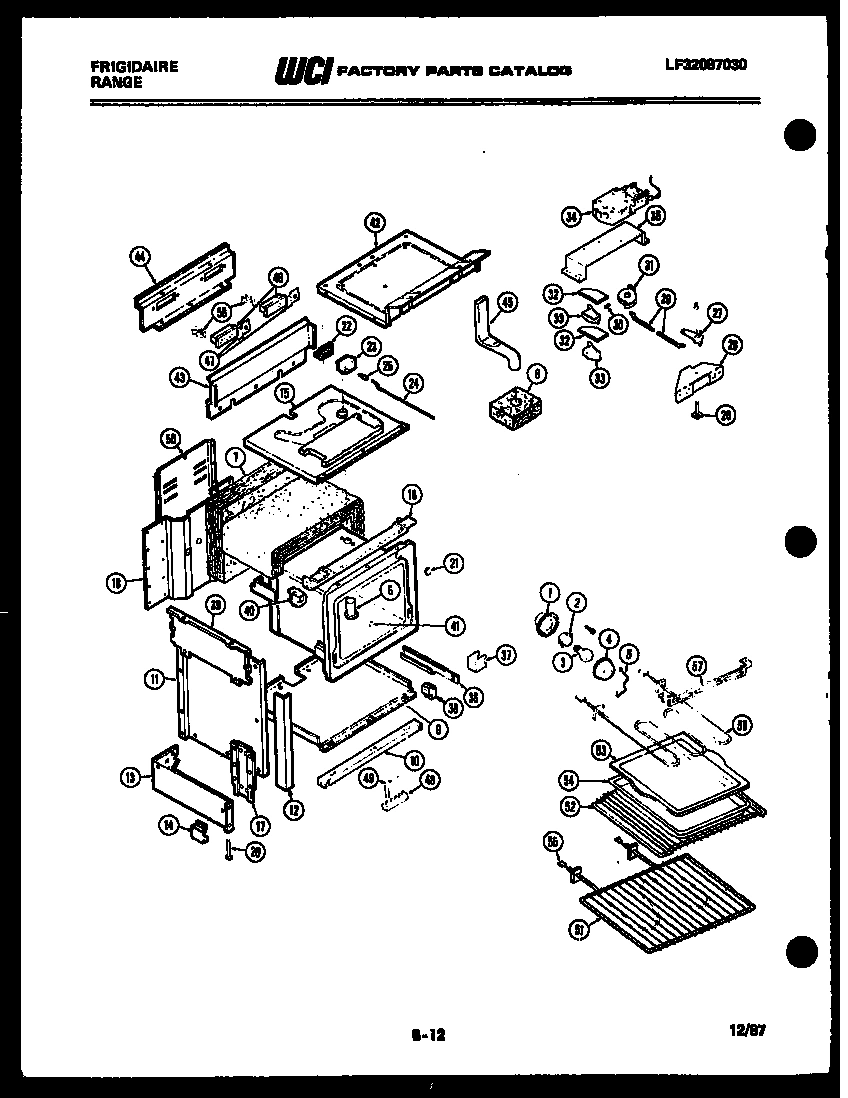

08 - BODY PARTS
Common parts from model Electrolux REG438QME0 RANGE
1
WCI 3015435 WCI 3015435 Contact Us For Availability
1
LINER-OV. DOOR WCI 08008684 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
WCI 08012737 WCI 08012737 Contact Us For Availability
1
WCI 08008667 WCI 08008667 Contact Us For Availability
1
PAN-MODULE WCI 08016431 Contact Us For Availability
1
HOUSING-OVN LITE WCI 08011088 Contact Us For Availability
2
WCI 08015917 WCI 08015917 Contact Us For Availability
2
BUTTON-PLUG (2) WCI 08003167 Contact Us For Availability
2
GUIDES (2) WCI 08011050 Contact Us For Availability
2
GASKET-OV. VENT TUBE WCI 3009164 Contact Us For Availability
2
WCI 08008666 WCI 08008666 Contact Us For Availability
2
RECEPTACLE WCI 08005354 Contact Us For Availability
3
WCI 08015921 WCI 08015921 Contact Us For Availability
3
SEAL-OVEN DOOR WCI 08008259 Contact Us For Availability
3
PANEL WCI 08012735 Contact Us For Availability
3
TRIM-VENT TUBE WCI 08014262 Contact Us For Availability
3
WCI 08008665 WCI 08008665 Contact Us For Availability
3
WCI 08000171 WCI 08000171 Contact Us For Availability
4
WCI 3015436 WCI 3015436 Contact Us For Availability
4
END CAP LH WCI 3015437 Contact Us For Availability
4
GLASS PACKAGE WCI 08008690 Contact Us For Availability
4
WCI 08003461 WCI 08003461 Contact Us For Availability
4
WCI 08003462 WCI 08003462 Contact Us For Availability
4
CLIP (2) WCI 08012710 Contact Us For Availability
4
CLAMP-WIRE WCI 3009194 Contact Us For Availability
5
INDICATOR LIGHT S/U WCI 08015931 Contact Us For Availability
5
SEAL-WINDOW WCI 08008691 Contact Us For Availability
5
WCI 08003463 WCI 08003463 Contact Us For Availability
5
COOKTOP-FRAME WCI 08012717 Contact Us For Availability
5
WCI 08005355 WCI 08005355 Contact Us For Availability
5
WCI 08005363 WCI 08005363 Contact Us For Availability
5
WCI 08011087 WCI 08011087 Contact Us For Availability
6
LND. LITE CLEAN/OVN (2) WCI 08015932 Contact Us For Availability
6
STRIKE WCI 08008260 Contact Us For Availability
6
TAPE-FOAM WCI 08005554 Contact Us For Availability
6
RACK-GRILL WCI 08008664 Contact Us For Availability
6
INSULATOR-RECPT. WCI 08005364 Contact Us For Availability
6
WCI 08012752 WCI 08012752 Contact Us For Availability
7
REFLECTOR-IND. LT. (3) WCI 08015933 Contact Us For Availability
7
WCI 08003179 WCI 08003179 Contact Us For Availability
7
BRACKET WCI 08005365 Contact Us For Availability
8
SWITCH-SEL. WCI 08015771 Contact Us For Availability
8
ROLLER WCI 08950070 Contact Us For Availability
8
COOKTOP WCI 08005368 Contact Us For Availability
8
INSUL.-VENT TUBE WCI 3008313 Contact Us For Availability
9
SPRING (2) WCI 08003186 Contact Us For Availability
9
RETAINER-INSUL. BTM WCI 08015947 Contact Us For Availability
10
WCI 08014203 WCI 08014203 Contact Us For Availability
10
WCI 08003183 WCI 08003183 Contact Us For Availability
10
CHANNEL-OV. SUPT. WCI 08012722 Contact Us For Availability
11
WCI 08015944 WCI 08015944 Contact Us For Availability
11
WCI 08003177 WCI 08003177 Contact Us For Availability
11
HANDLE WCI 08005371 Contact Us For Availability
11
RETAINR-INSUL. SIDE (2) WCI 08012226 Contact Us For Availability
12
WCI 3015438 WCI 3015438 Contact Us For Availability
12
WCI 08003178 WCI 08003178 Contact Us For Availability
12
WCI 08005366 WCI 08005366 Contact Us For Availability
12
TRIM-OVN FRNT (2) WCI 08012721 Contact Us For Availability
13
BRACKET-TIMER MTG WCI 08015861 Contact Us For Availability
13
TRIM-DOOR WCI 08015938 Contact Us For Availability
13
WCI 08012719 WCI 08012719 Contact Us For Availability
13
WCI 08012720 WCI 08012720 Contact Us For Availability
14
KNOB, S/U (4) WCI 08015955 Contact Us For Availability
14
KNOB-SEL. WCI 08015958 Contact Us For Availability
14
KNOB-THERMOSTAT WCI 08015960 Contact Us For Availability
14
WCI 3009124 WCI 3009124 Contact Us For Availability
14
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
15
SWITCH-OV. LT. WCI 08017033 Contact Us For Availability
15
WCI 08015924 WCI 08015924 Contact Us For Availability
15
RETAINR-INSUL. TOP WCI 08012228 Contact Us For Availability
16
WCI 3015439 WCI 3015439 Contact Us For Availability
16
GLASS - OUTER WCI 08012546 Contact Us For Availability
16
WCI 08012724 WCI 08012724 Contact Us For Availability
17
CLOSURE, END CAP (2) WCI 08016267 Contact Us For Availability
17
SCREW-HNDL MTG (4) WCI 08012564 Contact Us For Availability
17
SUPT-FRONT (2) WCI 08012761 Contact Us For Availability
18
WCI 08012516 WCI 08012516 Contact Us For Availability
18
BACK-RANGE LWR WCI 08015941 Contact Us For Availability
19
INSUL.-HEAT SHIELD WCI 3008678 Contact Us For Availability
19
SHIELD-HEAT WCI 08015742 Contact Us For Availability
20
WCI 3008677 WCI 3008677 Contact Us For Availability
20
WCI 08003583 WCI 08003583 Contact Us For Availability
21
INSUL. DOOR SHIELD WCI 3008673 Contact Us For Availability
21
WCI 08002852 WCI 08002852 Contact Us For Availability
22
WCI 08003175 WCI 08003175 Contact Us For Availability
22
BRKT-DR LATCH SW. WCI 08003293 Contact Us For Availability
23
STUD (2) WCI 08003095 Contact Us For Availability
23
DOOR LATCH SW. WCI 08003081 Contact Us For Availability
24
WCI 08015860 WCI 08015860 Contact Us For Availability
24
ROD-SWITCH LATCH WCI 08007443 Contact Us For Availability
25
CAP-END SW. WCI 08007444 Contact Us For Availability
26
HOUSING-LATCH WCI 08008696 Contact Us For Availability
27
WCI 08015744 WCI 08015744 Contact Us For Availability
28
STUD WCI 08012004 Contact Us For Availability
29
ROD-LATCH WCI 08015748 Contact Us For Availability
30
WCI 3009140 WCI 3009140 Contact Us For Availability
31
WCI 3009145 WCI 3009145 Contact Us For Availability
32
WCI 08008829 WCI 08008829 Contact Us For Availability
33
SWITCH-LOWER WCI 08006582 Contact Us For Availability
33
WCI 3007889 WCI 3007889 Contact Us For Availability
34
MOTOR-DOOR LATCH WCI 08015743 Contact Us For Availability
35
WCI 3009147 WCI 3009147 Contact Us For Availability
36
GLIDE-DRAWR-RH WCI 08015746 Contact Us For Availability
36
GLIDE-DRAWR-LH WCI 08015747 Contact Us For Availability
37
SPACR-DRAWR GLIDE (2) WCI 08011055 Contact Us For Availability
38
WCI 08003103 WCI 08003103 Contact Us For Availability
39
PANEL-SIDE UPR (2) WCI 08012723 Contact Us For Availability
39A
INSULATION-TOP (NON-ILLUSTRATED) WCI 08013680 Contact Us For Availability
40
BRKT-THERMO BULB WCI 08002854 Contact Us For Availability
41
BUTTON-PLUG (2) WCI 08003144 Contact Us For Availability
42
WCI 3015440 WCI 3015440 Contact Us For Availability
43
WCI 3015441 WCI 3015441 Contact Us For Availability
44
WCI 08005410 WCI 08005410 Contact Us For Availability
45
WCI 08005407 WCI 08005407 Contact Us For Availability
46
WCI 08005411 WCI 08005411 Contact Us For Availability
47
CLIP-RECEPT MTG (4) WCI 08005336 Contact Us For Availability
49
PLATE-GROUNDING WCI 08003146 Contact Us For Availability
50
WCI 08015750 WCI 08015750 Contact Us For Availability
51
WCI 08003198 WCI 08003198 Contact Us For Availability
52
RACK-OVEN OFFSET WCI 08003199 Contact Us For Availability
53
GRILL-BROILER WCI 08005314 Contact Us For Availability
57
WCI 08002857 WCI 08002857 Contact Us For Availability
58
WCI 3009138 WCI 3009138 Contact Us For Availability
× ![]()
