Model Electrolux REG438QMA4 RANGE – Common Parts & Diagrams

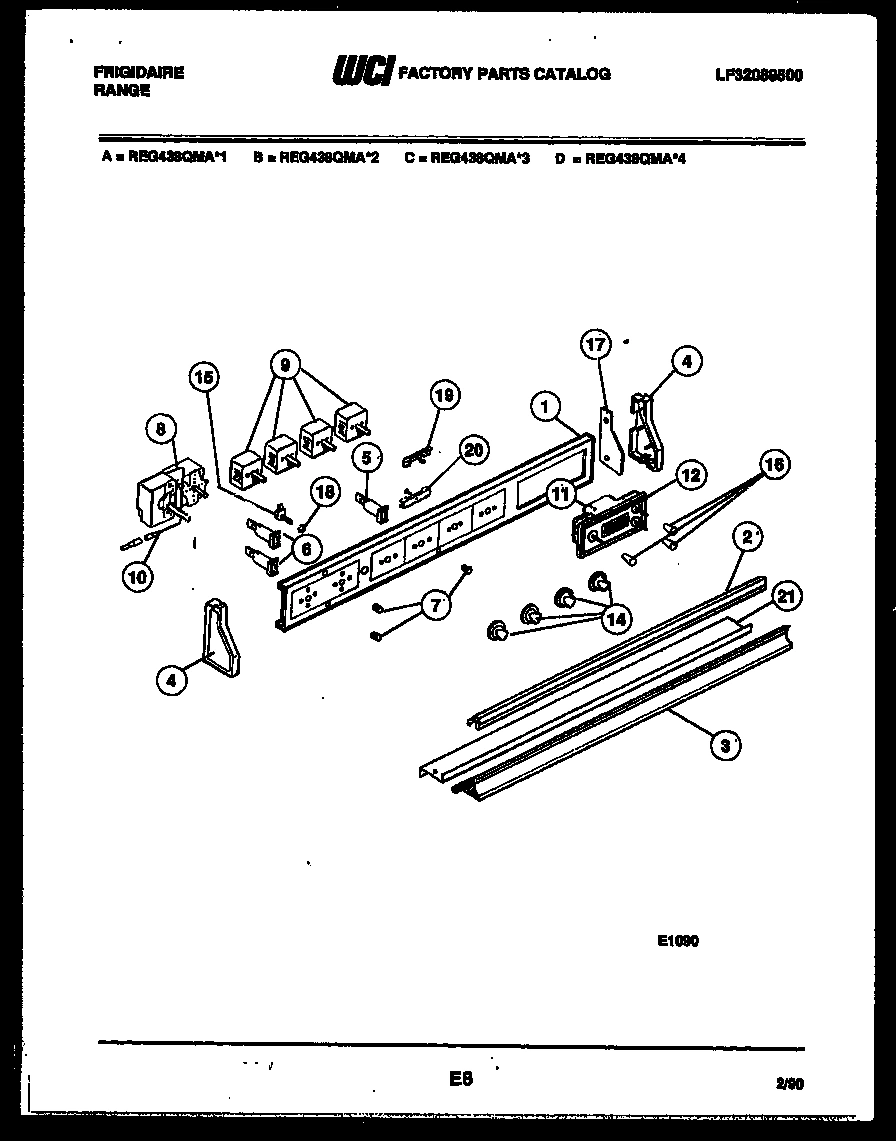

02 - CONTROL PANEL
03 - DOOR PARTS

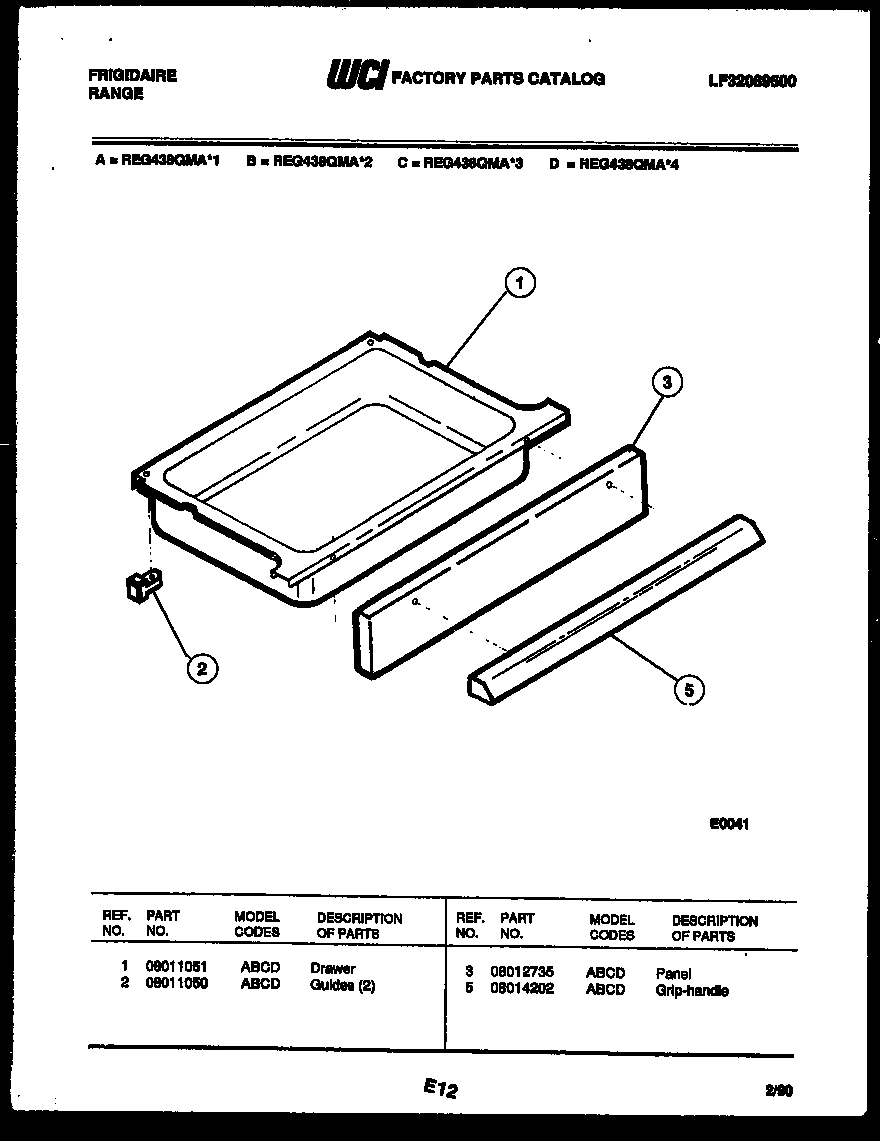

04 - DRAWER PARTS

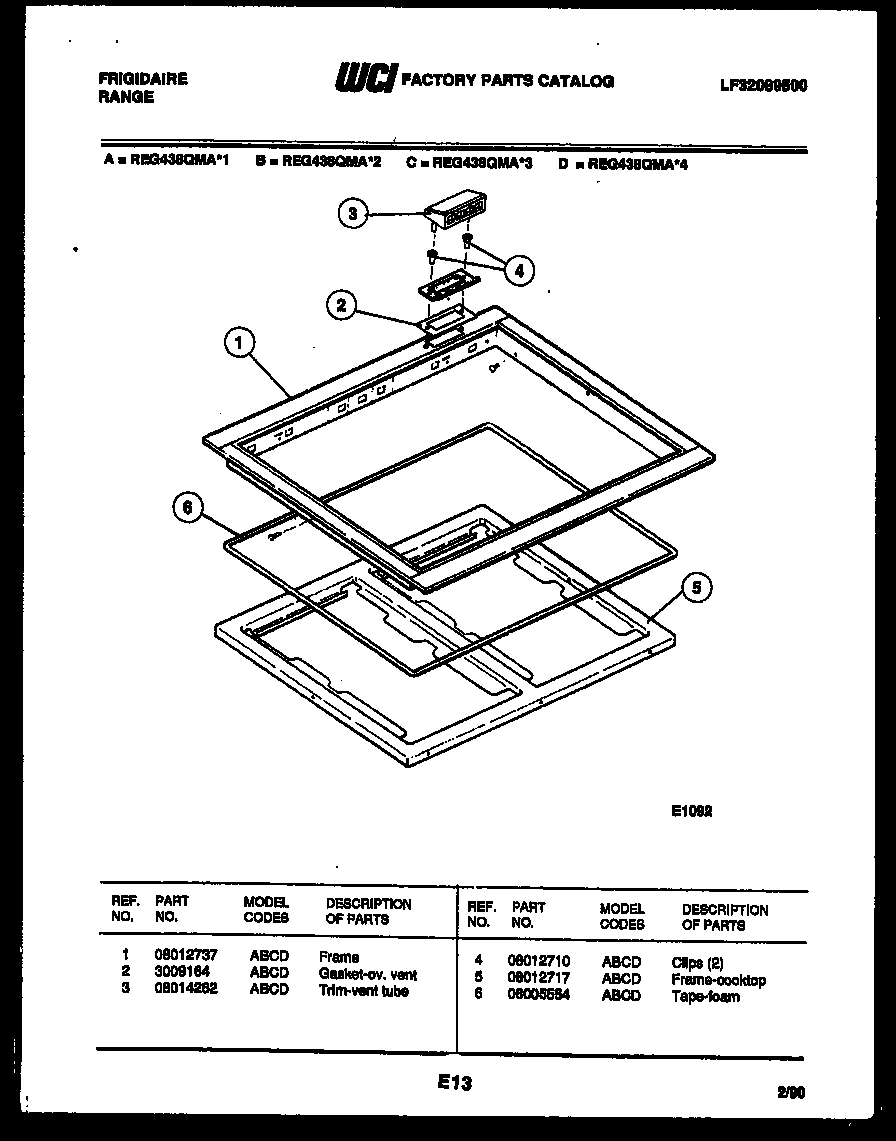

05 - COOKTOP FRAME PARTS

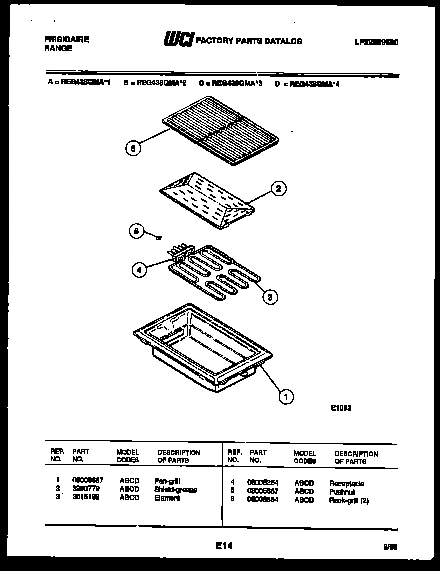

06 - BROILER DRAWER PARTS

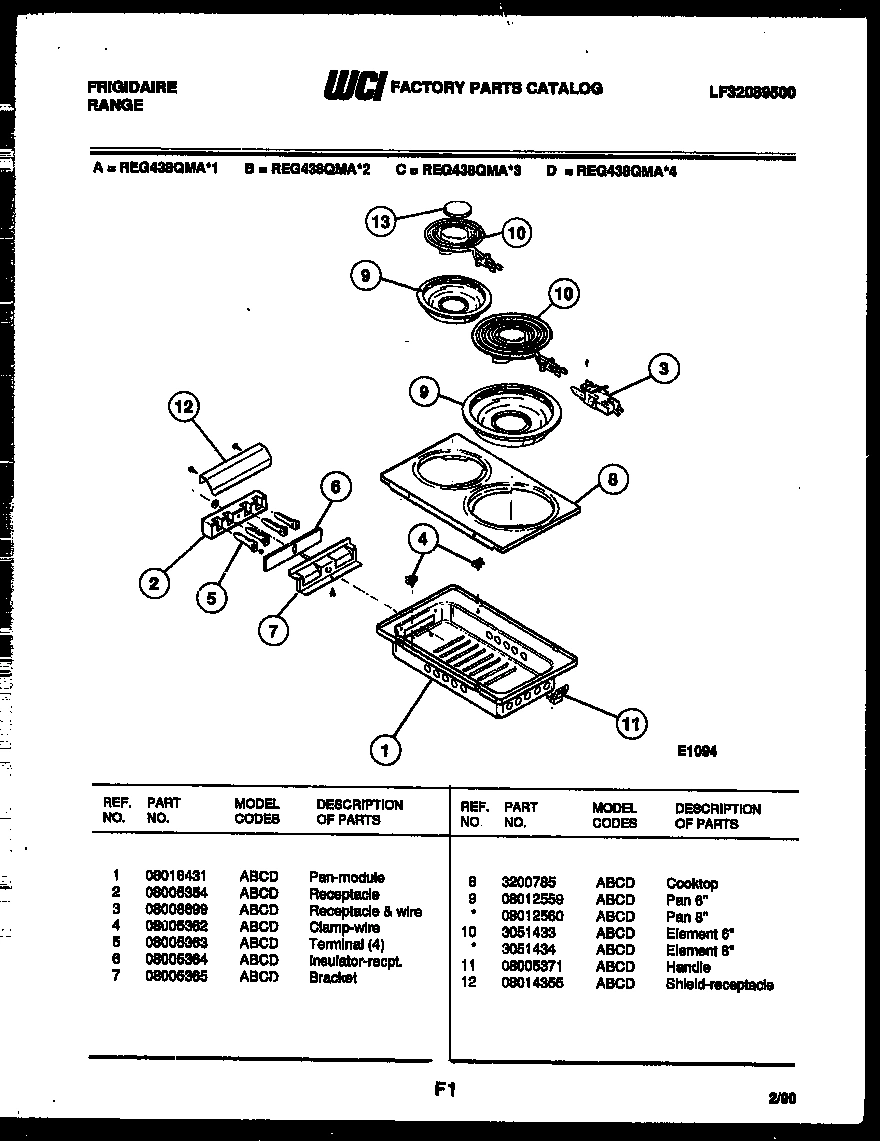

07 - COOKTOP PARTS
08 - BODY PARTS

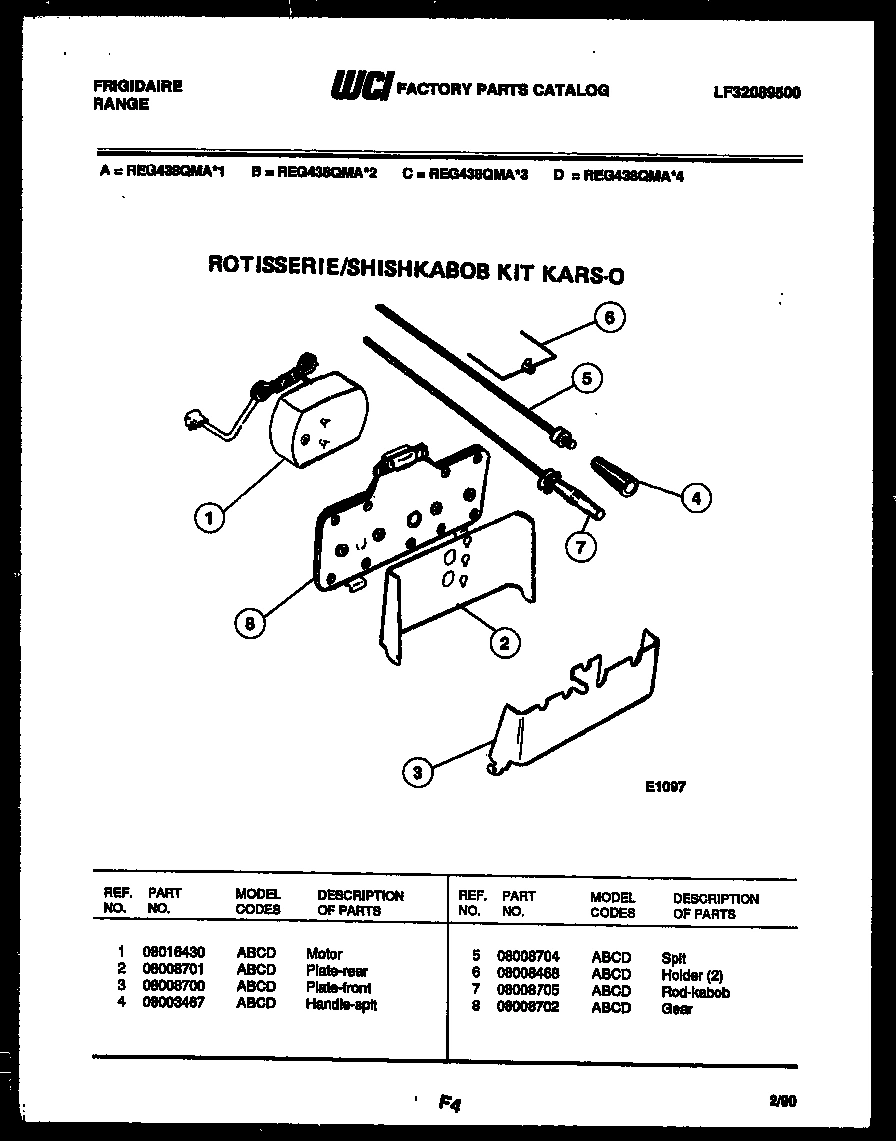

09 - MOTOR PARTS
Common parts from model Electrolux REG438QMA4 RANGE
*24663
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
1
WCI 08012832 WCI 08012832 Contact Us For Availability
1
LINER-OV. DOOR WCI 08008684 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
WCI 08012737 WCI 08012737 Contact Us For Availability
1
PAN-MODULE WCI 08016431 Contact Us For Availability
1
HOUSING-OV LT WCI 08011088 Contact Us For Availability
1
WCI 08016430 WCI 08016430 Contact Us For Availability
2
WCI 08003296 WCI 08003296 Contact Us For Availability
2
BUTTON-PLUG (2) WCI 08003167 Contact Us For Availability
2
GUIDES (2) WCI 08011050 Contact Us For Availability
2
WCI 3009164 WCI 3009164 Contact Us For Availability
2
WCI 3200779 WCI 3200779 Contact Us For Availability
2
RECEPTACLE WCI 08005354 Contact Us For Availability
2
WCI 08008701 WCI 08008701 Contact Us For Availability
3
WCI 08003670 WCI 08003670 Contact Us For Availability
3
SEAL-OVEN DOOR WCI 08008259 Contact Us For Availability
3
PANEL WCI 08012735 Contact Us For Availability
3
TRIM-VENT TUBE WCI 08014262 Contact Us For Availability
3
ELEMENT WCI 3015193 Contact Us For Availability
3
WCI 08008700 WCI 08008700 Contact Us For Availability
4
END CAP RH WCI 08003298 Contact Us For Availability
4
GLASS PKG. WCI 08008690 Contact Us For Availability
4
CLIPS (2) WCI 08012710 Contact Us For Availability
4
WCI 08005362 WCI 08005362 Contact Us For Availability
4
WCI 08003467 WCI 08003467 Contact Us For Availability
4A
WCI 08005402 WCI 08005402 Contact Us For Availability
5
INDICATOR LIGHT S/U WCI 08015931 Contact Us For Availability
5
SEAL WINDOW WCI 3051706 Contact Us For Availability
5
GRIP-HANDLE WCI 08014202 Contact Us For Availability
5
WCI 08012717 WCI 08012717 Contact Us For Availability
5
PUSHNUT WCI 08005367 Contact Us For Availability
5
WCI 08005363 WCI 08005363 Contact Us For Availability
5
WCI 08011087 WCI 08011087 Contact Us For Availability
5
WCI 08008704 WCI 08008704 Contact Us For Availability
6
WCI 08012747 WCI 08012747 Contact Us For Availability
6
STRIKE WCI 08008260 Contact Us For Availability
6
TAPE-FOAM WCI 08005554 Contact Us For Availability
6
RACK-GRILL (2) WCI 08008664 Contact Us For Availability
6
INSULATOR-RECPT. WCI 08005364 Contact Us For Availability
6
WCI 08012752 WCI 08012752 Contact Us For Availability
6
WCI 08008468 WCI 08008468 Contact Us For Availability
7
WCI 08006417 WCI 08006417 Contact Us For Availability
7
CHANNEL - HINGE (2) WCI 3051822 Contact Us For Availability
7
BRACKET WCI 08005365 Contact Us For Availability
7
WCI 08013680 WCI 08013680 Contact Us For Availability
7
WCI 08008705 WCI 08008705 Contact Us For Availability
8
SWITCH-SEL. WCI 08015771 Contact Us For Availability
8
ROLLER WCI 3931006 Contact Us For Availability
8
COOKTOP WCI 3200785 Contact Us For Availability
8
WCI 3051523 WCI 3051523 Contact Us For Availability
8
WCI 08008702 WCI 08008702 Contact Us For Availability
9
WCI 08008829 WCI 08008829 Contact Us For Availability
9
SPRING (2) WCI 08003186 Contact Us For Availability
9
RETAINER-INSUL. BTTM. WCI 3205124 Contact Us For Availability
10
WCI 08008687 WCI 08008687 Contact Us For Availability
10
WCI 08003183 WCI 08003183 Contact Us For Availability
10
CHANNEL-OV. SUPT. WCI 08012722 Contact Us For Availability
11
WCI 08003177 WCI 08003177 Contact Us For Availability
11
HANDLE WCI 08005371 Contact Us For Availability
11
RETAINER-INSUL. SIDE (2) WCI 08012226 Contact Us For Availability
12
WCI 3208797 WCI 3208797 Contact Us For Availability
12
WCI 08003178 WCI 08003178 Contact Us For Availability
12
WCI 08014355 WCI 08014355 Contact Us For Availability
12
WCI 08012721 WCI 08012721 Contact Us For Availability
13
TRIM-DOOR WCI 3051715 Contact Us For Availability
13
WCI 08012719 WCI 08012719 Contact Us For Availability
13A
WCI 08012720 WCI 08012720 Contact Us For Availability
14
KNOB S/U WCI 08015955 Contact Us For Availability
14
WCI 08012736 WCI 08012736 Contact Us For Availability
14A
KNOB-THERMOSTAT WCI 08015958 Contact Us For Availability
14B
KNOB-SEL. SW. WCI 08015960 Contact Us For Availability
15
SWITCH-OV. LT. WCI 08012573 Contact Us For Availability
15
WCI 3051716 WCI 3051716 Contact Us For Availability
15
RETAINER-INSUL. TOP WCI 08012228 Contact Us For Availability
16
WCI 3200798 WCI 3200798 Contact Us For Availability
16
GLASS - OUTER WCI 08012546 Contact Us For Availability
16
WCI 08008686 WCI 08008686 Contact Us For Availability
17
WCI 08016630 WCI 08016630 Contact Us For Availability
17
SCREW-HANDLE MTG. (4) WCI 08012564 Contact Us For Availability
17
WCI 08012761 WCI 08012761 Contact Us For Availability
18
NUT-HEX WCI 08003125 Contact Us For Availability
18
BAFFLE WCI 3051702 Contact Us For Availability
18
BACK-RANGE LOWER WCI 08015941 Contact Us For Availability
19
WCI 08003301 WCI 08003301 Contact Us For Availability
19
INSULATION-HEAT SHIELD WCI 3051711 Contact Us For Availability
19
LINER, OVEN WCI 3205131 Contact Us For Availability
20
WCI 08003302 WCI 08003302 Contact Us For Availability
20
WCI 3008677 WCI 3008677 Contact Us For Availability
20
WCI 08003583 WCI 08003583 Contact Us For Availability
21
WCI 08010074 WCI 08010074 Contact Us For Availability
21
INSULATION-DOOR SHIELD WCI 3008673 Contact Us For Availability
21
WCI 08002852 WCI 08002852 Contact Us For Availability
22
WCI 08003175 WCI 08003175 Contact Us For Availability
22
BRACKET-DOOR LATCH SW. WCI 08003293 Contact Us For Availability
23
STUD (2) WCI 08012004 Contact Us For Availability
23
DOOR LATCH SW. WCI 08003081 Contact Us For Availability
24
WCI 08015860 WCI 08015860 Contact Us For Availability
24
ROD-SWITCH LATCH WCI 08007443 Contact Us For Availability
25
CAP-END SW. WCI 08007444 Contact Us For Availability
26
HOUSING-LATCH WCI 08008696 Contact Us For Availability
27
WCI 08015744 WCI 08015744 Contact Us For Availability
28
STUD WCI 08003184 Contact Us For Availability
29
ROD-LATCH WCI 08015748 Contact Us For Availability
30
PLATE-MTG. WCI 08015961 Contact Us For Availability
31
WCI 08015922 WCI 08015922 Contact Us For Availability
32
INSULATOR (2) WCI 08003090 Contact Us For Availability
33
WCI 3007889 WCI 3007889 Contact Us For Availability
33A
WCI 08003092 WCI 08003092 Contact Us For Availability
34
MOTOR-DOOR LATCH WCI 08015743 Contact Us For Availability
36
GLIDE-DRAWER RH WCI 08015746 Contact Us For Availability
36A
GLIDE-DRAWER LH WCI 08015747 Contact Us For Availability
37
SPACER-DRAWER GLIDE (2) WCI 08011055 Contact Us For Availability
38
WCI 08003103 WCI 08003103 Contact Us For Availability
39
WCI 08012723 WCI 08012723 Contact Us For Availability
39A
INSULATION TOP (NON-ILLUSTRATED) WCI 3051788 Contact Us For Availability
40
BRACKET-THERMO BULB WCI 08002854 Contact Us For Availability
41
BUTTON-PLUG (2) WCI 08003144 Contact Us For Availability
42
WCI 3200795 WCI 3200795 Contact Us For Availability
43
WCI 08012230 WCI 08012230 Contact Us For Availability
44
WCI 08005410 WCI 08005410 Contact Us For Availability
45
WCI 08005407 WCI 08005407 Contact Us For Availability
46
WCI 08005411 WCI 08005411 Contact Us For Availability
47
CLIP-RECEPTACLE MTG. (4) WCI 08005336 Contact Us For Availability
49
PLATE-GROUNDING WCI 08003146 Contact Us For Availability
50
COVER - WIRE WCI 3051856 Contact Us For Availability
52
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
53
GRILL-BROILER WCI 08008667 Contact Us For Availability
54
WCI 08003201 WCI 08003201 Contact Us For Availability
57
WCI 08002857 WCI 08002857 Contact Us For Availability
58
WCI 3009138 WCI 3009138 Contact Us For Availability
59
WCI 08015742 WCI 08015742 Contact Us For Availability
60
WCI 08015928 WCI 08015928 Contact Us For Availability
× ![]()
