Model Electrolux REG435MRW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP AND BROILER PARTS

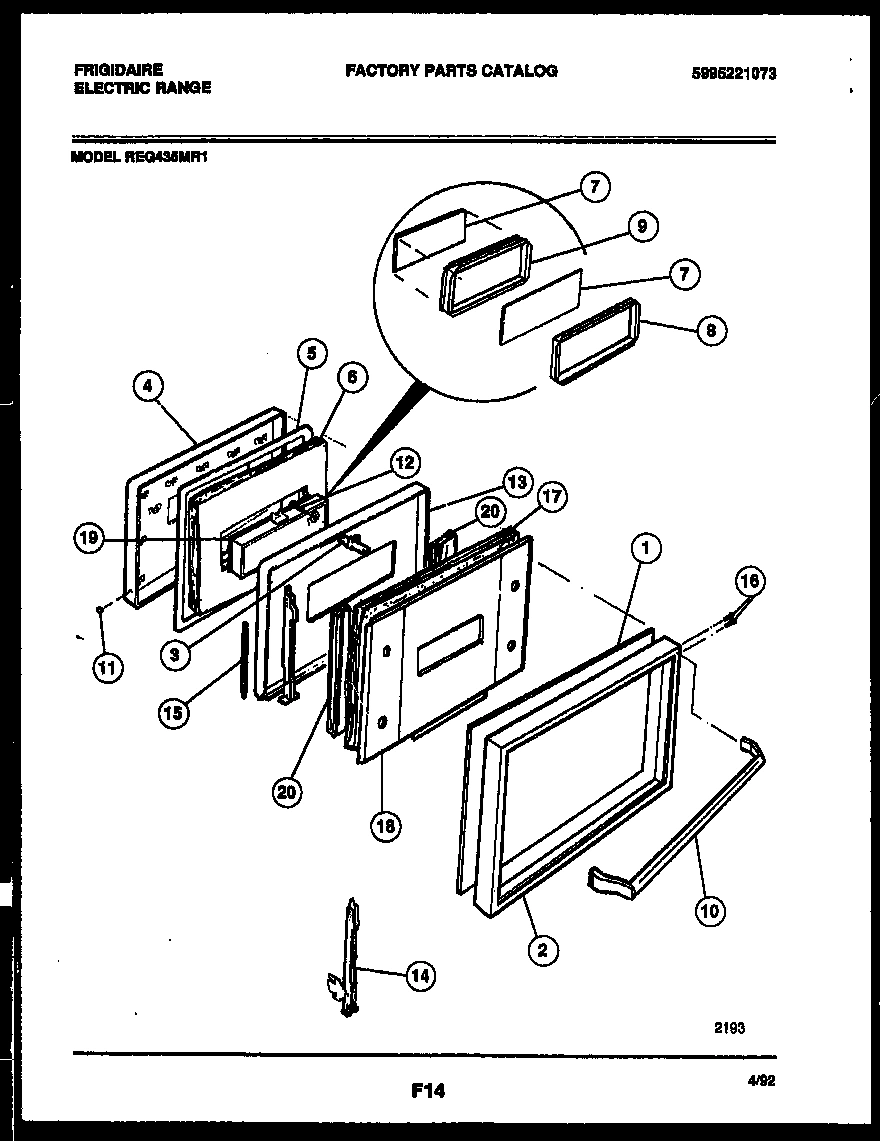

04 - DOOR PARTS

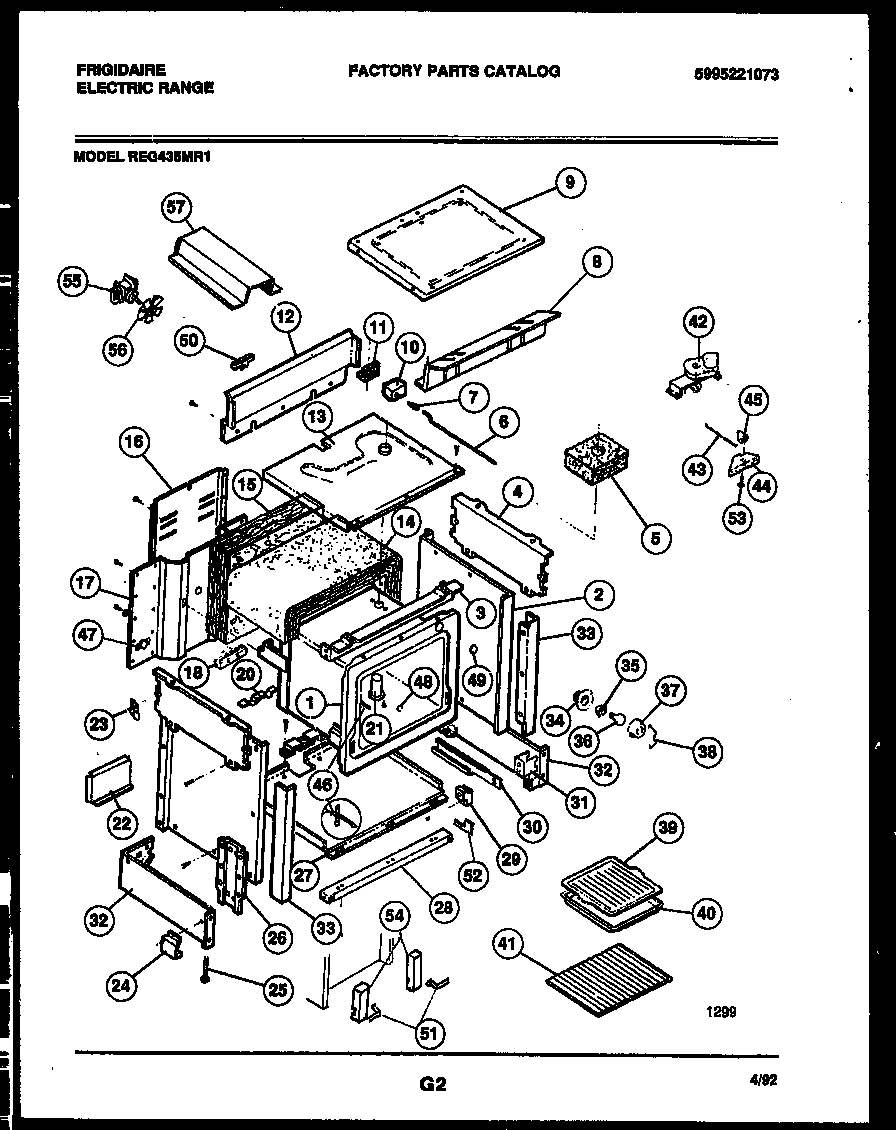

05 - BODY PARTS

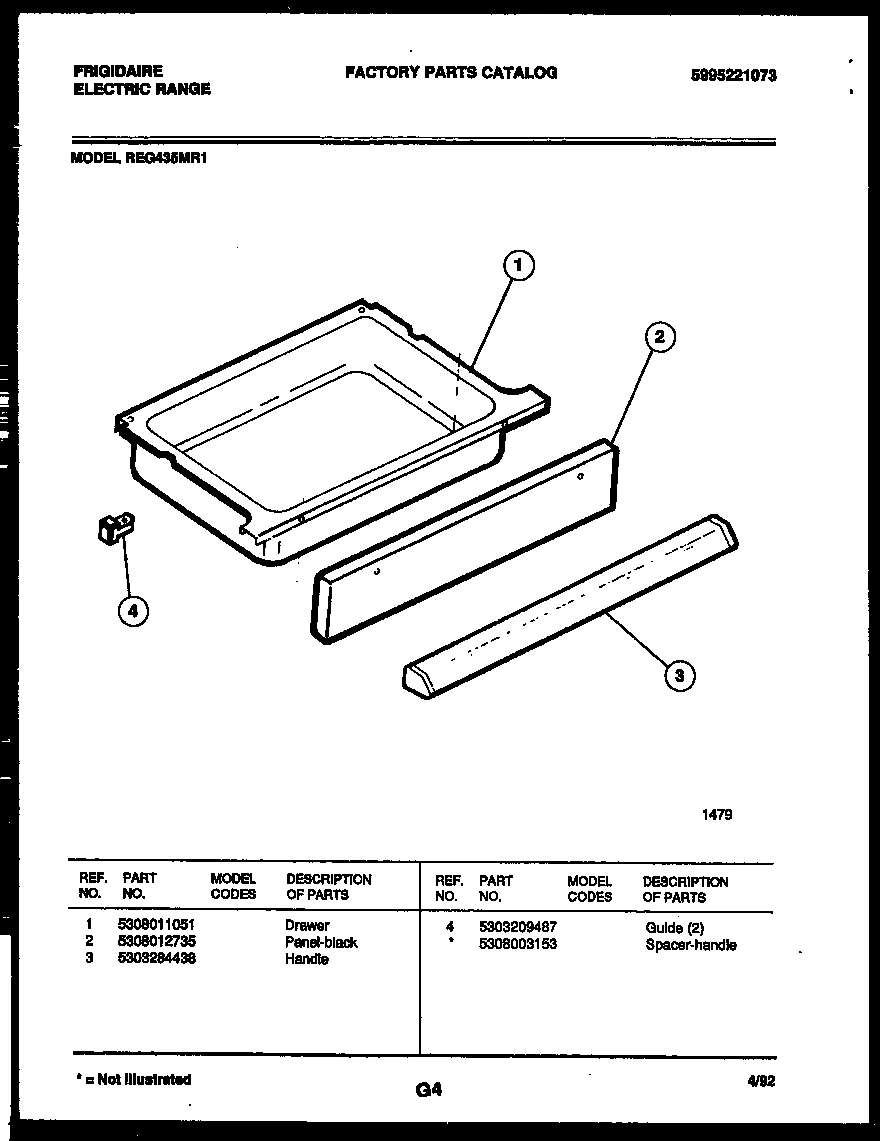

06 - DRAWER PARTS
Common parts from model Electrolux REG435MRW1 RANGE
*60463
INSULATION-OVEN LINER WCI 3051788 Contact Us For Availability
*60463
WCI 316007700 WCI 316007700 Contact Us For Availability
*60464
SPACER HANDLE WCI 5308003153 Contact Us For Availability
1
WCI 5308012546 WCI 5308012546 Contact Us For Availability
1
WCI 316005901 WCI 316005901 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PAN S/U SM (2) WCI 5308003115 Contact Us For Availability
2
WCI 5308015938 WCI 5308015938 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 08012226 Contact Us For Availability
2
WCI 5308012735 WCI 5308012735 Contact Us For Availability
2A
PAN S/U LG (2) WCI 5308003116 Contact Us For Availability
3
TRIM-RING SM (2) WCI 5308003113 Contact Us For Availability
3
LIGHT-SIGNAL S/U WCI 5303051533 Contact Us For Availability
3
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
3
WCI 08008686 WCI 08008686 Contact Us For Availability
3
HANDLE WCI 5303284438 Contact Us For Availability
3A
TRIM-RING LG (2) WCI 5308003114 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
TOP-CHROME WCI 5303051802 Contact Us For Availability
4
WCI 5303269674 WCI 5303269674 Contact Us For Availability
4
WCI 5308015935 WCI 5308015935 Contact Us For Availability
5
WCI 5303051704 WCI 5303051704 Contact Us For Availability
5
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
5
INSULATION-OVEN VENT WCI 3051523 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
ROD-SWITCH WCI 3051645 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 08007444 WCI 08007444 Contact Us For Availability
8
COLLAR-GLASS WELDMENT WCI 5303269564 Contact Us For Availability
8
WCI 5303284444 WCI 5303284444 Contact Us For Availability
9
SUPPORT-BR ELEMENT WCI 3051518 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
WCI 5303051553 WCI 5303051553 Contact Us For Availability
10
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
10
WCI 5303207187 WCI 5303207187 Contact Us For Availability
10
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
11
WCI 316005500 WCI 316005500 Contact Us For Availability
11
WCI 3051807 WCI 3051807 Contact Us For Availability
11
BRACKET-DOOR SW WCI 3051643 Contact Us For Availability
12
WCI 08002868 WCI 08002868 Contact Us For Availability
12
BACK-UPPER WCI 5303286183 Contact Us For Availability
13
WCI 316007800 WCI 316007800 Contact Us For Availability
13
WCI 3017468 WCI 3017468 Contact Us For Availability
13
WCI 5303284443 WCI 5303284443 Contact Us For Availability
14
WCI 316005600 WCI 316005600 Contact Us For Availability
14
DOOR HINGE ASSY (2) WCI 5303210232 Contact Us For Availability
14
INSULATION-WRAP WCI 5303051630 Contact Us For Availability
15
WCI 5308003186 WCI 5308003186 Contact Us For Availability
15
INSULATION-BACK WCI 08013680 Contact Us For Availability
16
WCI 5303286188 WCI 5303286188 Contact Us For Availability
16
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
17
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
BACK WCI 5303280344 Contact Us For Availability
18
WCI 5303269570 WCI 5303269570 Contact Us For Availability
19
GASKET-GLASS WCI 5303269535 Contact Us For Availability
20
WCI 5303269530 WCI 5303269530 Contact Us For Availability
20
PLATE-MTG WCI 3203574 Contact Us For Availability
21
TUBE-OVEN VENT WCI 3051773 Contact Us For Availability
22
WCI 3051634 WCI 3051634 Contact Us For Availability
23
PLATE-FILTER WCI 3051827 Contact Us For Availability
24
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
27
SHIELD-BOTTOM WCI 3205124 Contact Us For Availability
28
WCI 08012722 WCI 08012722 Contact Us For Availability
29
GLIDE-FRONT WCI 3051654 Contact Us For Availability
30
RAIL-DRWR RH WCI 5308015746 Contact Us For Availability
30A
RAIL-DRWR LH WCI 3051652 Contact Us For Availability
31
SPACER-DRWR GLIDE (2) WCI 3051653 Contact Us For Availability
32
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
32A
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
33
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
34
HOUSING-LIGHT WCI 5303271606 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
WCI 5303131356 WCI 5303131356 Contact Us For Availability
40
PAN-BROILER WCI 5303013568 Contact Us For Availability
41A
RACK-OFFSET WCI 08014219 Contact Us For Availability
42
WCI 5303271102 WCI 5303271102 Contact Us For Availability
43
BAR-PUSH WCI 3051649 Contact Us For Availability
44
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
45
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
WCI 5303284446 WCI 5303284446 Contact Us For Availability
48
BUTTON-PLUG WCI 3204825 Contact Us For Availability
49
BUTTON-PLUG WCI 3204817 Contact Us For Availability
50
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
51
RETAINER-COUNTER WT WCI 5303280340 Contact Us For Availability
51A
WCI 3931015 WCI 3931015 Contact Us For Availability
52
WCI 3051810 WCI 3051810 Contact Us For Availability
53
WCI 5308012004 WCI 5308012004 Contact Us For Availability
54
CEMENT-COUNTER WT WCI 5303280341 Contact Us For Availability
55
WCI 5303284447 WCI 5303284447 Contact Us For Availability
56
WCI 316017600 WCI 316017600 Contact Us For Availability
57
WCI 5303284448 WCI 5303284448 Contact Us For Availability
× ![]()
