Model Electrolux REG433MNW4 RANGE – Common Parts & Diagrams

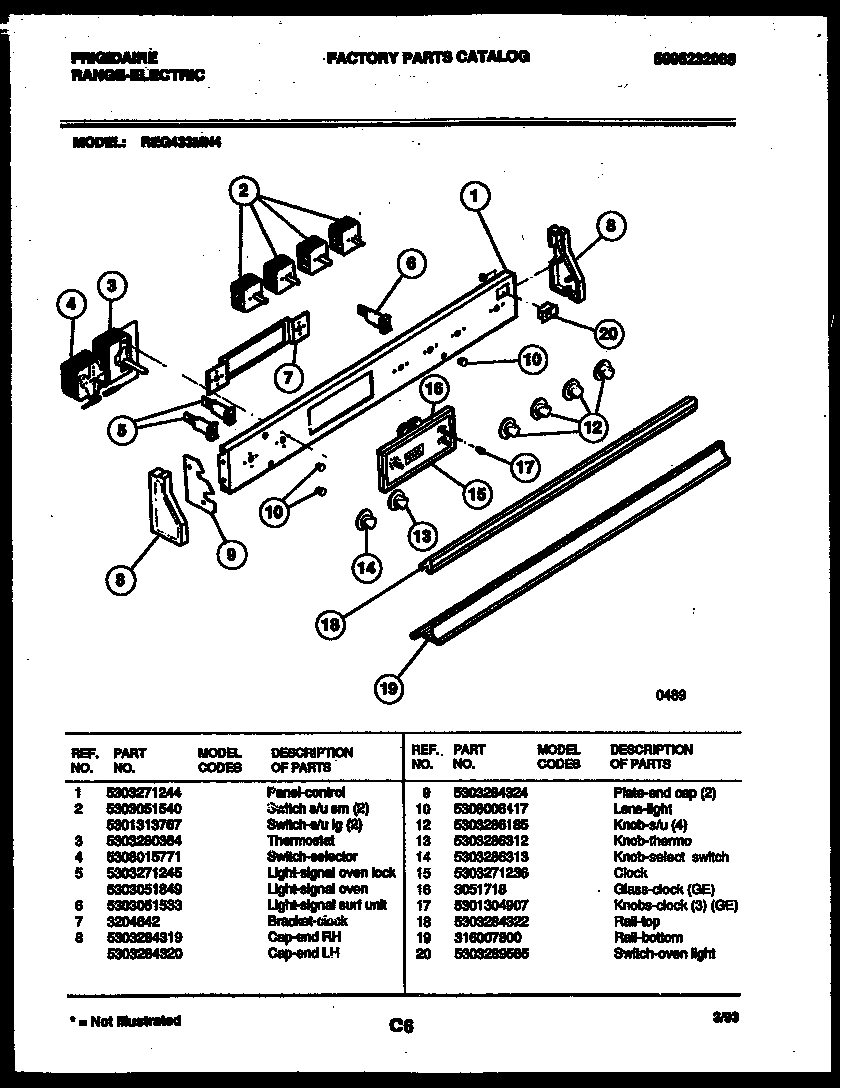

02 - CONTROL PANEL

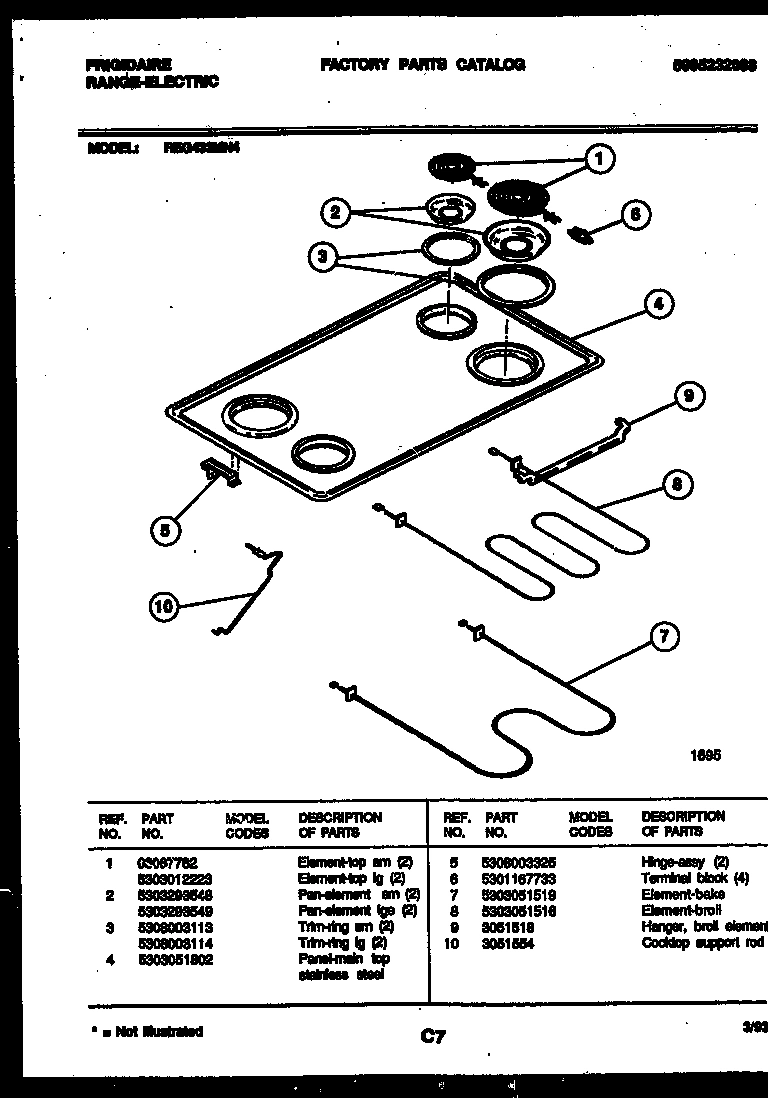

03 - COOKTOP AND BROILER PARTS

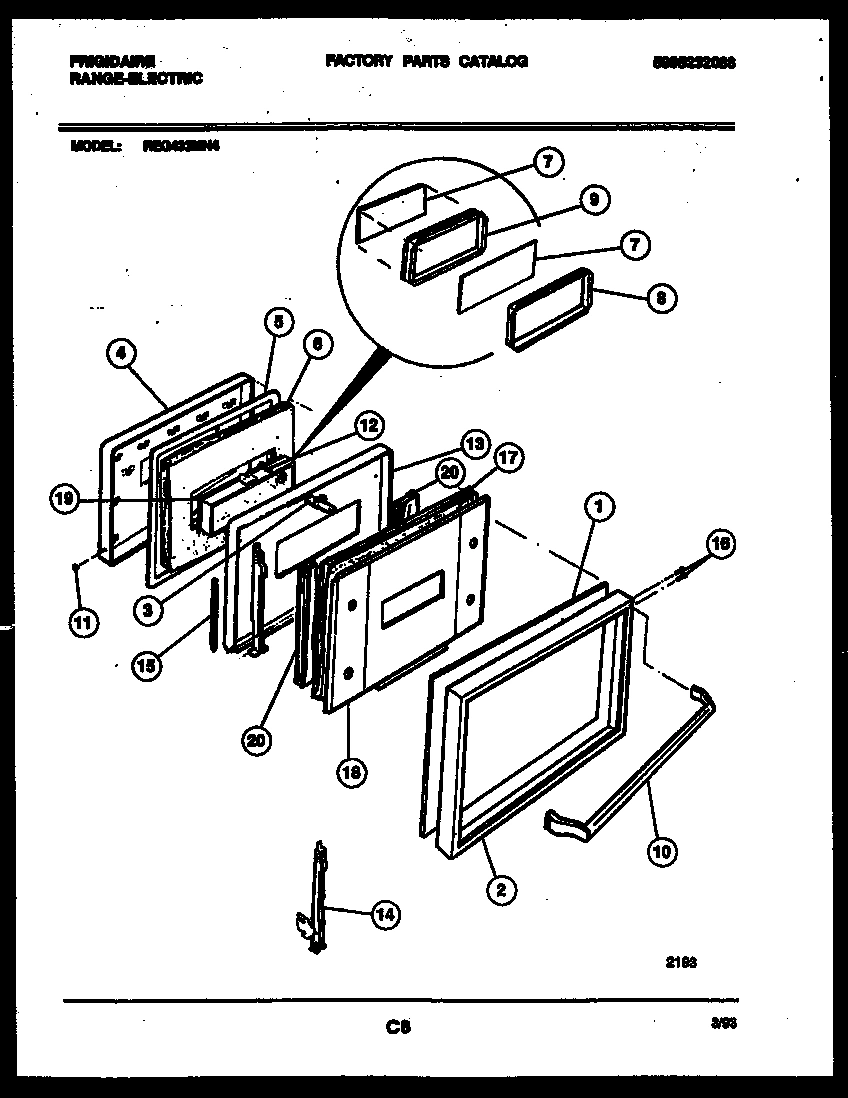

04 - DOOR PARTS

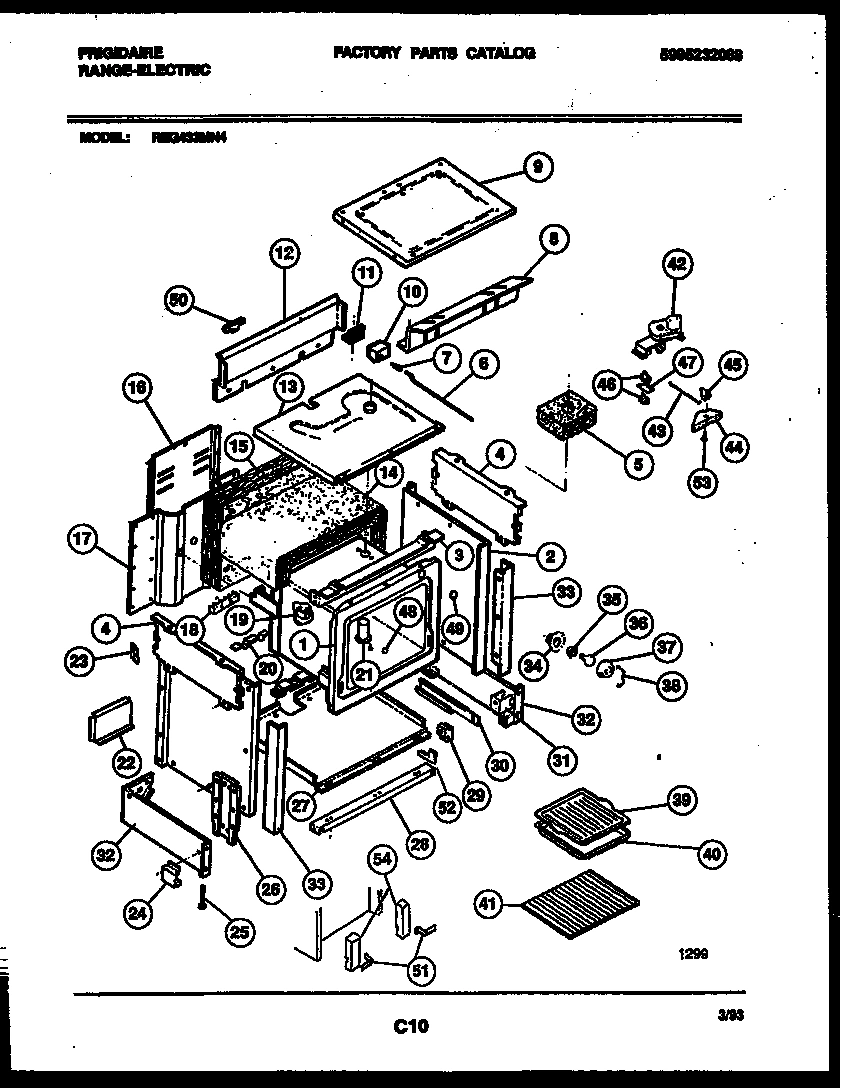

05 - BODY PARTS

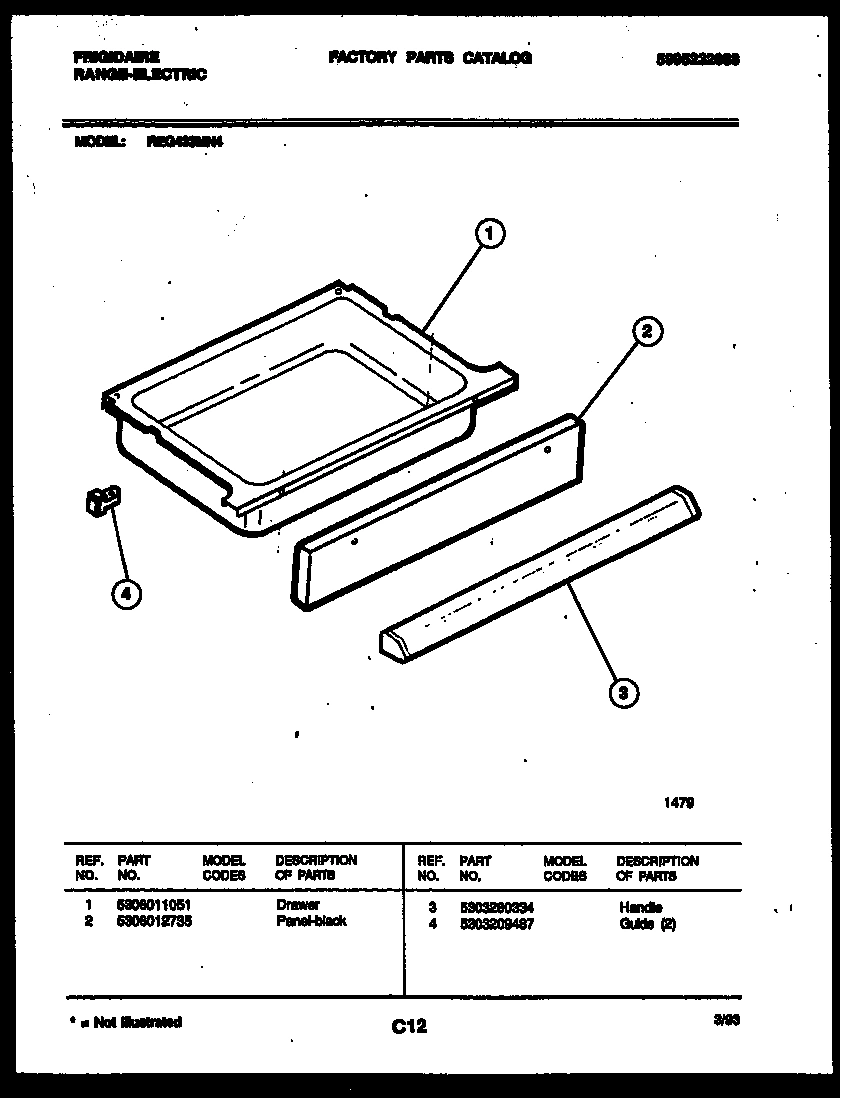

06 - DRAWER PARTS
Common parts from model Electrolux REG433MNW4 RANGE
*75079
WCI 19100210114 WCI 19100210114 Contact Us For Availability
*75079
ANTI-TIP KIT WCI 3931015 Contact Us For Availability
1
WCI 5308012546 WCI 5308012546 Contact Us For Availability
1
WCI 5303293899 WCI 5303293899 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PAN-ELEMENT SM (2) WCI 5303293548 Contact Us For Availability
2
WCI 5303206826 WCI 5303206826 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 08012226 Contact Us For Availability
2
WCI 5308012735 WCI 5308012735 Contact Us For Availability
2A
PAN-ELEMENT LGE (2) WCI 5303293549 Contact Us For Availability
3
TRIM-RING SM (2) WCI 5308003113 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
WCI 5303293413 WCI 5303293413 Contact Us For Availability
3
HANDLE WCI 5303280334 Contact Us For Availability
3A
TRIM-RING LG (2) WCI 5308003114 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
PANEL-MAIN TOP STAINLESS STEEL WCI 5303051802 Contact Us For Availability
4
WCI 5303293391 WCI 5303293391 Contact Us For Availability
4
WCI 5308015935 WCI 5308015935 Contact Us For Availability
5
WCI 5303051704 WCI 5303051704 Contact Us For Availability
5
WCI 5308003325 WCI 5308003325 Contact Us For Availability
5
INSULATION-VENT TUBE WCI 3008673 Contact Us For Availability
6
LIGHT-SIGNAL SURF UNIT WCI 5303051533 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
PUSH ROD-SWITCH WCI 3051645 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 08007444 WCI 08007444 Contact Us For Availability
8
COLLAR-GLASS WELDMENT WCI 5303269564 Contact Us For Availability
8
WCI 316039801 WCI 316039801 Contact Us For Availability
9
HANGER, BROIL ELEMENT WCI 3051518 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
WCI 5303293414 WCI 5303293414 Contact Us For Availability
10
LENS-LIGHT WCI 5308006417 Contact Us For Availability
10
COOKTOP SUPPORT ROD WCI 3051554 Contact Us For Availability
10
WCI 5303207187 WCI 5303207187 Contact Us For Availability
10
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
11
WCI 3051807 WCI 3051807 Contact Us For Availability
11
BRACKET, DOOR SWITCH WCI 3051643 Contact Us For Availability
12
SCREW 10-24 X 5/8 WCI 5303292012 Contact Us For Availability
12
WCI 5303286183 WCI 5303286183 Contact Us For Availability
13
WCI 5303293392 WCI 5303293392 Contact Us For Availability
13
RETAINER-INSULATION TOP WCI 5303294767 Contact Us For Availability
14
KNOB-SELECT SWITCH WCI 5303286313 Contact Us For Availability
14
DOOR HINGE ASSY WCI 5303210232 Contact Us For Availability
14
OVEN WRAPPER INSULATION WCI 3051521 Contact Us For Availability
15
WCI 5303271236 WCI 5303271236 Contact Us For Availability
15
WCI 08003264 WCI 08003264 Contact Us For Availability
15
OVEN BACK INSULATION WCI 5303051630 Contact Us For Availability
16
WCI 5303051860 WCI 5303051860 Contact Us For Availability
16
GLASS-CLOCK (G.E.) WCI 3051718 Contact Us For Availability
16
WIRING COVER WCI 5303051586 Contact Us For Availability
17
KNOBS-CLOCK (3) (GE) WCI 5301304907 Contact Us For Availability
17
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
WCI 5303280344 WCI 5303280344 Contact Us For Availability
18
WCI 5303284322 WCI 5303284322 Contact Us For Availability
18
WCI 5303269570 WCI 5303269570 Contact Us For Availability
19
WCI 316007800 WCI 316007800 Contact Us For Availability
19
GASKET-GLASS WCI 5303269535 Contact Us For Availability
19
THERMOSTAT BULB BRACKET WCI 3051552 Contact Us For Availability
20
WCI 5303289585 WCI 5303289585 Contact Us For Availability
20
WCI 5303269530 WCI 5303269530 Contact Us For Availability
20
WCI 3203574 WCI 3203574 Contact Us For Availability
21
WCI 3051773 WCI 3051773 Contact Us For Availability
22
WCI 3051634 WCI 3051634 Contact Us For Availability
23
WCI 3051827 WCI 3051827 Contact Us For Availability
24
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
27
SHIELD-BOTTOM WCI 3205124 Contact Us For Availability
28
WCI 08012722 WCI 08012722 Contact Us For Availability
29
DRAWER GLIDEW WCI 3051654 Contact Us For Availability
30
DRAWER RAIL-RIGHT WCI 5308015746 Contact Us For Availability
30A
DRAWER RAIL-LEFT WCI 3051652 Contact Us For Availability
31
SPACER-DRAWER GLIDE (2) WCI 3051653 Contact Us For Availability
32
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
32A
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
33
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
34
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
WCI 5303293415 WCI 5303293415 Contact Us For Availability
40
WCI 5303293446 WCI 5303293446 Contact Us For Availability
41A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
42
MOTOR LATCH ASSY WCI 5308015743 Contact Us For Availability
43
WCI 3051649 WCI 3051649 Contact Us For Availability
44
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
45
LATCH-DOOR WCI 3051648 Contact Us For Availability
46
SWITCH-TOP - BOTTOM WCI 5308006582 Contact Us For Availability
48
WCI 3204825 WCI 3204825 Contact Us For Availability
49
WCI 3204817 WCI 3204817 Contact Us For Availability
50
BRACKET-HNG SUPPORT WCI 3051800 Contact Us For Availability
51
WCI 5303280340 WCI 5303280340 Contact Us For Availability
52
WCI 3051810 WCI 3051810 Contact Us For Availability
53
AXLE WCI 5308012004 Contact Us For Availability
54
WCI 5303280341 WCI 5303280341 Contact Us For Availability
× ![]()
