Model Electrolux REG433MNW1 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP AND BROILER PARTS

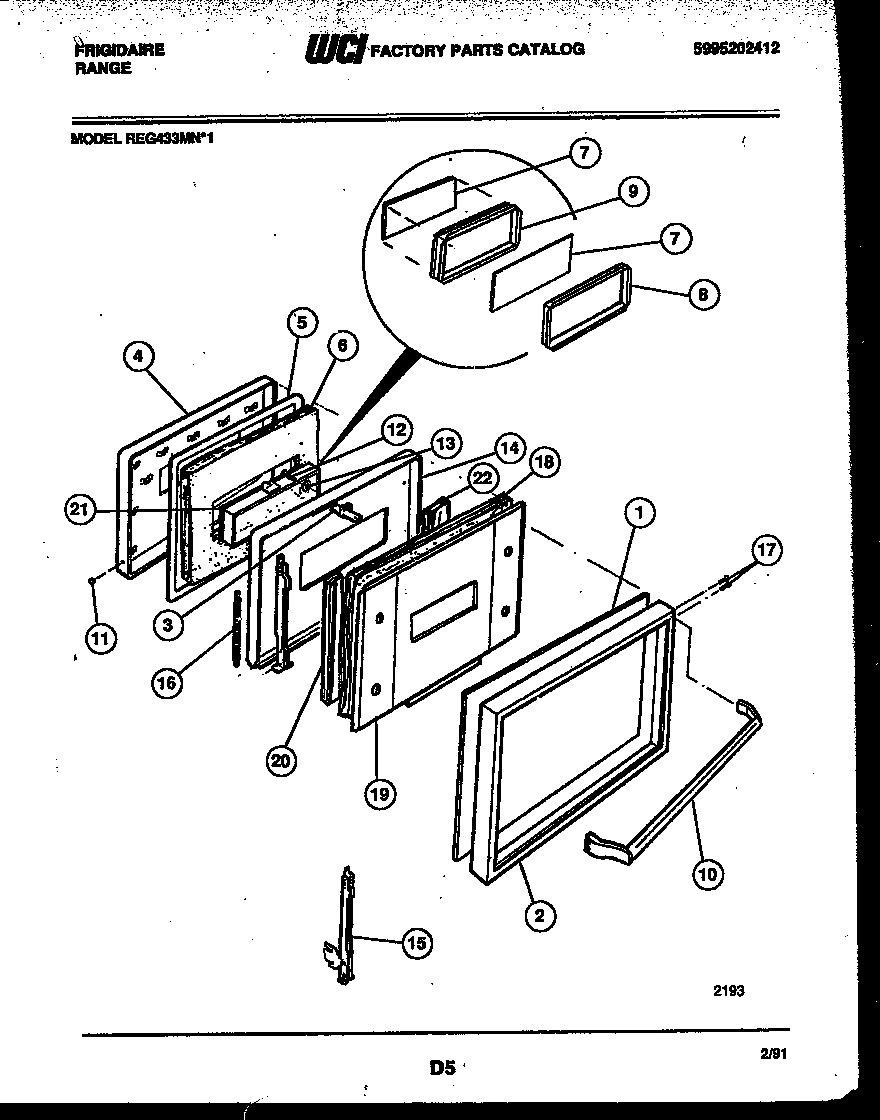

04 - DOOR PARTS

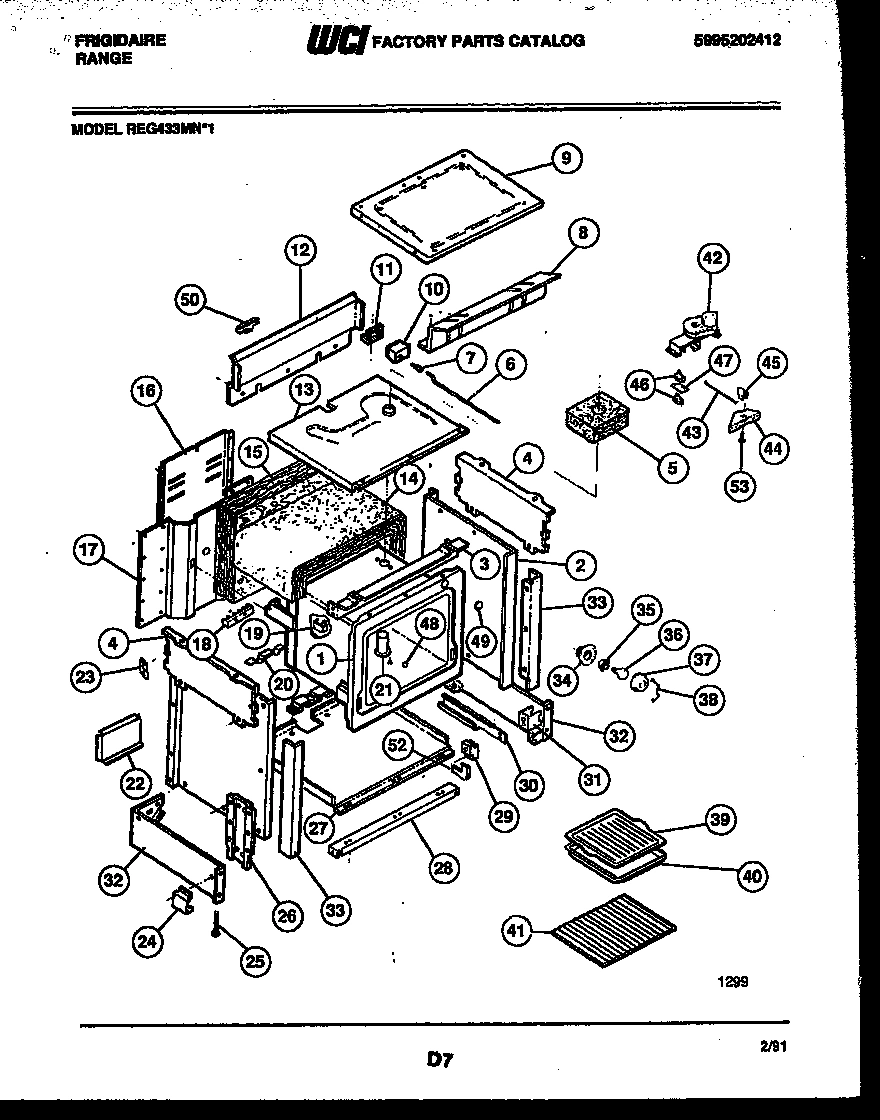

05 - BODY PARTS

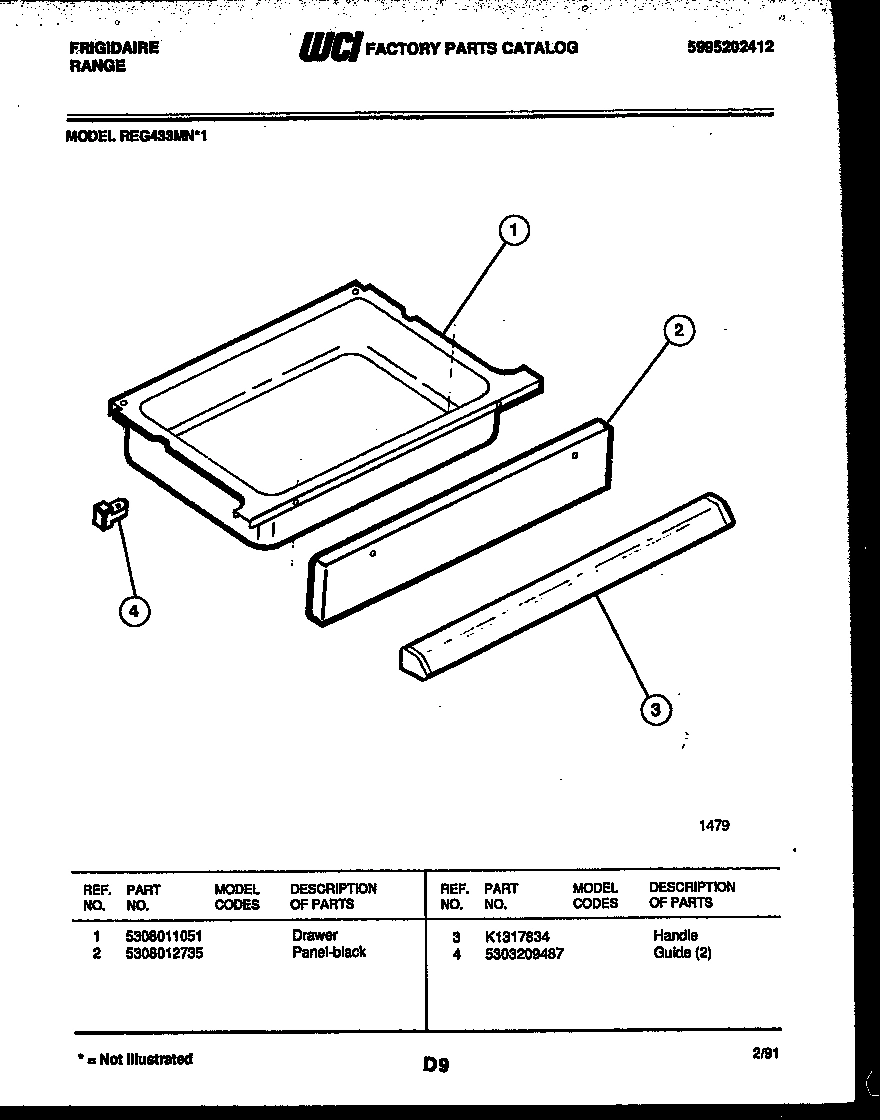

06 - DRAWER PARTS
Common parts from model Electrolux REG433MNW1 RANGE
*41844
WIRING DIAGRAM SEE (NOT FOR PURCHASE) WCI 19100210114 Contact Us For Availability
1
WCI 5308012546 WCI 5308012546 Contact Us For Availability
1
WCI 3204607 WCI 3204607 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PAN S/U SM (2) WCI 3018311 Contact Us For Availability
2
WCI 5308015938 WCI 5308015938 Contact Us For Availability
2
SHIELD-INSULATION (2) WCI 08012226 Contact Us For Availability
2
WCI 5308012735 WCI 5308012735 Contact Us For Availability
2A
PAN-S/U LGE (2) WCI 3018310 Contact Us For Availability
3
TRIM-RING SM (2) WCI 5308003113 Contact Us For Availability
3
STRIKE-DOOR WCI 5301167830 Contact Us For Availability
3
WCI 08008686 WCI 08008686 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
3A
TRIM-RING LG (2) WCI 5308003114 Contact Us For Availability
4
GUIDE (2) WCI 5303209487 Contact Us For Availability
4
TOP-MAIN STAINLESS STEEL WCI 5303051802 Contact Us For Availability
4
WCI 5303269674 WCI 5303269674 Contact Us For Availability
4
WCI 5308015935 WCI 5308015935 Contact Us For Availability
5
WCI 5303051704 WCI 5303051704 Contact Us For Availability
5
LIGHT-SIGNAL OVEN WCI 5303051533 Contact Us For Availability
5
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
5
INSULATION-OVEN VENT WCI 3051523 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
6
ROD-SWITCH WCI 3051645 Contact Us For Availability
7
WCI 5303209512 WCI 5303209512 Contact Us For Availability
7
WCI 08007444 WCI 08007444 Contact Us For Availability
8
COLLAR-GLASS WELDMENT WCI 5303269564 Contact Us For Availability
8
WCI 5303271384 WCI 5303271384 Contact Us For Availability
9
SUPPORT-BR ELEMENT WCI 3051518 Contact Us For Availability
9
WCI 5303269679 WCI 5303269679 Contact Us For Availability
9
WCI 5303051553 WCI 5303051553 Contact Us For Availability
10
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
10
WCI 5303207187 WCI 5303207187 Contact Us For Availability
10
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
11
WCI 3051807 WCI 3051807 Contact Us For Availability
11
BRACKET-DOOR SW WCI 3051643 Contact Us For Availability
12
WCI 08002868 WCI 08002868 Contact Us For Availability
12
BACK-UPPER WCI 5308008689 Contact Us For Availability
13
WCI 5303271250 WCI 5303271250 Contact Us For Availability
13
WASHER-PADDED (2) WCI 3051785 Contact Us For Availability
13
RETAINER-INSULATION WCI 3051782 Contact Us For Availability
14
WCI 5303271249 WCI 5303271249 Contact Us For Availability
14
WCI 3017468 WCI 3017468 Contact Us For Availability
14
INSULATION-WRAP WCI 5303051630 Contact Us For Availability
15
WCI 5303271236 WCI 5303271236 Contact Us For Availability
15
DOOR HINGE ASSY (2) WCI 5303210232 Contact Us For Availability
15
INSULATION-BACK WCI 08013680 Contact Us For Availability
16
WCI 3051718 WCI 3051718 Contact Us For Availability
16
WCI 5308003186 WCI 5308003186 Contact Us For Availability
16
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
17
WCI 5303051860 WCI 5303051860 Contact Us For Availability
17
KNOBS-CLOCK WCI 5301304907 Contact Us For Availability
17
BACK WCI 3204649 Contact Us For Availability
18
WCI K5146401 WCI K5146401 Contact Us For Availability
18
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
19
WCI K5146501 WCI K5146501 Contact Us For Availability
19
WCI 5303269570 WCI 5303269570 Contact Us For Availability
19
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
20
WCI 5308012573 WCI 5308012573 Contact Us For Availability
20
INSULATION, LINER WCI 3051788 Contact Us For Availability
20
WCI 08015961 WCI 08015961 Contact Us For Availability
21
GASKET-GLASS WCI 5303269535 Contact Us For Availability
21
TUBE-OVEN VENT WCI 3051773 Contact Us For Availability
22
INSULATION-AIRWASH WCI 5303269530 Contact Us For Availability
22
WCI 3204824 WCI 3204824 Contact Us For Availability
23
PLATE-FILLER WCI 3051827 Contact Us For Availability
24
WCI 080126736 WCI 080126736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
SUPPORT-FRONT (2) WCI 3051776 Contact Us For Availability
27
SHIELD-BOTTOM WCI 3205124 Contact Us For Availability
28
WCI 08012722 WCI 08012722 Contact Us For Availability
29
GLIDE-FRONT WCI 3051654 Contact Us For Availability
30
WCI 3204818 WCI 3204818 Contact Us For Availability
30A
WCI 3204819 WCI 3204819 Contact Us For Availability
31
SPACER-DRWR GLIDE (2) WCI 3051634 Contact Us For Availability
32
WCI 5301324082 WCI 5301324082 Contact Us For Availability
32A
WCI 5301324083 WCI 5301324083 Contact Us For Availability
33
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
34
HOUSING - LIGHT WCI 3204816 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
WCI 5303131356 WCI 5303131356 Contact Us For Availability
40
WCI 5303207208 WCI 5303207208 Contact Us For Availability
41A
RACK-OFFSET WCI 08014219 Contact Us For Availability
42
MOTOR-LOCK WCI 5308015743 Contact Us For Availability
43
BAR-PUSH WCI 3051649 Contact Us For Availability
44
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
45
LATCH-DOOR WCI 3051648 Contact Us For Availability
46
SW-DOOR LATCH (2) WCI 08006582 Contact Us For Availability
47
INSULATOR-SW WCI 08003090 Contact Us For Availability
48
BUTTON-PLUG WCI 3204825 Contact Us For Availability
49
BUTTON-PLUG WCI 3204817 Contact Us For Availability
50
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
50A
WCI 3931015 WCI 3931015 Contact Us For Availability
52
WCI 3051810 WCI 3051810 Contact Us For Availability
53
WCI 08012004 WCI 08012004 Contact Us For Availability
× ![]()
