Model Electrolux REG433MDW5 RANGE – Common Parts & Diagrams

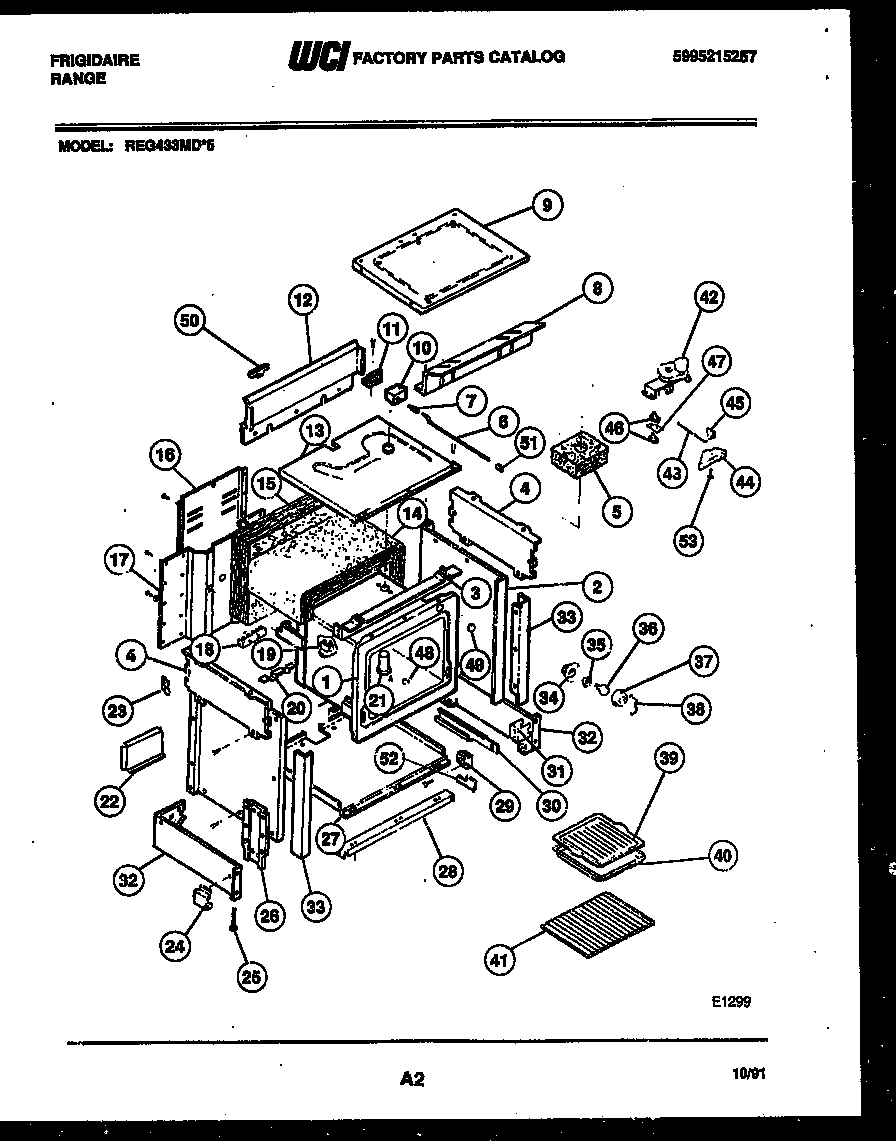

02 - BODY PARTS

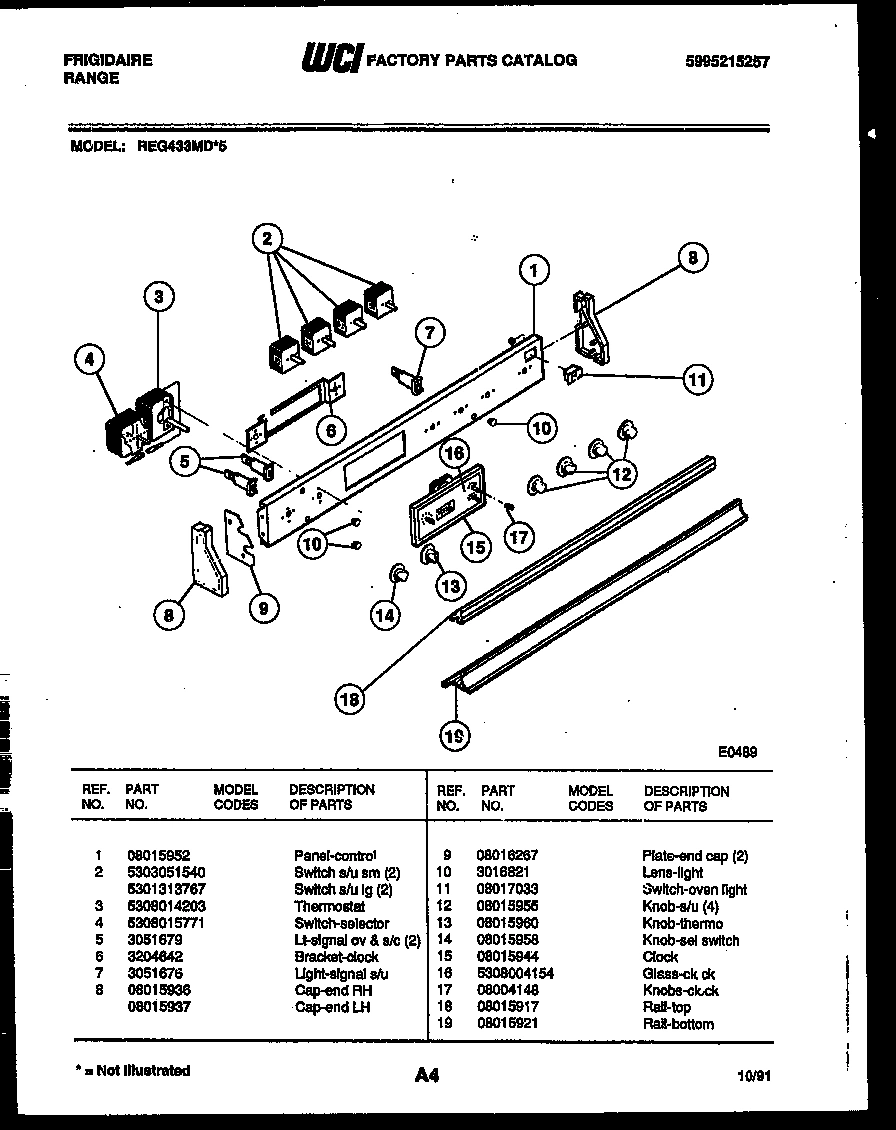

03 - CONTROL PANEL

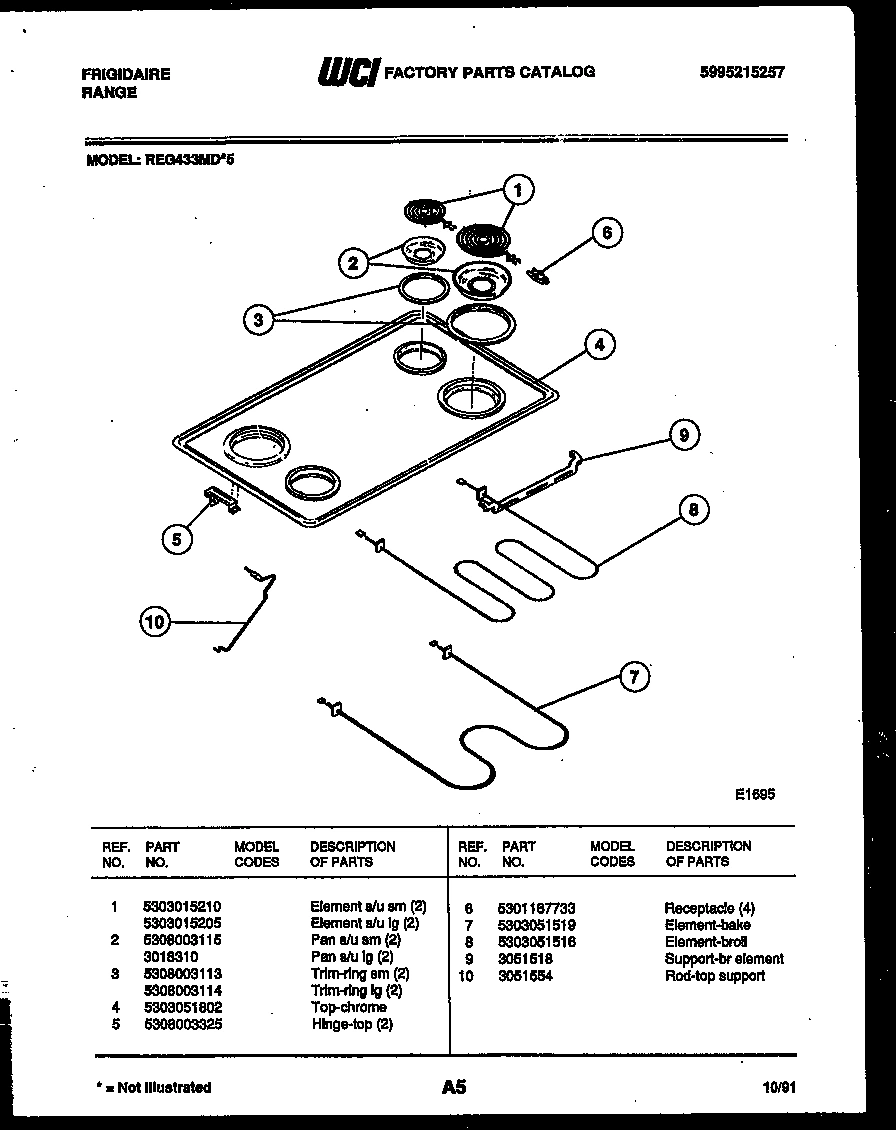

04 - COOKTOP AND BROILER PARTS

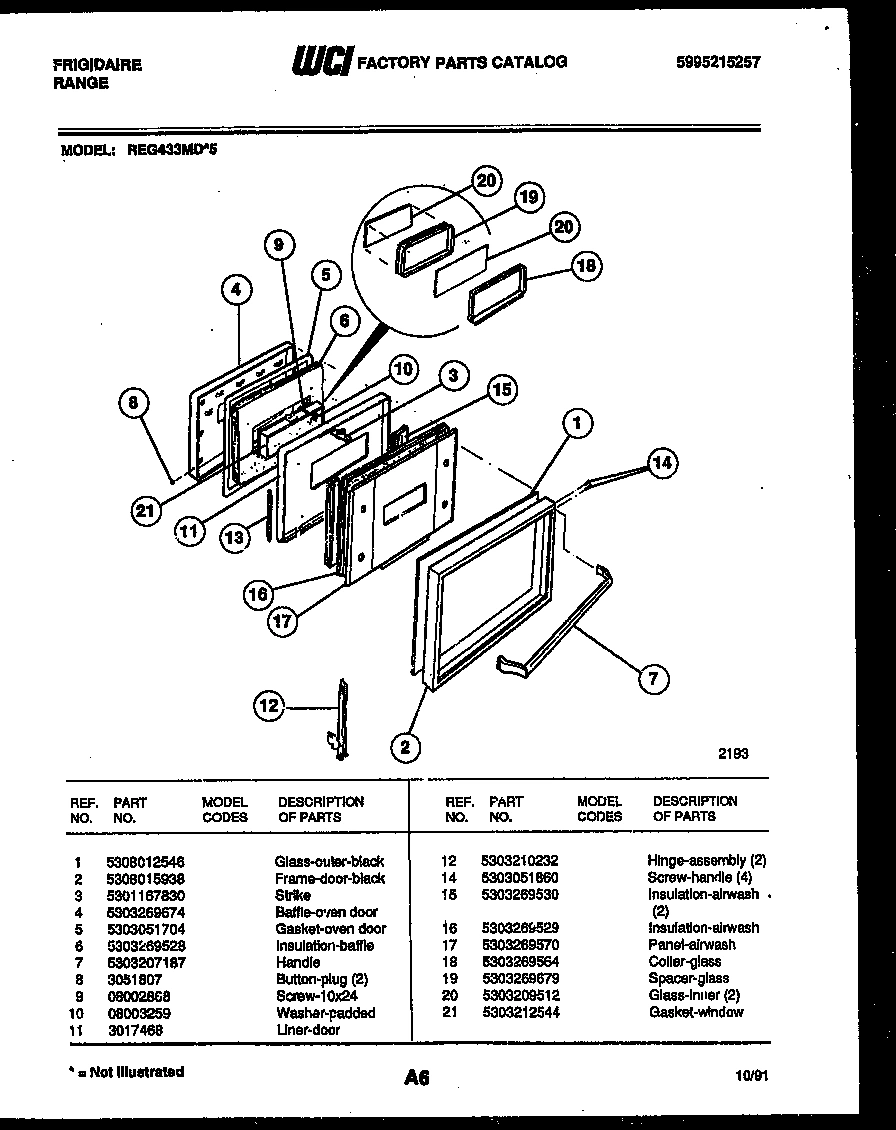

05 - DOOR PARTS

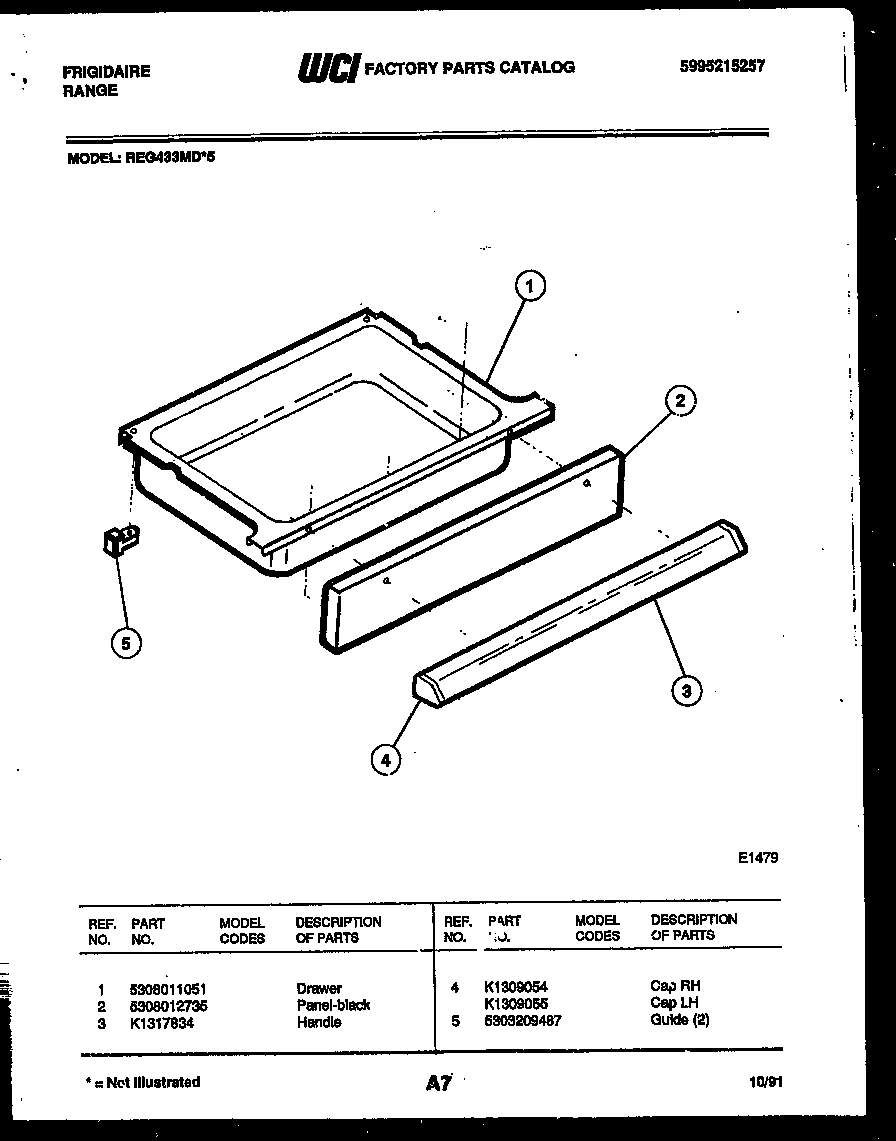

06 - DRAWER PARTS
Common parts from model Electrolux REG433MDW5 RANGE
1
WCI 08015952 WCI 08015952 Contact Us For Availability
1
GLASS, OUTER, BLACK WCI 5308012546 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
PAN S/U SM (2) WCI 5308003115 Contact Us For Availability
2
FRAME-DOOR-BLACK WCI 5308015938 Contact Us For Availability
2
WCI 5308012735 WCI 5308012735 Contact Us For Availability
2A
PAN S/U LG (2) WCI 3018310 Contact Us For Availability
3
TRIM-RING SM (2) WCI 5308003113 Contact Us For Availability
3
WCI 5308014203 WCI 5308014203 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
HANDLE WCI K1317834 Contact Us For Availability
3A
TRIM-RING LG (2) WCI 5308003114 Contact Us For Availability
4
WCI 5308015771 WCI 5308015771 Contact Us For Availability
4
TOP-CHROME WCI 5303051802 Contact Us For Availability
4
WCI 5303269674 WCI 5303269674 Contact Us For Availability
4
CAP RH WCI K1309054 Contact Us For Availability
4A
CAP LH WCI K1309055 Contact Us For Availability
5
WCI 5303051704 WCI 5303051704 Contact Us For Availability
5
GUIDE (2) WCI 5303209487 Contact Us For Availability
5
LT-SIGNAL OV & S/C (2) WCI 3051679 Contact Us For Availability
5
HINGE-TOP (2) WCI 5308003325 Contact Us For Availability
6
WCI 3204642 WCI 3204642 Contact Us For Availability
6
WCI 5303269528 WCI 5303269528 Contact Us For Availability
7
LIGHT-SIGNAL S/U WCI 3051676 Contact Us For Availability
7
WCI 5303207187 WCI 5303207187 Contact Us For Availability
8
CAP, END RH WCI 08015936 Contact Us For Availability
8
WCI 3051807 WCI 3051807 Contact Us For Availability
8A
CAP, END LH WCI 08015937 Contact Us For Availability
9
PLATE, END CAP (2) WCI 08016267 Contact Us For Availability
9
SUPPORT-BR ELEMENT WCI 3051518 Contact Us For Availability
10
LENS-LIGHT WCI 3016821 Contact Us For Availability
10
ROD-TOP SUPPORT WCI 3051554 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
11
WCI 08017033 WCI 08017033 Contact Us For Availability
11
LINER, DOOR WCI 3017468 Contact Us For Availability
12
BACK-UPPER WCI 5308008689 Contact Us For Availability
12
KNOB, S/U (4) WCI 08015955 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303210232 Contact Us For Availability
13
RETAINER-INSULATION WCI 3051782 Contact Us For Availability
13
WCI 08015960 WCI 08015960 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
WCI 08013680 WCI 08013680 Contact Us For Availability
14
WCI 08015958 WCI 08015958 Contact Us For Availability
15
WCI 5303051630 WCI 5303051630 Contact Us For Availability
15
WCI 08015944 WCI 08015944 Contact Us For Availability
15
WCI 5303269530 WCI 5303269530 Contact Us For Availability
16
PANEL - WIRE COVER WCI 3204650 Contact Us For Availability
16
WCI 5308004154 WCI 5308004154 Contact Us For Availability
16
INSULATION-AIRWASH WCI 5303269529 Contact Us For Availability
17
BACK WCI 5303280344 Contact Us For Availability
17
KNOBS-CLOCK WCI 08004148 Contact Us For Availability
17
WCI 5303269570 WCI 5303269570 Contact Us For Availability
18
WCI 08015917 WCI 08015917 Contact Us For Availability
18
WCI 5303269564 WCI 5303269564 Contact Us For Availability
19
BRACKET - THERMO BULB WCI 3051552 Contact Us For Availability
19
WCI 08015921 WCI 08015921 Contact Us For Availability
19
WCI 5303269679 WCI 5303269679 Contact Us For Availability
20
GLASS-INNER (2) WCI 5303209512 Contact Us For Availability
20
BRACKET WCI 5301145190 Contact Us For Availability
21
TUBE-OVEN VENT WCI 3051773 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
22
WCI 3051634 WCI 3051634 Contact Us For Availability
23
PLATE-FILLER WCI 3051827 Contact Us For Availability
24
SHIELD-TOE (2) WCI 08012736 Contact Us For Availability
25
SCREW-LEVELING (4) WCI 5303205540 Contact Us For Availability
26
WCI 5305080001 WCI 5305080001 Contact Us For Availability
27
SHIELD-BOTTOM WCI 3205124 Contact Us For Availability
28
WCI 08012722 WCI 08012722 Contact Us For Availability
29
GLIDE-FRONT WCI 3051654 Contact Us For Availability
30
WCI 3204818 WCI 3204818 Contact Us For Availability
30A
WCI 3204819 WCI 3204819 Contact Us For Availability
31
SPACER-DRWR GLIDE (2) WCI 3051653 Contact Us For Availability
32
PANEL-SIDE RH WCI 5303280349 Contact Us For Availability
32A
PANEL-SIDE LH WCI 5303280351 Contact Us For Availability
33
TRIM, OVEN FRONT (2) WCI 3051777 Contact Us For Availability
34
HOUSING-LIGHT WCI 3051511 Contact Us For Availability
38
RETAINER-LENS WCI 5303205904 Contact Us For Availability
39
WCI 5303131356 WCI 5303131356 Contact Us For Availability
40
PAN-BROILER WCI 5303013568 Contact Us For Availability
41A
RACK-OFFSET WCI 08014219 Contact Us For Availability
42
MOTOR-LOCK WCI 5308015743 Contact Us For Availability
43
BAR-PUSH WCI 3051649 Contact Us For Availability
44
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
45
LATCH-DOOR WCI 3051648 Contact Us For Availability
46
SW-DOOR LATCH (1) WCI 5301167190 Contact Us For Availability
46
SW-DOOR LATCH (1) WCI 5303051740 Contact Us For Availability
47
INSULATOR-SW WCI 08003090 Contact Us For Availability
48
BUTTON-PLUG WCI 3204825 Contact Us For Availability
49
BUTTON-PLUG WCI 3204817 Contact Us For Availability
50
BRKT, HNG SUPPORT WCI 3051800 Contact Us For Availability
51
WCI 3051251 WCI 3051251 Contact Us For Availability
51A
INSULATION-LINER (NON-ILLUSTRATED) WCI 3051788 Contact Us For Availability
52
WCI 3051810 WCI 3051810 Contact Us For Availability
53
WCI 08012004 WCI 08012004 Contact Us For Availability
× ![]()
