Model Electrolux REG38BNW2 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - BROILER PARTS

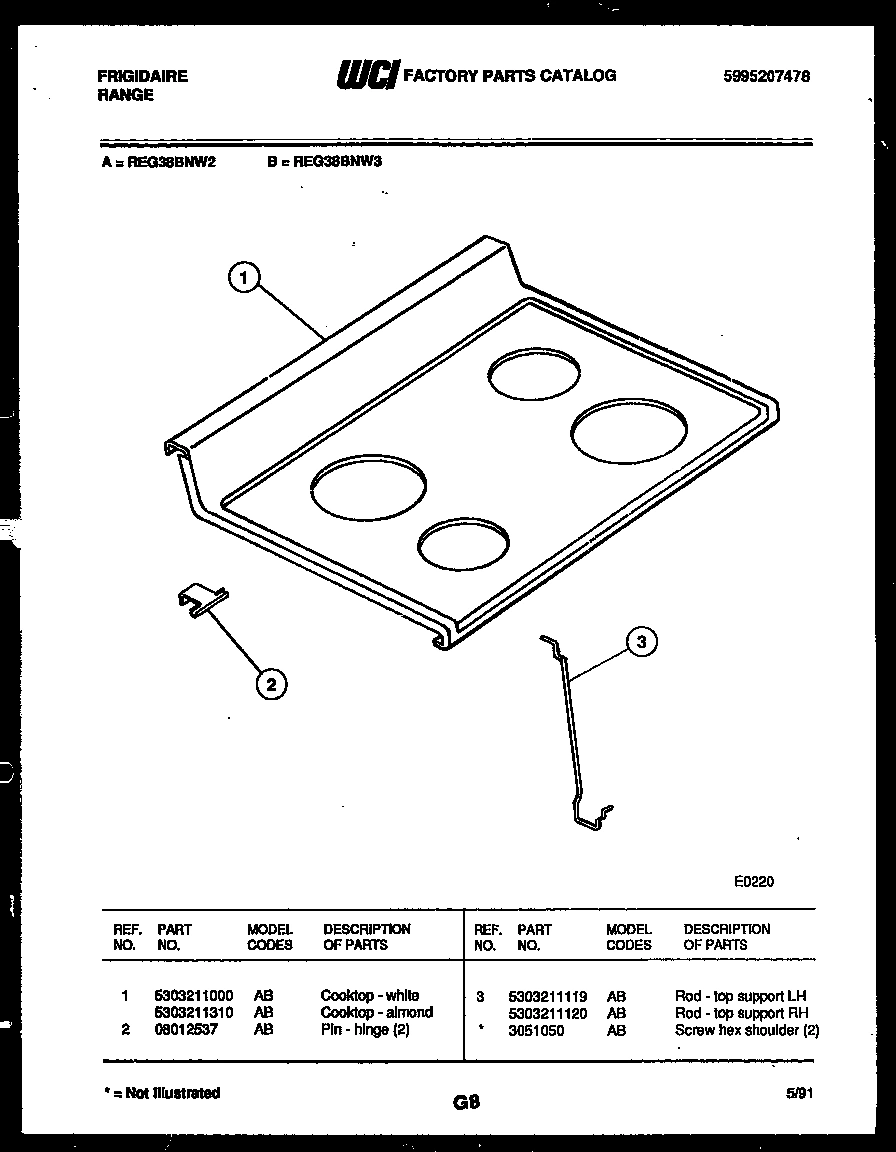

04 - COOKTOP PARTS

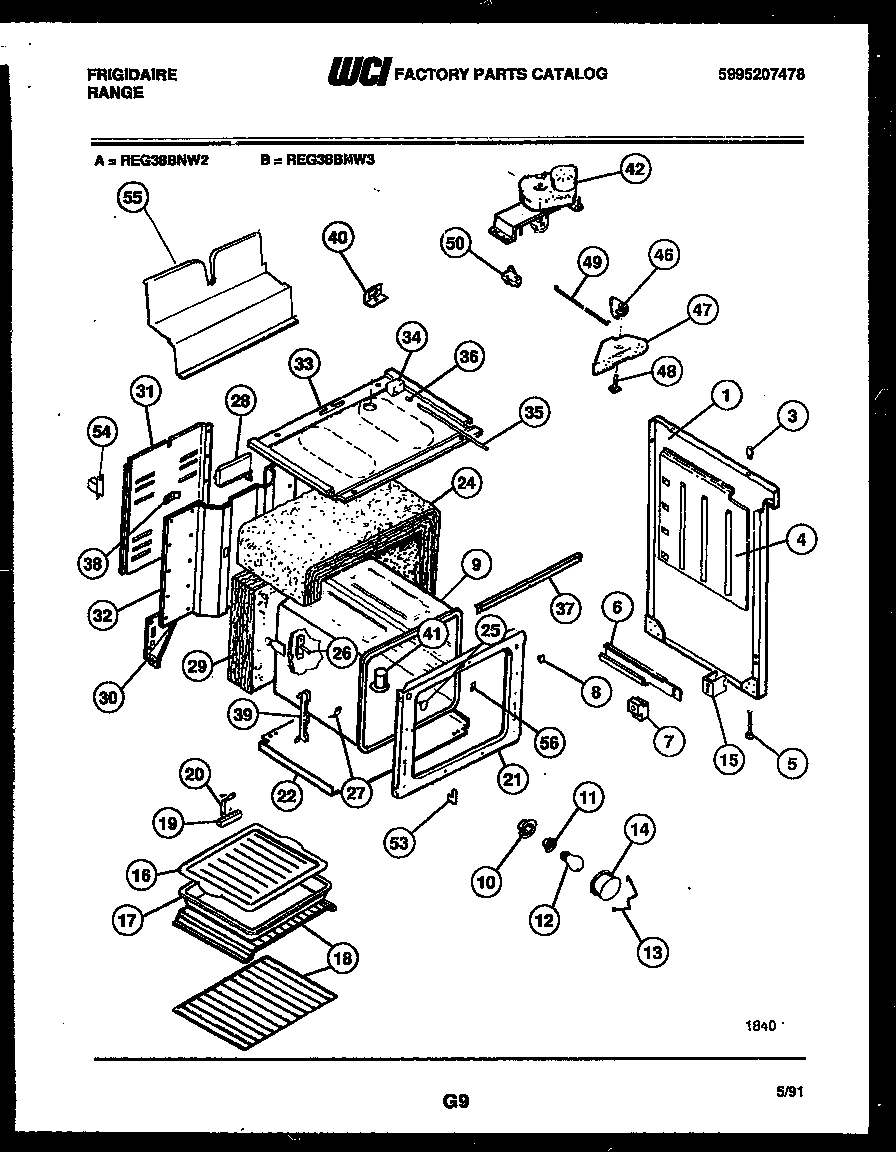

05 - BODY PARTS

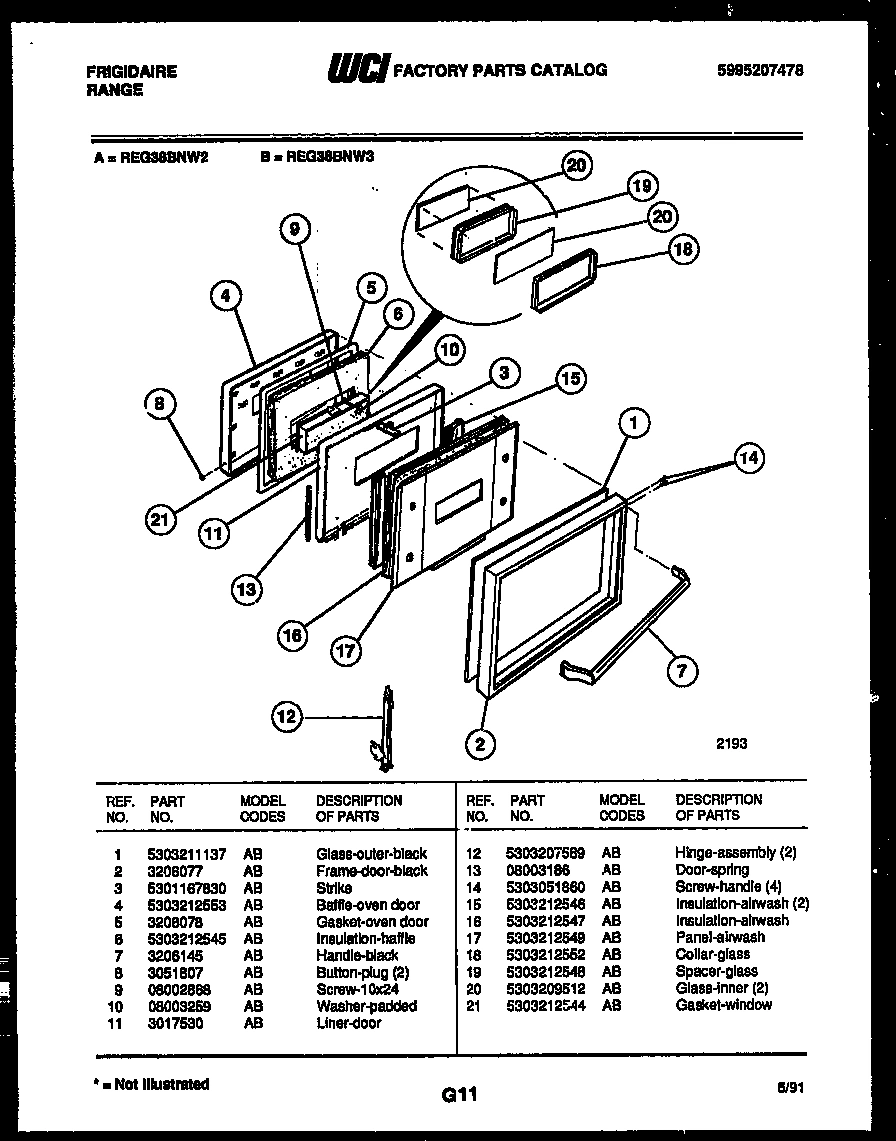

06 - DOOR PARTS

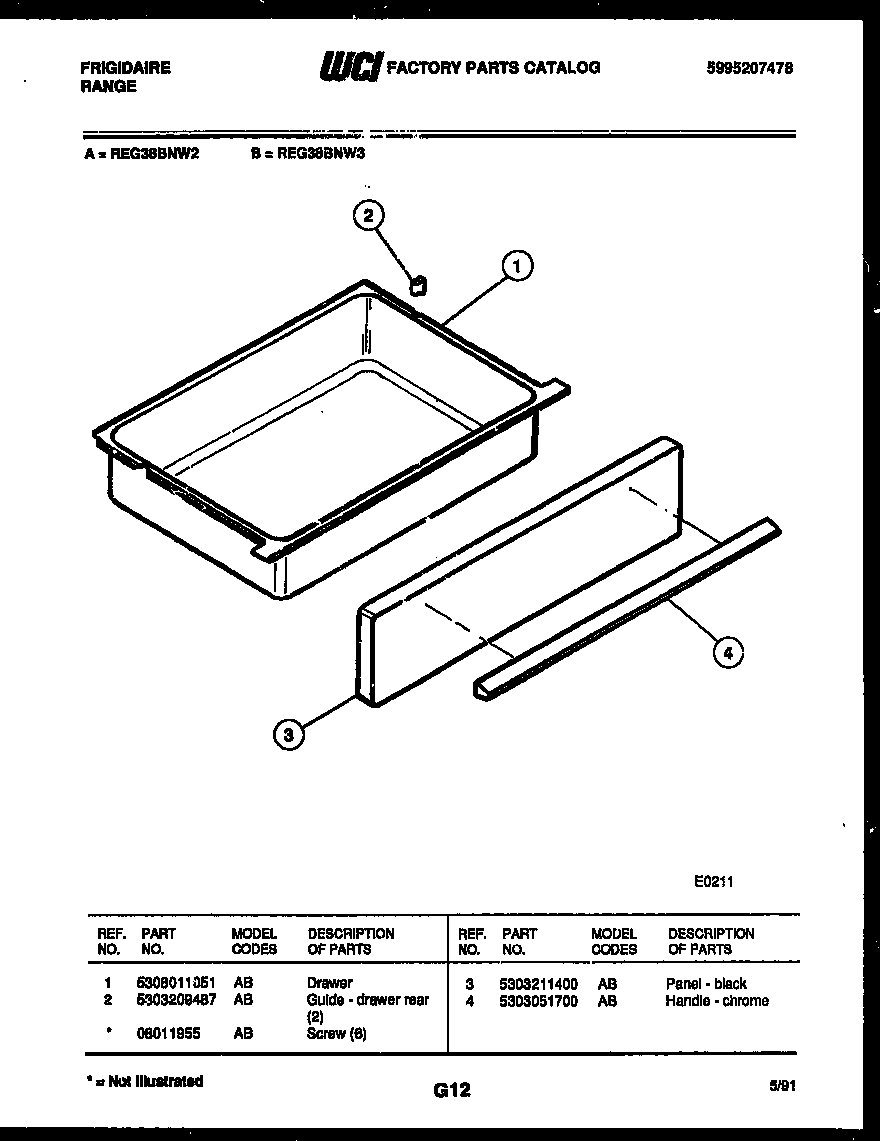

07 - DRAWER PARTS
Common parts from model Electrolux REG38BNW2 RANGE
*46811
WCI 3017801 WCI 3017801 Contact Us For Availability
*46811
SCREW HEX SHOULDER (2) WCI 3051050 Contact Us For Availability
*46816
WCI 3934063 WCI 3934063 Contact Us For Availability
1
COOKTOP - WHITE WCI 5303211000 Contact Us For Availability
1
SIDE PANEL, RH WHITE WCI 5308012527 Contact Us For Availability
1
SIDE PANEL, RH ALMOND WCI 5308012529 Contact Us For Availability
1
WCI 5303211137 WCI 5303211137 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
2
GUIDE - DRAWER REAR (2) WCI 5303209487 Contact Us For Availability
2
WCI 5303210616 WCI 5303210616 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME-DOOR (BLACK) WCI 3206077 Contact Us For Availability
2A
PAN - SURFACE UNIT LG (2) WCI 5303210617 Contact Us For Availability
3
ROD - TOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
WCI 5303211400 WCI 5303211400 Contact Us For Availability
3A
ROD - TOP SUPPORT RH WCI 5303211120 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
4
BAFFLE-OVEN DOOR WCI 5303212553 Contact Us For Availability
4
HANDLE - CHROME WCI 5303051700 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
5
GASKET, OVEN DOOR WCI 3206078 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
GUIDE, DRAWER FRONT (2) WCI 3051654 Contact Us For Availability
7
HANDLE-BLACK WCI 3206145 Contact Us For Availability
8
WCI 5308003113 WCI 5308003113 Contact Us For Availability
8
PLUG, BUTTON 3/4`` (2) WCI 3204817 Contact Us For Availability
8
WCI 3051807 WCI 3051807 Contact Us For Availability
8A
RING - TRIM LG (2) WCI 5308003114 Contact Us For Availability
9
WCI 08002868 WCI 08002868 Contact Us For Availability
9
WCI 5303207514 WCI 5303207514 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WASHER-PADDED WCI 08003259 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3017530 WCI 3017530 Contact Us For Availability
12
TRIM-CONT PANEL (2) WCI 08017099 Contact Us For Availability
12
HINGE-ASSEMBLY (2) WCI 5303207589 Contact Us For Availability
13
WCI 3205213 WCI 3205213 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
13
DOOR - SPRING WCI 08003186 Contact Us For Availability
14
WCI 5303051860 WCI 5303051860 Contact Us For Availability
14
KNOB - CLOCK - GREY WCI 3202378 Contact Us For Availability
15
BUTTON - CLOCK (8) GREY WCI 3202376 Contact Us For Availability
15
SPACER, DRAWER RAIL (2) WCI 3051653 Contact Us For Availability
15
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
16
SWITCH - FLOUR LIGHT & OVEN LIGHT (2) WCI 5308003383 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
16
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
17
NUT-SWITCH (2) WCI 08012572 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
17
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
18
BULB-FLUOR WCI 5308012712 Contact Us For Availability
18
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
18A
RACK-OFFSET WCI 08014219 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
19
WCI 5303212548 WCI 5303212548 Contact Us For Availability
20
GLASS-INNER (2) WCI 5303209512 Contact Us For Availability
20
WCI 5303210112 WCI 5303210112 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 08017089 WCI 08017089 Contact Us For Availability
21
FRAME-FRONT WCI 5303207390 Contact Us For Availability
21
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
22
WCI 08017090 WCI 08017090 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3017796 WCI 3017796 Contact Us For Availability
24
WCI 3017797 WCI 3017797 Contact Us For Availability
25
PLUG-BUTTON-THERM. BULB HOLE WCI 3016334 Contact Us For Availability
26
WCI 08015987 WCI 08015987 Contact Us For Availability
27
WCI 3201632 WCI 3201632 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WIRE, COVER WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
WCI 3205260 WCI 3205260 Contact Us For Availability
35
PUSH ROD SWITCH WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 5303207391 WCI 5303207391 Contact Us For Availability
38
WCI 3016281 WCI 3016281 Contact Us For Availability
39
HINGE - ASSY (2) WCI 3201631 Contact Us For Availability
40
BRACKET-DOOR LATCH SWITCH WCI 3017800 Contact Us For Availability
41
WCI 08012574 WCI 08012574 Contact Us For Availability
42
MOTOR - LATCH WCI 3202381 Contact Us For Availability
46
LATCH-DOOR WCI 3051648 Contact Us For Availability
47
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
48
AXLE WCI 5308012004 Contact Us For Availability
49
WCI 3051649 WCI 3051649 Contact Us For Availability
50
WCI 3202393 WCI 3202393 Contact Us For Availability
53
WCI 3019063 WCI 3019063 Contact Us For Availability
54
WCI 3017556 WCI 3017556 Contact Us For Availability
55
WCI 3206095 WCI 3206095 Contact Us For Availability
56
WCI 3202082 WCI 3202082 Contact Us For Availability
× ![]()
