Model Electrolux REG36AA4 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

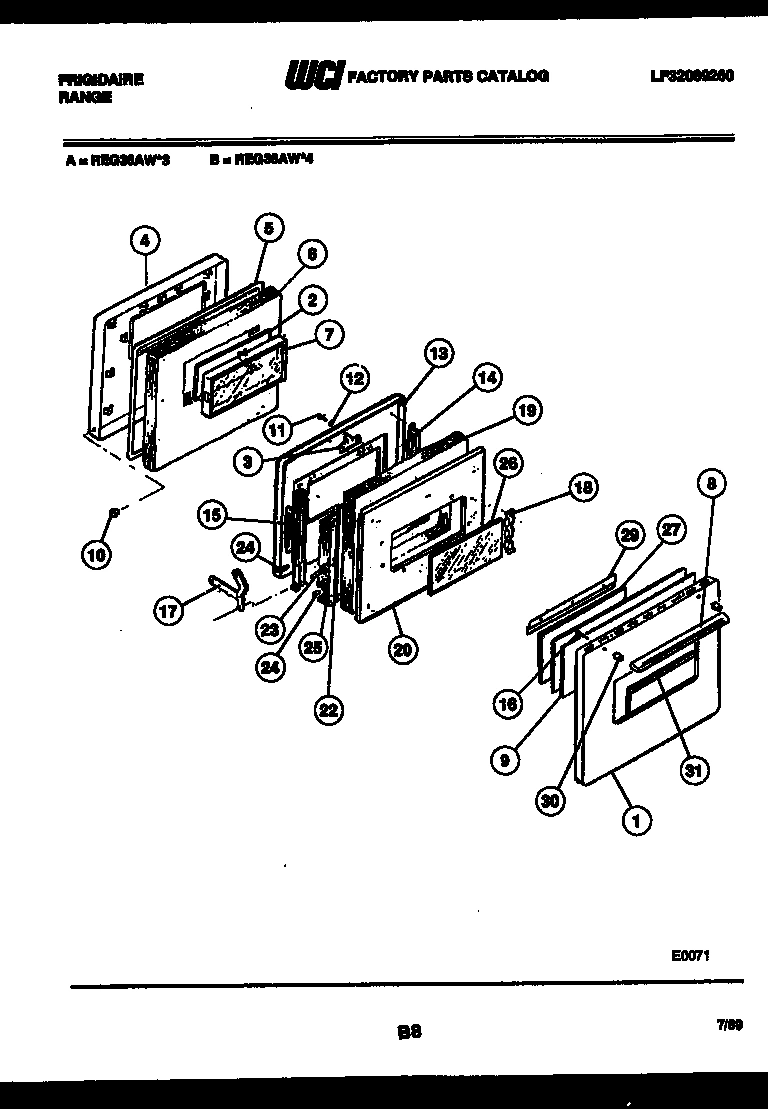

04 - DOOR PARTS

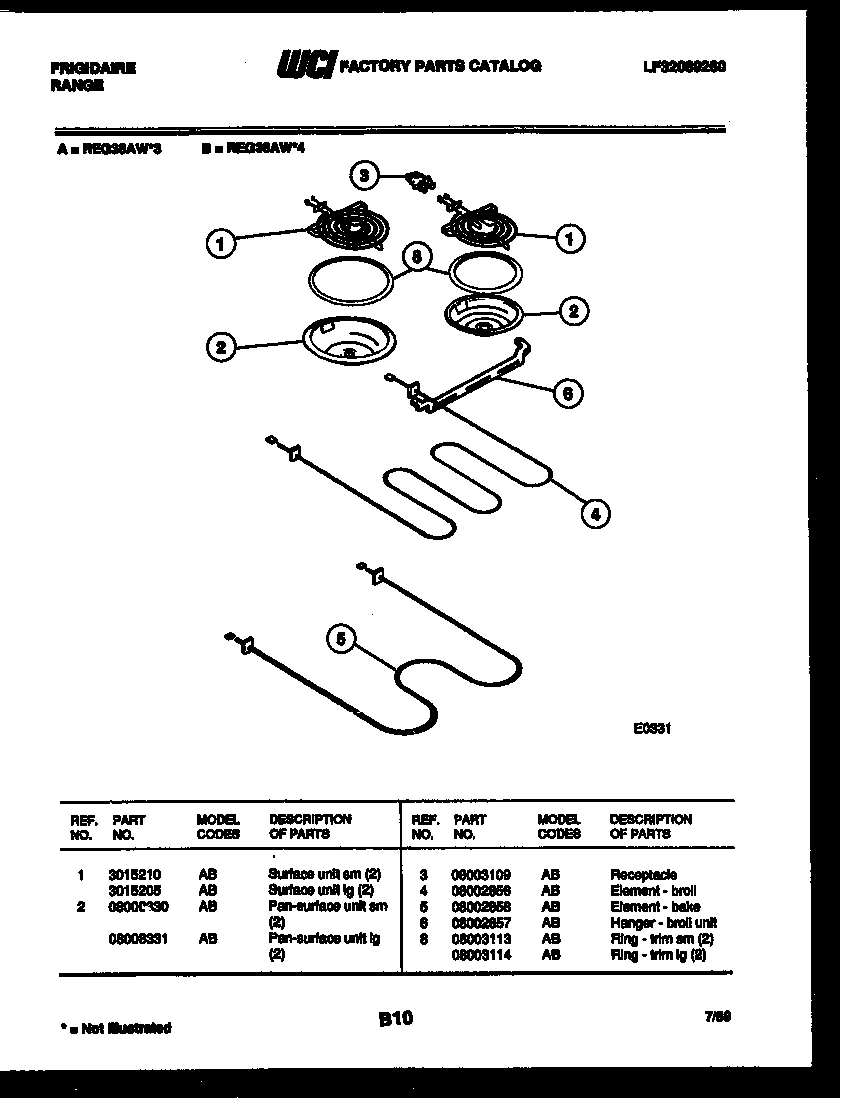

05 - BROILER PARTS

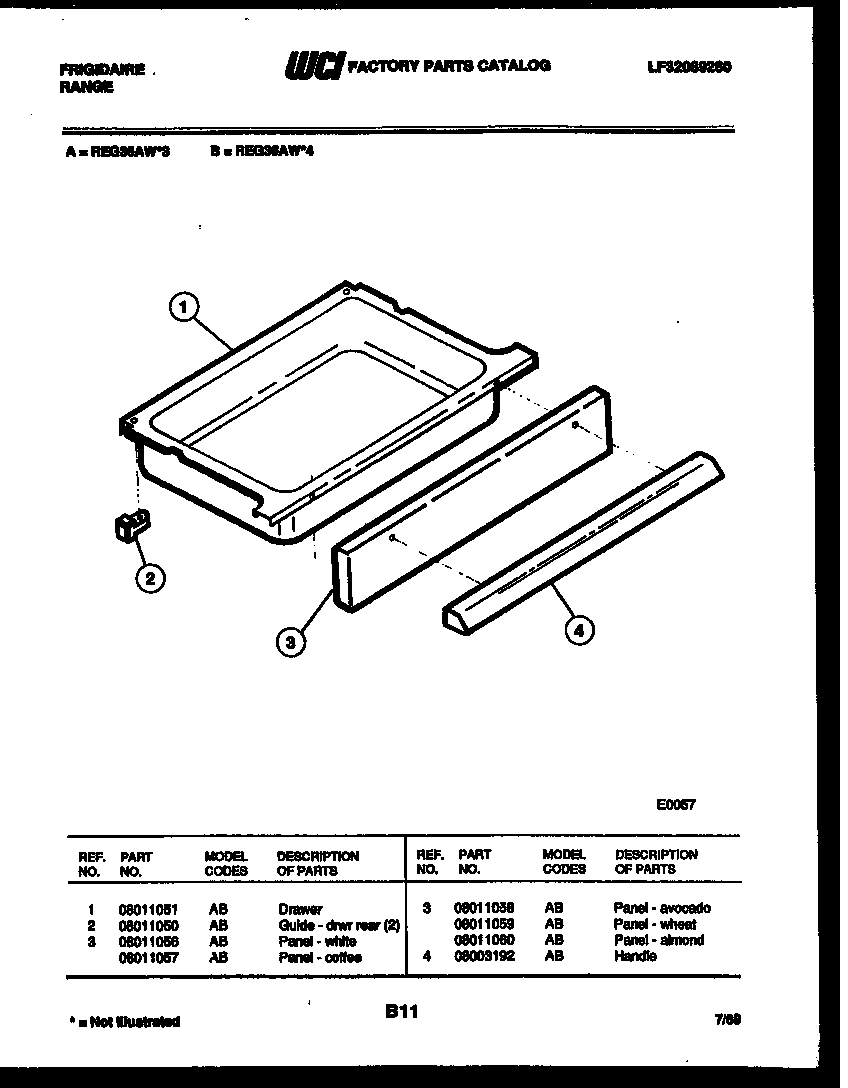

06 - DRAWER PARTS

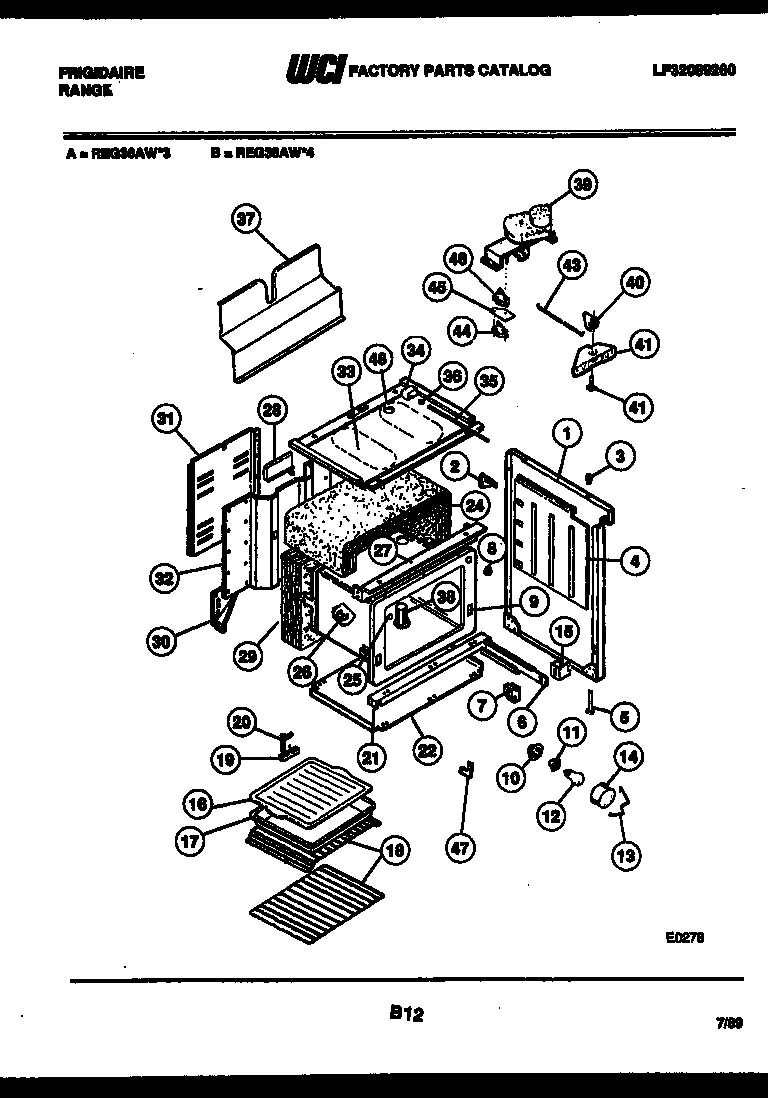

07 - BODY PARTS
Common parts from model Electrolux REG36AA4 RANGE
*22491
WCI 3934063 WCI 3934063 Contact Us For Availability
1
WCI 3017470 WCI 3017470 Contact Us For Availability
1
WCI 08012524 WCI 08012524 Contact Us For Availability
1
WCI 08003223 WCI 08003223 Contact Us For Availability
1
WCI 08011051 WCI 08011051 Contact Us For Availability
1
SIDE PNL - RH AVOC WCI 08012533 Contact Us For Availability
1A
SIDE PNL - LH AVOC WCI 08012534 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
WCI 08008691 WCI 08008691 Contact Us For Availability
2
PAN-SURFACE UNIT SM (2) WCI 08008330 Contact Us For Availability
2
WCI 08011050 WCI 08011050 Contact Us For Availability
2A
PAN-SURFACE UNIT LG (2) WCI 08008331 Contact Us For Availability
3
WCI 08014203 WCI 08014203 Contact Us For Availability
3
ROD COOKTOP SUPPORT WCI 08003079 Contact Us For Availability
3
STRIKE WCI 08008260 Contact Us For Availability
3
PANEL-AVOCADO WCI 08011058 Contact Us For Availability
3
BUMPER - COOKTOP (4) WCI 08003107 Contact Us For Availability
4
LIGHT - PILOT (125 V) WCI 08003305 Contact Us For Availability
4
BAFFLE WCI 3017634 Contact Us For Availability
4
WCI 08003192 WCI 08003192 Contact Us For Availability
4
WCI 08012235 WCI 08012235 Contact Us For Availability
4A
LIGHT - PILOT (250 V) WCI 08012563 Contact Us For Availability
5
LENS (3) WCI 08012578 Contact Us For Availability
5
GASKET WCI 08008259 Contact Us For Availability
5
LEG, LEVELLER (4) WCI 3205294 Contact Us For Availability
6
SWITCH - SELECT WCI 08015771 Contact Us For Availability
6
WCI 3008673 WCI 3008673 Contact Us For Availability
6
WCI 08002857 WCI 08002857 Contact Us For Availability
6
WCI 08015746 WCI 08015746 Contact Us For Availability
6A
WCI 08015747 WCI 08015747 Contact Us For Availability
7
WCI 08016526 WCI 08016526 Contact Us For Availability
7
WCI 08008690 WCI 08008690 Contact Us For Availability
7
WCI 08003103 WCI 08003103 Contact Us For Availability
8
WCI 08015741 WCI 08015741 Contact Us For Availability
8
WCI 08012552 WCI 08012552 Contact Us For Availability
8
RING - TRIM SM (2) WCI 08003113 Contact Us For Availability
8
PLUG BUTTON - OVEN LIGHT HOLE WCI 08002852 Contact Us For Availability
8A
RING - TRIM LG (2) WCI 08003114 Contact Us For Availability
9
WCI 08012554 WCI 08012554 Contact Us For Availability
9
WCI 08012555 WCI 08012555 Contact Us For Availability
9
WCI 3008605 WCI 3008605 Contact Us For Availability
9
OVEN LINER WCI 3204603 Contact Us For Availability
10
WCI 3051807 WCI 3051807 Contact Us For Availability
10
CUP - OVEN LIGHT WCI 08011088 Contact Us For Availability
11
BRACKET - HINGE WCI 08012538 Contact Us For Availability
11
WCI 08004957 WCI 08004957 Contact Us For Availability
12
WCI 08012577 WCI 08012577 Contact Us For Availability
13
WCI 08012708 WCI 08012708 Contact Us For Availability
13
WCI 3017350 WCI 3017350 Contact Us For Availability
13
WCI 08011087 WCI 08011087 Contact Us For Availability
14
KNOB, CLOCK (3) WCI 08004148 Contact Us For Availability
14
WCI 08012511 WCI 08012511 Contact Us For Availability
15
WCI 08015861 WCI 08015861 Contact Us For Availability
15
SPRING (2) WCI 08003186 Contact Us For Availability
15
WCI 08011055 WCI 08011055 Contact Us For Availability
16
WCI 3205397 WCI 3205397 Contact Us For Availability
16
SCREW-HANDLE WCI 08003155 Contact Us For Availability
16
GRILLE, BROILER WCI 3205234 Contact Us For Availability
17
WCI 08003125 WCI 08003125 Contact Us For Availability
17
WCI 08003183 WCI 08003183 Contact Us For Availability
17
WCI 3205232 WCI 3205232 Contact Us For Availability
18
NUT - SWITCH MTG KNURLED WCI 08012572 Contact Us For Availability
18
WCI 08003178 WCI 08003178 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
WCI 3008678 WCI 3008678 Contact Us For Availability
20
WCI 08016268 WCI 08016268 Contact Us For Availability
20
WCI 08003146 WCI 08003146 Contact Us For Availability
21
CHANNEL - OVEN SUPPORT LOWER WCI 3200927 Contact Us For Availability
22
WCI 08003175 WCI 08003175 Contact Us For Availability
22
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
24
ROLLER KIT (2) WCI 08950070 Contact Us For Availability
25
WCI 3008677 WCI 3008677 Contact Us For Availability
25
WCI 08003144 WCI 08003144 Contact Us For Availability
26
WCI 08003177 WCI 08003177 Contact Us For Availability
26
BRKT-THERMO BULB WCI 08002854 Contact Us For Availability
27
WCI 08012512 WCI 08012512 Contact Us For Availability
27
WCI K1325636 WCI K1325636 Contact Us For Availability
28
PANEL-INSULATOR PAD WCI 08003151 Contact Us For Availability
28
WCI 08015742 WCI 08015742 Contact Us For Availability
29
WCI 08003158 WCI 08003158 Contact Us For Availability
29
INSULATION-OVEN BACK WCI 08013680 Contact Us For Availability
30
SPACER - HANDLE WCI 08003153 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 08003156 WCI 08003156 Contact Us For Availability
31
COVER - WIRE WCI 3015856 Contact Us For Availability
32
WCI 3017575 WCI 3017575 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
33A
WASHER-PADDED WCI 08002847 Contact Us For Availability
34
SWITCH - DOOR WCI 08003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
38
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
39
WCI 08015743 WCI 08015743 Contact Us For Availability
40
WCI 08015744 WCI 08015744 Contact Us For Availability
41
WCI 08008696 WCI 08008696 Contact Us For Availability
42
AXLE WCI 08012004 Contact Us For Availability
43
WCI 08015748 WCI 08015748 Contact Us For Availability
44
WCI 08003092 WCI 08003092 Contact Us For Availability
45
WCI 08003090 WCI 08003090 Contact Us For Availability
46
WCI 3007889 WCI 3007889 Contact Us For Availability
47
RETAINER-DOOR WCI 3051810 Contact Us For Availability
48
WCI 08015738 WCI 08015738 Contact Us For Availability
× ![]()
