Model Electrolux REG34NW2 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS

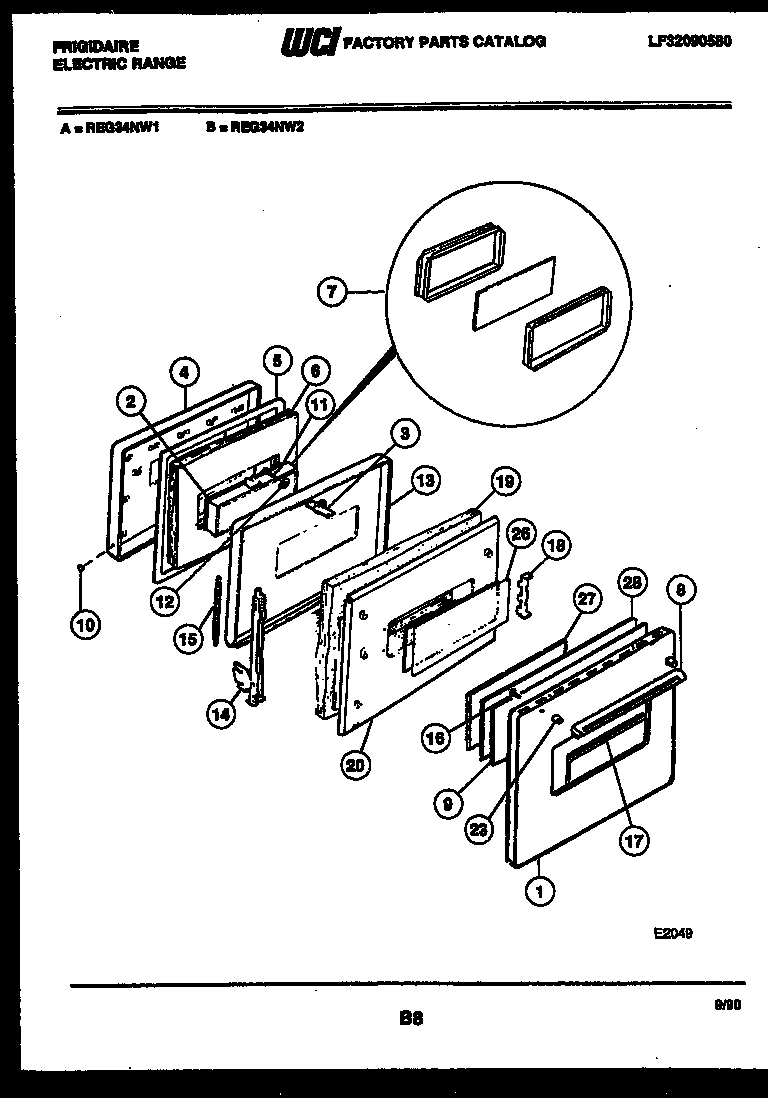

05 - DOOR PARTS

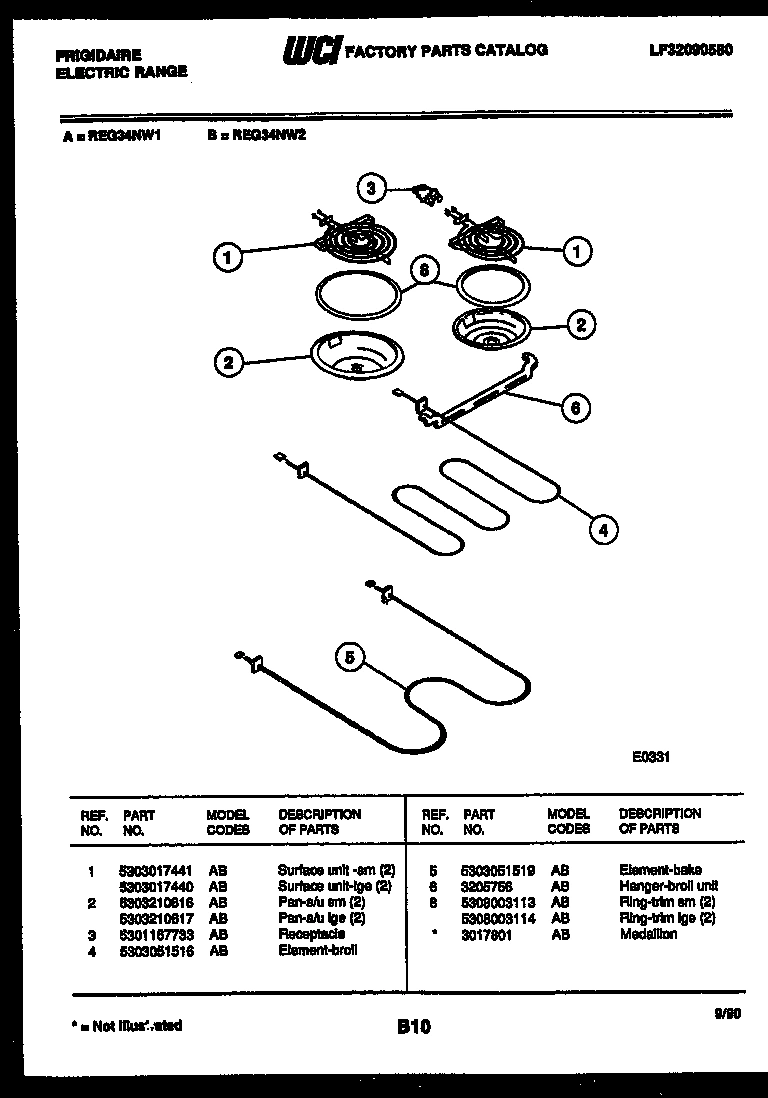

06 - BROILER PARTS

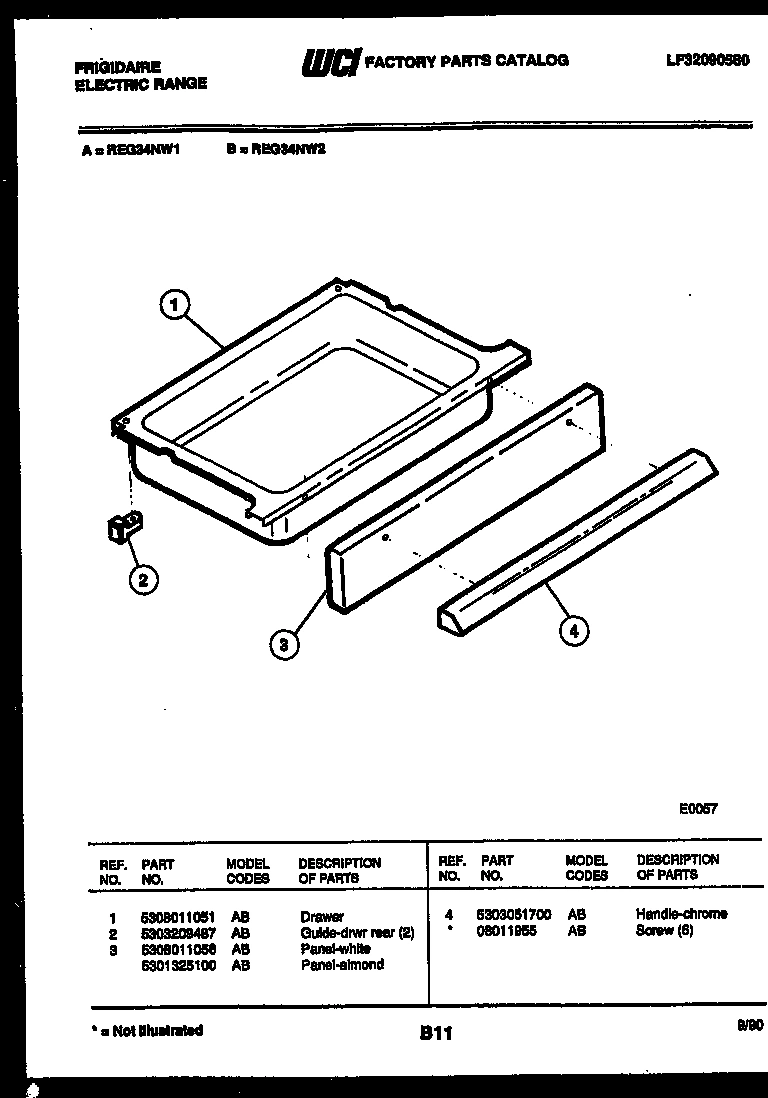

07 - DRAWER PARTS

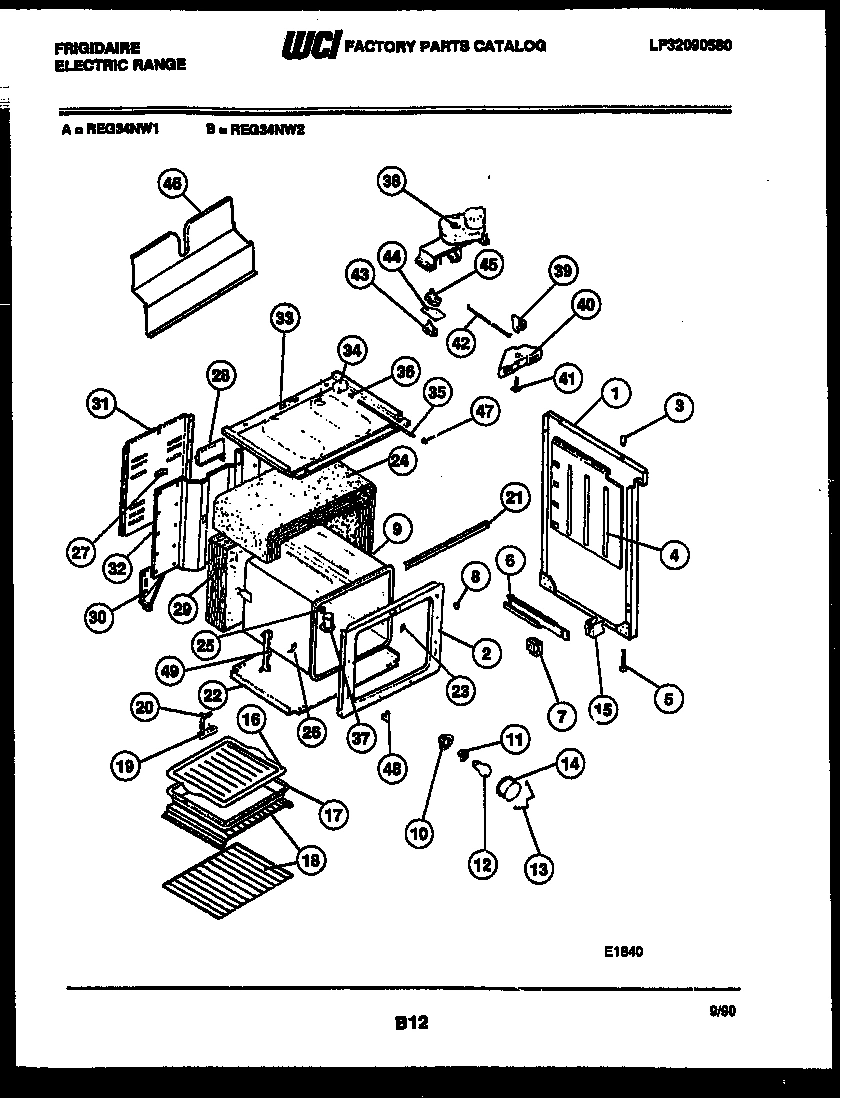

08 - BODY PARTS
Common parts from model Electrolux REG34NW2 RANGE
*39089
SCREW HEX SHOULDER WCI 3051050 Contact Us For Availability
*39093
INSULATION-AIRWASH (2) WCI 5303212546 Contact Us For Availability
*39094
MEDALLION WCI 3017801 Contact Us For Availability
*39098
WCI 3934063 WCI 3934063 Contact Us For Availability
*39098
WCI 5300009126 WCI 5300009126 Contact Us For Availability
1
COOKTOP - WHITE WCI 5303211000 Contact Us For Availability
1
WCI 5303212550 WCI 5303212550 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PNL, RH (WHITE) WCI 5308012527 Contact Us For Availability
1A
SIDE PNL, LH (WHITE) WCI 5308012528 Contact Us For Availability
2
GUIDE - DRWR REAR (2) WCI 5303209487 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
GASKET-WINDOW WCI 5303212544 Contact Us For Availability
2
PAN-S/U SM (2) WCI 5303210616 Contact Us For Availability
2
WCI 5303207390 WCI 5303207390 Contact Us For Availability
2A
PAN-S/U LGE (2) WCI 5303210617 Contact Us For Availability
3
ROD-COOKTOP SPRT LH WCI 5303211119 Contact Us For Availability
3
STRIKE WCI 5301167830 Contact Us For Availability
3
PANEL, WHITE WCI 5308011056 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3A
ROD-COOKTOP SPRT RH WCI 5303211120 Contact Us For Availability
4
BAFFLE WCI 5303212553 Contact Us For Availability
4
HANDLE - CHROME WCI 5303051700 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
GASKET WCI 3206078 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
INSULATION-BAFFLE WCI 5303212545 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 5303212548 WCI 5303212548 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
7B
COLLAR-GLASS WCI 5303212552 Contact Us For Availability
8
WCI 5308003113 WCI 5308003113 Contact Us For Availability
8
HANDLE WCI 5308012552 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
8A
WCI 5308003114 WCI 5308003114 Contact Us For Availability
9
WCI 5301318805 WCI 5301318805 Contact Us For Availability
9
OVEN LINER WCI 3206079 Contact Us For Availability
10
WCI 3051511 WCI 3051511 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WCI 3051807 WCI 3051807 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET - HINGE WCI 5308012538 Contact Us For Availability
11
SCREW 10 X 24 (2) WCI 5303051859 Contact Us For Availability
12
WCI 5303211871 WCI 5303211871 Contact Us For Availability
12
WASHER-PADDED (2) WCI 3051785 Contact Us For Availability
13
WCI 5308004154 WCI 5308004154 Contact Us For Availability
13
WCI 3017530 WCI 3017530 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
KNOB - CLOCK (GRAY) (3) WCI 5303210414 Contact Us For Availability
14
HINGE, ASSY (2) WCI 5303207589 Contact Us For Availability
15
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
15
SPRING (2) WCI 5308003186 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
16
SCREW, HANDLE WCI K5104201 Contact Us For Availability
16
GRILLE, BROILER WCI 3206091 Contact Us For Availability
17
MOULDING-J WCI 5301313568 Contact Us For Availability
17
WCI 3205539 WCI 3205539 Contact Us For Availability
18
WCI 5301313341 WCI 5301313341 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
INSULATION- AIRWASH WCI 5303212547 Contact Us For Availability
20
PANEL-AIRWASH WCI 5303212549 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 5308003153 WCI 5308003153 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
GLASS-INNER WCI 5303209512 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
GLASS-OUTER WCI 5303212542 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
PANEL-INSULATOR PAD WCI 5303212551 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
WCI 08012542 WCI 08012542 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
TUBE-OVEN VENT WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
43
SWITCH, LOWER WCI 5308006582 Contact Us For Availability
44
WCI 08003090 WCI 08003090 Contact Us For Availability
45
SWITCH, UPPER WCI 5303051740 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
47
COVER - ROD END WCI 08067758 Contact Us For Availability
48
WCI 3019063 WCI 3019063 Contact Us For Availability
49
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
