Model Electrolux REC306CV1 RANGE – Common Parts & Diagrams
02 - BACKGUARD PARTS
03 - COOKTOP PARTS

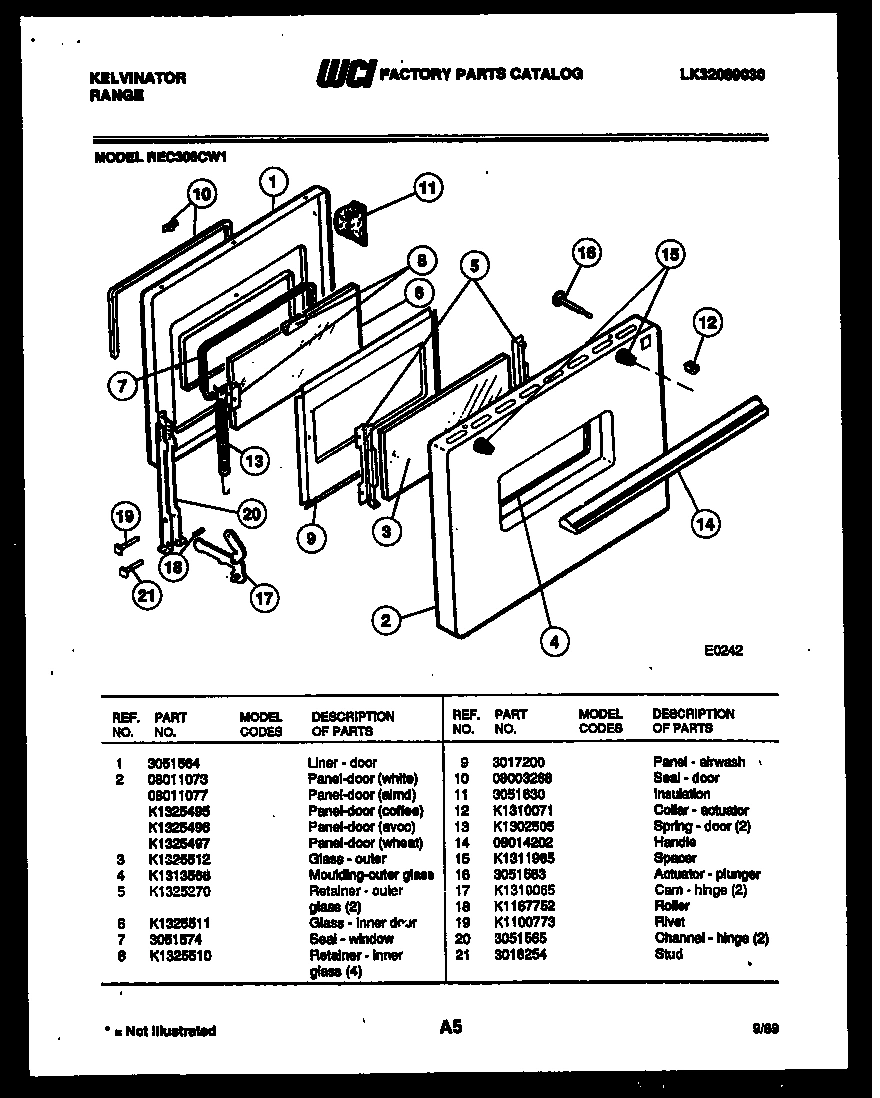

04 - DOOR PARTS

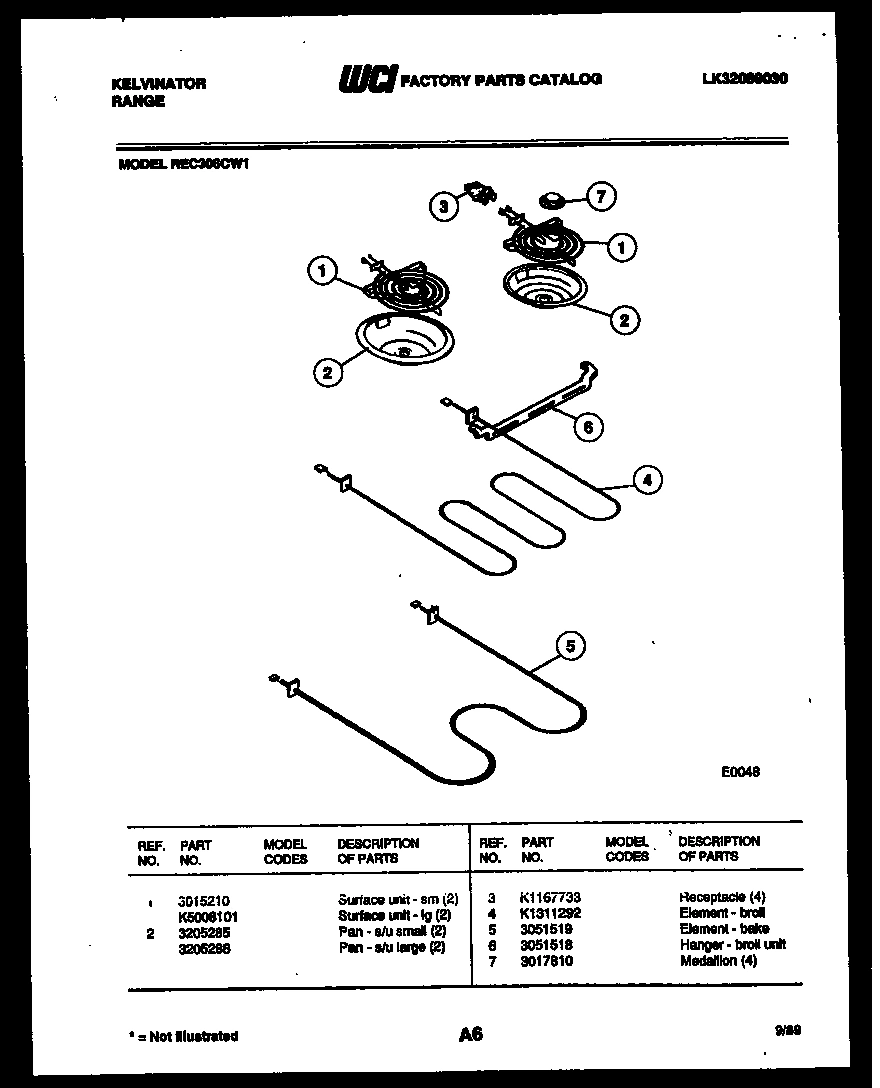

05 - BROILER PARTS

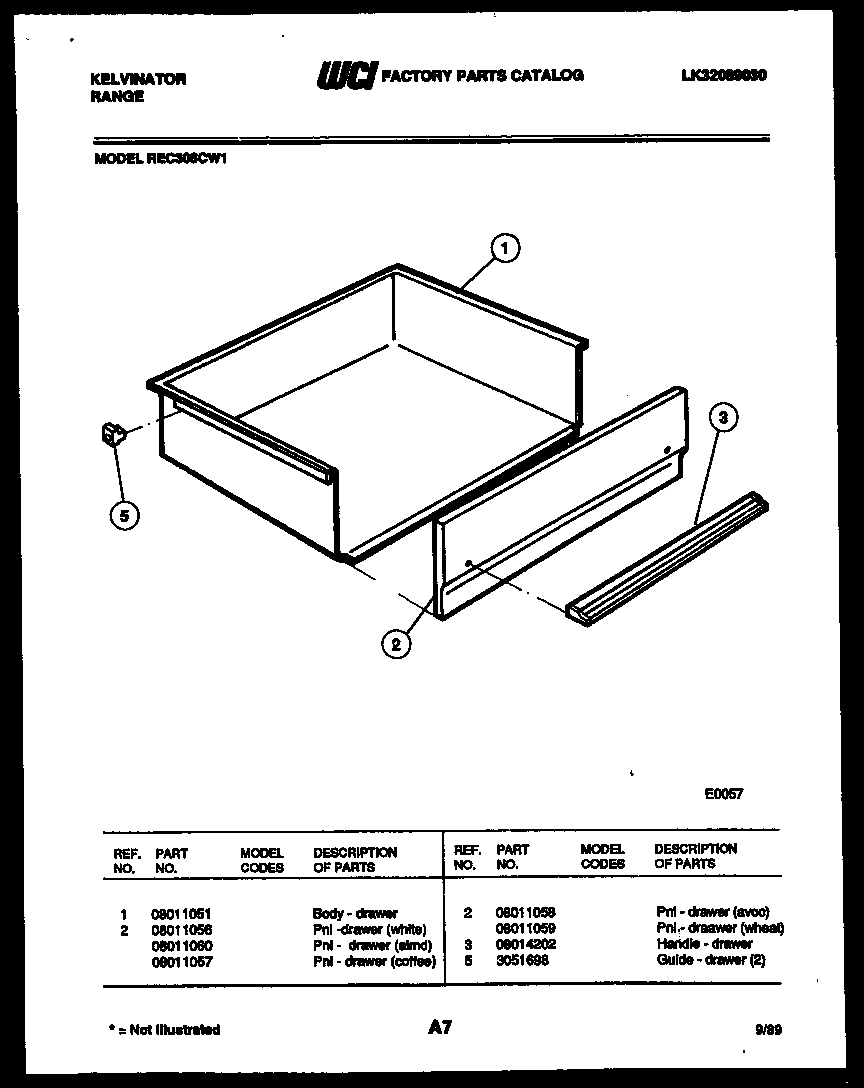

06 - DRAWER PARTS

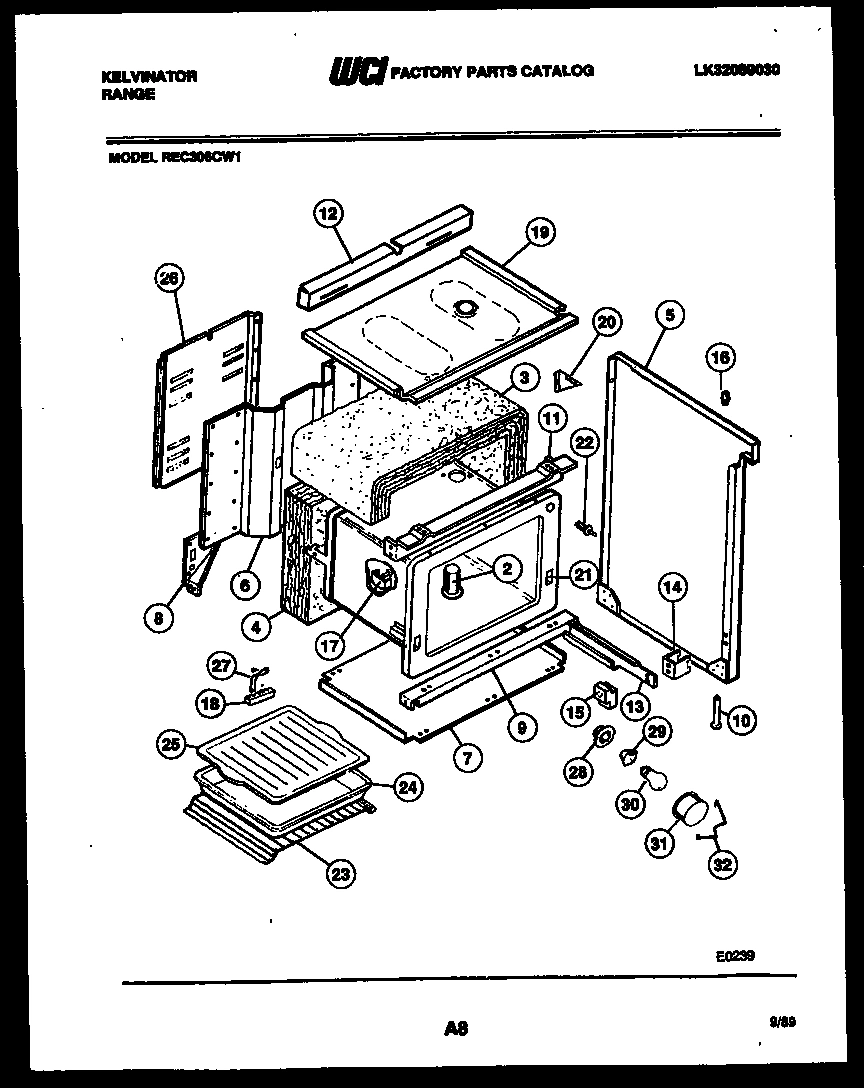

07 - BODY PARTS
Common parts from model Electrolux REC306CV1 RANGE
*10096
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
1
COOKTOP, AVOCADO WCI K5270110 Contact Us For Availability
1
LINER-DOOR WCI 3051564 Contact Us For Availability
1
BODY - DRAWER WCI 08011051 Contact Us For Availability
2
ROD, COOKTOP WCI K1315232 Contact Us For Availability
2
PANEL-DOOR (AVOC) WCI K1325496 Contact Us For Availability
2
PNL - DRAWER AVOC WCI 08011058 Contact Us For Availability
2
WCI 08012541 WCI 08012541 Contact Us For Availability
3
WCI 08005306 WCI 08005306 Contact Us For Availability
3
HINGE COOKTOP RH WCI 3051658 Contact Us For Availability
3
WCI K1325512 WCI K1325512 Contact Us For Availability
3
HANDLE - DRAWER WCI 08014202 Contact Us For Availability
3
INSULATION - OVEN WRAP WCI K1311329 Contact Us For Availability
3A
HINGE-COOKTOP LH WCI K1315631 Contact Us For Availability
4
SIGNAL LIGHT - S/U WCI 3051676 Contact Us For Availability
4
RETAINER HINGE (2) WCI 3051745 Contact Us For Availability
4
MOULDING OUTER GLASS WCI K1313568 Contact Us For Availability
4
INSULATION-OVEN BACK WCI 3051630 Contact Us For Availability
4A
SIGNAL LIGHT - OVEN WCI K5138901 Contact Us For Availability
5
LENS - SIGNAL LIGHT (2) WCI K5139002 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
WCI K1325270 WCI K1325270 Contact Us For Availability
5
GUIDE - DRAWER (2) WCI 3051698 Contact Us For Availability
5
PNL - SIDE RH (AVOC) WCI K5024607 Contact Us For Availability
5
PNL - SIDE LH (AVOC) WCI K5024608 Contact Us For Availability
6
SWITCH - OVEN SELECT WCI 08016480 Contact Us For Availability
6
GLASS - INNER DOOR WCI K1325511 Contact Us For Availability
6
HANGER - BROIL UNIT WCI 3051518 Contact Us For Availability
6
WCI 3017575 WCI 3017575 Contact Us For Availability
7
SEAL WINDOW WCI 3051574 Contact Us For Availability
7
WCI K5265801 WCI K5265801 Contact Us For Availability
7
WCI 3017810 WCI 3017810 Contact Us For Availability
7
PANEL - BOTTOM WCI 3203574 Contact Us For Availability
8
WCI K5137604 WCI K5137604 Contact Us For Availability
8
WCI K1325510 WCI K1325510 Contact Us For Availability
8
WCI 3017481 WCI 3017481 Contact Us For Availability
8A
WCI 3017482 WCI 3017482 Contact Us For Availability
9
KNOB (6) WCI 3015698 Contact Us For Availability
9
WCI 3017200 WCI 3017200 Contact Us For Availability
9
WCI 3200927 WCI 3200927 Contact Us For Availability
10
WCI 3051675 WCI 3051675 Contact Us For Availability
10
WCI 08003268 WCI 08003268 Contact Us For Availability
10
WCI 3205294 WCI 3205294 Contact Us For Availability
10A
WCI 3051674 WCI 3051674 Contact Us For Availability
11
WCI 3051673 WCI 3051673 Contact Us For Availability
11
WCI 3200926 WCI 3200926 Contact Us For Availability
11A
WCI 3051672 WCI 3051672 Contact Us For Availability
12
SUPPORT-BACKGUARD LH WCI 3051670 Contact Us For Availability
12
COLLAR, ACTUATOR WCI K1310071 Contact Us For Availability
12
WCI 3017633 WCI 3017633 Contact Us For Availability
12A
SUPPORT-BACKGUARD RH WCI 3051671 Contact Us For Availability
13
SPRING DOOR (2) WCI K1302505 Contact Us For Availability
13
WCI 08015746 WCI 08015746 Contact Us For Availability
13A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
14
SPACER-DRWR RAIL (2) WCI K1324860 Contact Us For Availability
15
SPACER WCI K1311965 Contact Us For Availability
15
GUIDE - DRWR FR (2) WCI K1315216 Contact Us For Availability
16
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
16
ACTUATOR - PLUNGER WCI 3051583 Contact Us For Availability
16
BUMPER-COOKTOP (4) WCI K5106901 Contact Us For Availability
17
TIMER WCI K5260301 Contact Us For Availability
17
CAM - HINGE (2) WCI K1310065 Contact Us For Availability
17
BRKT - THERMO BULB (2) WCI K1311369 Contact Us For Availability
18
KNOB-CLOCK (3) WCI K1167946 Contact Us For Availability
18
WCI K1167752 WCI K1167752 Contact Us For Availability
19
WCI 08003252 WCI 08003252 Contact Us For Availability
19
RIVET WCI K1100773 Contact Us For Availability
19
WCI 08012542 WCI 08012542 Contact Us For Availability
20
CHANNEL HINGE (2) WCI 3051565 Contact Us For Availability
20
GUSSET-BACKGUARD (2) WCI K1315230 Contact Us For Availability
21
WCI 3016254 WCI 3016254 Contact Us For Availability
21
WCI 08010162 WCI 08010162 Contact Us For Availability
22
SWITCH, OVEN LIGHT WCI K1314211 Contact Us For Availability
24
WCI 3205232 WCI 3205232 Contact Us For Availability
25
GRILL - BROILER WCI 3205234 Contact Us For Availability
26
WCI 3051856 WCI 3051856 Contact Us For Availability
27
STRAP-GROUND WCI K1145190 Contact Us For Availability
28
WCI K1325530 WCI K1325530 Contact Us For Availability
32
WCI K1325529 WCI K1325529 Contact Us For Availability
× ![]()
