Model Electrolux REC306CD0 RANGE – Common Parts & Diagrams
02 - BACKGUARD
03 - TOP/DRAWER

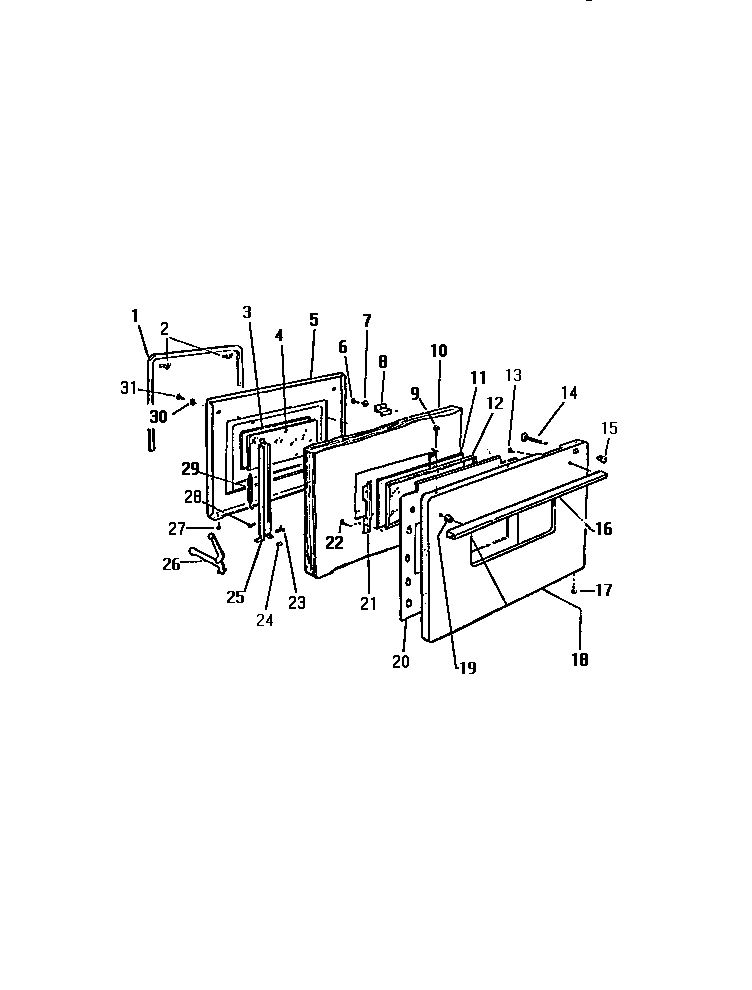

04 - DOOR

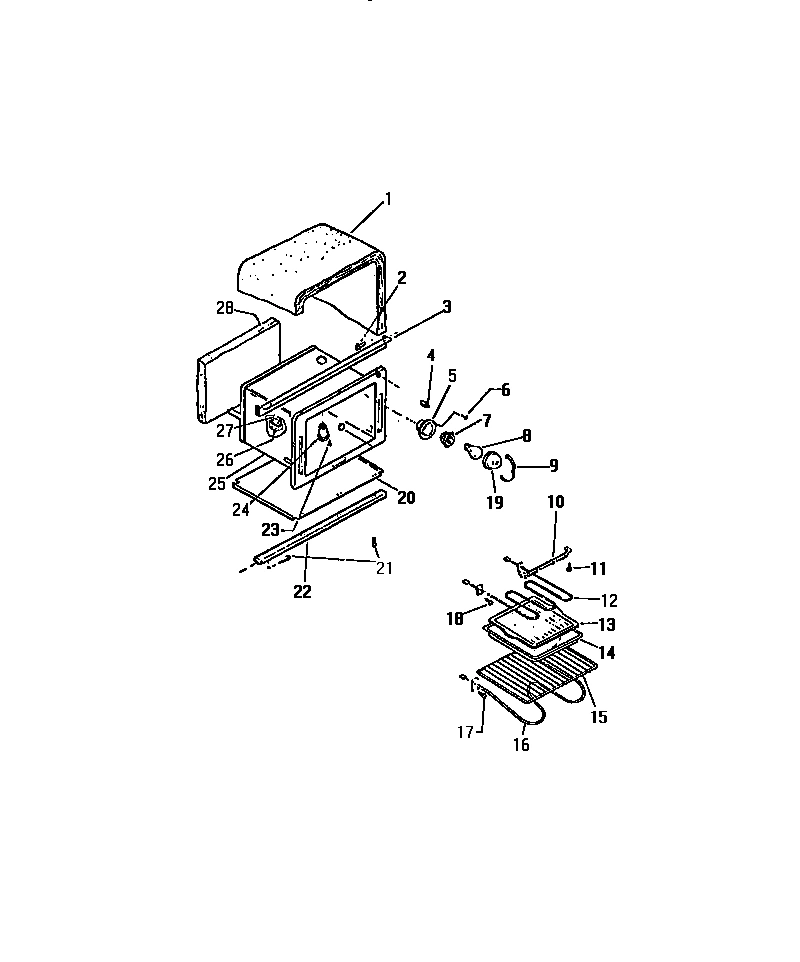

05 - OVEN CAVITY
06 - PANELS
Common parts from model Electrolux REC306CD0 RANGE
*94601
AIR WASH FOIL, OVEN BOTTOM (ALUMINUM) WCI K1313020 Contact Us For Availability
*94602
OWNER GUIDE & WARRANTY WCI K5011206 Contact Us For Availability
1
GASKET (COMPLETE W/CLIP) WCI K1312480 Contact Us For Availability
1
WCI K1311329 WCI K1311329 Contact Us For Availability
1
SIDE PANEL-RH, ALMOND WCI K5024603 Contact Us For Availability
2
WCI K1315111 WCI K1315111 Contact Us For Availability
2
CLIP, DOOR GASKET WCI K1309666 Contact Us For Availability
2
WCI K1315230 WCI K1315230 Contact Us For Availability
3
WCI K1325686 WCI K1325686 Contact Us For Availability
3
CHANNEL OVEN SUPPORT WCI K1325635 Contact Us For Availability
3B
SWITCH SURFACE UNIT (OPT.) WCI K1311753 Contact Us For Availability
4
BRACKET OVEN THERMOSTAT MOUNTING WCI K1312148 Contact Us For Availability
4
WCI K1325511 WCI K1325511 Contact Us For Availability
4
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
4
WCI K5269901 WCI K5269901 Contact Us For Availability
5
WCI K5132401 WCI K5132401 Contact Us For Availability
5
COOKTOP, ALMOND WCI K5270112 Contact Us For Availability
5
WCI K1325601 WCI K1325601 Contact Us For Availability
5
WCI K1325530 WCI K1325530 Contact Us For Availability
6
SWITCH OVEN SELECTOR WCI K5265901 Contact Us For Availability
6
WCI K1315232 WCI K1315232 Contact Us For Availability
6A
WCI K1310049 WCI K1310049 Contact Us For Availability
8
SLEEVING-INSULATING THERMOSTAT WCI K1301788 Contact Us For Availability
8
WCI K1315630 WCI K1315630 Contact Us For Availability
8
WCI K1325510 WCI K1325510 Contact Us For Availability
8
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
8A
WCI K1315631 WCI K1315631 Contact Us For Availability
9
SCREW THERMOSTAT TO BRACKET MOUNTING WCI K5022101 Contact Us For Availability
9
RETAINING WIRE, RETAINER-LENS WCI K1325529 Contact Us For Availability
10
WCI K5138904 WCI K5138904 Contact Us For Availability
10
WCI K1315632 WCI K1315632 Contact Us For Availability
10
WCI K1325829 WCI K1325829 Contact Us For Availability
10
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
10
SCREW (2) WCI K1164479 Contact Us For Availability
11
SIGNAL LIGHT PKG (125V SURFACE UNIT WITH LEN WCI K5138903 Contact Us For Availability
11
WCI K1315541 WCI K1315541 Contact Us For Availability
11
WCI K1325512 WCI K1325512 Contact Us For Availability
11
NUT WCI K1266 Contact Us For Availability
12
SUPPORT RH WCI K5127701 Contact Us For Availability
12
J MOULDING WCI K1313568 Contact Us For Availability
13
WCI G5128105 WCI G5128105 Contact Us For Availability
13
SCREW (2) WCI K5104201 Contact Us For Availability
13
GRILLE, BROILER (PORCELAIN GREY) WCI K1313049 Contact Us For Availability
13
STRAP-GROUND WCI K1145190 Contact Us For Availability
14
WCI G5128001 WCI G5128001 Contact Us For Availability
14
PLUNGER ACTUATOR, LIGHT SWITCH WCI K1313983 Contact Us For Availability
14
SCREW, GUIDE MOUNTING WCI K1164569 Contact Us For Availability
14A
NUT, HEX, END CAP BODY TO BACKGUARD SUPPORT ( WCI K5036602 Contact Us For Availability
15
WCI K5139002 WCI K5139002 Contact Us For Availability
15
COLLOR ACTUATOR, LIGHT SWITCH WCI K1310071 Contact Us For Availability
15
WCI K1311570 WCI K1311570 Contact Us For Availability
15
WCI K1315216 WCI K1315216 Contact Us For Availability
16
SCREW-SWITCH MTG (AS REQ) WCI K5104301 Contact Us For Availability
16
WCI K1325029 WCI K1325029 Contact Us For Availability
16
WCI K5269902 WCI K5269902 Contact Us For Availability
16A
HANDLE, OVEN DOOR WCI K1325038 Contact Us For Availability
17
GLIDE DRAWER (2) WCI K1324091 Contact Us For Availability
17
SCREW, LEVELING WCI K1322905 Contact Us For Availability
18
PANEL EXT.-OVEN DOOR, ALMOND WCI K1325498 Contact Us For Availability
18
SIDE PANEL-LH, ALMOND WCI K5024604 Contact Us For Availability
19
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
19
SPACER HANDLE (2) WCI K1311965 Contact Us For Availability
19
WCI K5106901 WCI K5106901 Contact Us For Availability
20
WCI K1167945 WCI K1167945 Contact Us For Availability
20
BODY-DOOR. ASSEMBLY (LESS PANEL) WCI K1324095 Contact Us For Availability
20
PANEL, AIRWASH WCI K1325509 Contact Us For Availability
20
WASHER ASBESTOS PAD WCI K1313226 Contact Us For Availability
20
WCI K1315107 WCI K1315107 Contact Us For Availability
21
GLASS-TIMER WCI K1167946 Contact Us For Availability
21
SCREW WCI K5022201 Contact Us For Availability
21
WCI KGM159909 WCI KGM159909 Contact Us For Availability
22
TIMER WCI K5260301 Contact Us For Availability
22
WCI K1325100 WCI K1325100 Contact Us For Availability
22
SCREW (4) WCI K1325270 Contact Us For Availability
22
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
23
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
23
AXLE, HINGE (2) WCI K5038501 Contact Us For Availability
23
SCREW VENT MOUNTING (2) WCI K1164309 Contact Us For Availability
23
WCI K5025802 WCI K5025802 Contact Us For Availability
23A
SCREW (2) WCI K1313060 Contact Us For Availability
24
PANEL BACKSPLASH, ALMOND WCI K5137606 Contact Us For Availability
24
ROLLER KIT, COMPLETE (PKG OF 2) WCI K1309794 Contact Us For Availability
24
VENT TUBE WCI K5025501 Contact Us For Availability
24
WCI K1325114 WCI K1325114 Contact Us For Availability
24A
WCI G1325113 WCI G1325113 Contact Us For Availability
25
BODY, END CAP, L.H. (BLACK) WCI K5128002 Contact Us For Availability
25
CHANNEL ASSEMBLY (2) WCI K1311514 Contact Us For Availability
25
OVEN LINER ASSEMBLY (GREY) WCI K1325539 Contact Us For Availability
26
TRIM, END CAP, LH (CHROME) WCI K5128106 Contact Us For Availability
26
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
26
BRACKET, THERMO BULB WCI K1311369 Contact Us For Availability
27
SUPPORT LH WCI K5127702 Contact Us For Availability
27
WASHER WCI K1099962 Contact Us For Availability
28
RIVET (2) WCI K1100773 Contact Us For Availability
28
WCI K1311328 WCI K1311328 Contact Us For Availability
29
WCI K5265801 WCI K5265801 Contact Us For Availability
29
SPRING (2) WCI K1302505 Contact Us For Availability
29
WCI K5276202 WCI K5276202 Contact Us For Availability
30
WCI K5275802 WCI K5275802 Contact Us For Availability
31
WCI K1164550 WCI K1164550 Contact Us For Availability
32
SHIELD, WIRING WCI K5287902 Contact Us For Availability
× ![]()
