Model Electrolux REC305CD0 RANGE – Common Parts & Diagrams

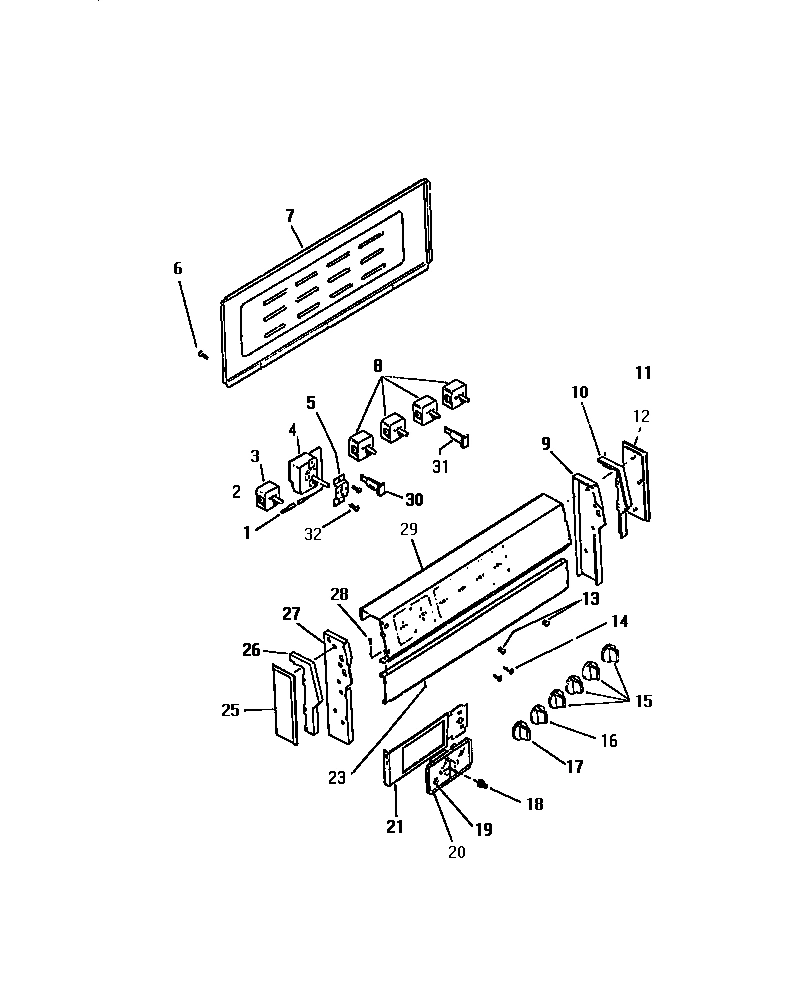

02 - BACKGUARD

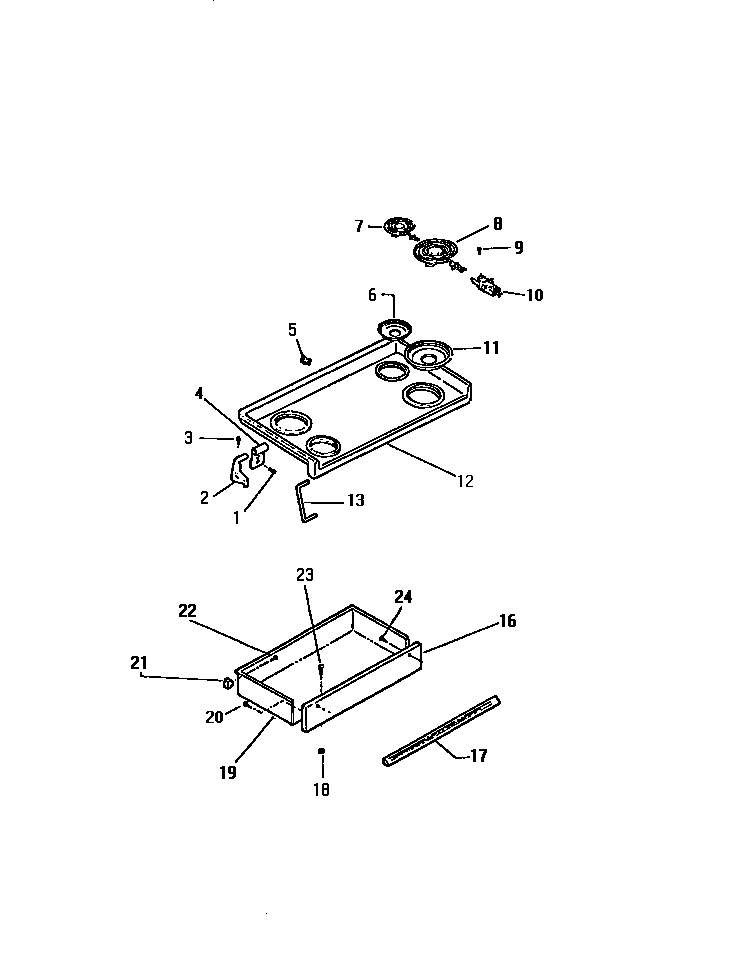

03 - TOP/DRAWER

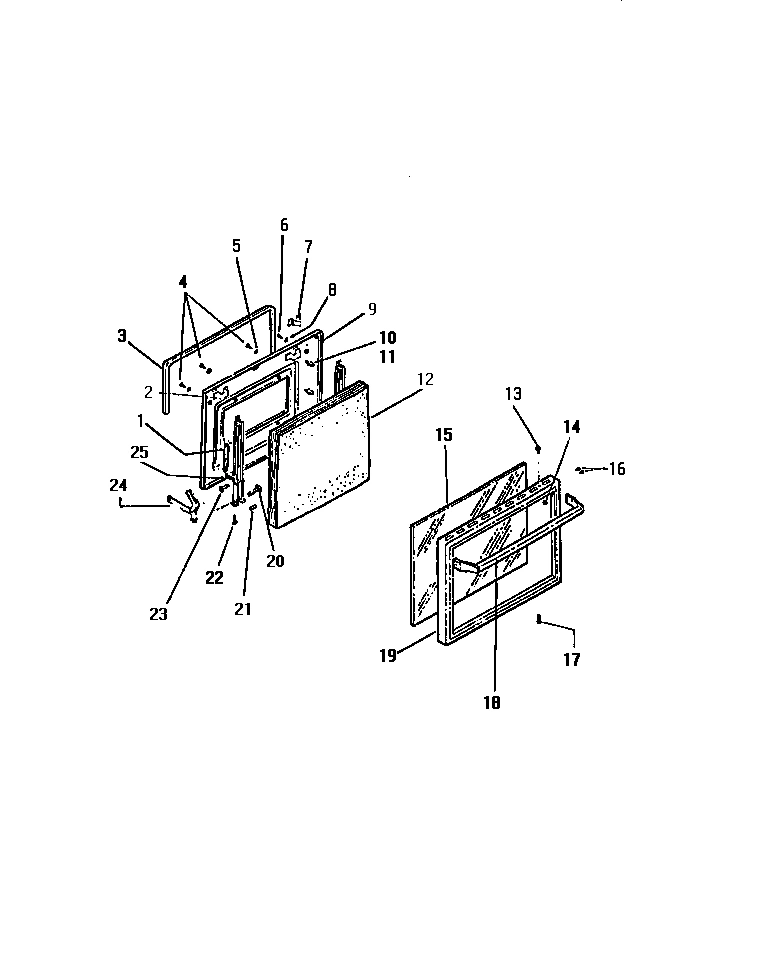

04 - DOOR

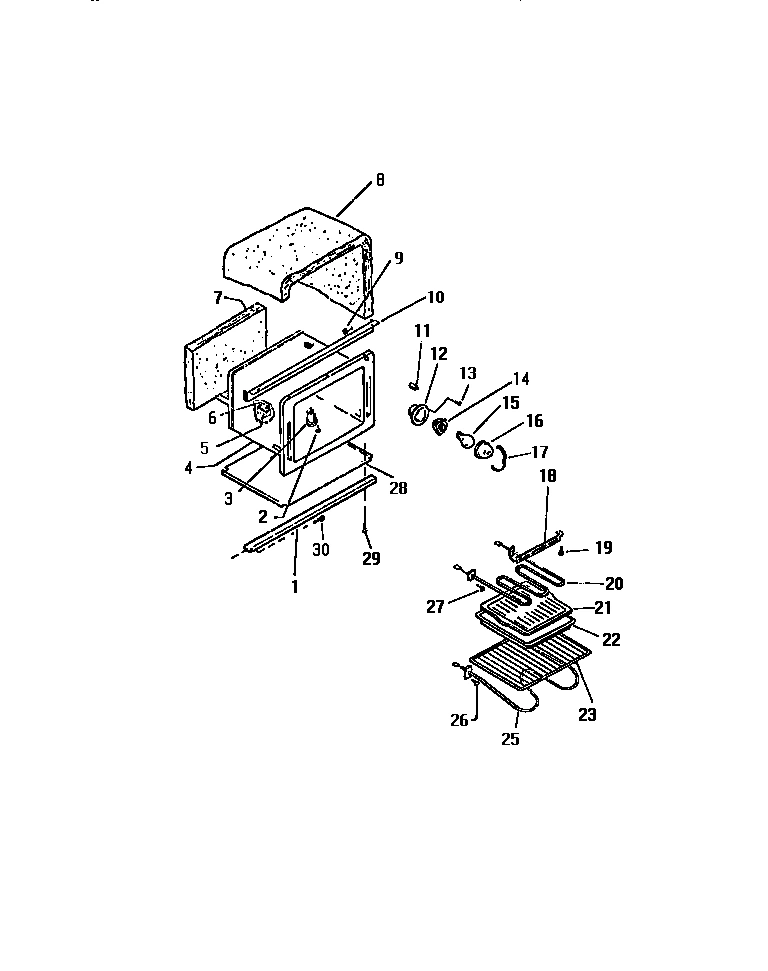

05 - OVEN CAVITY

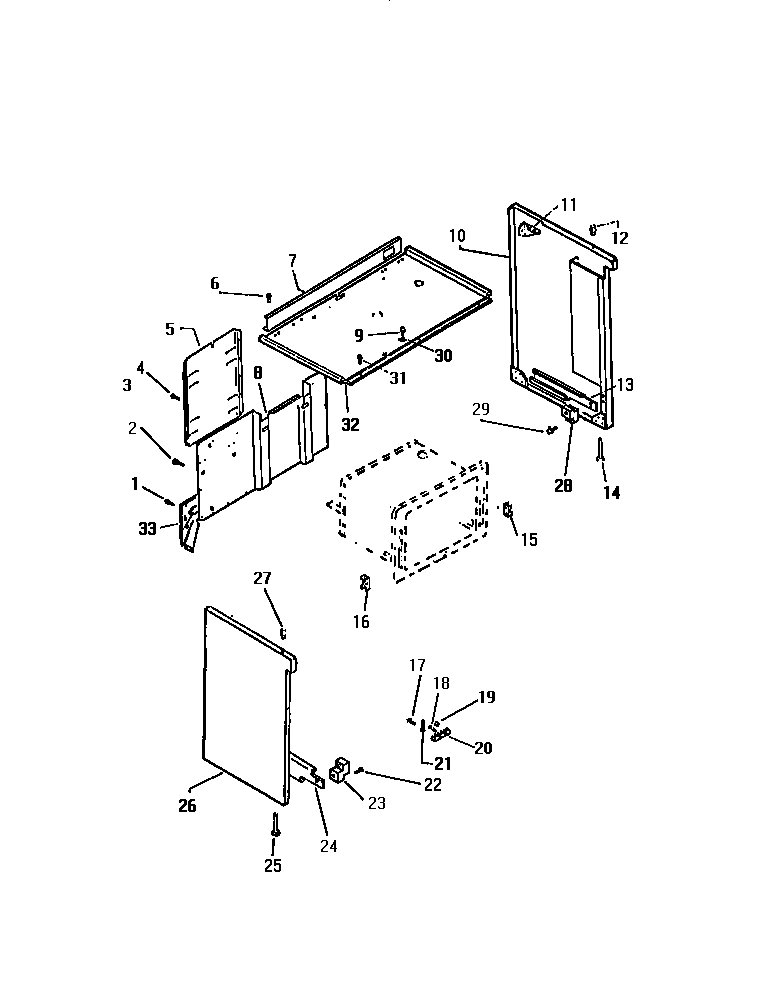

06 - PANELS
Common parts from model Electrolux REC305CD0 RANGE
*82721
AIR WASH FOIL, OVEN BOTTOM (ALUMINUM) WCI K1313020 Contact Us For Availability
*82722
WCI K5011206 WCI K5011206 Contact Us For Availability
1
SLEEVING-INSULATING THERMOSTAT WCI K1301788 Contact Us For Availability
1
SPRING DOOR (2) WCI K1302505 Contact Us For Availability
1
CHANNEL, OVEN SUPPORT WCI K1315108 Contact Us For Availability
2
WCI K1315631 WCI K1315631 Contact Us For Availability
2
SPACER, DOOR (4) WCI K1324812 Contact Us For Availability
2
SCREW VENT MOUNTING (2) WCI K1164309 Contact Us For Availability
2A
WCI K1315630 WCI K1315630 Contact Us For Availability
3
SWITCH OVEN SELECTOR WCI K5265901 Contact Us For Availability
3
GASKET (WITH CLIPS) WCI K1312480 Contact Us For Availability
3
VENT TUBE WCI K5025501 Contact Us For Availability
3
WASHER WCI K1099962 Contact Us For Availability
4
WCI K5132401 WCI K5132401 Contact Us For Availability
4
OVEN LINER ASSEMBLY WCI K1325539 Contact Us For Availability
5
BRACKET OVEN THERMOSTAT MOUNTING WCI K1312148 Contact Us For Availability
5
WCI K1315541 WCI K1315541 Contact Us For Availability
5
WCI K1311369 WCI K1311369 Contact Us For Availability
5
WCI K5276202 WCI K5276202 Contact Us For Availability
7
WCI K1315111 WCI K1315111 Contact Us For Availability
7
WCI K1309666 WCI K1309666 Contact Us For Availability
7
WCI K1325625 WCI K1325625 Contact Us For Availability
7
SHIELD, WIRING WCI K5287902 Contact Us For Availability
8
WCI K1311329 WCI K1311329 Contact Us For Availability
8
WCI K5275802 WCI K5275802 Contact Us For Availability
8B
SWITCH SURFACE UNIT. (OPTIONAL) WCI K1311753 Contact Us For Availability
9
SUPPORT RH WCI K5127701 Contact Us For Availability
9
LINER, OVEN DOOR WCI K1318402 Contact Us For Availability
10
WCI G5128105 WCI G5128105 Contact Us For Availability
10
WCI K5297101 WCI K5297101 Contact Us For Availability
10
CHANNEL OVEN SUPPORT WCI K1325635 Contact Us For Availability
10
SIDE PANEL-RH, ALMOND WCI K5024603 Contact Us For Availability
11
NUT, HEX, END CAP BODY TO BACKGUARD SUPPORT ( WCI K5036602 Contact Us For Availability
11
BUMPER WINDOW BOTTOM WCI K1312009 Contact Us For Availability
11
SWITCH, OVEN LIGHT WCI K5294301 Contact Us For Availability
11
WCI K1315230 WCI K1315230 Contact Us For Availability
12
WCI G5128001 WCI G5128001 Contact Us For Availability
12
COOKTOP, ALMOND WCI K5270112 Contact Us For Availability
12
INSULATION DOOR WCI K5270501 Contact Us For Availability
12
WCI K1325530 WCI K1325530 Contact Us For Availability
12
BUMPER COOKTOP WCI K1307110 Contact Us For Availability
13
WCI K5139002 WCI K5139002 Contact Us For Availability
13
WCI K1315232 WCI K1315232 Contact Us For Availability
13
WCI K5269901 WCI K5269901 Contact Us For Availability
13A
WCI K1310049 WCI K1310049 Contact Us For Availability
14
SCREW SWITCH MOUNTING. (AS REQUIRED) WCI K5104301 Contact Us For Availability
15
GLASS OUTER (FULL) WCI K5027202 Contact Us For Availability
16
WCI K1325100 WCI K1325100 Contact Us For Availability
16
SCREW WCI K5046501 Contact Us For Availability
16
SPACER DRAWER RAIL WCI K1324860 Contact Us For Availability
17
KNOB OVEN SELECTOR WCI K5158301 Contact Us For Availability
17
HANDLE - DRAWER WCI K1325038 Contact Us For Availability
17
WCI K1325529 WCI K1325529 Contact Us For Availability
18
KNOB CLOCK/TIMER (AS REQUIRED) WCI K1167946 Contact Us For Availability
18
HANDLE ASSEMBLY WCI K5026601 Contact Us For Availability
18
HANGER BROIL UNIT WCI K1314456 Contact Us For Availability
18
SCREW (2) WCI K1164479 Contact Us For Availability
18A
WCI K5132701 WCI K5132701 Contact Us For Availability
18B
GRIP, HANDLE WCI K5026807 Contact Us For Availability
19
GLASS CLOCK WCI K1167549 Contact Us For Availability
19
BODY DRAWER ASSEMBLY LESS PANEL WCI K1324095 Contact Us For Availability
19
FRAME WCI K5276802 Contact Us For Availability
19
NUT (3) WCI K1266 Contact Us For Availability
20
WCI K5260301 WCI K5260301 Contact Us For Availability
20
AXLE, HINGE, SQUARE HEAD (2) WCI K5038501 Contact Us For Availability
21
BRACKET MOUNTING WCI K5127901 Contact Us For Availability
21
GLIDE DRAWER (2) WCI K1324091 Contact Us For Availability
21
ROLLER PACKAGE OVEN DOOR (2) WCI K1309794 Contact Us For Availability
21
GRILLE BROILER (PORCELAIN GRAY) WCI K1313049 Contact Us For Availability
21
STRAP-GROUND WCI K1145190 Contact Us For Availability
21A
SCREW (2) WCI K1313060 Contact Us For Availability
22
WCI K1164550 WCI K1164550 Contact Us For Availability
23
PANEL BACKSPLASH, ALMOND WCI K5137606 Contact Us For Availability
23
WCI K1100773 WCI K1100773 Contact Us For Availability
23
WCI K1311570 WCI K1311570 Contact Us For Availability
23A
WCI K1311571 WCI K1311571 Contact Us For Availability
24
SCREW PANEL TO HANDLE WCI K5022201 Contact Us For Availability
24
HINGE ARM ASSEMBLY (2) WCI K1310065 Contact Us For Availability
24
WCI K5269902 WCI K5269902 Contact Us For Availability
25
BODY, END CAP, L.H. (BLACK) WCI K5128002 Contact Us For Availability
25
CHANNEL ASSEMBLY HINGE (2) WCI K1311514 Contact Us For Availability
25
LEVELLER (2) WCI K1322905 Contact Us For Availability
26
TRIM, END CAP, LH (CHROME) WCI K5128106 Contact Us For Availability
26
SIDE PANEL-LH, ALMOND WCI K5024604 Contact Us For Availability
27
SUPPORT LH WCI K5127702 Contact Us For Availability
27
WCI K5106901 WCI K5106901 Contact Us For Availability
28
WCI K1315107 WCI K1315107 Contact Us For Availability
28
WCI K1315216 WCI K1315216 Contact Us For Availability
29
WCI K5265801 WCI K5265801 Contact Us For Availability
29
SCREW, GUIDE MOUNTING WCI K1164569 Contact Us For Availability
30
250V OVEN INDICATOR WITH LENS WCI K5138901 Contact Us For Availability
30
WASHER, ASBESTOS PAD (3) WCI K1313226 Contact Us For Availability
31
SIGNAL LIGHT, PACKAGE 125V SURFACE UNIT WITH WCI K5138903 Contact Us For Availability
32
SCREW THERMOSTAT TO BRACKET MOUNTING WCI K5022101 Contact Us For Availability
32
PANEL, SUB TOP, BRONZE TONE WCI K5025802 Contact Us For Availability
33A
GUSSET REAR, RH WCI K5285802 Contact Us For Availability
× ![]()
