Model Electrolux RE533DH0 RANGE – Common Parts & Diagrams

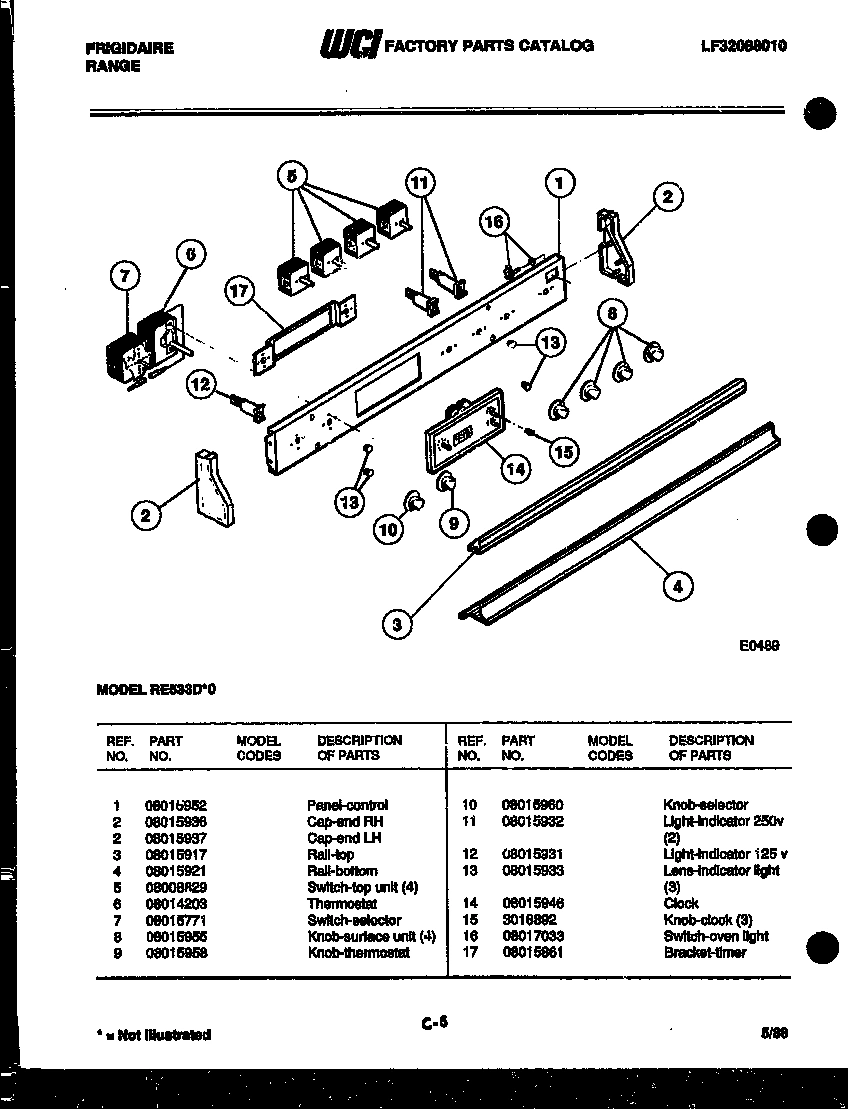

02 - CONTROL PANEL

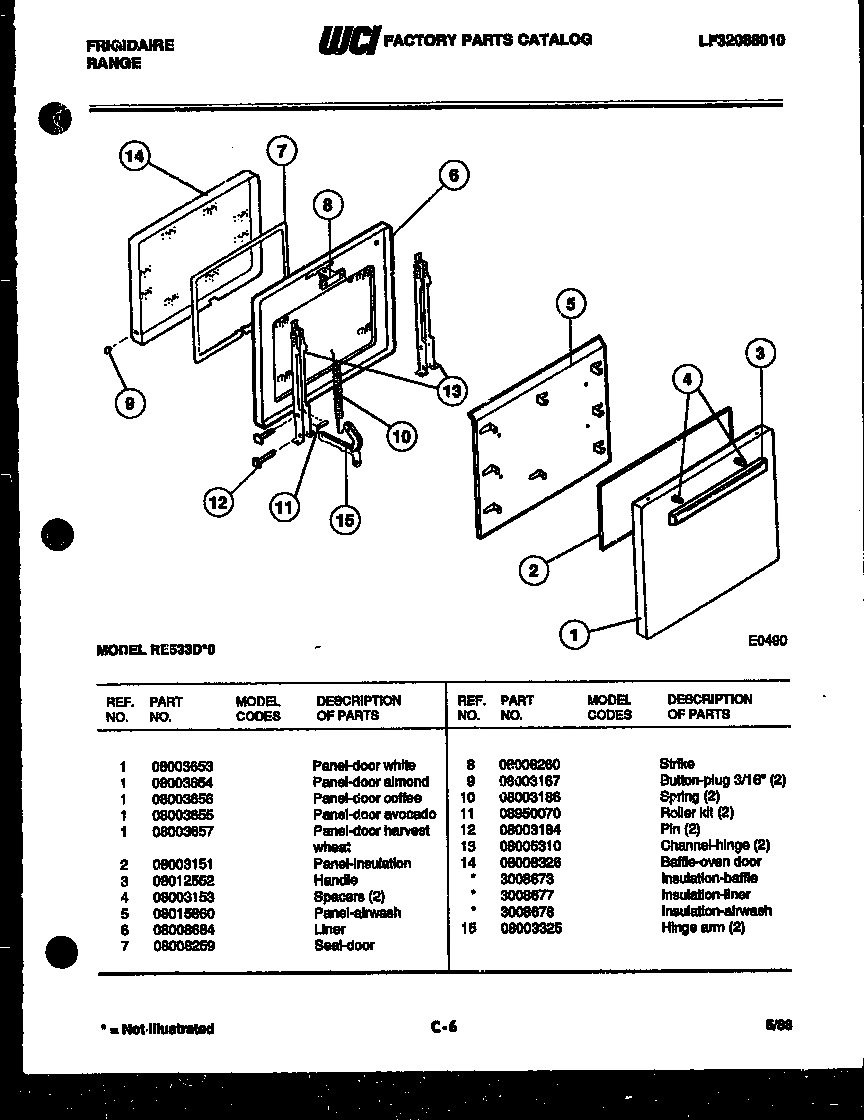

03 - DOOR PARTS
04 - BODY PARTS
05 - COOKTOP PARTS
Common parts from model Electrolux RE533DH0 RANGE
1
WCI 08015952 WCI 08015952 Contact Us For Availability
1
WCI 08003657 WCI 08003657 Contact Us For Availability
1
WCI 08015941 WCI 08015941 Contact Us For Availability
1
WCI 08003321 WCI 08003321 Contact Us For Availability
2
CAP, END RH WCI 08015936 Contact Us For Availability
2
CAP, END LH WCI 08015937 Contact Us For Availability
2
WCI 08003151 WCI 08003151 Contact Us For Availability
2
WCI 08008689 WCI 08008689 Contact Us For Availability
3
WCI 08015917 WCI 08015917 Contact Us For Availability
3
WCI 08012552 WCI 08012552 Contact Us For Availability
3
WCI 08011089 WCI 08011089 Contact Us For Availability
3
PAN-SMALL (2) WCI 08008330 Contact Us For Availability
3
WCI 08008331 WCI 08008331 Contact Us For Availability
4
WCI 08015921 WCI 08015921 Contact Us For Availability
4
SPACERS (2) WCI 08003153 Contact Us For Availability
4
SHIELD-INSULATION SIDE (2) WCI 08012226 Contact Us For Availability
4
WCI 08003113 WCI 08003113 Contact Us For Availability
4
WCI 08003114 WCI 08003114 Contact Us For Availability
5
WCI 08008829 WCI 08008829 Contact Us For Availability
5
WCI 08015860 WCI 08015860 Contact Us For Availability
5
HINGE ASSEMBLY (2) WCI 08003325 Contact Us For Availability
5
WCI 08012244 WCI 08012244 Contact Us For Availability
5
WCI 08012245 WCI 08012245 Contact Us For Availability
6
WCI 08014203 WCI 08014203 Contact Us For Availability
6
WCI 08008684 WCI 08008684 Contact Us For Availability
6
PANEL-UPPER SIDE (2) WCI 08015935 Contact Us For Availability
7
SWITCH-SELECTOR WCI 08015771 Contact Us For Availability
7
SEAL-DOOR WCI 08008259 Contact Us For Availability
7
TRIM-FRONT (2) WCI 08003334 Contact Us For Availability
8
KNOB, SURFACE UNIT (4) WCI 08015955 Contact Us For Availability
8
STRIKE WCI 08008260 Contact Us For Availability
8
BRACKET-THERMO BULB WCI 08002854 Contact Us For Availability
9
KNOB-THERMOSTAT WCI 08015958 Contact Us For Availability
9
WCI 08003167 WCI 08003167 Contact Us For Availability
9
WCI 08011091 WCI 08011091 Contact Us For Availability
10
KNOB-SELECTOR WCI 08015960 Contact Us For Availability
10
SPRING (2) WCI 08003186 Contact Us For Availability
10
WCI 08003335 WCI 08003335 Contact Us For Availability
11
WCI 08015932 WCI 08015932 Contact Us For Availability
11
ROLLER KIT (2) WCI 08950070 Contact Us For Availability
11
HOUSING OVEN LIGHT WCI 08011088 Contact Us For Availability
12
WCI 08015931 WCI 08015931 Contact Us For Availability
12
PIN (2) WCI 08003184 Contact Us For Availability
13
WCI 08015933 WCI 08015933 Contact Us For Availability
13
WCI 08005310 WCI 08005310 Contact Us For Availability
13
WCI 08000171 WCI 08000171 Contact Us For Availability
14
WCI 08015946 WCI 08015946 Contact Us For Availability
14
WCI 08008326 WCI 08008326 Contact Us For Availability
14A
INSULATION-BAFFLE (NON-ILLUSTRATED) WCI 3008673 Contact Us For Availability
14B
INSULATION-LINER (NON-ILLUSTRATED) WCI 3008677 Contact Us For Availability
14C
INSULATION-AIRWASH (NON-ILLUSTRATED) WCI 3008678 Contact Us For Availability
15
WCI 3016892 WCI 3016892 Contact Us For Availability
15
RETAINER-WIRE LENS WCI 08011087 Contact Us For Availability
16
WCI 08017033 WCI 08017033 Contact Us For Availability
16
BUTTON-PLUG 1/2`` WCI 08003144 Contact Us For Availability
17
BRACKET-TIMER WCI 08015861 Contact Us For Availability
17
BUTTON-PLUG 3/4`` WCI 08002852 Contact Us For Availability
20
WCI 08002857 WCI 08002857 Contact Us For Availability
21
WCI 08003199 WCI 08003199 Contact Us For Availability
22
WCI 08003201 WCI 08003201 Contact Us For Availability
23
WCI 08003200 WCI 08003200 Contact Us For Availability
24
WCI 08007443 WCI 08007443 Contact Us For Availability
25
WCI 08008444 WCI 08008444 Contact Us For Availability
26
SWITCH - DOOR WCI 08003081 Contact Us For Availability
27
WCI 08003293 WCI 08003293 Contact Us For Availability
28
WCI 08003079 WCI 08003079 Contact Us For Availability
29
WCI 08012253 WCI 08012253 Contact Us For Availability
30
WCI 08012228 WCI 08012228 Contact Us For Availability
31
WCI 08015927 WCI 08015927 Contact Us For Availability
33
WCI 08008686 WCI 08008686 Contact Us For Availability
33A
INSULATION-CUT TO SIZE (NON-ILLUSTRATED) WCI 08013680 Contact Us For Availability
33B
WCI 3008313 WCI 3008313 Contact Us For Availability
34
HOUSING-LATCH WCI 08008696 Contact Us For Availability
35
WCI 08016550 WCI 08016550 Contact Us For Availability
36
LATCH WCI 08015744 Contact Us For Availability
37
WCI 08012004 WCI 08012004 Contact Us For Availability
38
WCI 08003097 WCI 08003097 Contact Us For Availability
39
WCI 08016553 WCI 08016553 Contact Us For Availability
40
WCI 3016548 WCI 3016548 Contact Us For Availability
41
SUPPORT WCI 3016552 Contact Us For Availability
42
WCI 08003090 WCI 08003090 Contact Us For Availability
43
SWITCH-UPPER LIMIT WCI 08003092 Contact Us For Availability
44
SWITCH-LOWER LIMIT WCI 3007889 Contact Us For Availability
45
WCI 3016553 WCI 3016553 Contact Us For Availability
46
MOTOR WCI 3016554 Contact Us For Availability
× ![]()
