Model Electrolux RE36BNW3 RANGE – Common Parts & Diagrams
02 - BROILER PARTS
03 - CONTROL PANEL

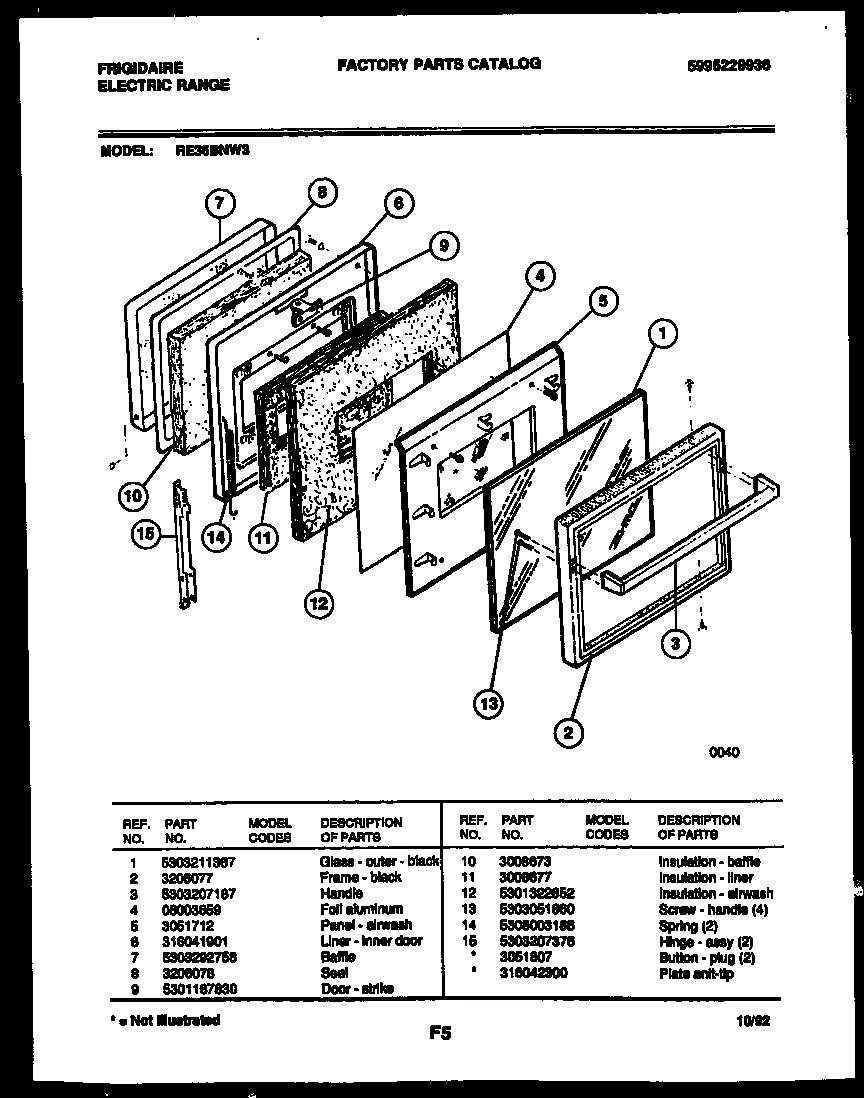

04 - DOOR PARTS

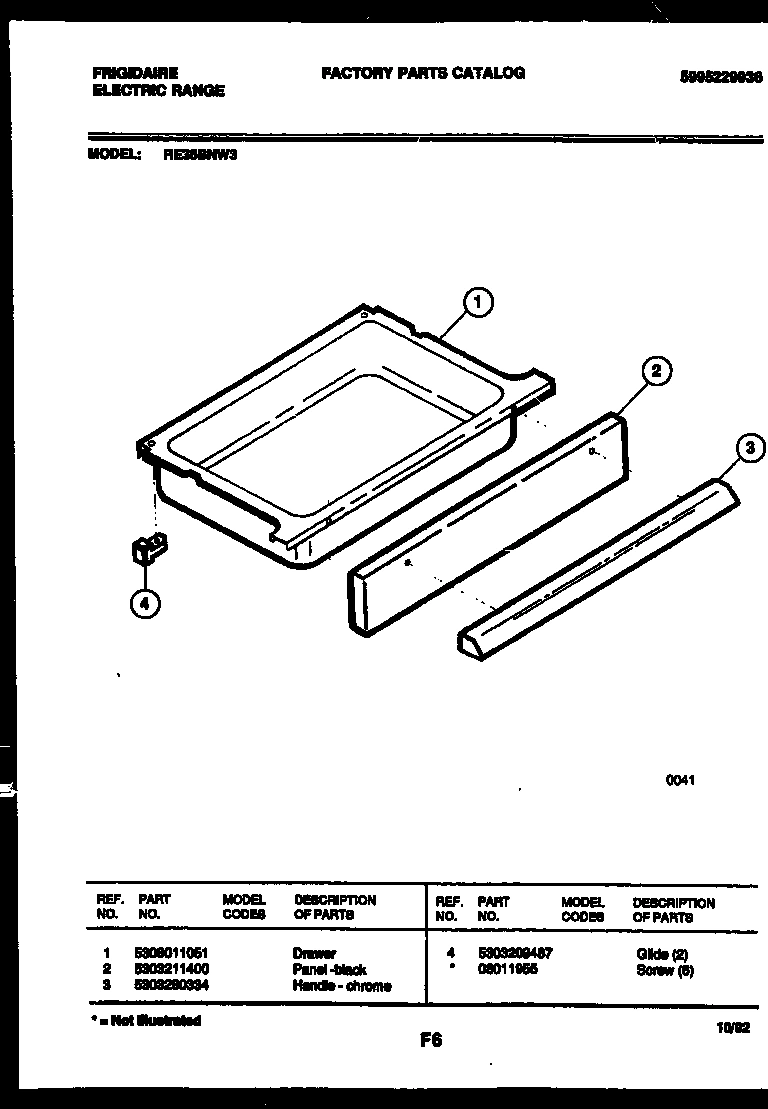

05 - DRAWER PARTS

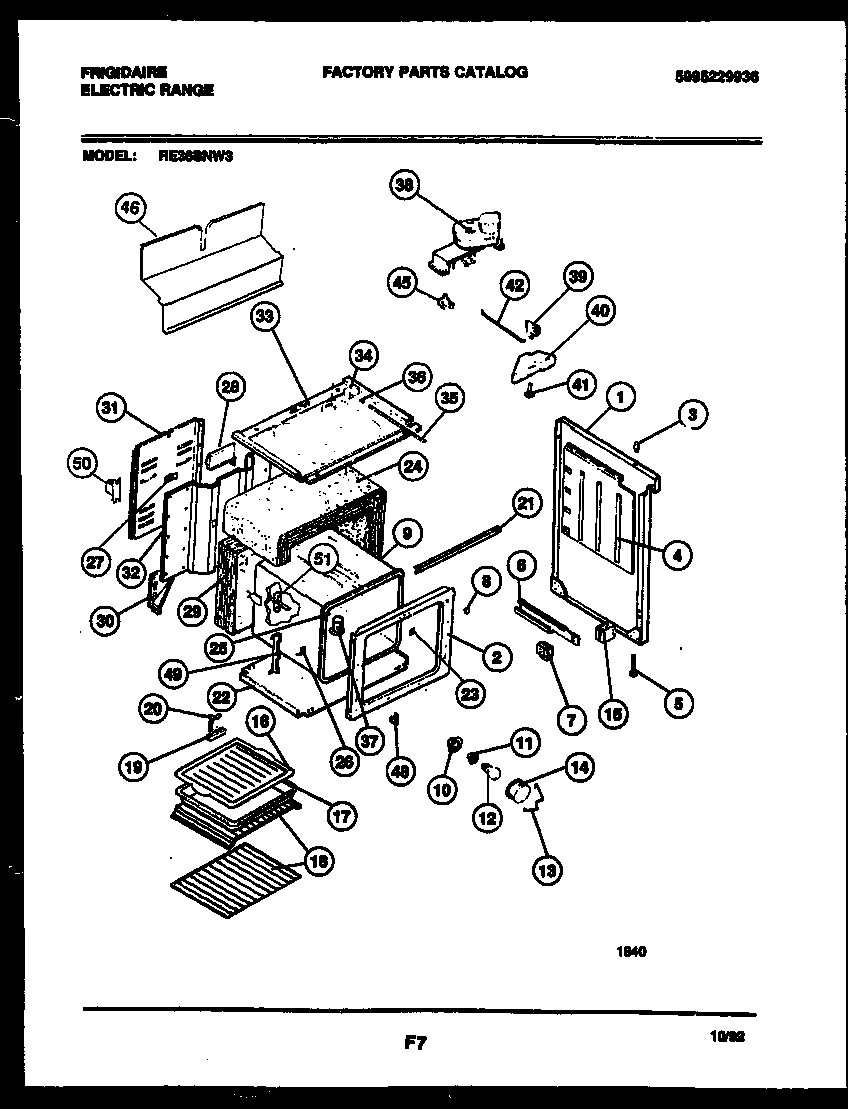

06 - BODY PARTS

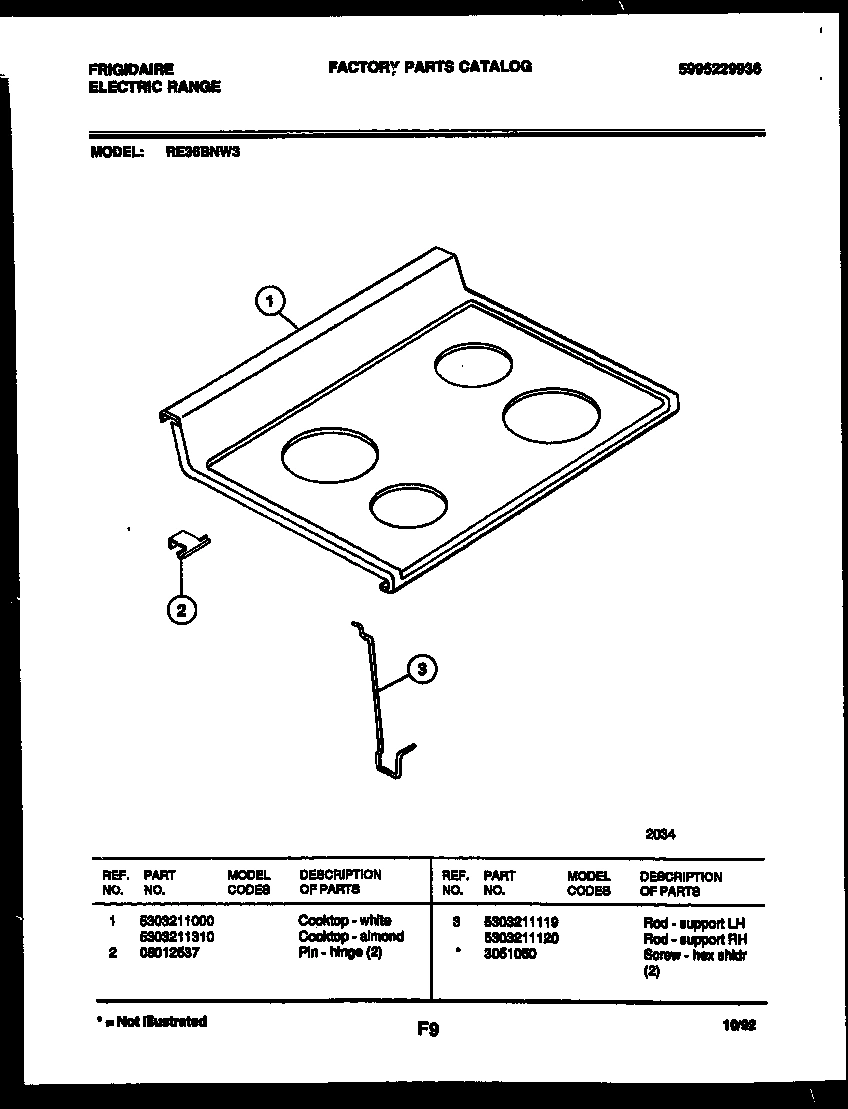

07 - COOKTOP PARTS
Common parts from model Electrolux RE36BNW3 RANGE
*68858
WCI 3051807 WCI 3051807 Contact Us For Availability
*68858
PLATE ANTI-TIP WCI 316042300 Contact Us For Availability
*68864
WCI 1910021099 WCI 1910021099 Contact Us For Availability
*68865
SCREW - HEX SHLDR (2) WCI 3051050 Contact Us For Availability
1
WCI 5303211367 WCI 5303211367 Contact Us For Availability
1
DRAWER WCI 5308011051 Contact Us For Availability
1
SIDE PNL, RH (WHITE) WCI 5308012527 Contact Us For Availability
1
COOKTOP - WHITE WCI 5303211000 Contact Us For Availability
1A
SIDE PNL, LH (WHITE) WCI 5308012528 Contact Us For Availability
2
FRAME - BLACK WCI 3206077 Contact Us For Availability
2
WCI 5303211400 WCI 5303211400 Contact Us For Availability
2
FRONT - OVEN WCI 316042101 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
3
WCI 5303207187 WCI 5303207187 Contact Us For Availability
3
HANDLE-CHROME WCI 5303280334 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
ROD - SUPPORT LH WCI 5303211119 Contact Us For Availability
3A
ROD - SUPPORT RH WCI 5303211120 Contact Us For Availability
4
GLIDE (2) WCI 5303209487 Contact Us For Availability
4
WCI 08003659 WCI 08003659 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
STARTER-FLUOR LIGHT WCI 3206218 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
BRACKET - CLOCK MTG WCI 5303211845 Contact Us For Availability
6
LINER - INNER DOOR WCI 316041901 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
WCI 5303211843 WCI 5303211843 Contact Us For Availability
7
WCI 5303292758 WCI 5303292758 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 5308003113 WCI 5308003113 Contact Us For Availability
8
KNOBS-S/U (4) WCI 5303271673 Contact Us For Availability
8
WCI 3206078 WCI 3206078 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
8A
WCI 5308003114 WCI 5308003114 Contact Us For Availability
9
WCI 5303211406 WCI 5303211406 Contact Us For Availability
9
DOOR STRIKE WCI 5301167830 Contact Us For Availability
9
OVEN LINER WCI 5303293178 Contact Us For Availability
9A
WCI 5303211405 WCI 5303211405 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WCI 3008673 WCI 3008673 Contact Us For Availability
10
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3008677 WCI 3008677 Contact Us For Availability
12
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
13
WCI 5303051860 WCI 5303051860 Contact Us For Availability
13
TIMER 14600 CTL WCI 5303270370 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
KNOB - CLOCK-GRAY WCI 5303210918 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
15
BUTTON-CLOCK GRAY (8) WCI 5303210917 Contact Us For Availability
15
WCI 5303207376 WCI 5303207376 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
16
GRILLE - BROILER WCI 5303293176 Contact Us For Availability
17
WCI 5303292688 WCI 5303292688 Contact Us For Availability
18
BULB-FLUOR WCI 5308012712 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
19
HOLDER-FLUOR LIGHT (2) WCI 08012748 Contact Us For Availability
20
WCI 5303292170 WCI 5303292170 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
24
INSULATION, OVEN WRAP WCI 3203029 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 5303211842 WCI 5303211842 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
LENS - SIGNAL LIGHT WCI 5303211122 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH-MOTOR WCI 5303269766 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
45
WCI 5303273248 WCI 5303273248 Contact Us For Availability
45A
WCI 5303273247 WCI 5303273247 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
48
WCI 3019063 WCI 3019063 Contact Us For Availability
48A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
49
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
50
WCI 3017556 WCI 3017556 Contact Us For Availability
× ![]()
