Model Electrolux RE32BNL2 RANGE – Common Parts & Diagrams
02 - CONTROL PANEL
03 - COOKTOP PARTS
04 - DOOR PARTS
05 - BROILER PARTS

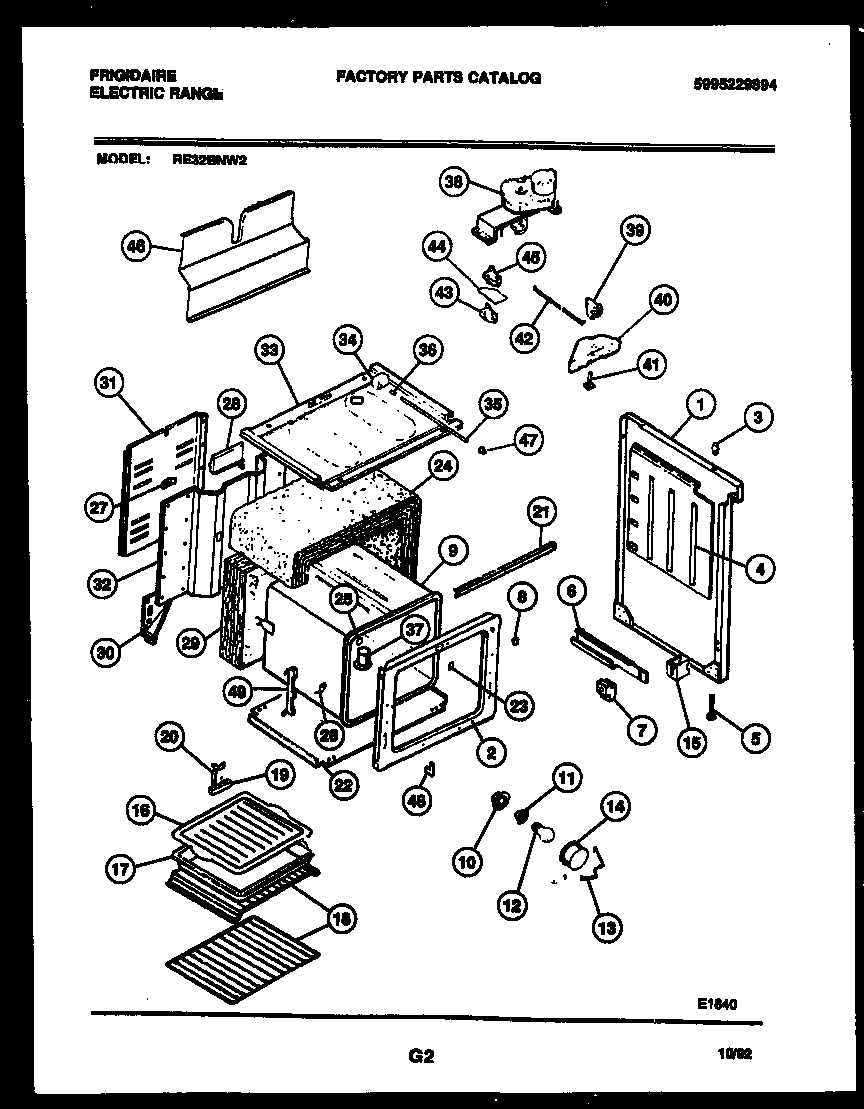

06 - BODY PARTS
07 - DRAWER PARTS
Common parts from model Electrolux RE32BNL2 RANGE
*68933
SCREW HEX SHOULDER (2) WCI 3051050 Contact Us For Availability
*68934
PLATE ANTI-TIP WCI 316042300 Contact Us For Availability
*68935
WCI 3017801 WCI 3017801 Contact Us For Availability
*68939
WCI 19100210095 WCI 19100210095 Contact Us For Availability
1
COOKTOP - ALMOND WCI 5303211310 Contact Us For Availability
1
WCI 5303211367 WCI 5303211367 Contact Us For Availability
1
SIDE PNL, RH (ALMD) WCI 5308012529 Contact Us For Availability
1
WCI 5308011051 WCI 5308011051 Contact Us For Availability
1A
SIDE PNL, LH (ALMD) WCI 5308012530 Contact Us For Availability
2
PIN, HINGE (2) WCI 08012537 Contact Us For Availability
2
FRAME - BLACK WCI 3206077 Contact Us For Availability
2
FRONT - OVEN WCI 316042101 Contact Us For Availability
2
WCI 5301325100 WCI 5301325100 Contact Us For Availability
3
ROD - COOKTOP SUPPORT LH WCI 5303211119 Contact Us For Availability
3
ROD - COOKTOP SUPPORT RH WCI 5303211120 Contact Us For Availability
3
WCI 5303207187 WCI 5303207187 Contact Us For Availability
3
BUMPER, COOKTOP (4) WCI 5308003107 Contact Us For Availability
3
HANDLE - DRAWER - WCI 5303280334 Contact Us For Availability
4
WCI 5303209487 WCI 5303209487 Contact Us For Availability
4
LIGHT - PILOT S/U WCI 5303276663 Contact Us For Availability
4
WCI 08003659 WCI 08003659 Contact Us For Availability
4
RETAINER, INSULATION (2) WCI 3051632 Contact Us For Availability
5
WCI 3051712 WCI 3051712 Contact Us For Availability
5
LEG - LEVELLER (4) WCI 5303205540 Contact Us For Availability
6
LINER - INNER DOOR WCI 316041901 Contact Us For Availability
6
WCI 3205756 WCI 3205756 Contact Us For Availability
6
WCI 5308015746 WCI 5308015746 Contact Us For Availability
6A
RAIL, DRAWER LH WCI 3051652 Contact Us For Availability
7
BAFFLE WCI 5303292728 Contact Us For Availability
7
GUIDE - DRWR FRONT (2) WCI 3051654 Contact Us For Availability
8
WCI 3206078 WCI 3206078 Contact Us For Availability
8
PLUG BUTTON, OVEN LIGHT HOLE WCI 3204817 Contact Us For Availability
9
DOOR STRIKE WCI 5301167830 Contact Us For Availability
9
OVEN LINER WCI 5303292686 Contact Us For Availability
10
SUPPORT RH WCI 08015966 Contact Us For Availability
10
WCI 3008673 WCI 3008673 Contact Us For Availability
10
CUP-OVEN LIGHT WCI 5303271606 Contact Us For Availability
10A
SUPPORT - LH WCI 5308015967 Contact Us For Availability
11
BRACKET, HINGE (2) WCI 5308012538 Contact Us For Availability
11
WCI 3008677 WCI 3008677 Contact Us For Availability
12
INSULATION, AIRWASH WCI 5301322652 Contact Us For Availability
13
WCI 5303051860 WCI 5303051860 Contact Us For Availability
13
WCI 5303211871 WCI 5303211871 Contact Us For Availability
13
RETAINER-LENS WCI 5303205904 Contact Us For Availability
14
KNOB - CLOCK (3) - GREY WCI 5303210414 Contact Us For Availability
14
SPRING (2) WCI 5308003186 Contact Us For Availability
15
WCI 5308004154 WCI 5308004154 Contact Us For Availability
15
WCI 5303207376 WCI 5303207376 Contact Us For Availability
15
SPACER, DRWR RAIL (2) WCI 3051653 Contact Us For Availability
16
BRACKET-CLOCK MTG WCI 3204642 Contact Us For Availability
16
PLUG-BUTTON (2) WCI 3051807 Contact Us For Availability
16
GRILLE - BROILER WCI 5303293176 Contact Us For Availability
17
WCI 5303292688 WCI 5303292688 Contact Us For Availability
18A
RACK-OVEN, OFFSET WCI 08014219 Contact Us For Availability
20
WCI 5301145190 WCI 5301145190 Contact Us For Availability
21
WCI 5303207391 WCI 5303207391 Contact Us For Availability
22
WCI 3206275 WCI 3206275 Contact Us For Availability
23
WCI 3202082 WCI 3202082 Contact Us For Availability
24
INSULATION, OVEN WRAP WCI 3203029 Contact Us For Availability
25
WCI 3016334 WCI 3016334 Contact Us For Availability
26
WCI 3201632 WCI 3201632 Contact Us For Availability
27
WCI 3016281 WCI 3016281 Contact Us For Availability
28
WCI 3051634 WCI 3051634 Contact Us For Availability
29
INSULATION, OVEN BACK WCI 5303051630 Contact Us For Availability
30
WCI 3017481 WCI 3017481 Contact Us For Availability
30A
WCI 3017482 WCI 3017482 Contact Us For Availability
31
WCI 5303051856 WCI 5303051856 Contact Us For Availability
32
WCI 3205757 WCI 3205757 Contact Us For Availability
33
PANEL - SUBTOP WCI 5303292692 Contact Us For Availability
34
SWITCH, DOOR WCI 5308003081 Contact Us For Availability
35
WCI 08007445 WCI 08007445 Contact Us For Availability
36
WCI 08007444 WCI 08007444 Contact Us For Availability
37
WCI 08012574 WCI 08012574 Contact Us For Availability
38
LATCH, MOTOR WCI 5308015743 Contact Us For Availability
39
LATCH-DOOR WCI 3051648 Contact Us For Availability
40
HOUSING-DOOR LATCH WCI 3051647 Contact Us For Availability
41
AXLE WCI 5308012004 Contact Us For Availability
42
WCI 3051649 WCI 3051649 Contact Us For Availability
43
SWITCH, LOWER WCI 5308006582 Contact Us For Availability
44
WCI 08003090 WCI 08003090 Contact Us For Availability
45
SWITCH, UPPER WCI 5303051740 Contact Us For Availability
46
WCI 3206095 WCI 3206095 Contact Us For Availability
47
COVER - ROD END WCI 08067758 Contact Us For Availability
48
WCI 3019063 WCI 3019063 Contact Us For Availability
48A
ANTI-TIP KIT, (NON-ILLUSTRATED) WCI 3934063 Contact Us For Availability
49
CHANNEL ASSY, HINGE (2) WCI 3201631 Contact Us For Availability
× ![]()
