Model Whirlpool RDE32302 – Common Parts & Diagrams
02 - CONTROL PANEL
04 - OVEN CHASSIS

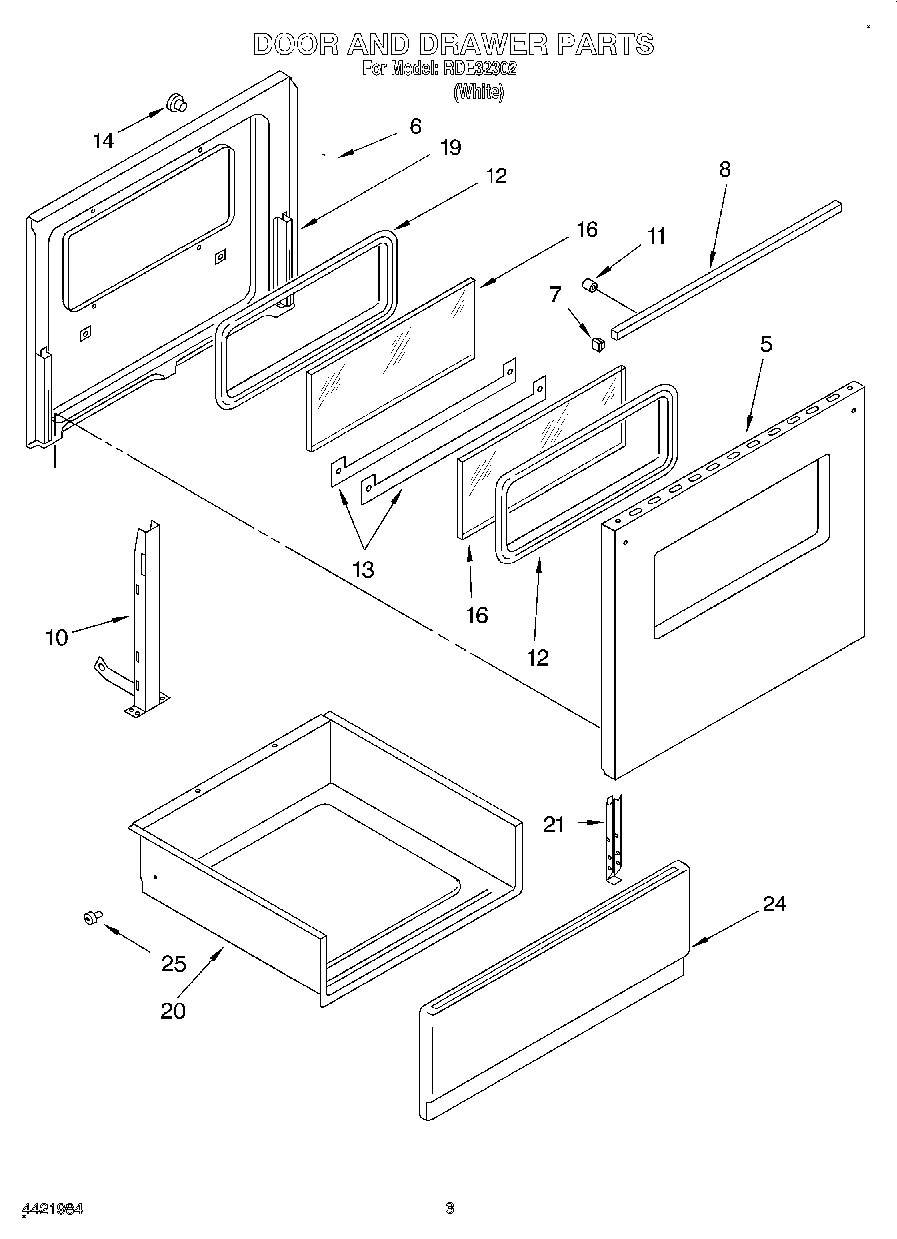

03 - DOOR AND DRAWER

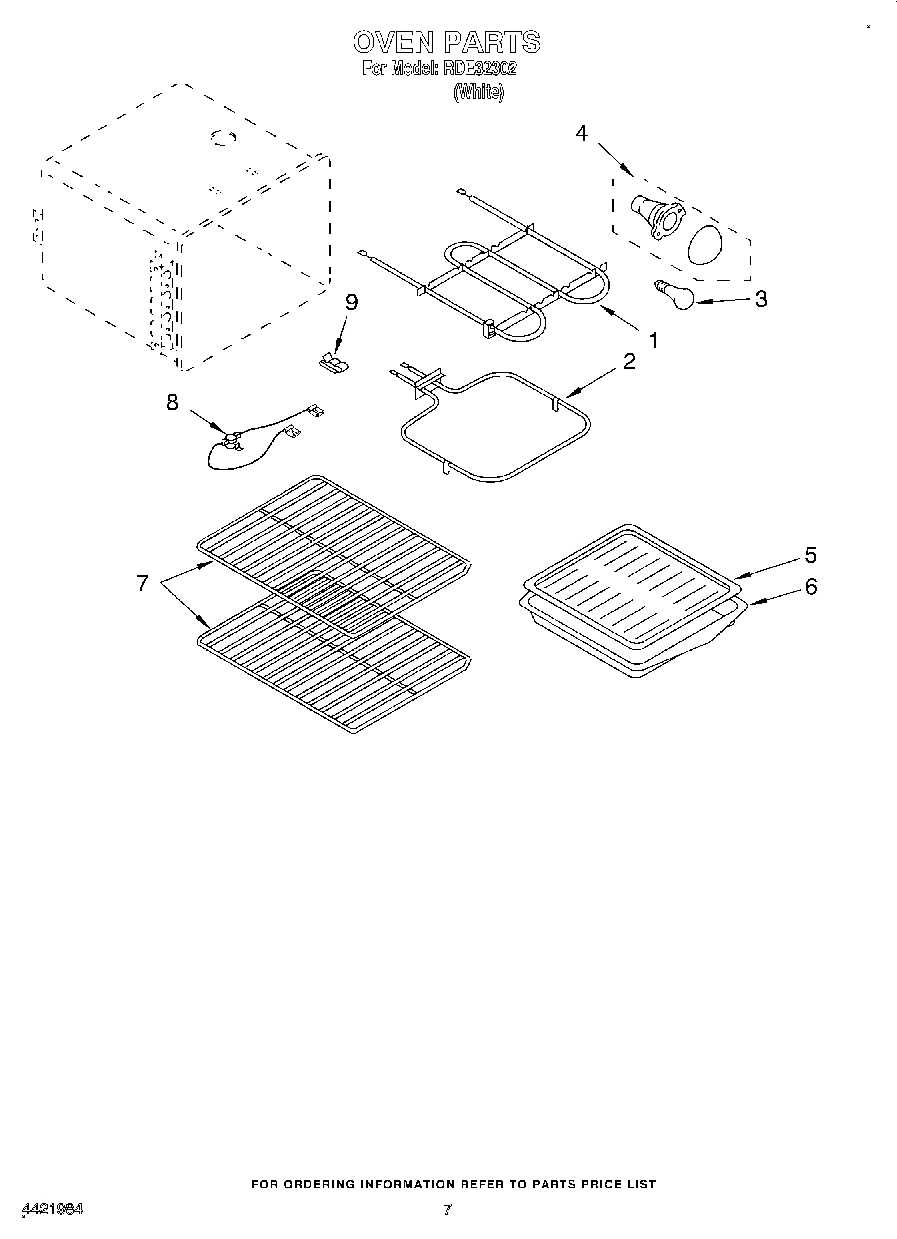

05 - OVEN, OPTIONAL

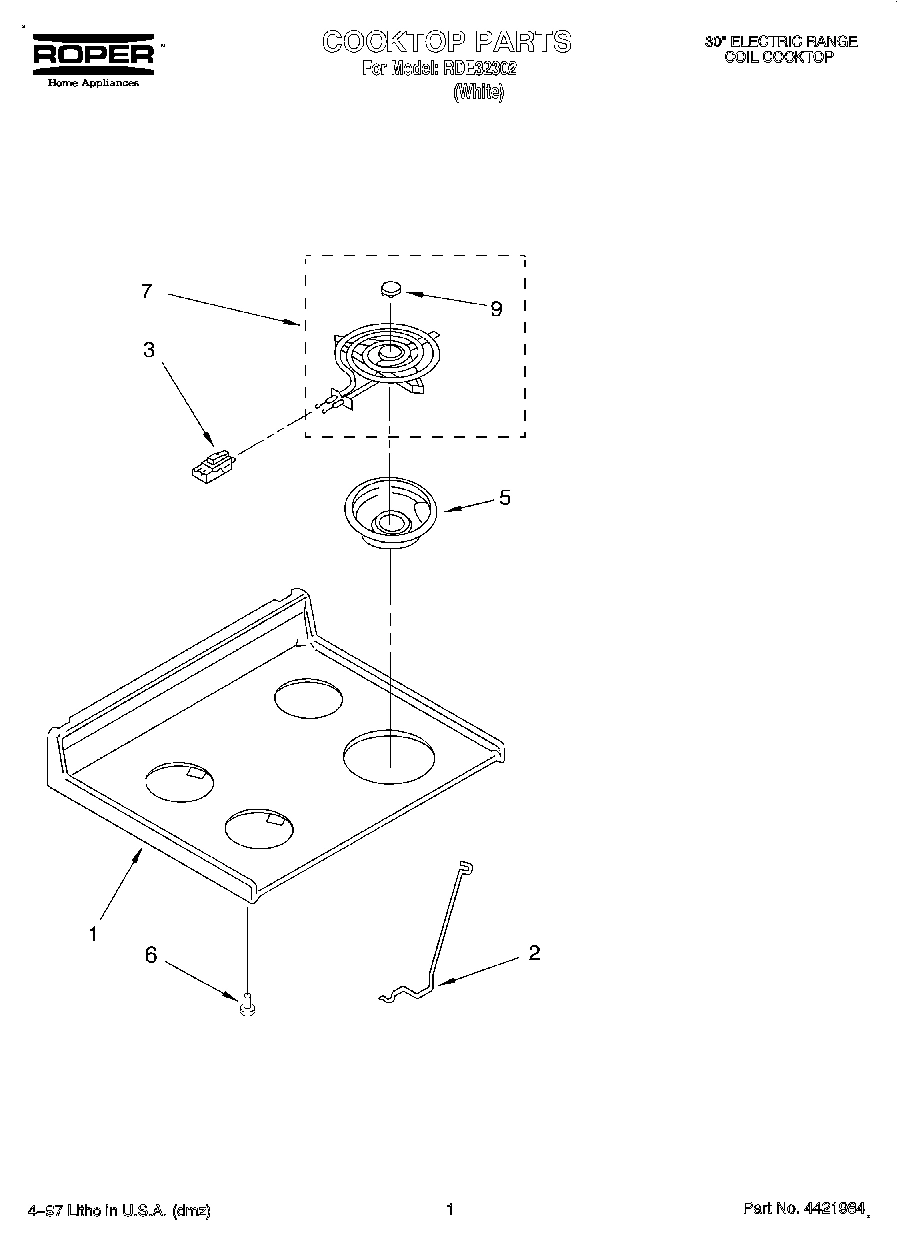

01 - COOKTOP, LITERATURE
Common parts from model Whirlpool RDE32302
Use And Care Guide WPL LIT3189938 Contact Us For Availability
Use & Care (French) WPL LIT3189939 Contact Us For Availability
Wiring Diagram WPL LIT3189944 Contact Us For Availability
1
Element, Broil WPL 9780993 Contact Us For Availability
1
Cooktop, Coil (White) WPL 9750160GW Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Screw, Elements WPL 9781509 Contact Us For Availability
2
Rod, Support (2) WPL 9751538 Contact Us For Availability
3
Clip, Receptacle WPL 9750735 Contact Us For Availability
4
Light Assembly WPL 9750962 Contact Us For Availability
5
Panel, Door (White) WPL 9780983GW Contact Us For Availability
6
Screw WPL 3149333 Contact Us For Availability
6
Retainer, Door (2) WPL 9750676 Contact Us For Availability
7
Rack, Standard WPL 9750498 Contact Us For Availability
7
Oven , Side Panel (White, L or R) WPL 9750148PW Contact Us For Availability
7
End Cap (Left) WPL 9781070 Contact Us For Availability
7
End Cap (Right) WPL 9781071 Contact Us For Availability
8
Handle, Door WPL 423138 Contact Us For Availability
8
Screw, (1) 8 x 1/4 WPL 9780271 Contact Us For Availability
9
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
9
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
9
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
9
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
9
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
9
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
9
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
9
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
9
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
9
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
9
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
9
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
9
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
9
Grease WPL 261582 Contact Us For Availability
9
Coffee WPL 261886 Contact Us For Availability
9
New Avocado WPL 261888 Contact Us For Availability
9
Harvest Gold WPL 261890 Contact Us For Availability
9
Harvest Gold (Uncut) WPL 261891 Contact Us For Availability
9
Toast WPL 285365 Contact Us For Availability
9
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
9
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
9
Platinum (Uncut) WPL 285368 Contact Us For Availability
9
Harness, Wire (Main) WPL 3190056 Contact Us For Availability
9
WPL 72108 WPL 72108 Contact Us For Availability
9
WPL 72112 WPL 72112 Contact Us For Availability
9
WPL 799832 WPL 799832 Contact Us For Availability
9
WPL 9750984 WPL 9750984 Contact Us For Availability
9
WPL 9751003 WPL 9751003 Contact Us For Availability
9
WPL 9751014 WPL 9751014 Contact Us For Availability
9
WPL 9781304 WPL 9781304 Contact Us For Availability
9
WPL 9781461 WPL 9781461 Contact Us For Availability
9
WPL 9781540 WPL 9781540 Contact Us For Availability
9
WPL 978883 WPL 978883 Contact Us For Availability
9
Medallion, (4) WPL 4211952 Contact Us For Availability
10
Hinge, Door R or L WPL 9750235 Contact Us For Availability
11
Burner Box WPL 9750479GM Contact Us For Availability
11
Screw, (2) 8 x 3/8 WPL 9780275 Contact Us For Availability
11
Spacer, Handle (R or L) WPL 423857 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
12
Gasket, glass WPL 9750685 Contact Us For Availability
13
Retainer, Glass WPL 9750894 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
15
Rail, Drawer (Right) WPL 9750224 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Glass, Inner-Outer WPL 9750686 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
19
Hinge, Receiver (R or L) WPL 9750149 Contact Us For Availability
19
Liner, Door WPL 9780671GM Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
21
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Hinge, Cktp.-Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.-Right WPL 9750416 Contact Us For Availability
24
Front, Drawer (White) WPL 9750168PW Contact Us For Availability
25
Vent Tube WPL 9750391 Contact Us For Availability
26
Button, Plug WPL 9780578 Contact Us For Availability
× ![]()
