Model Whirlpool RCS3004GS0 30`` ELECTRIC BUILT-IN COOKTOP – Common Parts & Diagrams

Common parts from model Whirlpool RCS3004GS0 30`` ELECTRIC BUILT-IN COOKTOP

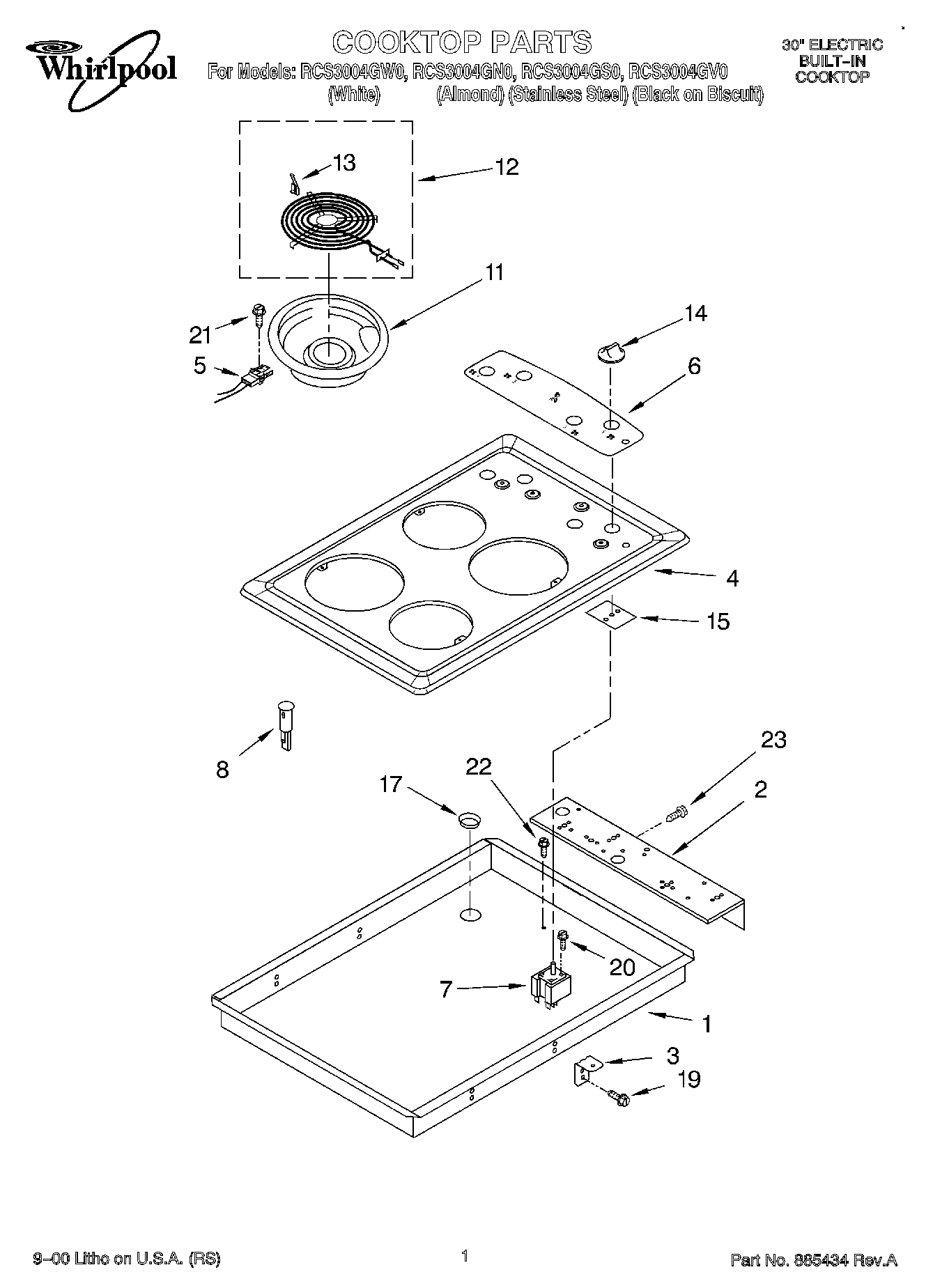

01 - SECTION

Print

• This Diagram
• All Diagrams

Harness, Wire (Main) WPL 3191220 Contact Us For Availability

View on Model

Harness, Wire (Light) WPL 4455592 Contact Us For Availability

View on Model

4

Cooktop (Stainless Steel) WPL 3191170 Contact Us For Availability

View on Model

4

Cooktop (Black on Biscuit) WPL 8284709 Contact Us For Availability

View on Model

5

814399 Whirlpool Receptacle Kit In Stock WPL 814399 View Details $15.52

View on Model

6

Panel, Control (Black) WPL 3191228 Contact Us For Availability

View on Model

6

Panel, Control (White) WPL 3191229 Contact Us For Availability

View on Model

6

Panel, Control (Almond) WPL 3191230 Contact Us For Availability

View on Model

7

WP3191471 Whirlpool Infinite Switch In Stock WPL WP3191471 View Details $82.93

View on Model

7

WP3191472 Whirlpool Infinite Switch In Stock WPL WP3191472 View Details $82.11

View on Model

8

WP4456181 Whirlpool Indicator Light In Stock WPL WP4456181 View Details $45.60

View on Model

11

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 View Details $3.18

View on Model

11

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 View Details $2.23

View on Model

12

WP9761346 Whirlpool Stove Surface Burner Elem In Stock WPL WP9761346 View Details $56.70

View on Model

12

WPW10345407 Whirlpool Surface Element In Stock WPL WPW10345407 View Details $66.83

View on Model

13

WP3195917 Whirlpool Clip Assembly In Stock WPL WP3195917 View Details $3.70

View on Model

14

WP3196231 Whirlpool Knob In Stock WPL WP3196231 View Details $25.94

View on Model

14

Knob, Control (4) (White) WPL 3196232 Contact Us For Availability

View on Model

14

Knob, Control (4) (Almond) WPL 3196233 Contact Us For Availability

View on Model

15

3183956 Whirlpool Oven Seal Switch In Stock WPL 3183956 View Details $28.64

View on Model

17

Bushing, Conduit WPL 3191506 Contact Us For Availability

View on Model

19

WP3196557 Whirlpool Screw In Stock WPL WP3196557 View Details $2.51

View on Model

20

3400855 Whirlpool Oven Screw Backorder WPL 3400855 View Details $4.39

View on Model

21

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 View Details $2.51

View on Model

22

WP3400015 Whirlpool Screw Backorder WPL WP3400015 View Details $2.51

View on Model

23

WP3177991 Whirlpool Screw Backorder WPL WP3177991 View Details $2.51

View on Model

×
