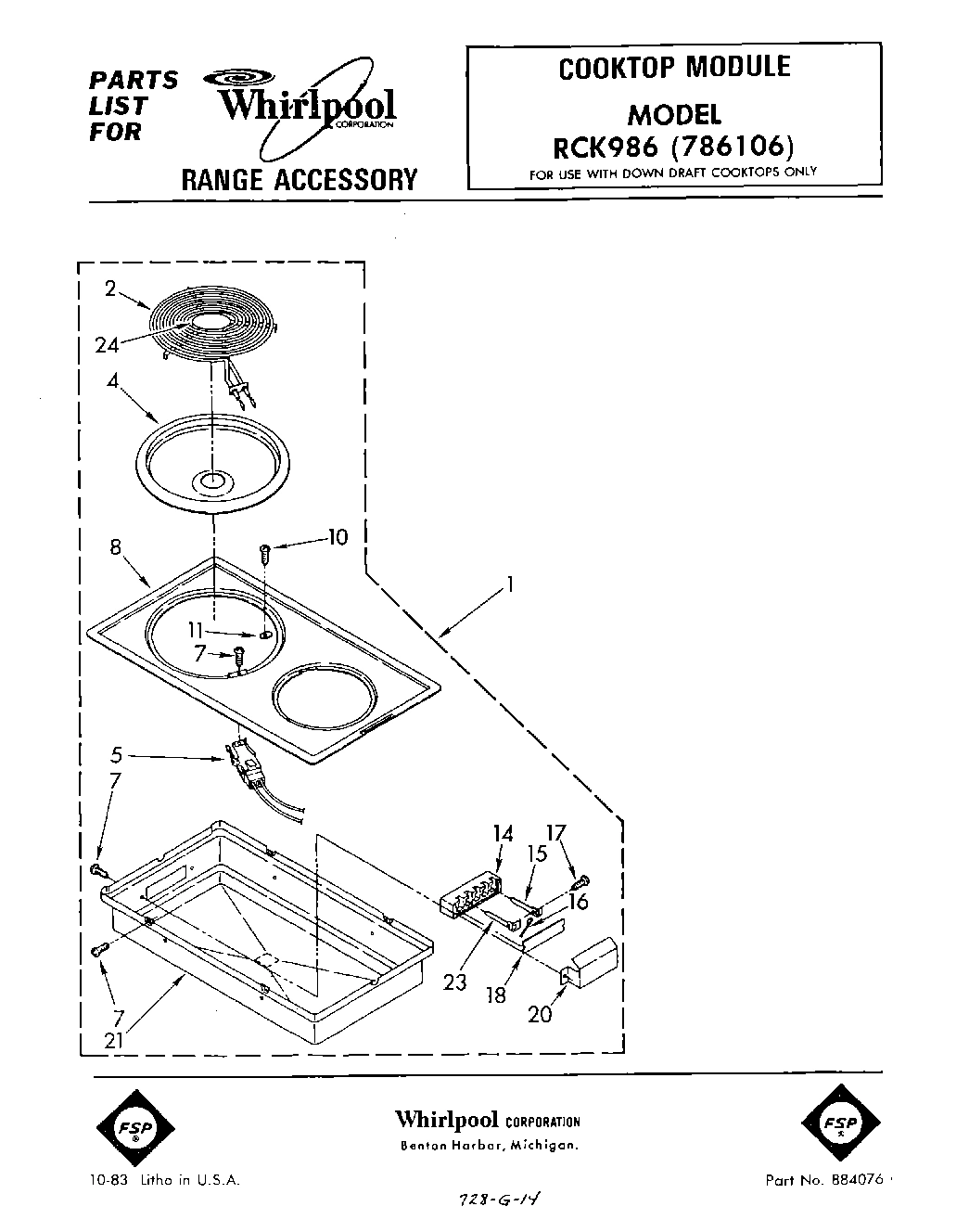

Model Whirlpool RCK986 – Common Parts & Diagrams

1
Kit, Cooktop Module (Complete)
Kit, Cooktop Module (Complete) WPL 786106 Contact Us For Availability
View on Model
2B
Element, Surface (Optional) (6`` (208V))
Element, Surface (Optional) (6`` (208V)) WPL 786248 Contact Us For Availability
View on Model
2B
Element, Surface (Optional) (8`` (208V))
Element, Surface (Optional) (8`` (208V)) WPL 786249 Contact Us For Availability
View on Model
4
Reflector Pan 6``
Reflector Pan 6`` WPL 4157865 Contact Us For Availability
View on Model
8
Top, Module
Top, Module WPL 786184 Contact Us For Availability
View on Model
10
Screw, 6-32D x 1/2 Phillips Pan Head
Screw, 6-32D x 1/2 Phillips Pan Head WPL 786228 Contact Us For Availability
View on Model
11
Nut
Nut WPL 786213 Contact Us For Availability
View on Model
14
Plug Block, Module
Plug Block, Module WPL 786176 Contact Us For Availability
View on Model
15
Spade, Ground
Spade, Ground WPL 786177 Contact Us For Availability
View on Model
16
Wire, Ground (Green)
Wire, Ground (Green) WPL 786252 Contact Us For Availability
View on Model
17
Screw, 8-32 X 3/16 Phillips Pan Head (5)
Screw, 8-32 X 3/16 Phillips Pan Head (5) WPL 786231 Contact Us For Availability
View on Model
18
Insulator
Insulator WPL 786179 Contact Us For Availability
View on Model
20
Bracket, Plug Block Mounting
Bracket, Plug Block Mounting WPL 786181 Contact Us For Availability
View on Model
21
Pan, Module Element
Pan, Module Element WPL 786180 Contact Us For Availability
View on Model
23
Contact, Spade (4)
Contact, Spade (4) WPL 786178 Contact Us For Availability
View on Model
24
Medallion
Medallion WPL 309195 Contact Us For Availability
View on Model
