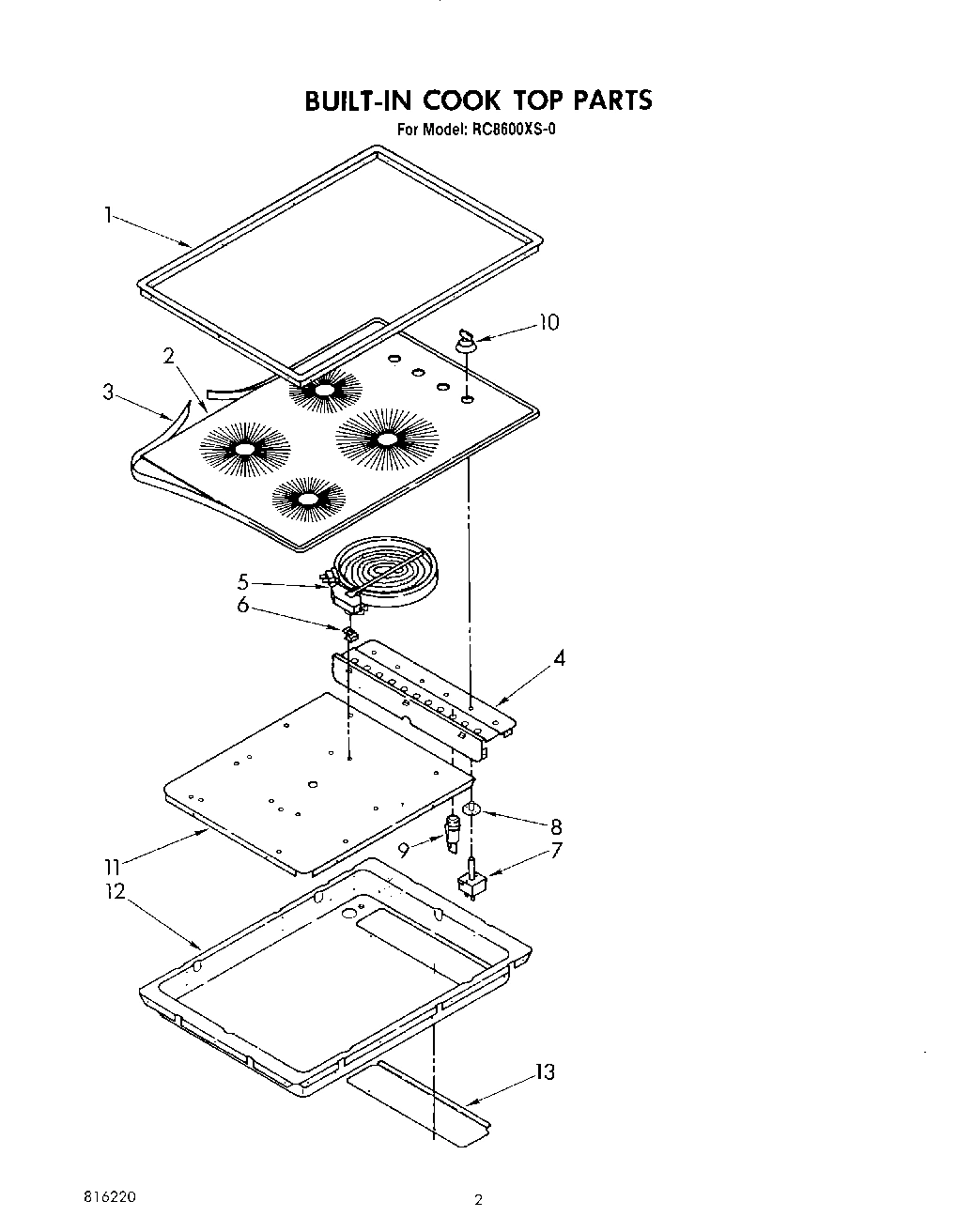

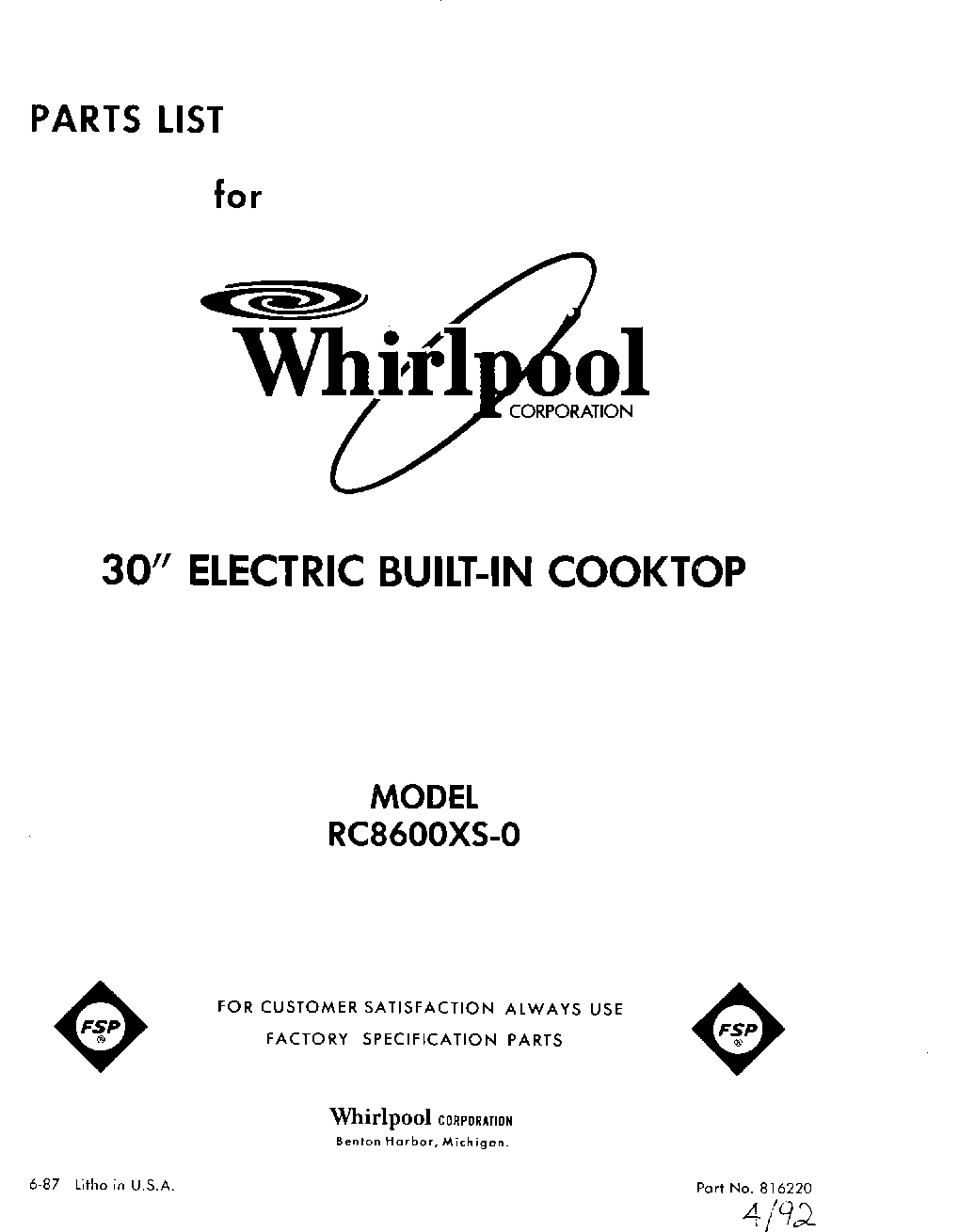

Model Whirlpool RC8600XS0 – Common Parts & Diagrams

1
Frame, Cooktop
Frame, Cooktop WPL 816202 Contact Us For Availability
View on Model
2
Cooktop, Glass
Cooktop, Glass WPL 816201 Contact Us For Availability
View on Model
3
Tape, Foam (102``)
Tape, Foam (102``) WPL 866454 Contact Us For Availability
View on Model
4
Bracket, Control
Bracket, Control WPL 816210 Contact Us For Availability
View on Model
5
Unit, Surface (6`` 1200W (2))
Unit, Surface (6`` 1200W (2)) WPL 816211 Contact Us For Availability
View on Model
5
Unit, Surface (8`` 1700W)
Unit, Surface (8`` 1700W) WPL 816212 Contact Us For Availability
View on Model
5
Unit, Surface (9`` 2100W)
Unit, Surface (9`` 2100W) WPL 816213 Contact Us For Availability
View on Model
6
Clip (12)
Clip (12) WPL 816215 Contact Us For Availability
View on Model
6
Screw, 6-20 x 5/16 (12)
Screw, 6-20 x 5/16 (12) WPL 877978 Contact Us For Availability
View on Model
7
Switch, Infinite (Use W/8`` Surface Unit)
Switch, Infinite (Use W/8`` Surface Unit) WPL 877941 Contact Us For Availability
View on Model
8
Seal, Switch
Seal, Switch WPL 816219 Contact Us For Availability
View on Model
9
Light, Indicator (4)
Light, Indicator (4) WPL 816218 Contact Us For Availability
View on Model
10
Knob, Control (4)
Knob, Control (4) WPL 877924 Contact Us For Availability
View on Model
11
Support, Cooktop
Support, Cooktop WPL 816214 Contact Us For Availability
View on Model
12
Burner Box
Burner Box WPL 816216 Contact Us For Availability
View on Model
13
Conditioner (16 Oz.)
Conditioner (16 Oz.) WPL W10355051 No Longer Available
View on Model
13
Screw, 10-24 x 3/8 (2)
Screw, 10-24 x 3/8 (2) WPL 877903 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
13
Wire, White 14 Ga. 150~c
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
View on Model
13
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
13
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
13
Wire, Red 12 Ga. 150~c
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
View on Model
13
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
13
Wire, Yellow 14 Ga. 200~c
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
View on Model
13
Cleaner (11 Oz.)
Cleaner (11 Oz.) WPL 261961 Contact Us For Availability
View on Model
13
Cover, Access
Cover, Access WPL 816217 Contact Us For Availability
View on Model
13
List, Repair Parts
List, Repair Parts WPL 816220 Contact Us For Availability
View on Model
13
Guide, Use & Care
Guide, Use & Care WPL 877945 Contact Us For Availability
View on Model
13
Installation Instructions
Installation Instructions WPL 877946 Contact Us For Availability
View on Model
13
Book, Cooking
Book, Cooking WPL 877952 Contact Us For Availability
View on Model
