Whirlpool RC8400XYQ0

Model Whirlpool RC8400XYQ0 – Common Parts & Diagrams

Common parts from model Whirlpool RC8400XYQ0

Installation Instructions

Installation Instructions WPL LIT311437 Contact Us For Availability

Cooking Guide

Cooking Guide WPL LIT313358 Contact Us For Availability

Use & Care Guide

Use & Care Guide WPL LIT3185371 Contact Us For Availability

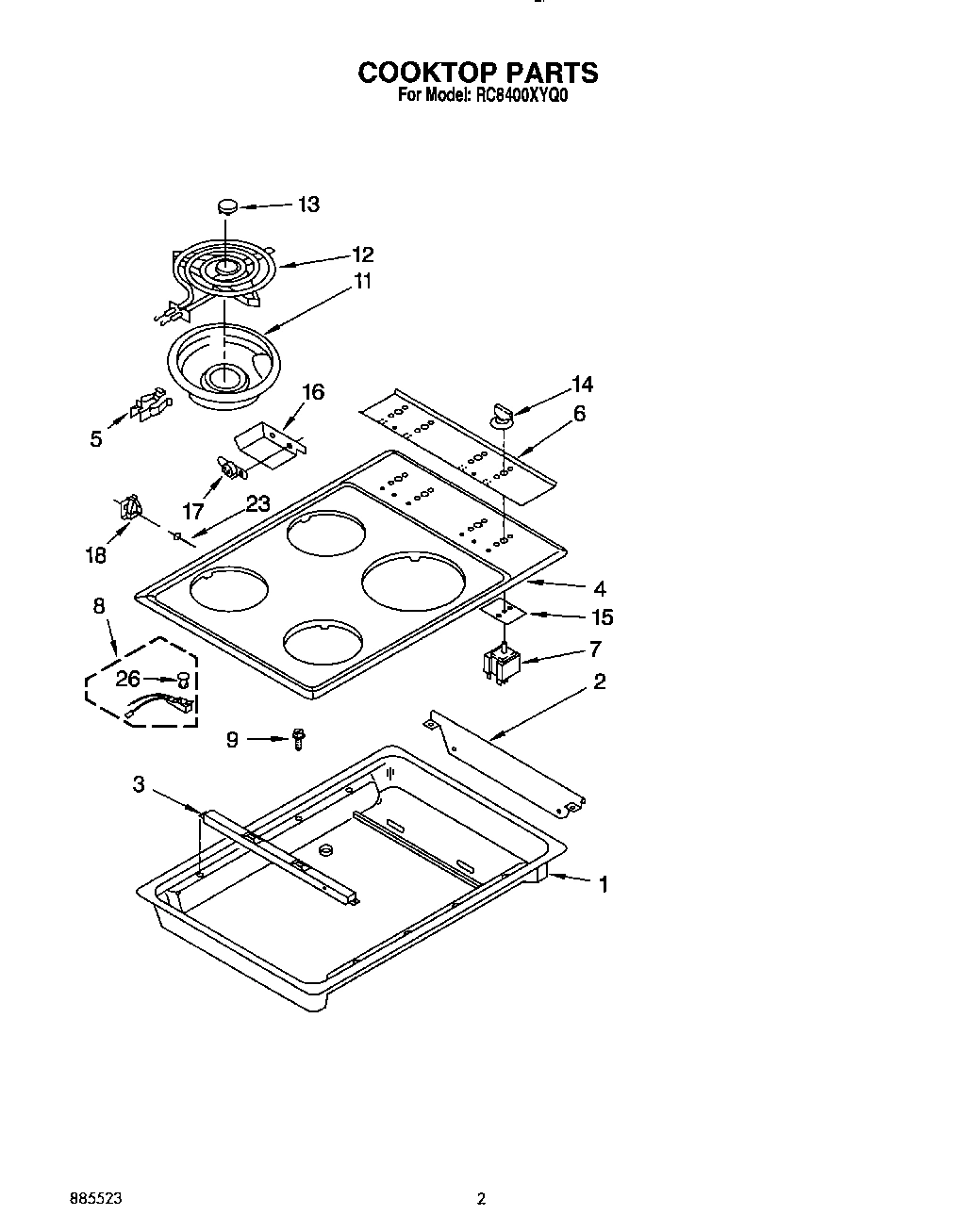

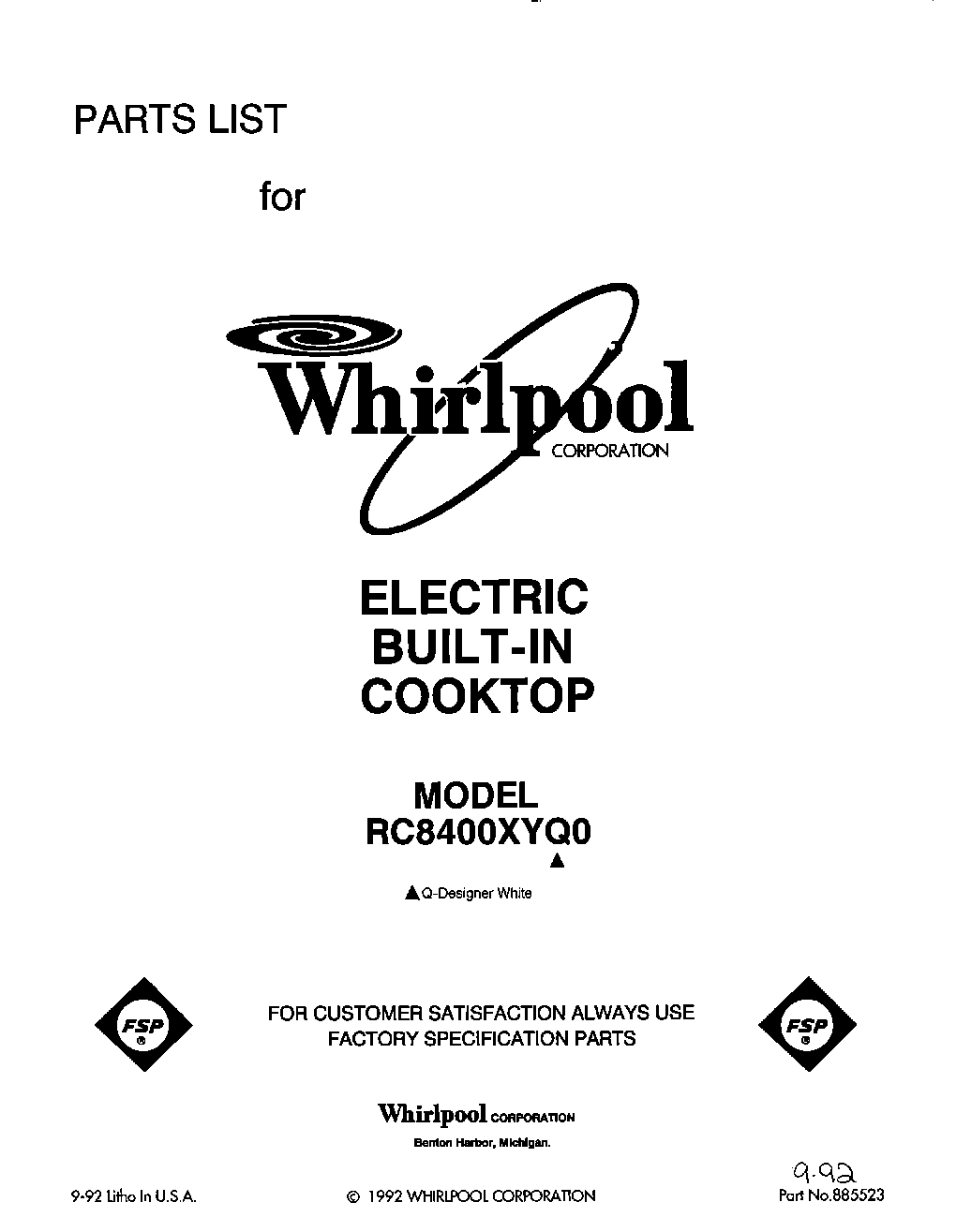

Repair Parts List

Repair Parts List WPL LIT885523 Contact Us For Availability

Wire (14 Ga. 150 c Red)

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

14 Ga. 200`C (Wire, White)

14 Ga. 200`C (Wire, White) WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow)

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black)

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

14 Ga. 150`C (Wire, Red)

14 Ga. 150`C (Wire, Red) WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown)

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

14 Ga. 150`C (Wire, Yellow)

14 Ga. 150`C (Wire, Yellow) WPL 242832 Contact Us For Availability

Screw,

Screw, WPL 312318 Contact Us For Availability

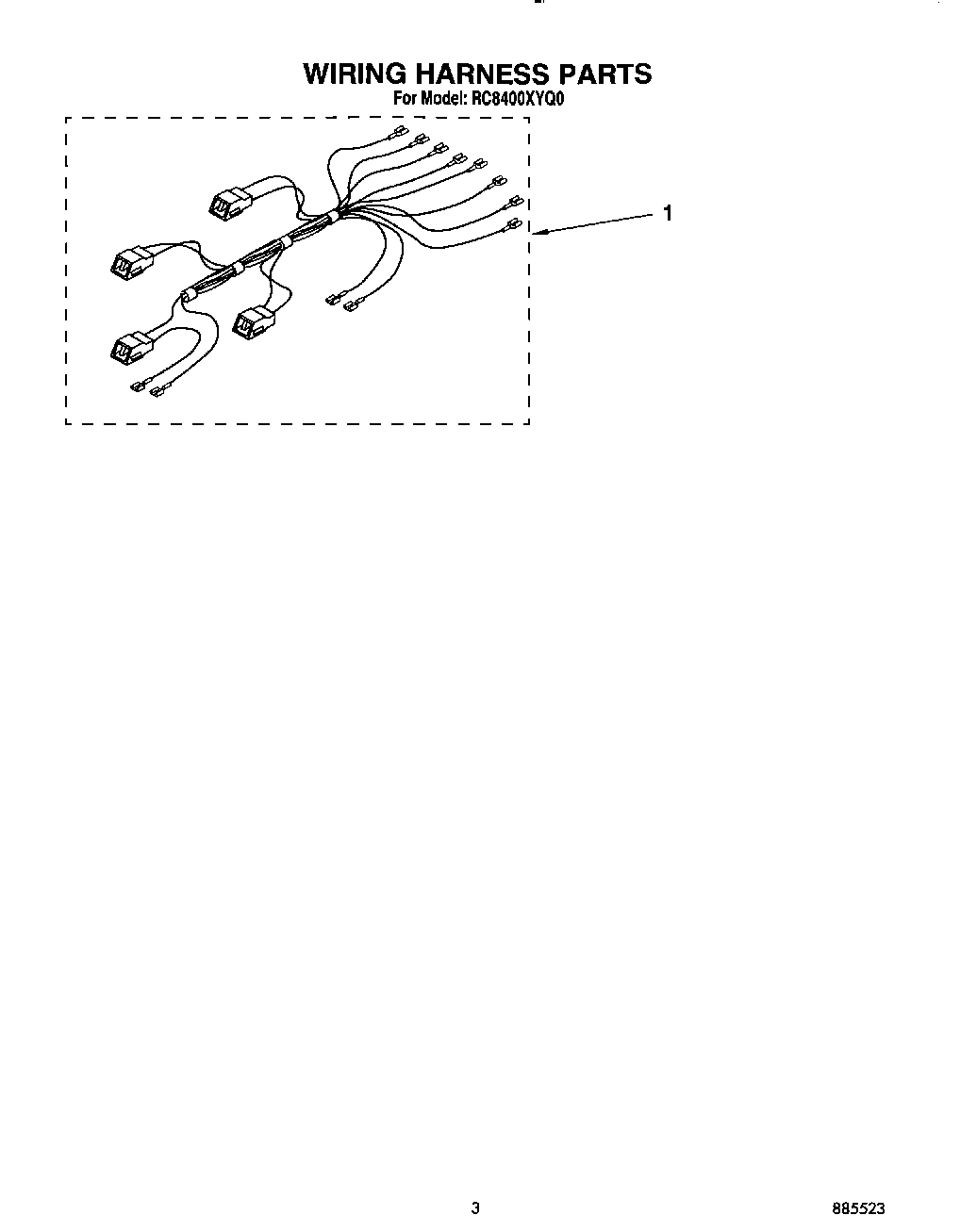

Harness, Wiring (Surface Unit)

Harness, Wiring (Surface Unit) WPL 3147827 Contact Us For Availability

Mounting Hardware

Mounting Hardware WPL 3170206 Contact Us For Availability

Burner Box

Burner Box WPL 311017 Contact Us For Availability

Shield, Switch

Shield, Switch WPL 310716 Contact Us For Availability

Support, Cooktop

Support, Cooktop WPL 310717 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Cooktop

Cooktop WPL 3148754 Contact Us For Availability

330031 Whirlpool Range Surface Element Recept

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

Panel, Control

Panel, Control WPL 3185372 Contact Us For Availability

WP3148966 Whirlpool Infinite Switch

WP3148966 Whirlpool Infinite Switch Backorder WPL WP3148966 $69.61

WP486579 Whirlpool Air Conditioner Screw

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

Switch, Infinite (6`` Unit (2))

Switch, Infinite (6`` Unit (2)) WPL 3148967 Contact Us For Availability

Light, Indicator (2) (Includes Lens Part No.3

Light, Indicator (2) (Includes Lens Part No.3 WPL 313461 Contact Us For Availability

Screw, 10-32 x .5 (Ground Wire)

Screw, 10-32 x .5 (Ground Wire) WPL 3150532 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.04

WPW10196406 Whirlpool 6" Chrome Drip Bowl

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $2.12

WP660532 Whirlpool Oven Surface Element

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

WP660533 Whirlpool Oven 8" Surface Element

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

Medallion, Surface Unit

Medallion, Surface Unit WPL 309195 Contact Us For Availability

WP3183119 Whirlpool Knob Assembly

WP3183119 Whirlpool Knob Assembly Backorder WPL WP3183119 $24.85

3183956 Whirlpool Oven Seal Switch

3183956 Whirlpool Oven Seal Switch Backorder WPL 3183956 $27.27

Bracket, Sensor

Bracket, Sensor WPL 3147830 Contact Us For Availability

WP313808 Whirlpool Screw

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

Thermostat

Thermostat WPL 3147833 Contact Us For Availability

814103 Whirlpool Clip

814103 Whirlpool Clip In Stock WPL 814103 $3.95

Lens, Light

Lens, Light WPL 313602 Contact Us For Availability
