  • Whirlpool RC8400XAH5

Model Whirlpool RC8400XAH5 – Common Parts & Diagrams

1
Wire (14 Ga. 150 c Black)
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Blue)
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Red)
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
View on Model
1
Wire, White 14 Ga. 150~c
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
View on Model
1
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
View on Model
1
Wire (12 Ga. 150 c Black)
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
View on Model
1
Wire, Red 12 Ga. 150~c
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
View on Model
1
Wire (14 Ga. 200 c Brown)
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
View on Model
1
Wire, Yellow 14 Ga. 200~c
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
View on Model
1
Screw,
Screw, WPL 312318 Contact Us For Availability
View on Model
1

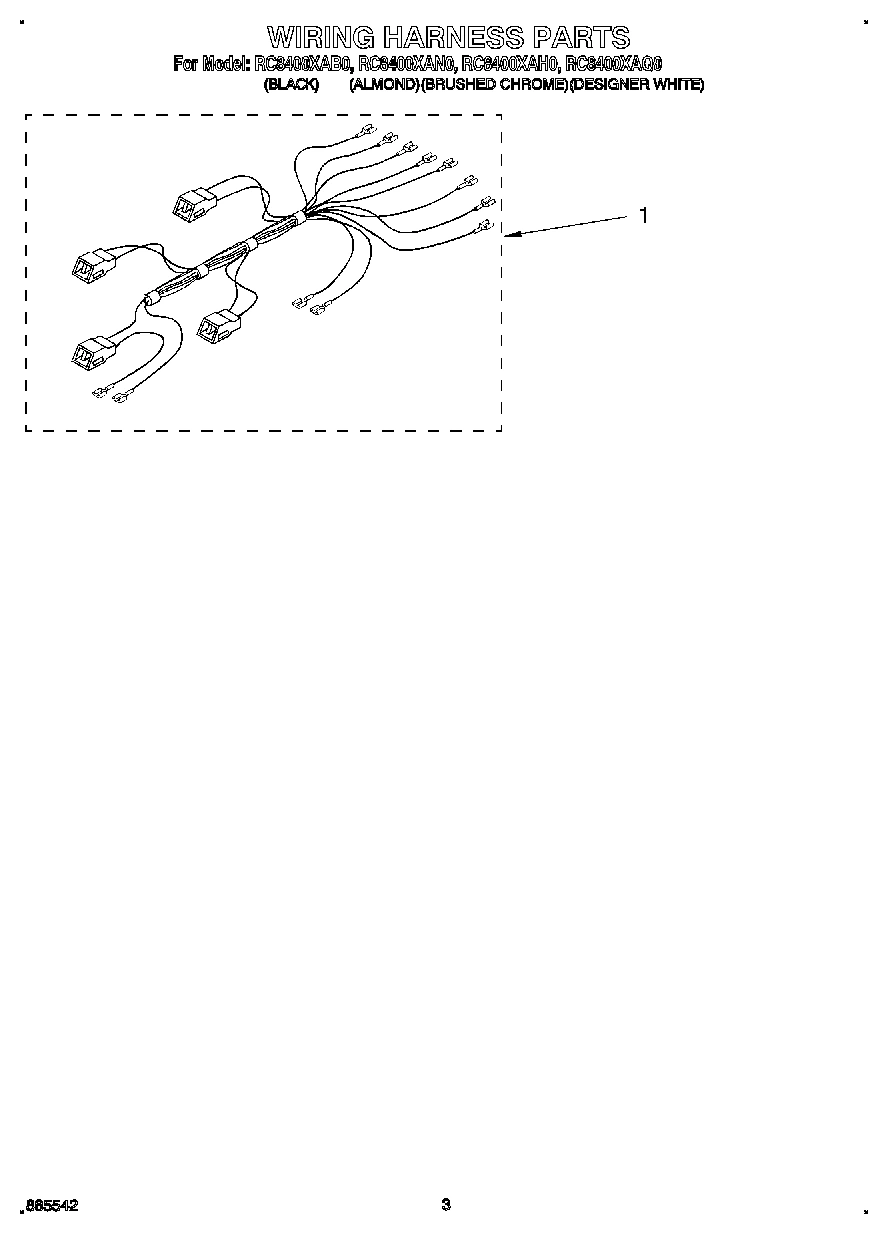

Harness, Wiring (Surface Unit)
Harness, Wiring (Surface Unit) WPL 3147827 Contact Us For Availability
View on Model
1
Mounting Hardware
Mounting Hardware WPL 3170206 Contact Us For Availability
View on Model

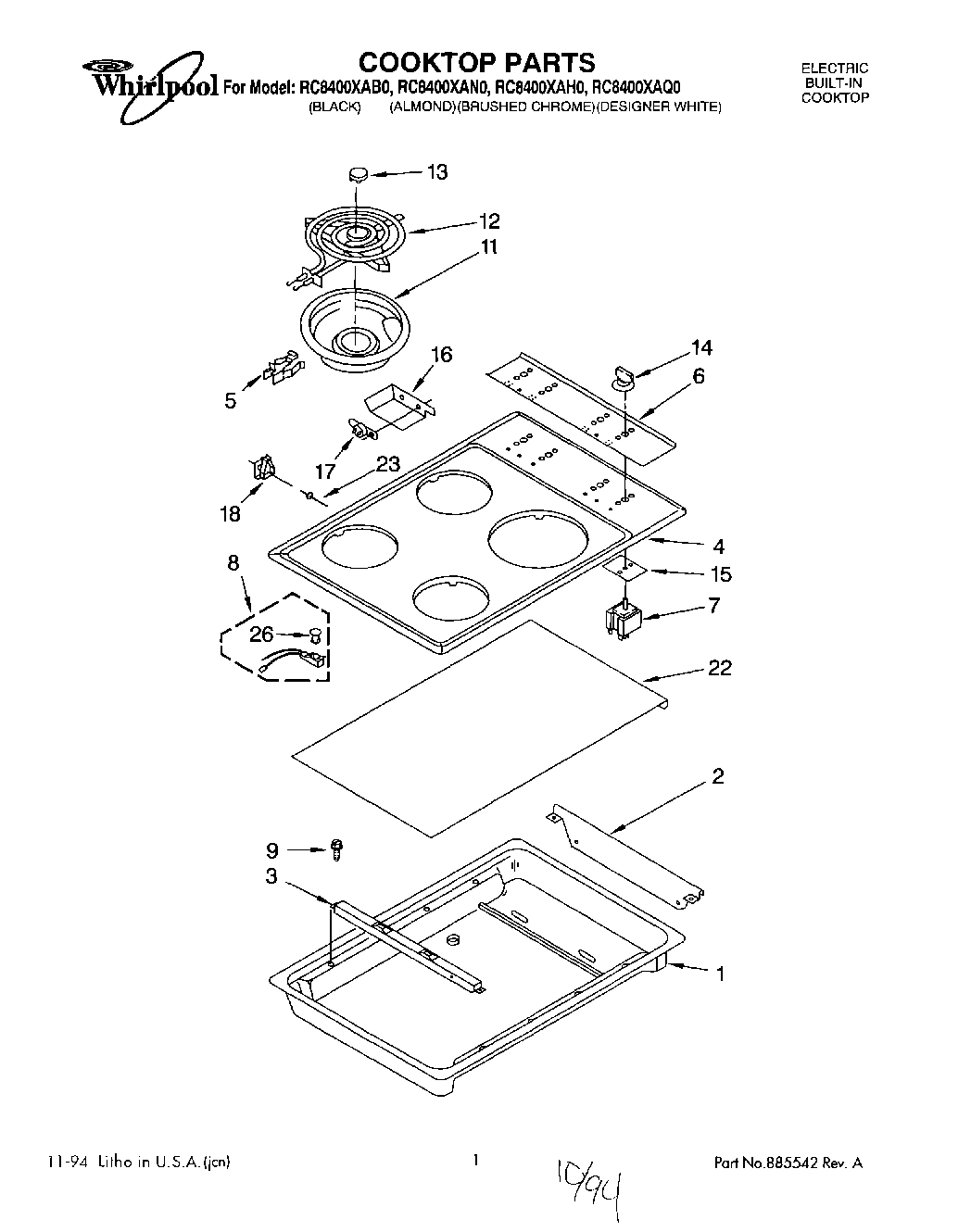

4
Cooktop (Designer White)
Cooktop (Designer White) WPL 3148754 Contact Us For Availability
View on Model
4
Cooktop (Almond)
Cooktop (Almond) WPL 3148755 Contact Us For Availability
View on Model
4
Cooktop (Black)
Cooktop (Black) WPL 3183618 Contact Us For Availability
View on Model
4
Cooktop (Brushed Chrome)
Cooktop (Brushed Chrome) WPL 3183904 Contact Us For Availability
View on Model
6
Panel, Control (Designer White Model)
Panel, Control (Designer White Model) WPL 3185690 Contact Us For Availability
View on Model
6
Panel, Control (Black, Almond, Brushed Chrome
Panel, Control (Black, Almond, Brushed Chrome WPL 3185691 Contact Us For Availability
View on Model
7
Switch, Infinite (6`` Unit (2))
Switch, Infinite (6`` Unit (2)) WPL 3148967 Contact Us For Availability
View on Model
8
Light, Indicator (2) (Includes Lens Part No.3
Light, Indicator (2) (Includes Lens Part No.3 WPL 313461 Contact Us For Availability
View on Model
9
Screw, 10-32 x .5 (Ground Wire)
Screw, 10-32 x .5 (Ground Wire) WPL 3150532 Contact Us For Availability
View on Model
13
Medallion, Surface Unit
Medallion, Surface Unit WPL 309195 Contact Us For Availability
View on Model
14
Knob, Control (4) (Black, Almond, Brush Chrom
Knob, Control (4) (Black, Almond, Brush Chrom WPL 3183120 Contact Us For Availability
View on Model
16
Bracket, Sensor
Bracket, Sensor WPL 3147830 Contact Us For Availability
View on Model
17
Thermostat
Thermostat WPL 3147833 Contact Us For Availability
View on Model
22
Screw,
Screw, WPL 254225 Contact Us For Availability
View on Model
22
Shield, Heat
Shield, Heat WPL 3185653 Contact Us For Availability
View on Model
26
Lens, Light
Lens, Light WPL 313602 Contact Us For Availability
View on Model
