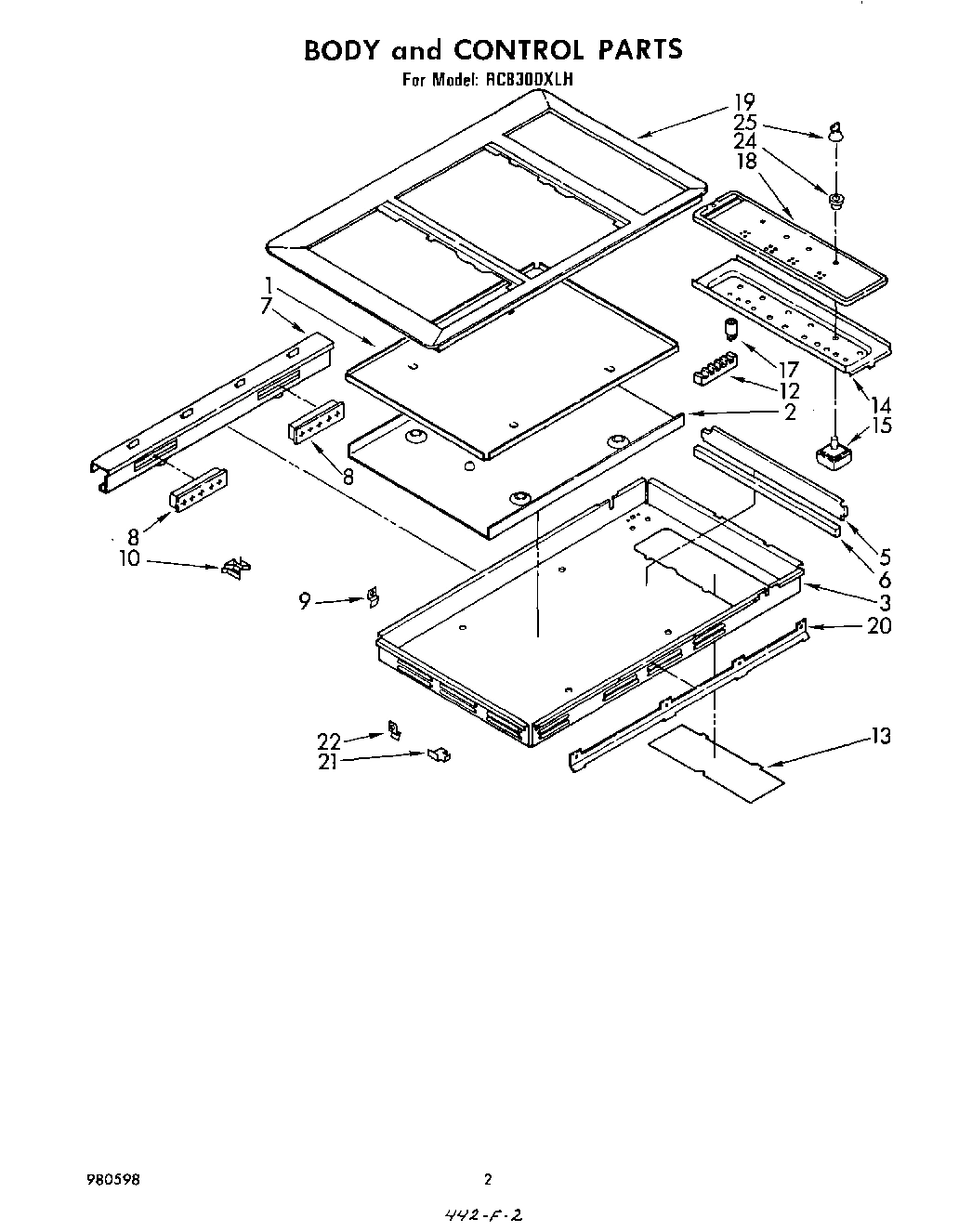

Model Whirlpool RC8300XLH – Common Parts &amp; Diagrams

1

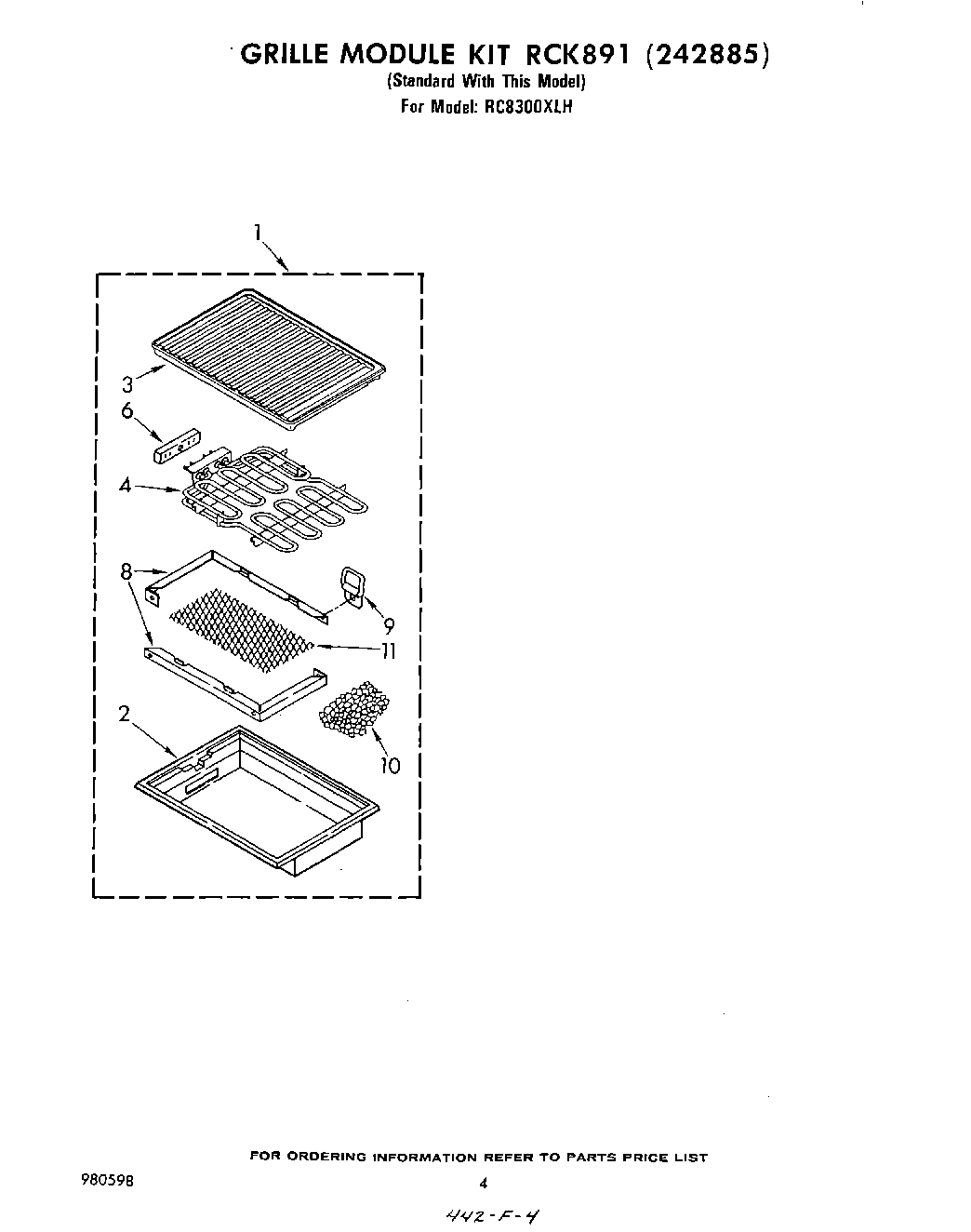

Grill Kit, Complete WPL 242885 Contact Us For Availability

1

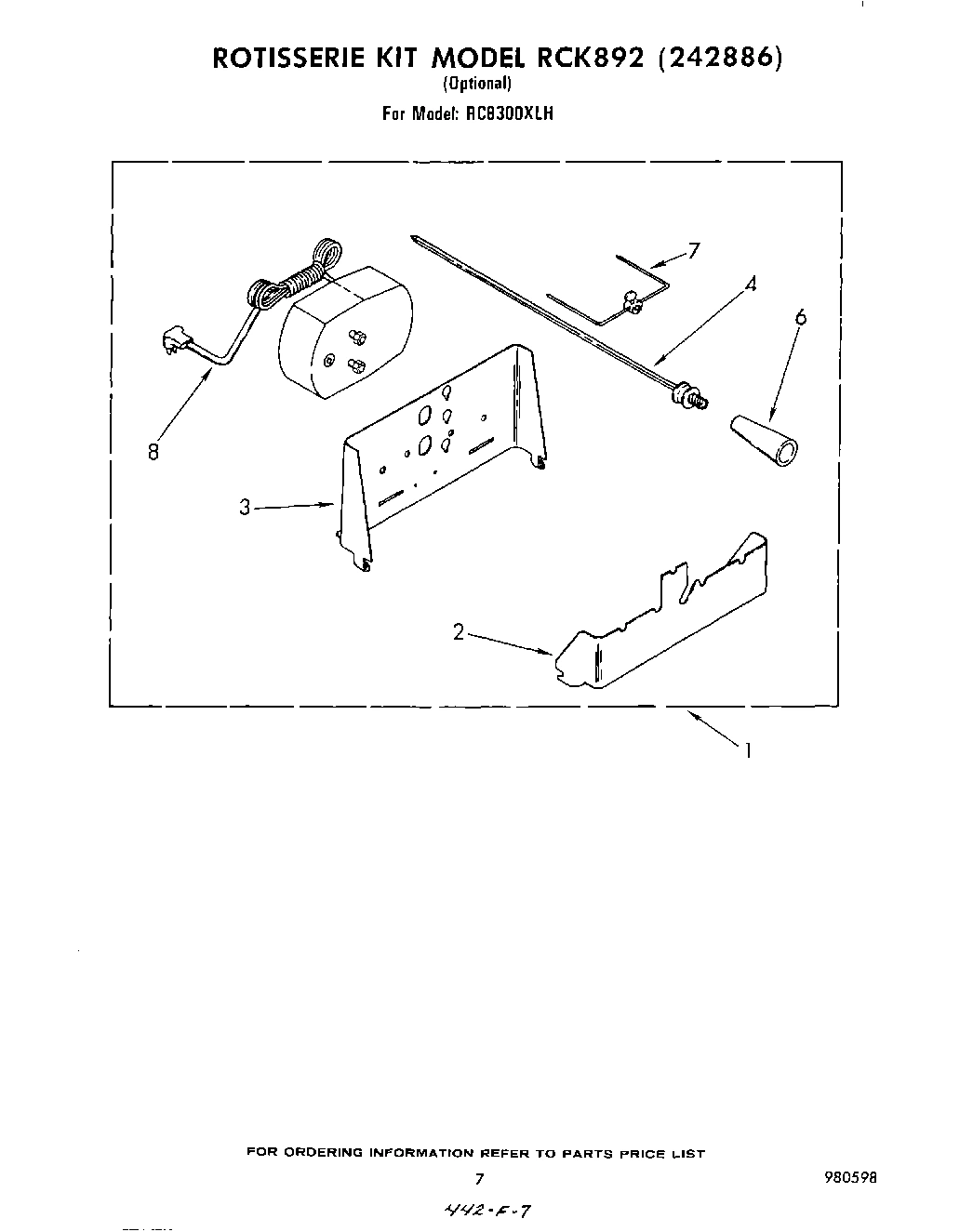

Rotisserie Kit, Complete WPL 242886 Contact Us For Availability

1

Retainer, Insulation WPL 877608 Contact Us For Availability

1

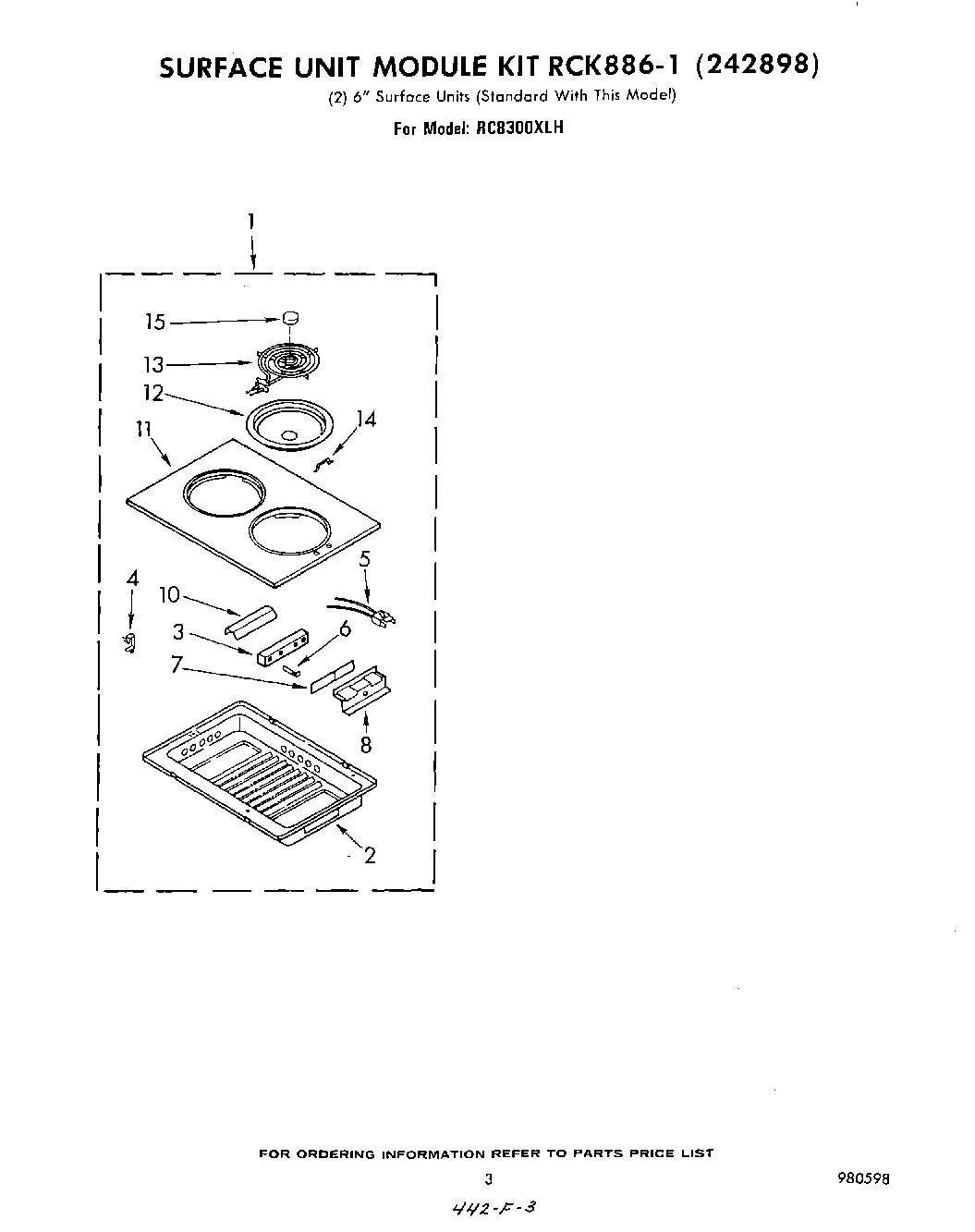

Surface Unit, Modular Complete WPL 242898 Contact Us For Availability

1

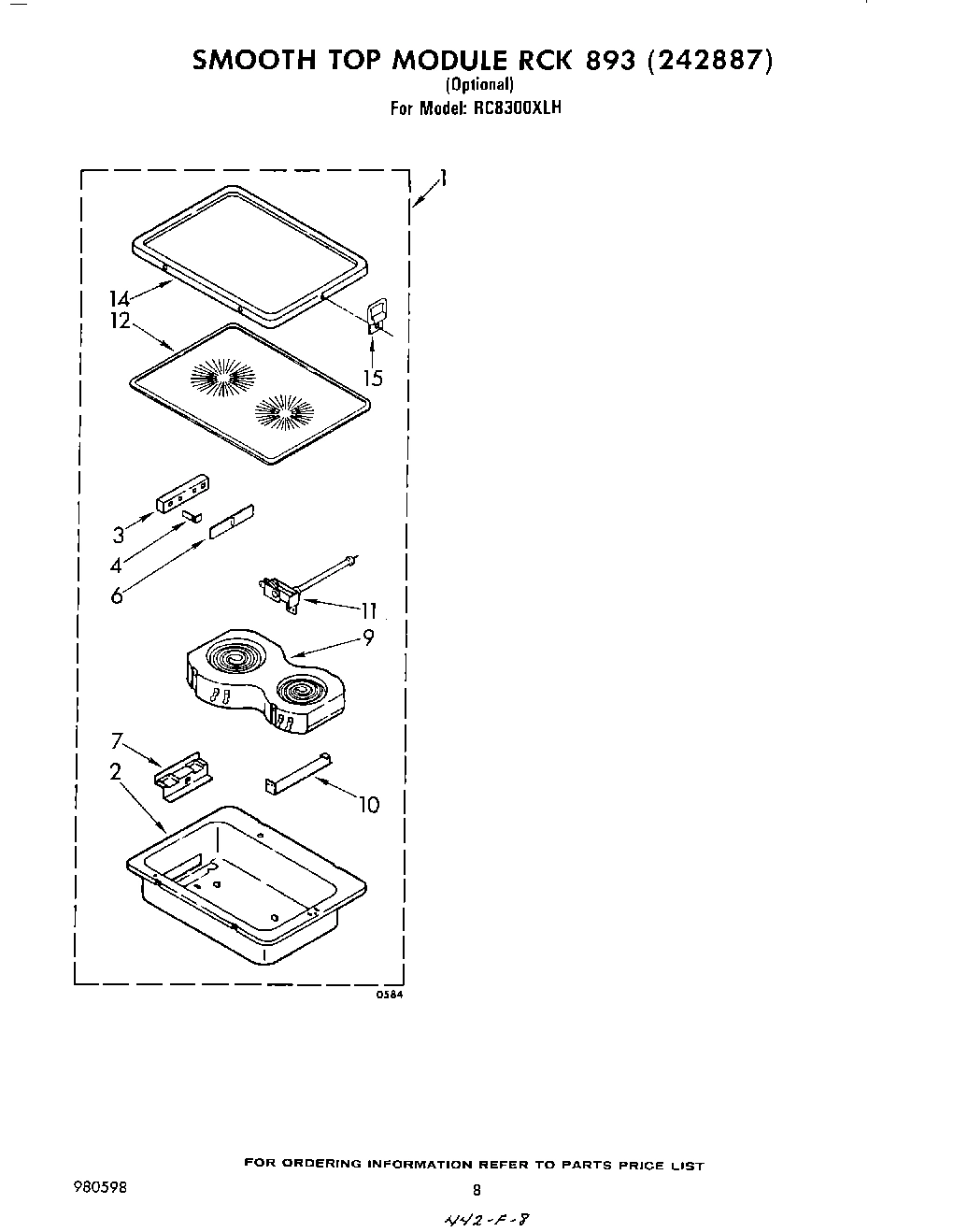

Smooth Top Module, Complete WPL 242887 Contact Us For Availability

2

Cover, Griddle (Chrome) WPL 868435 Contact Us For Availability

2

Pan, Surface Unit Modular WPL 877544 Contact Us For Availability

2

Pan, Grill WPL 877548 Contact Us For Availability

2

Plate, Front WPL 877596 Contact Us For Availability

2

Shield, Bottom WPL 877552 Contact Us For Availability

2

Pan, Surface Unit WPL 877598 Contact Us For Availability

3

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

3

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $4.48

3

Lifter, Griddle WPL 248568 Contact Us For Availability

3

Receptacle, Male WPL 868437 Contact Us For Availability

3

Rack, Grill (2) WPL 877549 Contact Us For Availability

3

Plate, Rear WPL 877597 Contact Us For Availability

3

Screw,10-24 x 1/2 WPL 680363 Contact Us For Availability

3

Box, Outer WPL 877553 Contact Us For Availability

4

Griddle WPL 868432 Contact Us For Availability

4

Screw, 10-24 x 1/2 WPL 868876 Contact Us For Availability

4

Clamp WPL 868466 Contact Us For Availability

4

Screw, 8-32 x 3/16 (4) WPL 486525 Contact Us For Availability

4

Terminal, Male (4) WPL 868438 Contact Us For Availability

4

Unit, Dual (2200W) WPL 877541 Contact Us For Availability

4

Rod, Skewer WPL 868454 Contact Us For Availability

5

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

5

terminal, ground WPL 868434 Contact Us For Availability

5

Divider, Box WPL 868417 Contact Us For Availability

6

Kit, Griddle (Complete) WPL 261950 Contact Us For Availability

6

Cooktop (6``/8``) WPL 868865 Contact Us For Availability

6

Insulator, Receptacle WPL 868814 Contact Us For Availability

6

Pushnut, 1/4`` WPL 868878 Contact Us For Availability

6

Handle, Rod WPL 241210 Contact Us For Availability

6

Pan, Foam WPL 868461 Contact Us For Availability

7

Pushnut, 1/8 WPL 866272 Contact Us For Availability

7

Bracket WPL 868440 Contact Us For Availability

7

Holder, Meat WPL 241209 Contact Us For Availability

7

Shield, Wire WPL 868418 Contact Us For Availability

8

Frame, Basket (2) WPL 877542 Contact Us For Availability

8

Motor, Rotisserie WPL 868455 Contact Us For Availability

8

Receptacle, Female (2) WPL 868420 Contact Us For Availability

9

Handle, Basket (2) WPL 877543 Contact Us For Availability

9

Unit, Assembly WPL 877599 Contact Us For Availability

Shield, Wire WPL 868686 Contact Us For Availability

Rocks, Lava (4 Lbs.) WPL 868460 Contact Us For Availability

Terminal, Female (10) WPL 868422 Contact Us For Availability

Bracket (2) WPL 877600 Contact Us For Availability

Screen, Basket (2) WPL 877609 Contact Us For Availability

Cooktop, Surface Unit (1) WPL 868462 Contact Us For Availability

Limit, Control (Short) WPL 877601 Contact Us For Availability

Limit, Control (Long) WPL 877602 Contact Us For Availability

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $3.06

Nut, 10-32 (6) WPL 487836 Contact Us For Availability

Screw, 10-24 x 7/8 (2) WPL 834649 Contact Us For Availability

Cooktop, Glass WPL 877611 Contact Us For Availability

13

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

13

Screw, 10-24 x 1/4 (2) WPL 868959 Contact Us For Availability

13

Cover, Access WPL 868423 Contact Us For Availability

Screw, 8-32 x 3/8 (4) WPL 868382 Contact Us For Availability

Bracket, Control WPL 877554 Contact Us For Availability

Handle, Cooktop WPL 868450 Contact Us For Availability

Frame, Cooktop WPL 877612 Contact Us For Availability

WP486754 Whirlpool Compactor Screw Backorder WPL WP486754 $2.51

Handle Assembly WPL 868866 Contact Us For Availability

Kit, Surface Unit Module (6``/8``) WPL 242903 Contact Us For Availability

Medallion WPL 868522 Contact Us For Availability

Switch, Infinite (4) WPL 868955 Contact Us For Availability

17

Light, Indicator (2) WPL 868433 Contact Us For Availability

18

Tape, Foam WPL 866454 Contact Us For Availability

18

Panel, Control (Glass) WPL 877555 Contact Us For Availability

19

Frame, Cooktop WPL 877556 Contact Us For Availability

20

Screw (5) WPL 865751 Contact Us For Availability

20

Clip (4) WPL 868467 Contact Us For Availability

20

Shield, Front WPL 877557 Contact Us For Availability

21

Spacer, End WPL 877558 Contact Us For Availability

22

Screw 10-24 x 1/2 WPL 868430 Contact Us For Availability

22

Clip, Receptacle Mounting WPL 868421 Contact Us For Availability

24

Bushing, Switch (4) WPL 868465 Contact Us For Availability

Control Knob (4) WPL 868431 Contact Us For Availability

Installation Instructions WPL 868967 Contact Us For Availability

Guide, Use & Care WPL 877515 Contact Us For Availability

List, Repair Parts WPL 980598 Contact Us For Availability
